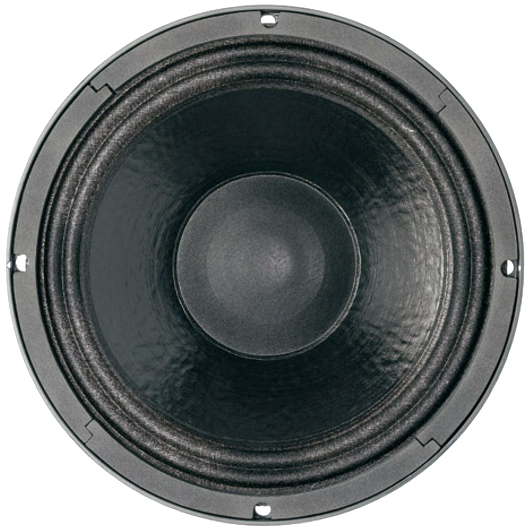

B&C Speaker 10NCX
8Ω
Coaxial
| Nominal diameter | 10″ / 225 mm |
| Resonance | 57 Hz |
| Q factor | 0.32 |
| Sensitivity | 94.4 dB |
| Linear excursion | ± 3 mm |
| Program Power | 400 W |
Discontinued
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.4dB

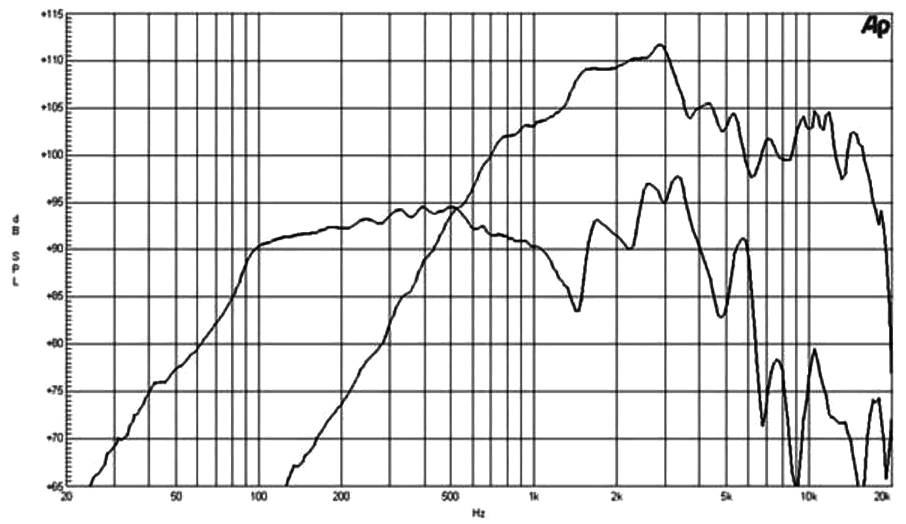

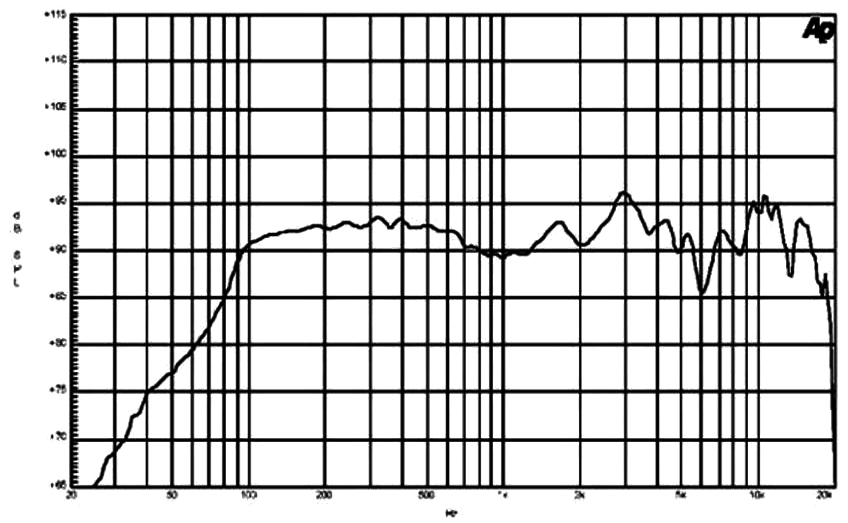

- Frequency response 60 - 18000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 57Hz
- Mechanical quality factor QMS 3.70
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion xmax 3mm
- Air volume displaced at xmax VD 96cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil

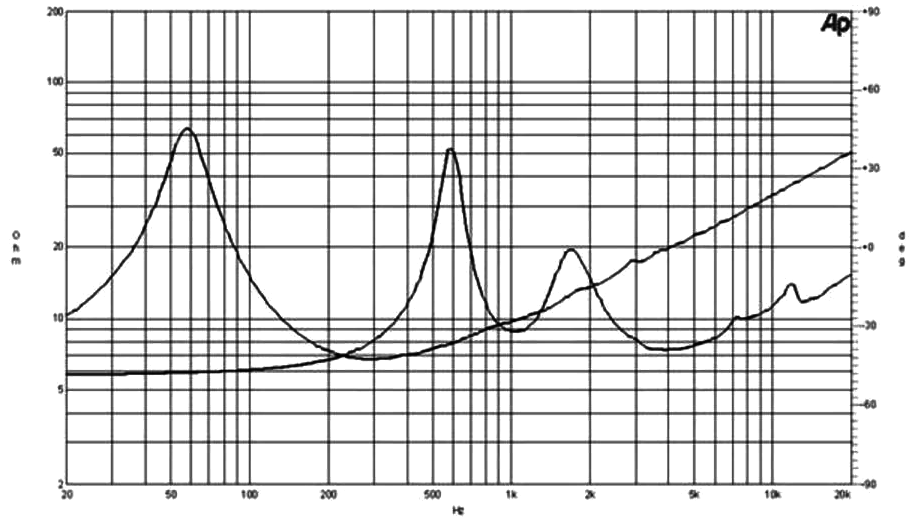

- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 1.2mH
- VC Diameter 65mm
- Winding material Aluminium
Magnet
- Force factor Bl 12.7N/A
- Motor constant Bl/√RE 5.37N/√W
- Material Neodymium Ring
Diaphragm
- Effective diameter 202mm
- Effective area SD 320cm²
- Moving mass MMS 28g
- Moving mass (without air load) MMD 23.7g
- Material Titanium
Suspensions
- Stiffness KMS 3.64N/mm
- Compliance CMS 275µm/N
- Equivalent volume to the compliance VAS 40L
- Mechanical resistance RMS 2.71N·s/m

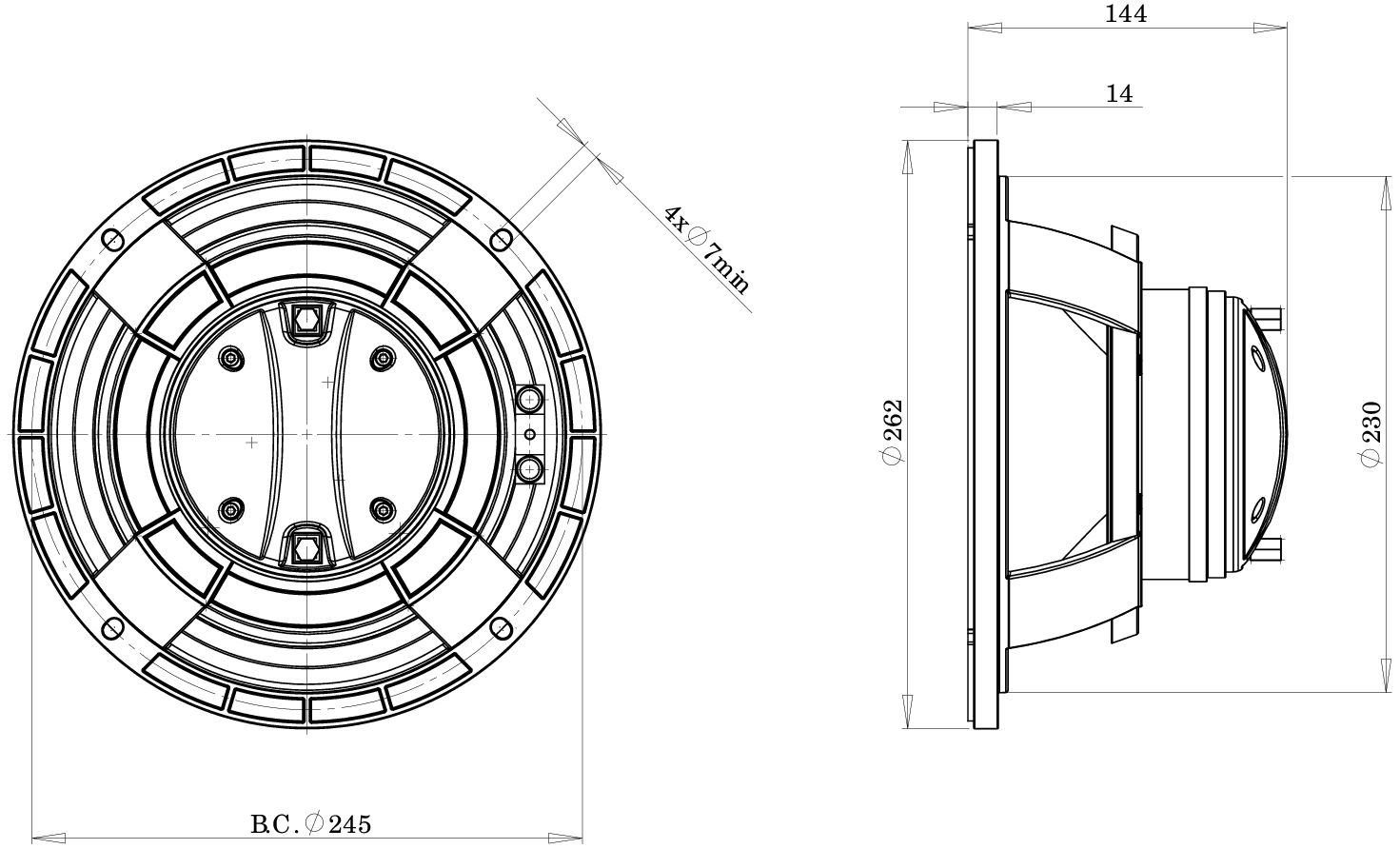

Dimensions
- Nominal diameter 10″
- 225mm
- Overall diameter 262mm
- Baffle cutout diameter 230mm
- Overall depth 144mm
- Flange thickness 14mm
- Mounting depth 130mm
- Volume occupied by the driver (estimated) 1.8L
- Net weight 3.9kg
