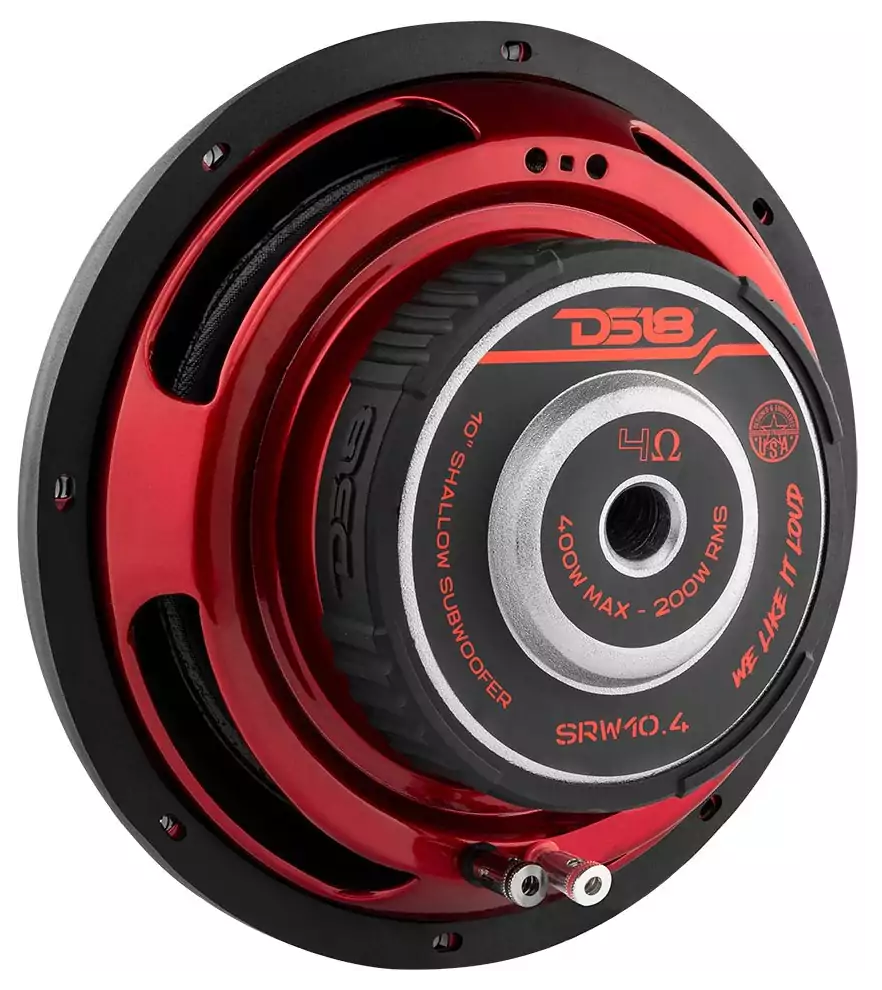

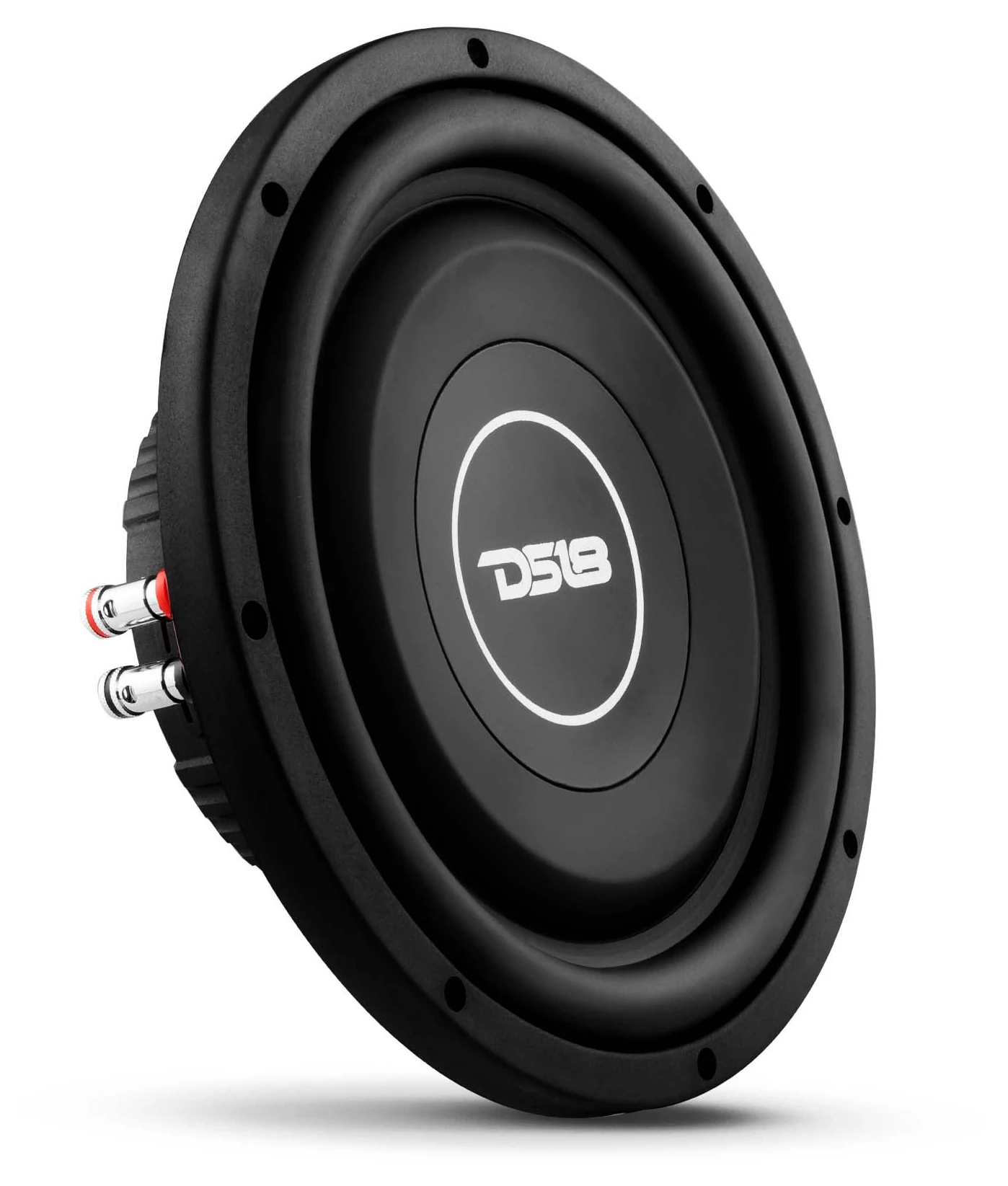

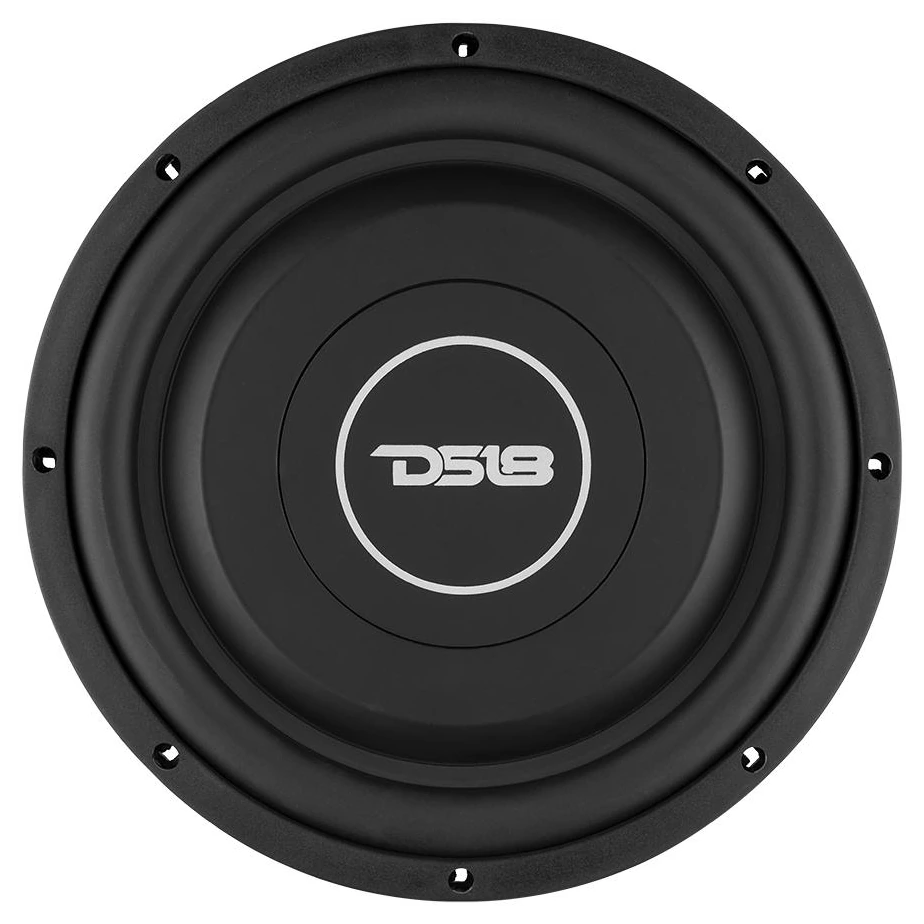

DS18 SRW10.4
2x4Ω
4Ω
Shallow Subwoofer
| Nominal diameter | 10″ / 260 mm |
| Resonance | 48 Hz |
| Q factor | 0.88 |
| Sensitivity | 85.8 dB |
| Program Power | 400 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.8dB
- Frequency response 23 - 250Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 48Hz
- Mechanical quality factor QMS 7.92
- Electrical quality factor QES 0.99
- Total quality factor QTS 0.88
Large signal parameters
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 1.13mH
- VC Diameter 50.8mm
- Winding material SV
- Former material Aluminum
Magnet
- Force factor Bl 11.1N/A
- Motor constant Bl/√RE 6.04N/√W
- Diameter 140mm
- Weight 1.276kg
- Material Ferrite
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass MMS 121g
- Moving mass (without air load) MMD 116g
- Material Paper
Suspensions
- Stiffness KMS 11N/mm
- Compliance CMS 91µm/N
- Equivalent volume to the compliance VAS 17L
- Mechanical resistance RMS 4.59N·s/m
- Surround material Rubber

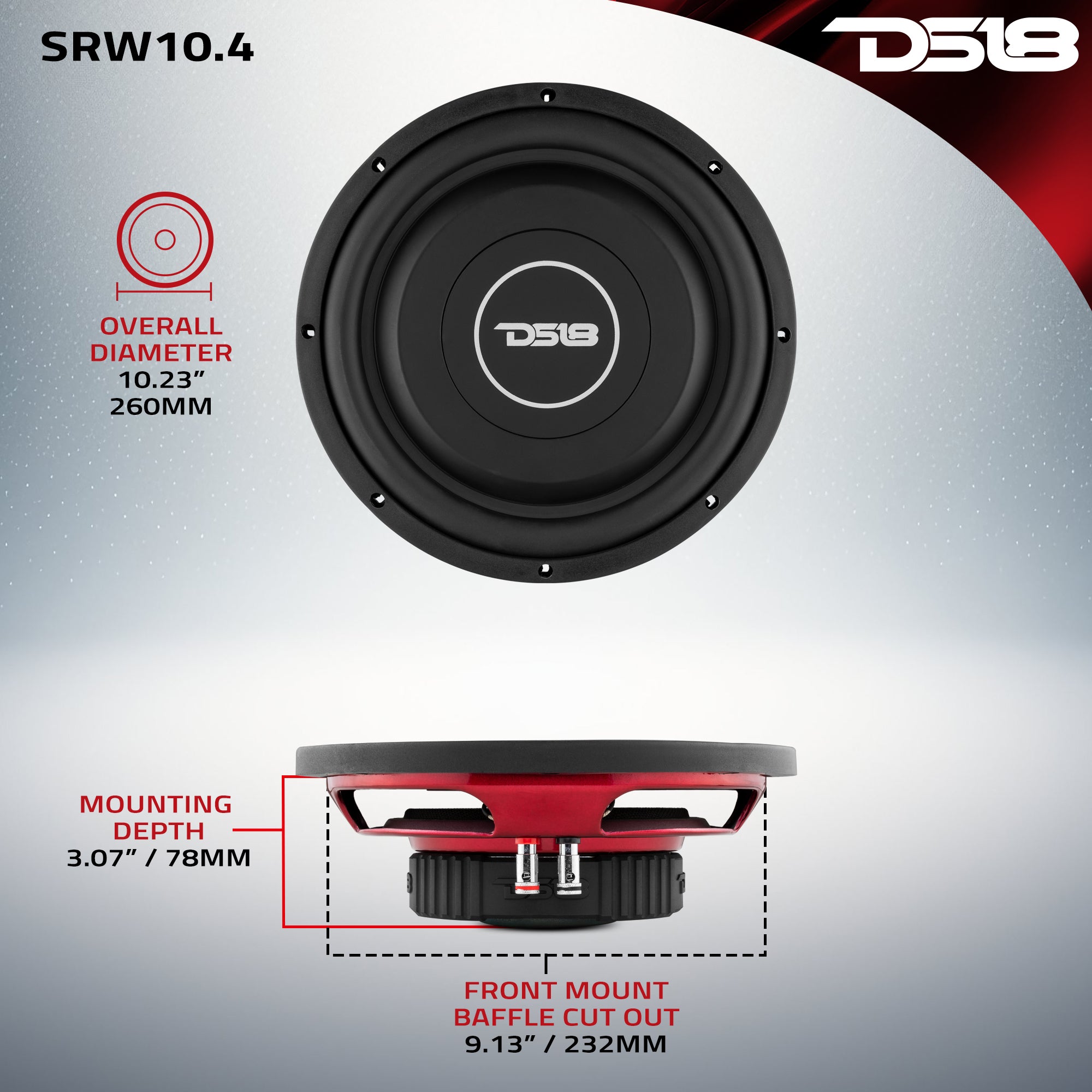

Dimensions
- Nominal diameter 10″
- 260mm
- Overall diameter 260mm
- Baffle cutout diameter 232mm
- Overall depth 92mm
- Flange thickness 14mm
- Mounting depth 78mm
- Volume occupied by the driver 1.86L
- Frame material Steel
