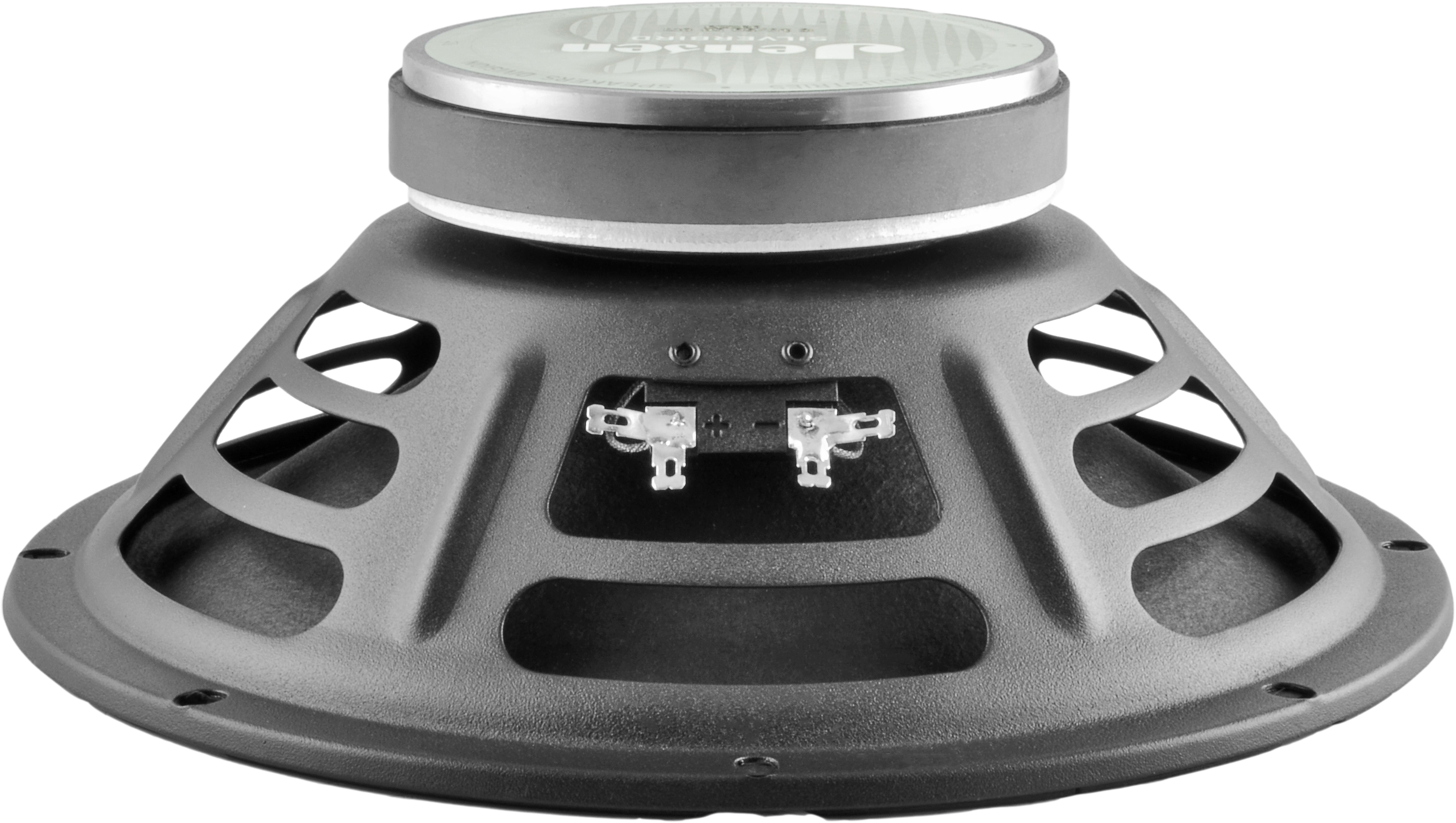

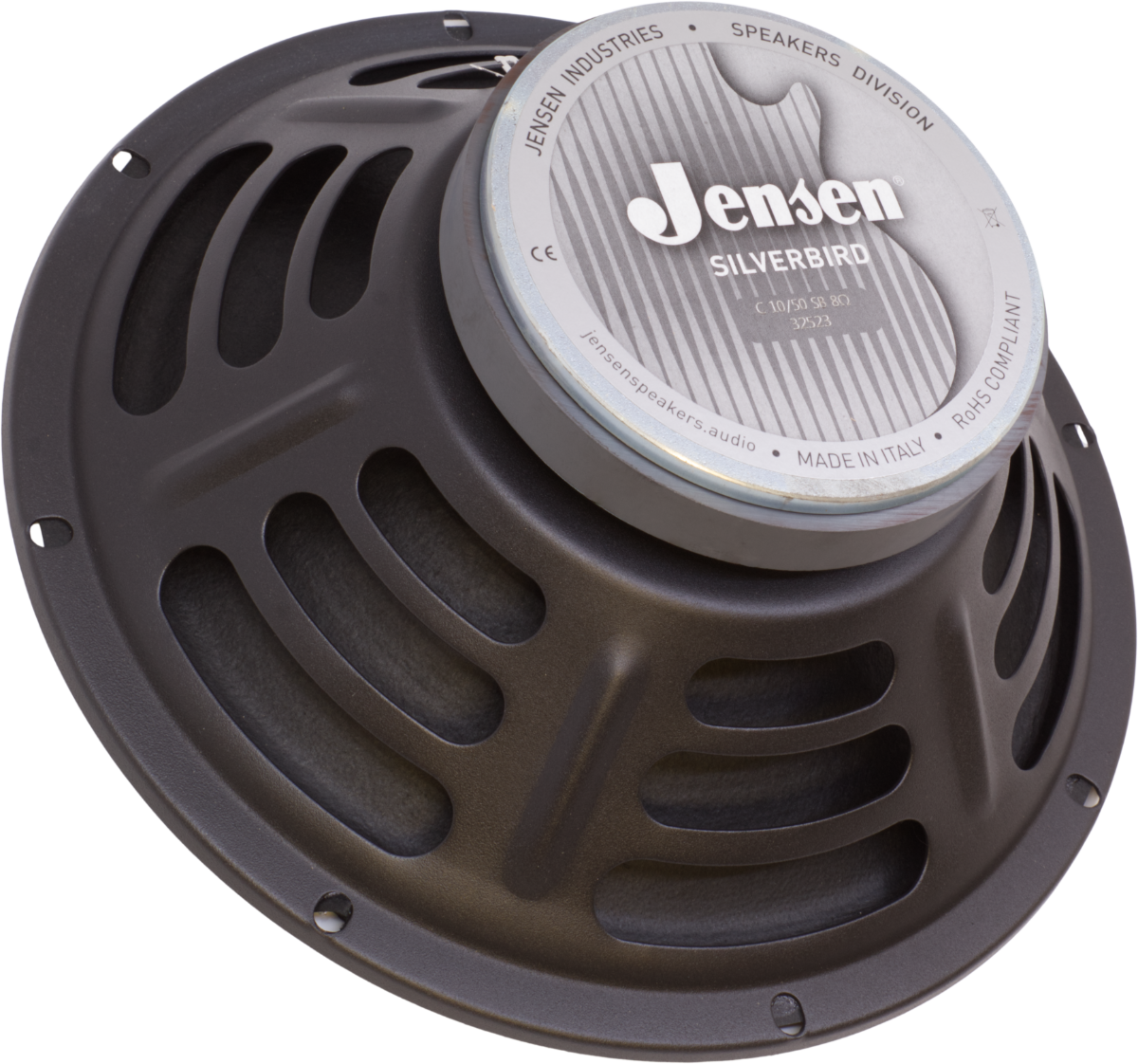

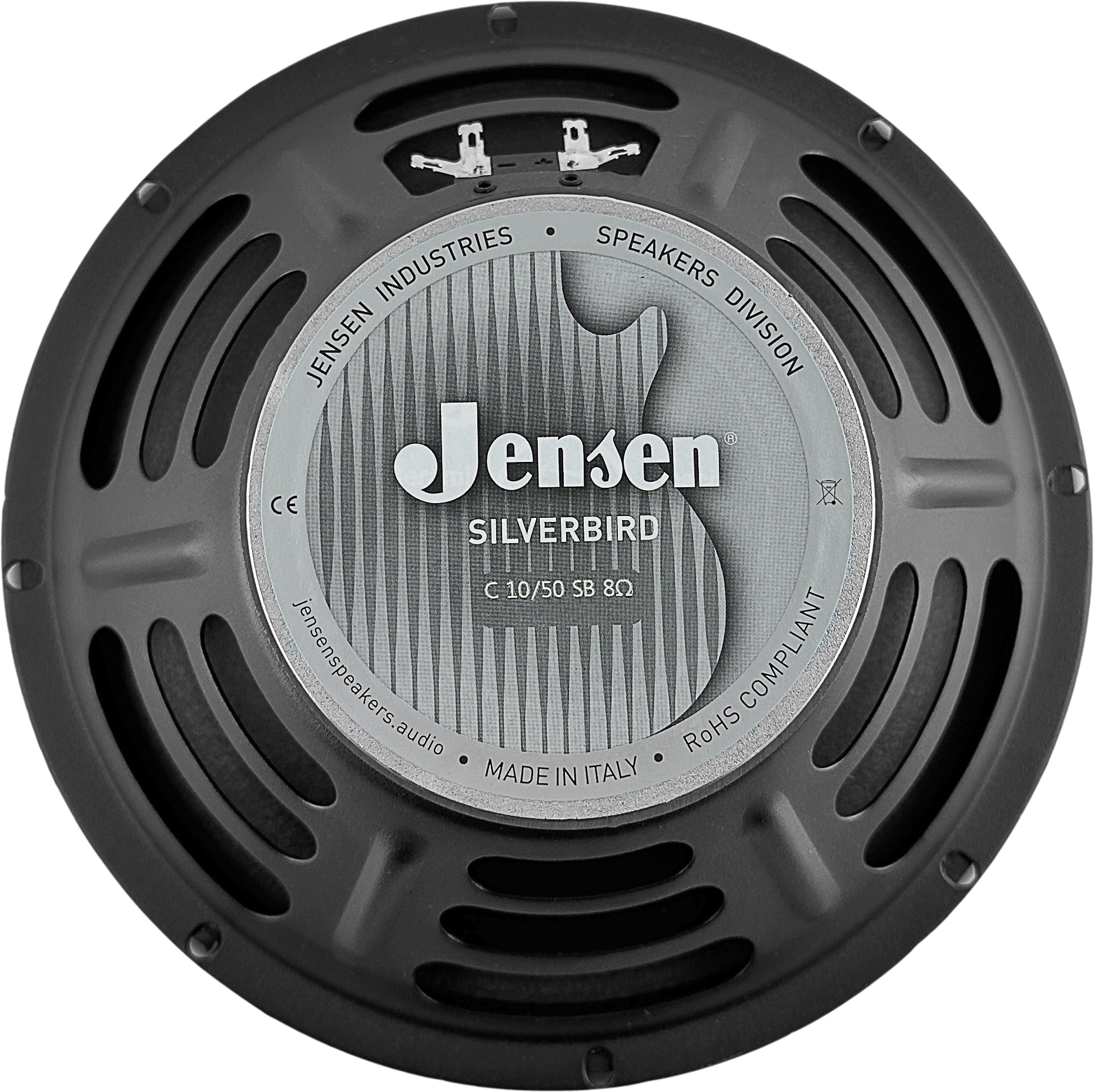

Jensen Silverbird C 10/50 SB
8Ω
16Ω
Guitar Speaker
| Nominal diameter | 10″ / 259 mm |
| Resonance | 93.1 Hz |
| Q factor | 1.04 |
| Sensitivity | 94.9 dB |
| Program Power | 100 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 93.1Hz
- Mechanical quality factor QMS 13.75
- Electrical quality factor QES 1.13
- Total quality factor QTS 1.04
Large signal parameters
- Power handling P 50W
- Program power Pmax 100W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 12.0Ω
- Inductance (1kHz) LE 0.79mH
- VC Diameter 38mm
- Winding height HVC 10mm
- Winding material Aluminum
- Former material Kapton
Magnet
- Flux density B 1.2T
- Force factor Bl 10.8N/A
- Motor constant Bl/√RE 3.11N/√W
- Air gap height HAG 6mm
- Weight 0.64kg
- Material Ferrite
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 18.5g
- Moving mass (without air load) MMD 14.1g
- Material Paper
Suspensions
- Stiffness KMS 6.33N/mm
- Compliance CMS 158µm/N
- Equivalent volume to the compliance VAS 24.3L
- Mechanical resistance RMS 0.79N·s/m
- Surround material Integrated Paper

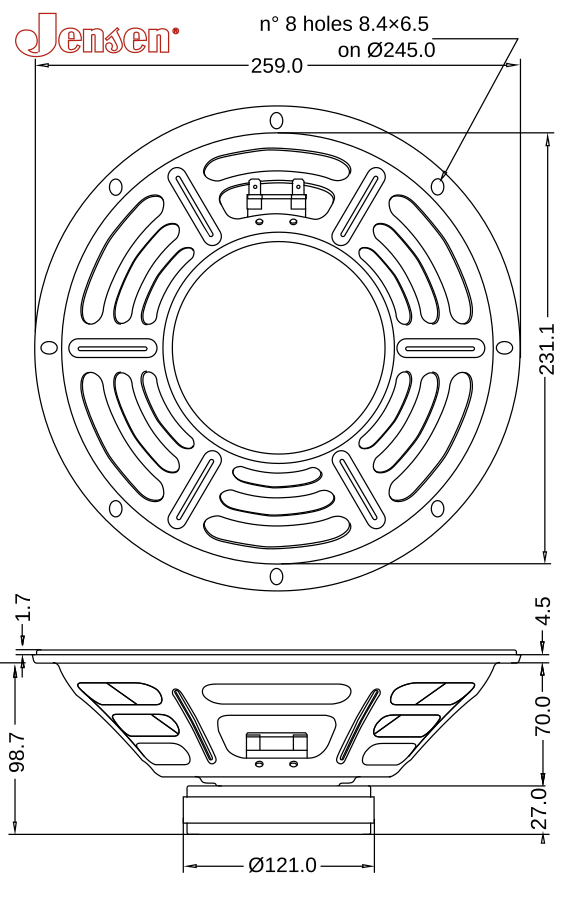

Dimensions
- Nominal diameter 10″
- 259mm
- Overall diameter 259mm
- Volume occupied by the driver (estimated) 0.91L
- Net weight 2.2kg
- Frame material Pressed Sheet
