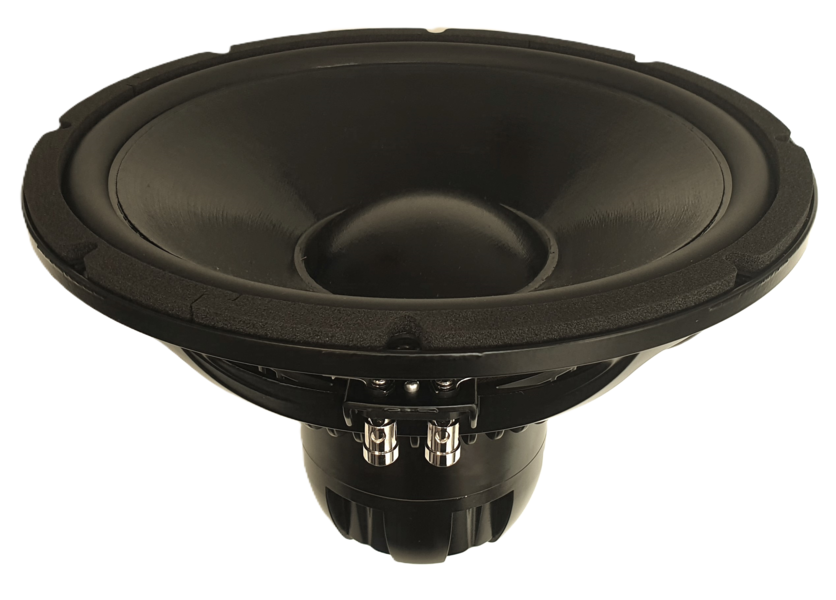

Eighteen Sound 12NTLS3500 8Ω
4Ω
8Ω
Subwoofer
| Nominal diameter | 12″ / 310 mm |
| Resonance | 41 Hz |
| Q factor | 0.41 |
| Sensitivity | 91.8 dB |
| Linear excursion | ± 7.9 mm |
| Program Power | 1500 W |
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91.8dB

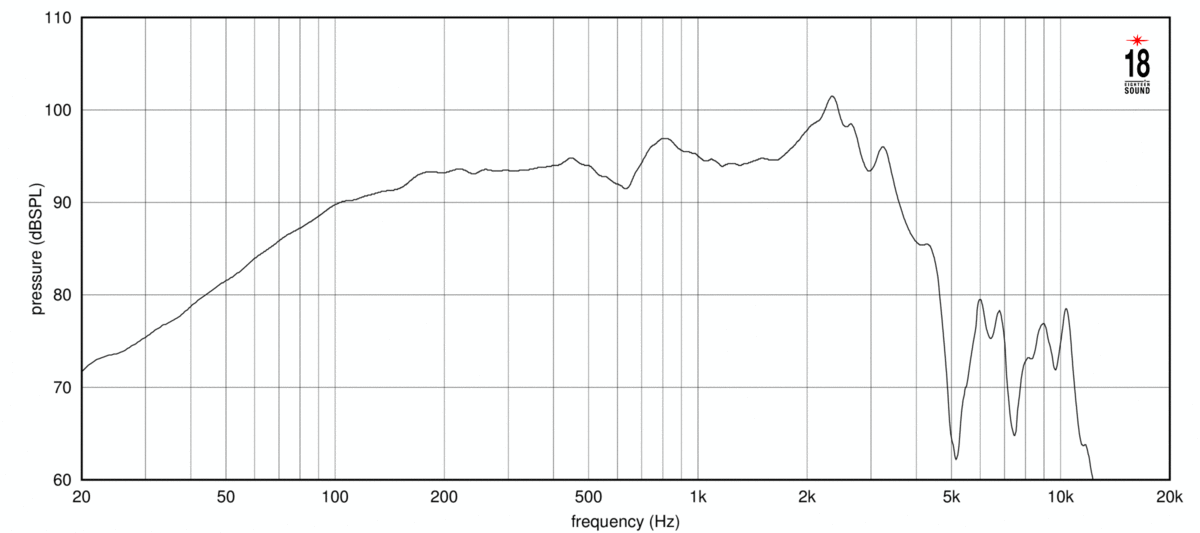

- Frequency response 40 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 8.50
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.41
Large signal parameters
- Maximum linear excursion xmax 7.9mm
- Air volume displaced at xmax VD 420cm³
- Power handling P 750W
- Program power Pmax 1500W
Voice Coil

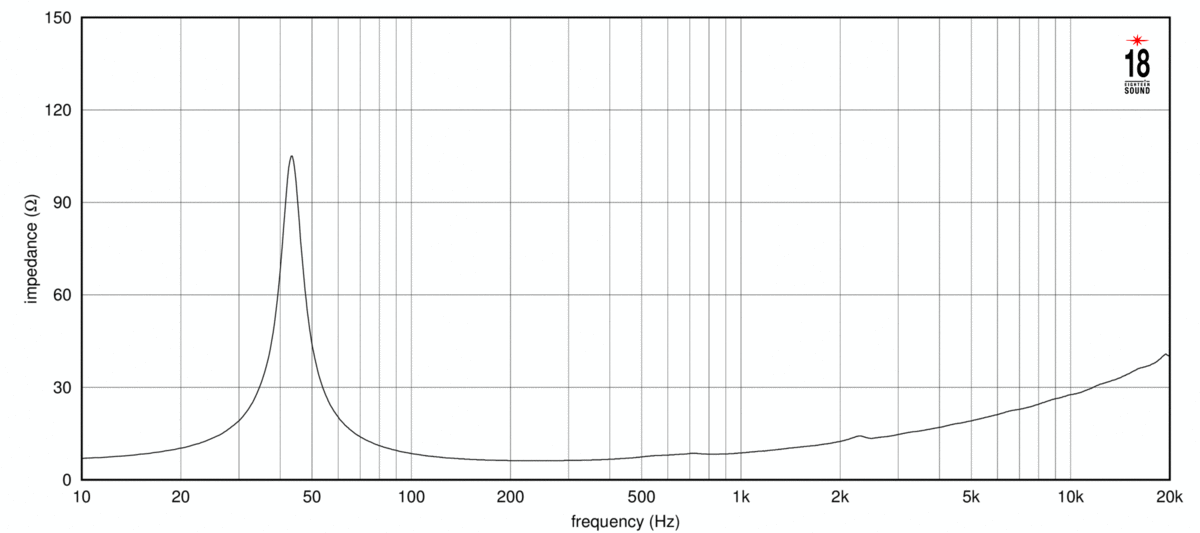

- Nominal impedance Z 8Ω
- DC resistance RE 5.8Ω
- Inductance (1kHz) LE 0.55mH
- VC Diameter 88mm
- Winding height HVC 22mm
Magnet
- Force factor Bl 17.8N/A
- Motor constant Bl/√RE 7.39N/√W
- Air gap height HAG 12.5mm
- Material Neodymium
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 92g
- Moving mass (without air load) MMD 83.4g
- Material Weather protected
Suspensions
- Stiffness KMS 6.06N/mm
- Compliance CMS 165µm/N
- Equivalent volume to the compliance VAS 65L
- Mechanical resistance RMS 2.79N·s/m

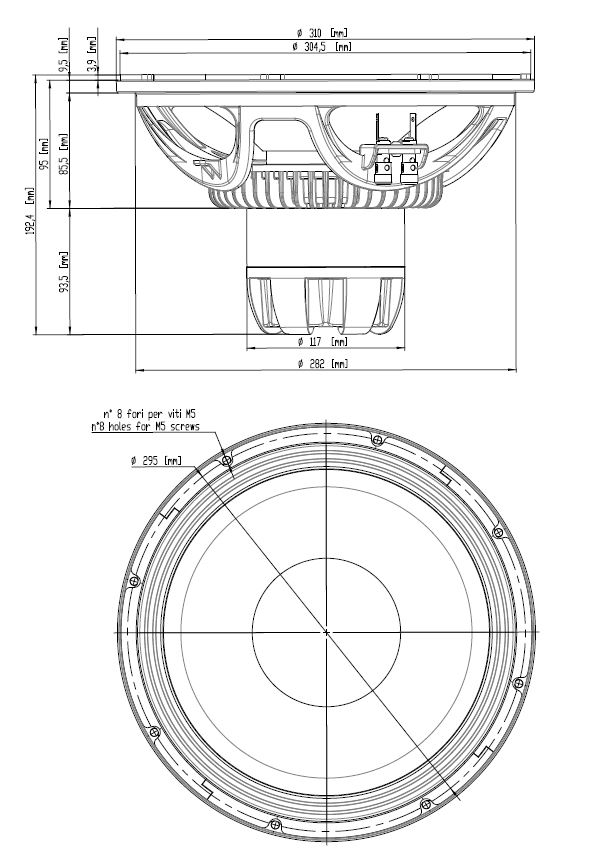

Dimensions
- Nominal diameter 12″
- 310mm
- Overall diameter 310mm
- Baffle cutout diameter 283mm
- Overall depth 195mm
- Flange thickness 9mm
- Mounting depth 186mm
- Volume occupied by the driver (estimated) 2.8L
- Net weight 4.7kg
.png)
.png)
.jpg)
