Subwoofer

•

Nominal diameter

″

•

SensitivitySPL_1W

Thiele & Small parameters

•

Resonance frequencyf_S

•

Mechanical quality factorQ_MS

•

Electrical quality factorQ_ES

•

Total quality factorQ_TS

Large signal parameters

•

Maximum linear excursionx_max

•

Air volume displaced at x_maxV_D

cm³

•

Program powerP_max

Voice Coil & Magnet

•

Nominal impedanceZ

•

DC resistanceR_E

•

Force factorBl

N/A

•

Motor constantBl/√R_E

N/√W

•

InductanceL_E

•

VC Diameter

Diaphragm

•

Effective diameter

•

Effective areaS_D

cm²

•

Moving massM_MS

Suspensions

•

StiffnessK_MS

N/mm

•

ComplianceC_MS

µm/N

•

Equivalent volume to C_MSV_AS

•

Mechanical resistanceR_MS

N·s/m

Dimensions

•

Overall size

•

Baffle cutout diameter

•

Overall depth

•

Mounting depth

•

Volume occupied

•

Net weight

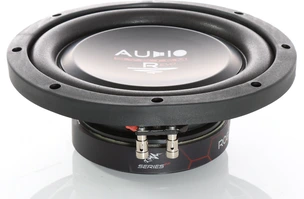

Audio System R 08 FLAT EVO 2 Shallow Subwoofer

Audio System R 08 FLAT EVO 2 4 Ω
8″ Shallow Subwoofer
fS	56.4 Hz
SD	215 cm²
35 - 120 Hz
QTS	0.59
xmax	5 mm
SPL1W	81.5 dB
Bl/√RE	5.53
Pmax	275 W

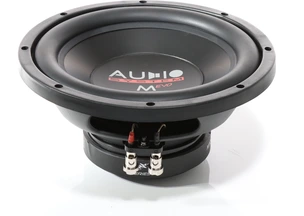

Audio System M 10 EVO2 2 x 2 Ω
10″ Subwoofer
fS	35.8 Hz
SD	345 cm²
38 - 120 Hz
QTS	0.45
xmax	7.5 mm
SPL1W	86.3 dB
Bl/√RE	7.12
Pmax	400 W

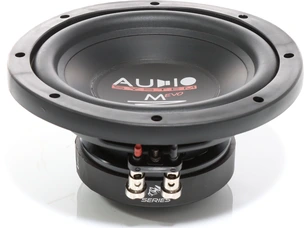

Audio System M 08 EVO 4 Ω
8″ Subwoofer
fS	39 Hz
SD	215 cm²
40 - 120 Hz
QTS	0.40

SPL1W	87.4 dB
Bl/√RE	4.75
Pmax	300 W

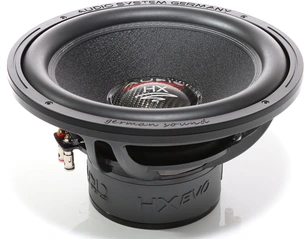

Audio System HX 12 EVO 2 x 2 Ω
12″ Subwoofer
fS	33 Hz
SD	435 cm²
20 - 1000 Hz
QTS	0.51
xmax	6 mm
SPL1W	85.7 dB
Bl/√RE	6.83
Pmax	600 W

Audio System HX 10 EVO 2 x 2 Ω
10″ Subwoofer
fS	35 Hz
SD	275 cm²
22 - 1000 Hz
QTS	0.50
xmax	5 mm
SPL1W	83.9 dB
Bl/√RE	5.86
Pmax	500 W

Audio System HX 08 EVO 2 x 2 Ω
8″ Subwoofer
fS	36 Hz
SD	185 cm²
30 - 350 Hz
QTS	0.52
xmax	5 mm
SPL1W	82.1 dB
Bl/√RE	5.37
Pmax	350 W

Audio System CO 06 EVO 4 Ω
6.5″ Subwoofer
fS	54.9 Hz
SD	129 cm²
45 - 200 Hz
QTS	0.42
xmax	7 mm
SPL1W	90.4 dB
Bl/√RE	8.27
Pmax	240 W

Audio System X 12 EVO 2 x 4 Ω
12″ Subwoofer
fS	27.9 Hz
SD	490 cm²
25 - 100 Hz
QTS	0.37
xmax	15 mm
SPL1W	89.4 dB
Bl/√RE	10.8
Pmax	1500 W

Audio System X 10 EVO 2 x 2 Ω
10″ Subwoofer
fS	29.6 Hz
SD	330 cm²
40 - 140 Hz
QTS	0.36
xmax	15 mm
SPL1W	83.9 dB
Bl/√RE	11.2
Pmax	1000 W

Audio System X 08 EVO 2 x 2 Ω
8″ Subwoofer
fS	40.4 Hz
SD	205 cm²
40 - 140 Hz
QTS	0.36
xmax	9.5 mm
SPL1W	85.8 dB
Bl/√RE	8.05
Pmax	700 W

Audio System X 06 EVO 2 x 2 Ω
6.5″ Subwoofer
fS	56 Hz
SD	150 cm²
45 - 150 Hz
QTS	0.35
xmax	9 mm
SPL1W	86.3 dB
Bl/√RE	7.49
Pmax	500 W

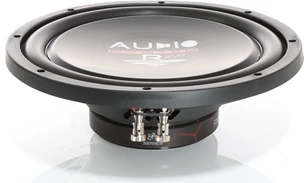

Audio System R 12 FLAT EVO 2 Shallow Subwoofer

Audio System R 12 FLAT EVO 2 4 Ω
12″ Shallow Subwoofer
fS	34.2 Hz
SD	510 cm²
35 - 100 Hz
QTS	0.52
xmax	7.5 mm
SPL1W	87.5 dB
Bl/√RE	7.86
Pmax	575 W

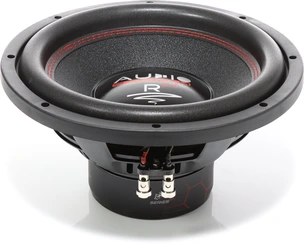

Audio System R 12 FA EVO 4 Ω
12″ Subwoofer
fS	37 Hz
SD	498 cm²
22 - 120 Hz
QTS	1.02
xmax	13 mm
SPL1W	84.8 dB
Bl/√RE	6.61
Pmax	575 W

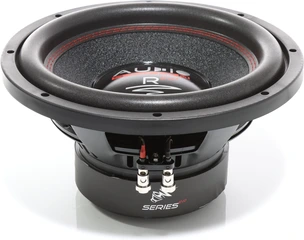

Audio System R 12 EVO 2 x 4 Ω
12″ Subwoofer
fS	34.9 Hz
SD	510 cm²
30 - 100 Hz
QTS	0.53
xmax	13 mm
SPL1W	86.1 dB
Bl/√RE	9.67
Pmax	1000 W

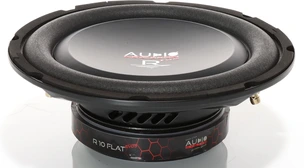

Audio System R 10 FLAT EVO 3-D4 Shallow Subwoofer

Audio System R 10 FLAT EVO 3-D4 2 x 4 Ω
10″ Shallow Subwoofer
fS	36.8 Hz
SD	330 cm²
35 - 120 Hz
QTS	0.44
xmax	8.8 mm
SPL1W	86.4 dB
Bl/√RE	4.77
Pmax	400 W

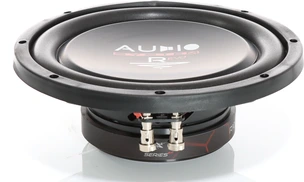

Audio System R 10 FLAT EVO 2 Shallow Subwoofer

Audio System R 10 FLAT EVO 2 4 Ω
10″ Shallow Subwoofer
fS	34.5 Hz
SD	330 cm²
35 - 120 Hz
QTS	0.52
xmax	7.5 mm
SPL1W	85.7 dB
Bl/√RE	7.43
Pmax	400 W

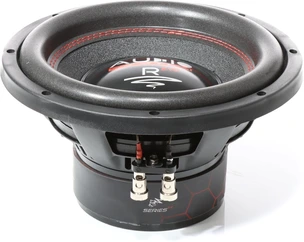

Audio System R 10 FA EVO 4 Ω
10″ Subwoofer
fS	38 Hz
SD	330 cm²
25 - 120 Hz
QTS	0.65
xmax	11 mm
SPL1W	83 dB
Bl/√RE	8.26
Pmax	450 W

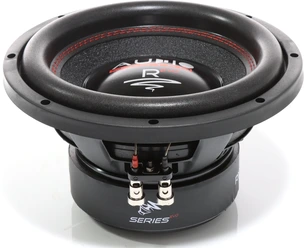

Audio System R 10 EVO 2 x 4 Ω
10″ Subwoofer
fS	34.5 Hz
SD	370 cm²
35 - 120 Hz
QTS	0.52
xmax	10.8 mm
SPL1W	83.9 dB
Bl/√RE	5.35
Pmax	700 W

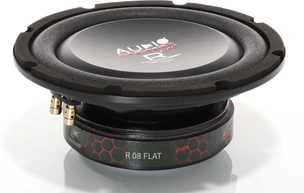

Audio System R 08 FLAT EVO 3-D4 Shallow Subwoofer

Audio System R 08 FLAT EVO 3-D4 2 x 4 Ω
8″ Shallow Subwoofer
fS	59 Hz
SD	211 cm²
35 - 120 Hz
QTS	0.46
xmax	6.3 mm
SPL1W	85.3 dB
Bl/√RE	4.14
Pmax	300 W

Audio System R 08 EVO 2 x 4 Ω
8″ Subwoofer
fS	39.9 Hz
SD	215 cm²
42 - 140 Hz
QTS	0.38
xmax	8 mm
SPL1W	81.4 dB
Bl/√RE	2.99
Pmax	500 W

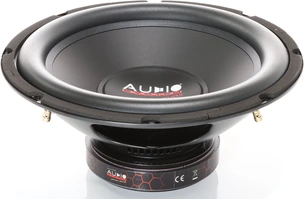

Audio System M 12 EVO2-D4 2 x 4 Ω
12″ Subwoofer
fS	33 Hz
SD	510 cm²
38 - 120 Hz
QTS	0.43
xmax	6 mm
SPL1W	85.7 dB
Bl/√RE	4.92
Pmax	650 W

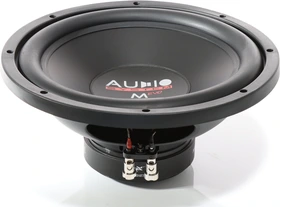

Audio System M 12 EVO2 2 x 2 Ω
12″ Subwoofer
fS	33 Hz
SD	510 cm²
38 - 120 Hz
QTS	0.43
xmax	6 mm
SPL1W	88.7 dB
Bl/√RE	6.96
Pmax	650 W

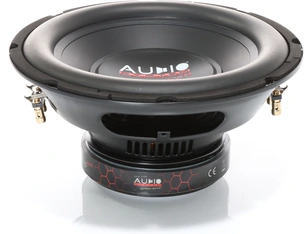

Audio System M 10 EVO2-D4 2 x 4 Ω
10″ Subwoofer
fS	35.8 Hz
SD	345 cm²
38 - 120 Hz
QTS	0.45
xmax	7.5 mm
SPL1W	83.3 dB
Bl/√RE	5.03
Pmax	400 W

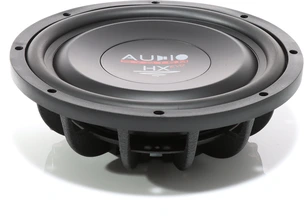

Audio System HX 12 FLAT EVO Shallow Subwoofer

Audio System HX 12 FLAT EVO 2 x 2 Ω
12″ Shallow Subwoofer
fS	35.1 Hz
SD	552 cm²
25 - 150 Hz
QTS	0.68
xmax	5 mm
SPL1W	86.5 dB
Bl/√RE	6.73
Pmax	800 W

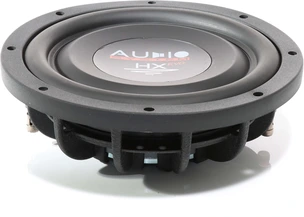

Audio System HX 10 FLAT EVO Shallow Subwoofer

Audio System HX 10 FLAT EVO 2 x 2 Ω
10″ Shallow Subwoofer
fS	40.6 Hz
SD	363 cm²
30 - 200 Hz
QTS	0.68
xmax	4 mm
SPL1W	84 dB
Bl/√RE	6.25
Pmax	600 W

Audio System H 33 EVO 2 x 1 Ω
33″ Subwoofer
fS	25.2 Hz
SD	4020 cm²
20 - 70 Hz
QTS	0.41
xmax	36 mm
SPL1W	95.1 dB
Bl/√RE	19.8
Pmax	10000 W

Audio System H 15 EVO 2 x 2 Ω
15″ Subwoofer
fS	34 Hz
SD	835 cm²
24 - 220 Hz
QTS	0.62
xmax	11 mm
SPL1W	89.5 dB
Bl/√RE	10.7
Pmax	3000 W

Audio System H 12 EVO 2 x 2 Ω
12″ Subwoofer
fS	36 Hz
SD	534 cm²
28 - 260 Hz
QTS	0.45
xmax	11 mm
SPL1W	88 dB
Bl/√RE	11.5
Pmax	2600 W

Audio System H 10 EVO 2 x 2 Ω
10″ Subwoofer
fS	38 Hz
SD	366 cm²
32 - 260 Hz
QTS	0.37
xmax	11 mm
SPL1W	86 dB
Bl/√RE	11.7
Pmax	2400 W

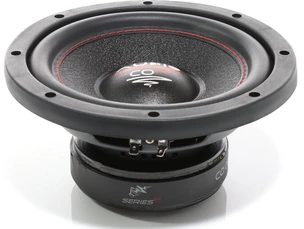

Audio System CO 08 QC EVO 4 x 16 Ω
8″ Subwoofer
fS	42 Hz
SD	206 cm²
40 - 200 Hz
QTS	0.49
xmax	7.5 mm
SPL1W	85.6 dB
Bl/√RE	4.52
Pmax	280 W

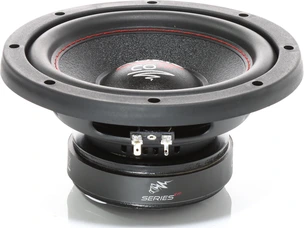

Audio System CO 08 EVO 4 Ω
8″ Subwoofer
fS	41.9 Hz
SD	206 cm²
40 - 200 Hz
QTS	0.44
xmax	7.5 mm
SPL1W	87 dB
Bl/√RE	4.92
Pmax	280 W

Audio System CO 08 DC EVO 2 x 4 Ω
8″ Subwoofer
fS	42.3 Hz
SD	206 cm²
40 - 200 Hz
QTS	0.44
xmax	7.5 mm
SPL1W	86.8 dB
Bl/√RE	5.22
Pmax	280 W

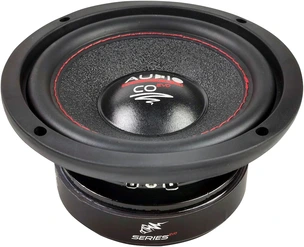

Audio System CO 06 QC EVO 4 x 16 Ω
6.5″ Subwoofer
fS	50.7 Hz
SD	129 cm²
45 - 200 Hz
QTS	0.34
xmax	7 mm
SPL1W	81.1 dB
Bl/√RE	3.51
Pmax	240 W

Audio System CO 06 DC EVO 2 x 4 Ω
6.5″ Subwoofer
fS	53.8 Hz
SD	129 cm²
45 - 200 Hz
QTS	0.37
xmax	7 mm
SPL1W	86.3 dB
Bl/√RE	5.18
Pmax	240 W

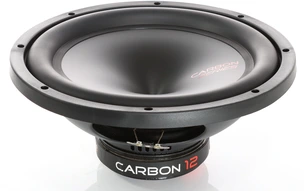

Audio System CARBON12 4 Ω
12″ Subwoofer
fS	28.2 Hz
SD	490 cm²
27 - 1000 Hz
QTS	0.59
xmax	5.5 mm
SPL1W	87.2 dB
Bl/√RE	5.2
Pmax	400 W

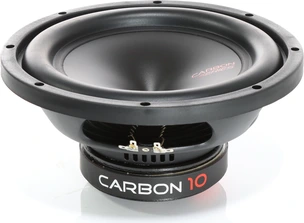

Audio System CARBON10 4 Ω
10″ Subwoofer
fS	33.8 Hz
SD	314 cm²
32 - 1500 Hz
QTS	0.68
xmax	5.5 mm
SPL1W	84.1 dB
Bl/√RE	5.31
Pmax	350 W

GAS Audio Power MAX S2-15D2 2 x 2 Ω
15″ Subwoofer
fS	26.6 Hz
SD	742 cm²
20 - 200 Hz
QTS	0.29
xmax	25 mm
SPL1W	87.5 dB
Bl/√RE	16
Pmax	5000 W

GAS Audio Power MAX S2-15D1 2 x 1 Ω
15″ Subwoofer
fS	31 Hz
SD	742 cm²
20 - 200 Hz
QTS	0.45
xmax	25 mm
SPL1W	87.1 dB
Bl/√RE	12.3
Pmax	5000 W

GAS Audio Power MAX S2-12D2 2 x 2 Ω
12″ Subwoofer
fS	27.9 Hz
SD	479 cm²
20 - 200 Hz
QTS	0.29
xmax	22.5 mm
SPL1W	85.2 dB
Bl/√RE	14.5
Pmax	5000 W

GAS Audio Power MAX S2-12D1 2 x 1 Ω
12″ Subwoofer
fS	34.8 Hz
SD	479 cm²
20 - 200 Hz
QTS	0.42
xmax	22.5 mm
SPL1W	85.3 dB
Bl/√RE	12.3
Pmax	5000 W
