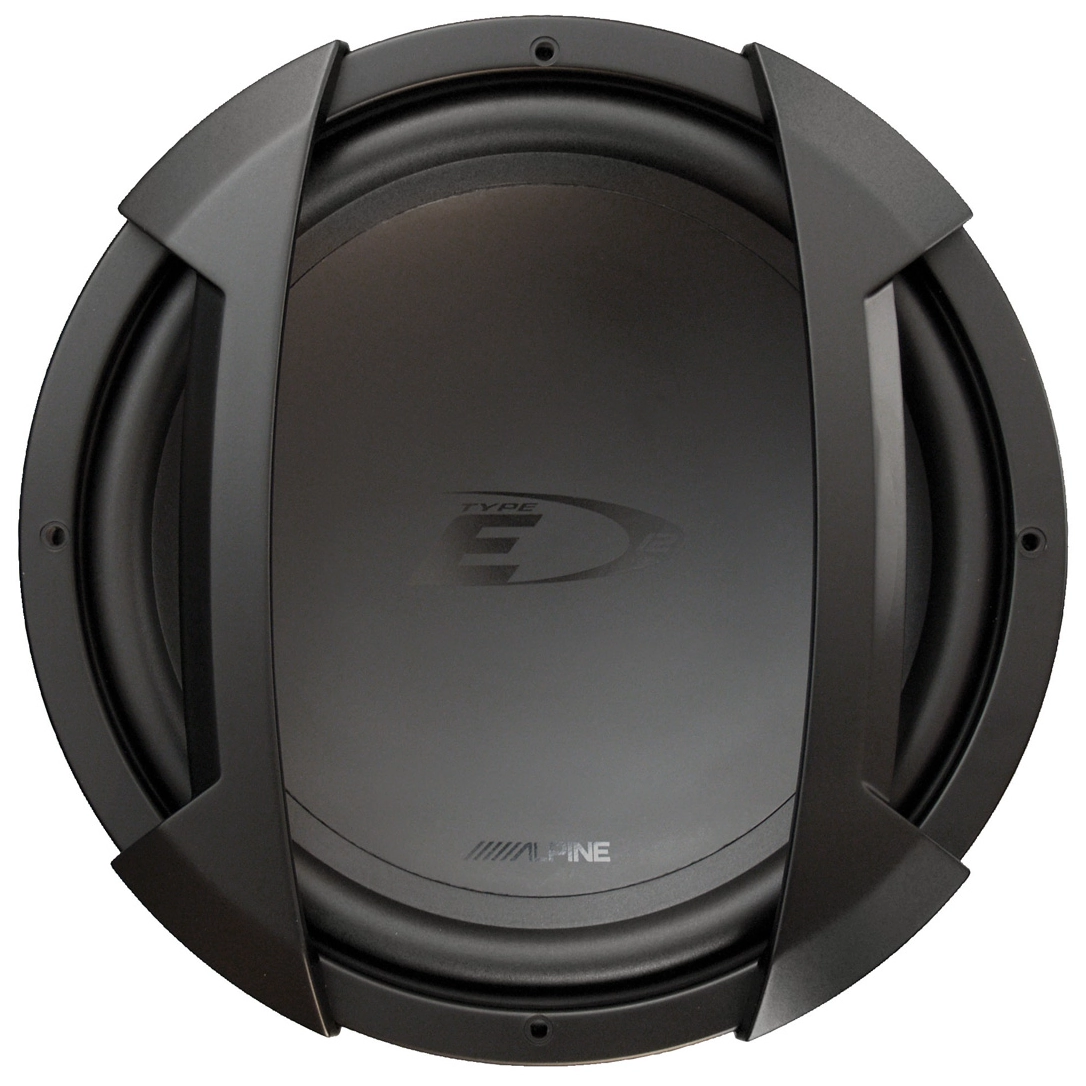

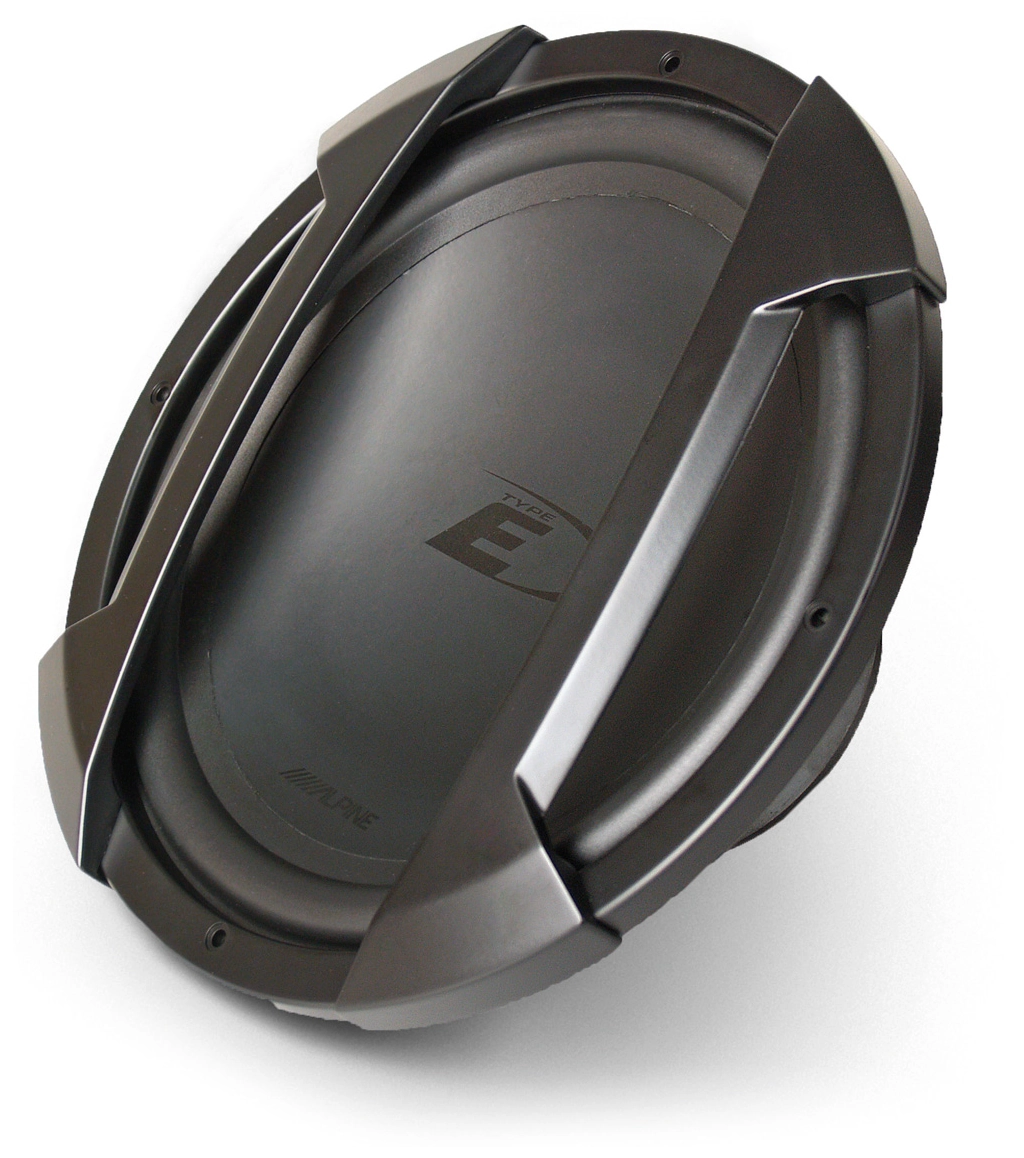

ALPINE SWE-1244E
4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 31 Hz |
| Q factor | 0.53 |
| Sensitivity | 88.3 dB |
| Linear excursion | ± 7.5 mm |
| Program power | 400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.3dB
- Frequency response 30 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 3.30
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion (one way) xmax 7.5mm
- Maximum excursion before damage xlim 18mm
- Air volume displaced at xmax VD 397cm³
- Power handling P 200W
- Program power Pmax 400W
- Peak power Ppeak 650W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 0.6mH
- VC Diameter 50mm
- Winding height HVC 24.5mm
- Winding material Copper
- Former material ASV
Magnet
- Force factor Bl 10.3N/A
- Motor constant Bl/√RE 5.67N/√W
- Air gap height HAG 10mm
- Diameter 134mm
- Weight 1.36kg
- Material Strontium Ferrite
Diaphragm
- Effective diameter 260mm
- Effective area SD 529cm²
- Moving mass (including air load) MMS 102g
- Moving mass MMD 95.2g
- Material Pulp, Polypropylene
Suspensions
- Stiffness KMS 3.88N/mm
- Compliance CMS 258µm/N
- Equivalent volume to the compliance VAS 103L
- Mechanical resistance RMS 6.03N·s/m
- Surround material Butyl Rubber
- Spider material Carbonized Coated Cotton
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 316mm
- Baffle cutout diameter 281mm
- Overall depth 132mm
- Flange thickness 0mm
- Mounting depth 132mm
- Volume occupied by the driver 2.8L
- Frame material Steel
