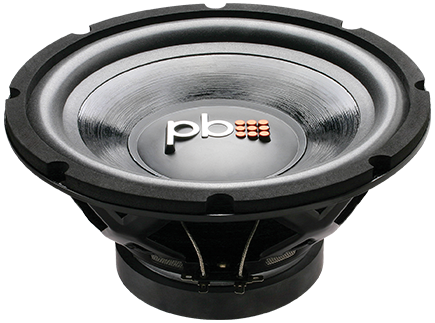

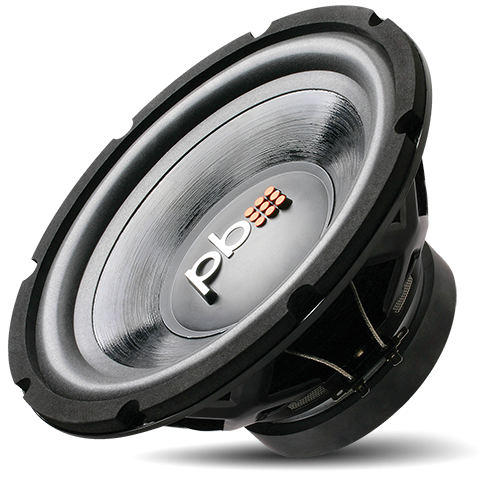

PowerBass PS-12

Subwoofer

12″ / 305 mm
Nominal diameter
32 Hz
Resonance
0.51
Q factor
89 dB
Sensitivity
± 8 mm
Linear excursion
500 W
Program Power
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Available on (affiliate link)

Amazon.com
$$

Specifications

Sensitivity (1W, 1m, infinite baffle)
SPL1W
88.7
dB
Frequency response
32 - 450
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
32.4
Hz
Mechanical quality factor
QMS
7.42
Electrical quality factor
QES
0.55
Total quality factor
QTS
0.51

Large signal parameters

Maximum linear excursion
xmax
8.0
mm
Air volume displaced at xmax
VD
412
cm³
Power handling
P
250
W
Program power
Pmax
500
W

Voice Coil

Nominal impedance
Z
4
Ω
DC resistance
RE
3.1
Ω
Inductance (1kHz, estimated)
LE
0.76
mH
VC Diameter
51
mm

Magnet

Force factor
Bl
11.32
N/A
Motor constant
Bl/√RE
6.43
N/√W
Weight
1.13
kg

Diaphragm

Effective diameter
256
mm
Effective area
SD
515
cm²
Moving mass
MMS
111.4
g
Moving mass (without air load)
MMD
103.2
g
Material
DDC coated paper cone

Suspensions

Stiffness
KMS
4.61
N/mm
Compliance
CMS
217
µm/N
Equivalent volume to the compliance
VAS
81.6
L
Mechanical resistance
RMS
3.06
N·s/m

Dimensions

Nominal diameter
12
305
mm
Baffle cutout diameter
279
mm
Mounting depth
137
mm
Volume occupied by the driver (estimated)
2.4
L
