78 results
Brand
ATOHMAcoustic EleganceAudesAudio SystemAudioControlAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraB²CRUNCHCT SoundsCelestionCerwin VegaCiareCube AudioD.A.S. AudioDB DriveDS18Dayton AudioDown4SoundESXETONEUPHORIAEarthquakeEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGAS Audio PowerGRSGoldwoodGround ZeroHELIXHertzHiFonicsImage DynamicsJL AudioJensenKICKERKICXKartesianLaVoceLii AudioLowtherMATCHMD LabMONACORMTX AudioMUSWAYMicro-PrecisionMorelNemesis AudioObertonP.AudioPHL audioPRV AudioPUNKTKILDEPURIFIPeerlessPioneerPowerBassPrecision DevicesPrideQUANTUMRCFREDCATTRENEGADERadianReckhornRockford FosgateSB AcousticsSB AudienceSEASSICASONYSUPRAVOXScan-SpeakSkar AudioSoundStreamStereo IntegrityTang BandTectonicVIBE AudioVISATONVOLTWVLWavecoraccutonaudisonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
PowerBass 2XL-1040DS Subwoofer

PowerBass 2XL-1040DS

2 x 4 Ω
10″ Subwoofer
fS38.6 Hz
SD380 cm²
30 - 500 Hz
QTS0.75
xmax10 mm
SPL1W83 dB
Bl/√RE8.03
Pmax1200 W
PowerBass 2XL-1240DS Subwoofer

PowerBass 2XL-1240DS

2 x 4 Ω
12″ Subwoofer
fS36.4 Hz
SD511 cm²
28 - 450 Hz
QTS0.55
xmax15 mm
SPL1W85.2 dB
Bl/√RE10.5
Pmax1300 W
PowerBass 3XL-1010D Subwoofer

PowerBass 3XL-1010D

2 x 1 Ω
10″ Subwoofer
fS45.6 Hz
SD373 cm²
35 - 450 Hz
QTS0.55
xmax19 mm
SPL1W83.7 dB
Bl/√RE11.6
Pmax1600 W
PowerBass 3XL-1020D Subwoofer

PowerBass 3XL-1020D

2 x 2 Ω
10″ Subwoofer
fS48.7 Hz
SD373 cm²
35 - 450 Hz
QTS0.61
xmax19 mm
SPL1W84.1 dB
Bl/√RE10.1
Pmax1600 W
PowerBass 3XL-810D Subwoofer

PowerBass 3XL-810D

2 x 1 Ω
8″ Subwoofer
fS50 Hz
SD214 cm²
43 - 500 Hz
QTS0.72
xmax12 mm
SPL1W81.4 dB
Bl/√RE7.01
Pmax750 W
PowerBass 3XL-820D Subwoofer

PowerBass 3XL-820D

2 x 2 Ω
8″ Subwoofer
fS52.6 Hz
SD214 cm²
43 - 500 Hz
QTS0.66
xmax12 mm
SPL1W82.5 dB
Bl/√RE7.26
Pmax750 W
PowerBass PBX1-10D2 Subwoofer

PowerBass PBX1-10D2

2 x 2 Ω
10″ Subwoofer
fS33.1 Hz
SD380 cm²
28 - 350 Hz
QTS0.98
xmax14.9 mm
SPL1W83.8 dB
Bl/√RE5.52
Pmax900 W
PowerBass PBX1-10D4 Subwoofer

PowerBass PBX1-10D4

2 x 4 Ω
10″ Subwoofer
fS34.6 Hz
SD380 cm²
29 - 350 Hz
QTS0.91
xmax14.9 mm
SPL1W84.3 dB
Bl/√RE6.54
Pmax900 W
PowerBass PBX1-12D2 Subwoofer

PowerBass PBX1-12D2

2 x 2 Ω
12″ Subwoofer
fS29.9 Hz
SD183 cm²
30 - 400 Hz
QTS0.60
xmax14.5 mm
SPL1W75.5 dB
Bl/√RE6.49
Pmax1000 W
PowerBass PBX1-12D4 Subwoofer

PowerBass PBX1-12D4

2 x 4 Ω
12″ Subwoofer
fS31.3 Hz
SD170 cm²
30 - 400 Hz
QTS0.80
xmax14.5 mm
SPL1W75.7 dB
Bl/√RE6.2
Pmax1000 W
PowerBass PBX1-8D2 Subwoofer

PowerBass PBX1-8D2

2 x 2 Ω
8″ Subwoofer
fS40.9 Hz
SD214 cm²
40 - 400 Hz
QTS0.60
xmax9 mm
SPL1W82.1 dB
Bl/√RE6.35
Pmax600 W
PowerBass PBX1-8D4 Subwoofer

PowerBass PBX1-8D4

2 x 4 Ω
8″ Subwoofer
fS44.8 Hz
SD214 cm²
45 - 400 Hz
QTS0.67
xmax9 mm
SPL1W82.5 dB
Bl/√RE5.99
Pmax600 W
PowerBass XL-1044 Subwoofer

PowerBass XL-1044

4 Ω
10″ Subwoofer
fS29.8 Hz
SD363 cm²
28 - 350 Hz
QTS0.39
xmax8 mm
SPL1W85.4 dB
Bl/√RE8.04
Pmax700 W
PowerBass XL-1044D Subwoofer

PowerBass XL-1044D

2 x 4 Ω
10″ Subwoofer
fS30.5 Hz
SD363 cm²
29 - 350 Hz
QTS0.47
xmax9.2 mm
SPL1W84.8 dB
Bl/√RE7.17
Pmax700 W
PowerBass XL-1244 Subwoofer

PowerBass XL-1244

4 Ω
12″ Subwoofer
fS27.5 Hz
SD491 cm²
26 - 300 Hz
QTS0.42
xmax8 mm
SPL1W86.6 dB
Bl/√RE8.03
Pmax800 W
PowerBass XL-1244D Subwoofer

PowerBass XL-1244D

2 x 4 Ω
12″ Subwoofer
fS28.2 Hz
SD491 cm²
27 - 300 Hz
QTS0.52
xmax9.2 mm
SPL1W85.4 dB
Bl/√RE7.69
Pmax800 W
PowerBass XL-844 Subwoofer

PowerBass XL-844

4 Ω
8″ Subwoofer
fS41.9 Hz
SD177 cm²
40 - 400 Hz
QTS0.51
xmax5 mm
SPL1W81.5 dB
Bl/√RE6.84
Pmax400 W
PowerBass XL-844D Subwoofer

PowerBass XL-844D

2 x 4 Ω
8″ Subwoofer
fS44.6 Hz
SD177 cm²
43 - 400 Hz
QTS0.64
xmax5 mm
SPL1W81.2 dB
Bl/√RE5.95
Pmax400 W
PowerBass XL-840D Subwoofer

PowerBass XL-840D

2 x 4 Ω
8″ Subwoofer
fS52.1 Hz
SD211 cm²
43 - 500 Hz
QTS0.55
xmax6 mm
SPL1W83.5 dB
Bl/√RE6.41
Pmax400 W
PowerBass XL-840 Subwoofer

PowerBass XL-840

4 Ω
8″ Subwoofer
fS43.3 Hz
SD211 cm²
43 - 500 Hz
QTS0.46
xmax6 mm
SPL1W83.8 dB
Bl/√RE6.86
Pmax400 W
Discontinued

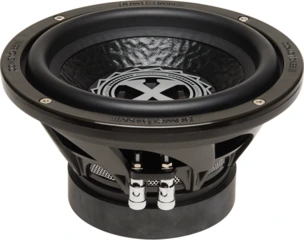

PowerBass XL-804 Subwoofer

PowerBass XL-804

4 Ω
8″ Subwoofer
fS43.3 Hz
SD211 cm²
43 - 500 Hz
QTS0.46
xmax6 mm
SPL1W83.8 dB
Bl/√RE6.86
Pmax400 W
Discontinued
PowerBass XL-12T Shallow Subwoofer

PowerBass XL-12T

4 Ω
12″ Shallow Subwoofer
fS33 Hz
SD511 cm²
33 - 450 Hz
QTS0.53
xmax7.5 mm
SPL1W86.4 dB
Bl/√RE8.52
Pmax800 W
Discontinued

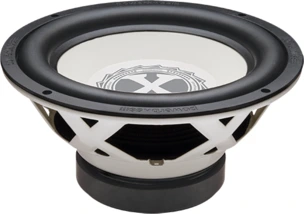

PowerBass XL-124MF Subwoofer

PowerBass XL-124MF

4 Ω
12″ Subwoofer
fS35 Hz
SD491 cm²
32 - 500 Hz
QTS0.71
xmax9.5 mm
SPL1W87.8 dB
Bl/√RE6.29
Pmax500 W
PowerBass XL-1240TD Shallow Subwoofer

PowerBass XL-1240TD

2 x 4 Ω
12″ Shallow Subwoofer
fS31.8 Hz
SD511 cm²
33 - 450 Hz
QTS0.75
xmax7.5 mm
SPL1W90 dB
Bl/√RE9.82
Pmax800 W
PowerBass XL-1240T Shallow Subwoofer

PowerBass XL-1240T

4 Ω
12″ Shallow Subwoofer
fS33 Hz
SD511 cm²
33 - 450 Hz
QTS0.53
xmax7.5 mm
SPL1W86.4 dB
Bl/√RE8.52
Pmax800 W
PowerBass XL-1240SS Subwoofer

PowerBass XL-1240SS

4 Ω
12″ Subwoofer
fS34.4 Hz
SD511 cm²
36 - 500 Hz
QTS0.54
xmax7.9 mm
SPL1W90.4 dB
Bl/√RE8.1
Pmax500 W
PowerBass XL-1240MF Subwoofer

PowerBass XL-1240MF

4 Ω
12″ Subwoofer
fS35 Hz
SD491 cm²
32 - 500 Hz
QTS0.71
xmax9.5 mm
SPL1W87.8 dB
Bl/√RE6.29
Pmax500 W
PowerBass XL-1240DSS Subwoofer

PowerBass XL-1240DSS

2 x 4 Ω
12″ Subwoofer
fS34.3 Hz
SD511 cm²
36 - 500 Hz
QTS0.68
xmax7.9 mm
SPL1W89.3 dB
Bl/√RE6.98
Pmax500 W
PowerBass XL-1240DMF Subwoofer

PowerBass XL-1240DMF

2 x 4 Ω
12″ Subwoofer
fS35 Hz
SD491 cm²
32 - 500 Hz
QTS0.71
xmax9.5 mm
SPL1W90.6 dB
Bl/√RE6.29
Pmax500 W
PowerBass XL-1240D Subwoofer

PowerBass XL-1240D

2 x 4 Ω
12″ Subwoofer
fS33 Hz
SD552 cm²
33 - 450 Hz
QTS0.57
xmax8.5 mm
SPL1W87.2 dB
Bl/√RE7.57
Pmax800 W
PowerBass XL-1240 Subwoofer

PowerBass XL-1240

4 Ω
12″ Subwoofer
fS39.8 Hz
SD552 cm²
33 - 450 Hz
QTS0.65
xmax8.5 mm
SPL1W87.7 dB
Bl/√RE7.6
Pmax800 W
Discontinued

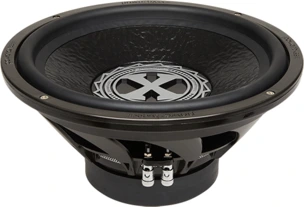

PowerBass XL-1204D Subwoofer

PowerBass XL-1204D

2 x 4 Ω
12″ Subwoofer
fS33 Hz
SD552 cm²
33 - 450 Hz
QTS0.57
xmax8.5 mm
SPL1W87.2 dB
Bl/√RE7.57
Pmax800 W
Discontinued
PowerBass XL-10T Shallow Subwoofer

PowerBass XL-10T

4 Ω
10″ Shallow Subwoofer
fS35 Hz
SD346 cm²
35 - 500 Hz
QTS0.49
xmax7.5 mm
SPL1W84.2 dB
Bl/√RE8.21
Pmax700 W
Discontinued
PowerBass XL-104MF Subwoofer

PowerBass XL-104MF

4 Ω
10″ Subwoofer
fS38 Hz
SD333 cm²
35 - 500 Hz
QTS0.68
xmax9.5 mm
SPL1W87.1 dB
Bl/√RE5.91
Pmax400 W
PowerBass XL-1040TD Shallow Subwoofer

PowerBass XL-1040TD

2 x 4 Ω
10″ Shallow Subwoofer
fS37.5 Hz
SD346 cm²
35 - 500 Hz
QTS0.62
xmax7.5 mm
SPL1W84.1 dB
Bl/√RE7.65
Pmax700 W
PowerBass XL-1040T Shallow Subwoofer

PowerBass XL-1040T

4 Ω
10″ Shallow Subwoofer
fS35 Hz
SD346 cm²
35 - 500 Hz
QTS0.49
xmax7.5 mm
SPL1W84.3 dB
Bl/√RE8.21
Pmax700 W
PowerBass XL-1040SS Subwoofer

PowerBass XL-1040SS

4 Ω
10″ Subwoofer
fS28.7 Hz
SD363 cm²
45 - 500 Hz
QTS0.44
xmax7.9 mm
SPL1W89.6 dB
Bl/√RE7.6
Pmax400 W
PowerBass XL-1040MF Subwoofer

PowerBass XL-1040MF

4 Ω
10″ Subwoofer
fS38 Hz
SD333 cm²
35 - 500 Hz
QTS0.68
xmax9.5 mm
SPL1W87.1 dB
Bl/√RE5.91
Pmax400 W
PowerBass XL-1040DSS Subwoofer

PowerBass XL-1040DSS

2 x 4 Ω
10″ Subwoofer
fS31.5 Hz
SD363 cm²
45 - 500 Hz
QTS0.56
xmax7.9 mm
SPL1W88.7 dB
Bl/√RE6.65
Pmax400 W
PowerBass XL-1040DMF Subwoofer

PowerBass XL-1040DMF

2 x 4 Ω
10″ Subwoofer
fS38 Hz
SD333 cm²
35 - 500 Hz
QTS0.68
xmax9.5 mm
SPL1W89.9 dB
Bl/√RE5.91
Pmax400 W
