PowerBass 3XL-1010D

2x1Ω
2x2Ω

Subwoofer

Nominal diameter10″ / 254 mm
Resonance45.6 Hz
Q factor0.55
Sensitivity83.7 dB
Linear excursion± 19 mm
Program power1600 W

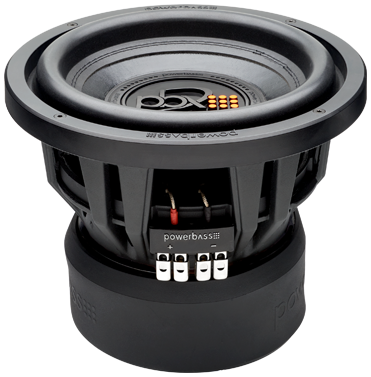

PowerBass 3XL-1010D SubwooferPowerBass 3XL-1010D SubwooferPowerBass 3XL-1010D Subwoofer
Excursion
Velocity
SPL
Phase
Group delay
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
  • Frequency response 35 - 450Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 45.6Hz
  • Mechanical quality factor QMS 5.44
  • Electrical quality factor QES 0.62
  • Total quality factor QTS 0.55

Large signal parameters

  • Maximum linear excursion (one way) xmax 19mm
  • Air volume displaced at xmax VD 709cm³
  • Power handling P 800W
  • Program power Pmax 1600W
  • Peak power Ppeak 1600W

Voice Coil

  • Nominal impedance Z 2 x 1Ω
  • DC resistance (in series) RE 1.9Ω
  • Inductance (1kHz, in series, estimated) LE 1.83mH
  • VC Diameter 76.2mm
  • Winding material Copper Clad Aluminium
  • Former material BASV

Magnet

  • Force factor (in series) Bl 15.9N/A
  • Motor constant Bl/√RE 11.6N/√W
  • Weight 6.48kg
  • Material Y-35 strontium ferrite

Diaphragm

  • Effective diameter 218mm
  • Effective area SD 373cm²
  • Moving mass (including air load) MMS 290g
  • Moving mass MMD 285g
  • Material DDC Multi-Layered Non-Pressed Paper with Pulp Fibers

Suspensions

  • Stiffness KMS 23.8N/mm
  • Compliance CMS 42µm/N
  • Equivalent volume to the compliance VAS 8.29L
  • Mechanical resistance RMS 15.3N·s/m
  • Surround material High Roll Foam

Dimensions

  • Nominal diameter 10″
  • 254mm
  • Mounting depth 216mm
  • Volume occupied by the driver 5.1L
  • Frame material Cast Aluminium
Impedance
Step response
Tone Burst
PDF fileDatasheet
