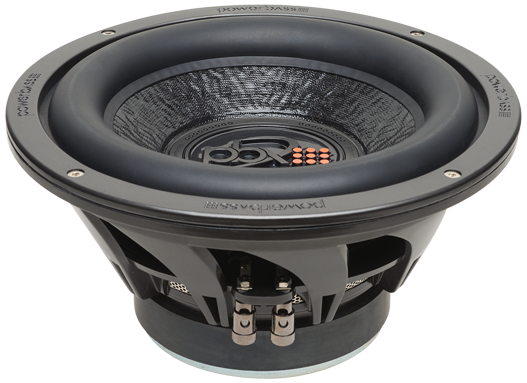

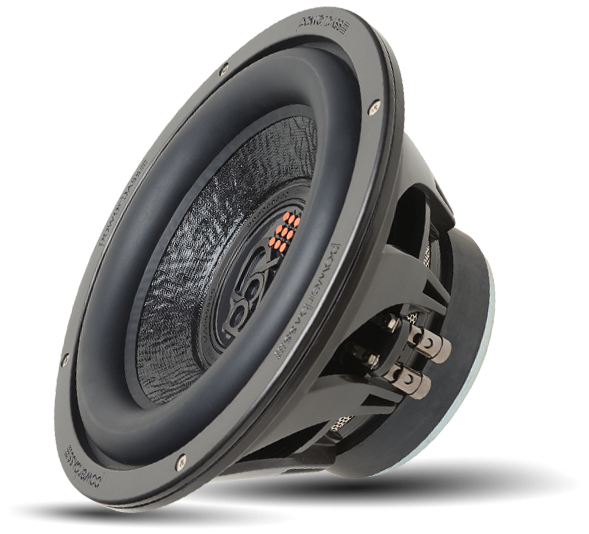

PowerBass XL-1044
2x4Ω
4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 29.8 Hz |
| Q factor | 0.39 |
| Sensitivity | 85.4 dB |
| Linear excursion | ± 8 mm |
| Program power | 700 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.4dB
- Frequency response 28 - 350Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 29.8Hz
- Mechanical quality factor QMS 4.56
- Electrical quality factor QES 0.42
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 8mm
- Air volume displaced at xmax VD 290cm³
- Power handling P 350W
- Program power Pmax 700W
- Peak power Ppeak 700W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz, estimated) LE 1.98mH
- VC Diameter 50.8mm
- Winding material EIW wire
- Former material BASV
Magnet
- Force factor Bl 14.5N/A
- Motor constant Bl/√RE 8.04N/√W
Diaphragm
- Effective diameter 215mm
- Effective area SD 363cm²
- Moving mass (including air load) MMS 146g
- Moving mass MMD 141g
- Material 4-layer, Non-pressed Paper, DDC Finish
Suspensions
- Stiffness KMS 5.13N/mm
- Compliance CMS 195µm/N
- Equivalent volume to the compliance VAS 36.3L
- Mechanical resistance RMS 6.01N·s/m
- Surround material Santoprene
Dimensions
- Nominal diameter 10″
- 254mm
- Mounting depth 133mm
- Volume occupied by the driver 2.35L
- Frame material Polycarbonate
