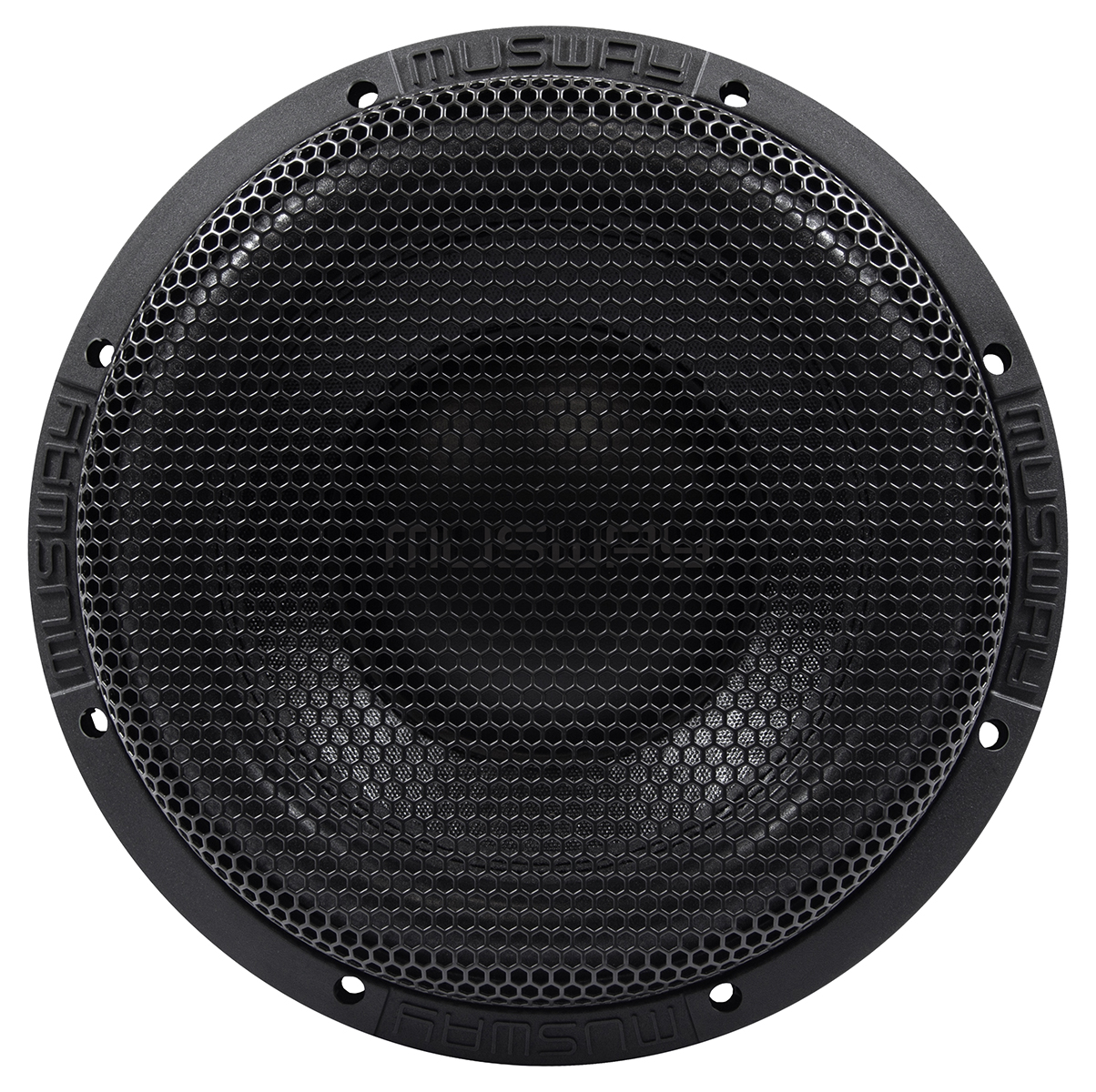

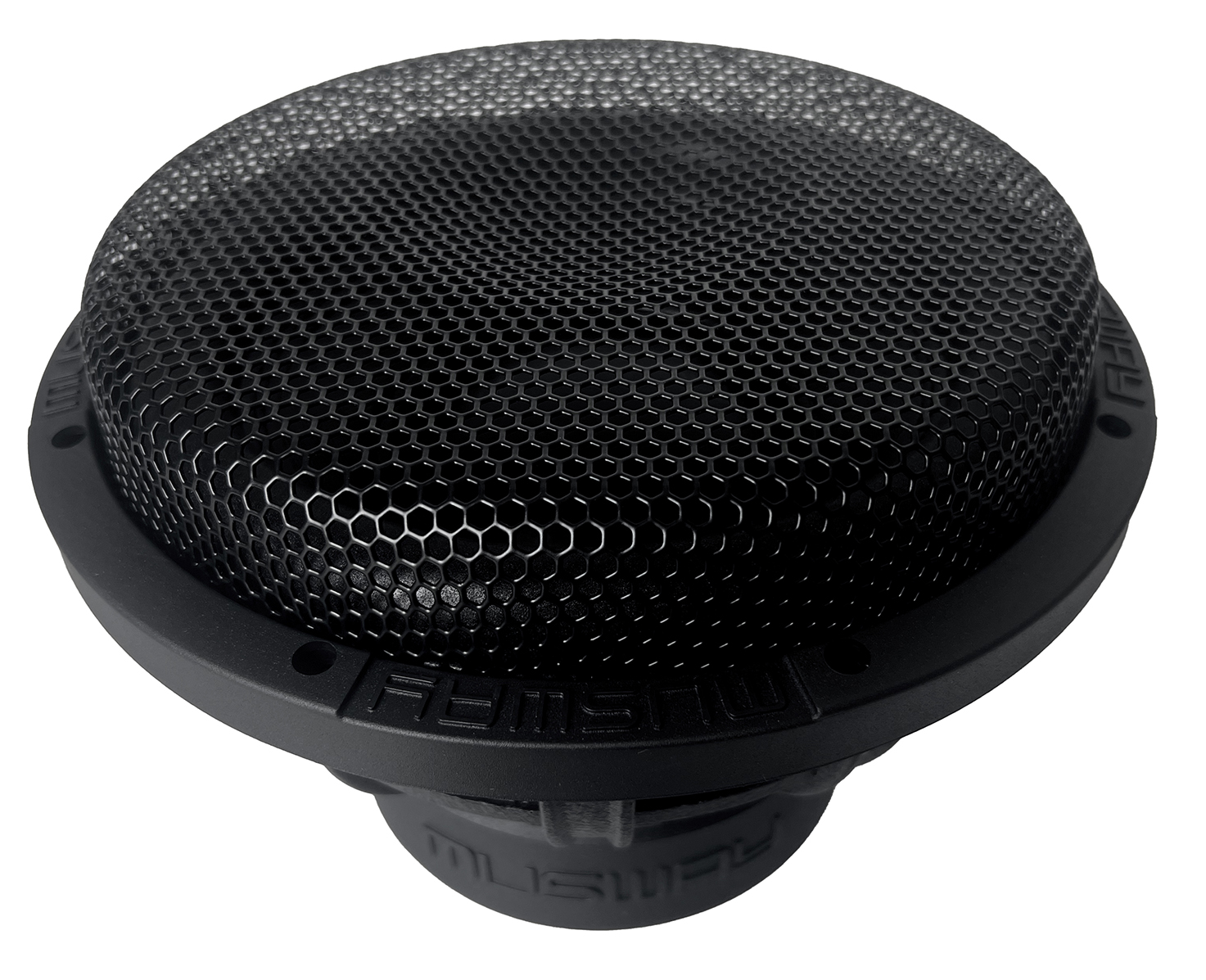

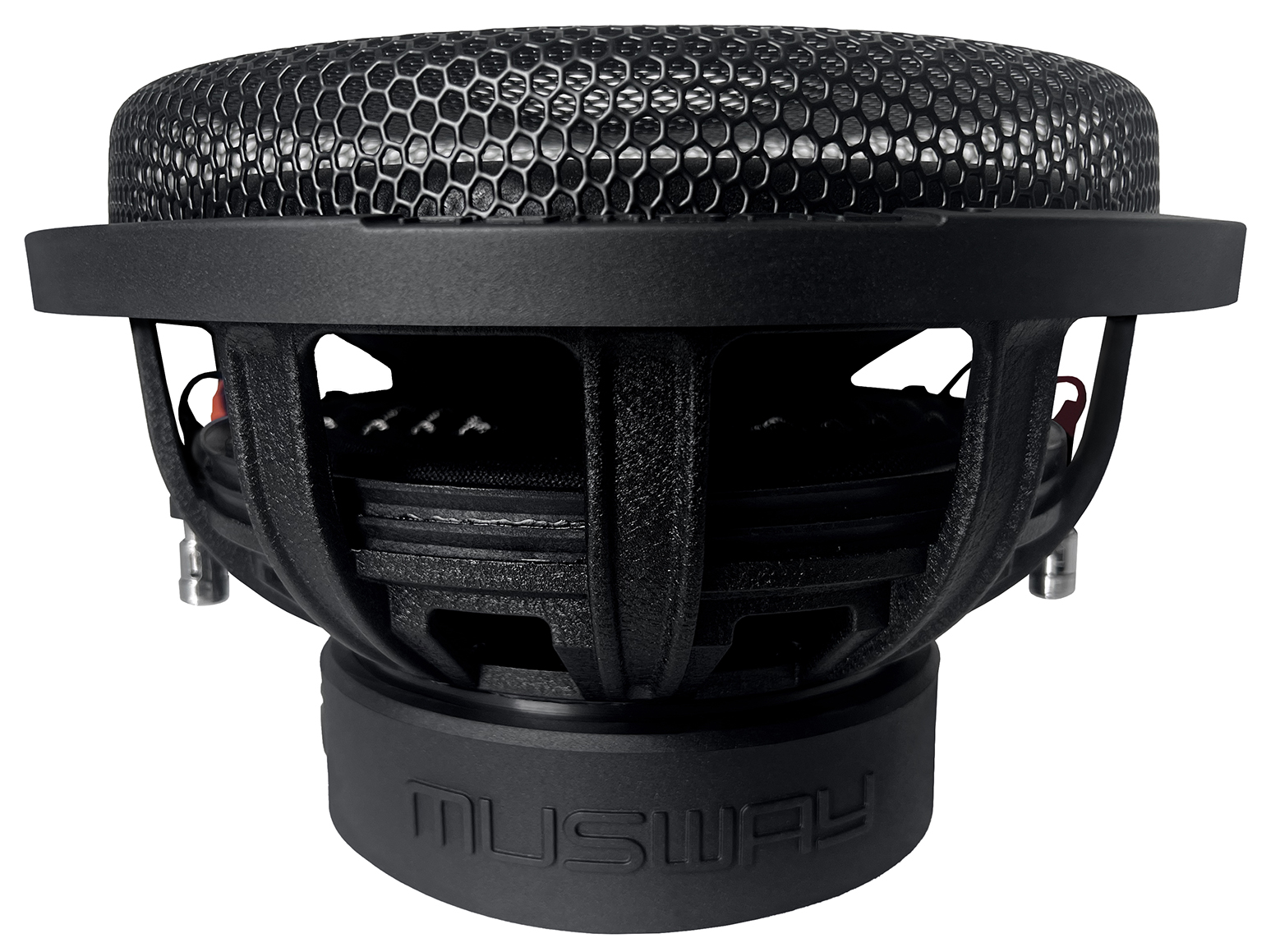

MUSWAY MG10
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 32 Hz |
| Q factor | 0.49 |
| Sensitivity | 84.5 dB |
| Linear excursion | ± 14 mm |
| Program Power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 32Hz
- Mechanical quality factor QMS 3.89
- Electrical quality factor QES 0.56
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Maximum excursion before damage xlim 20mm
- Air volume displaced at xmax VD 475cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 1.61mH
- VC Diameter 62mm
- Winding height HVC 38mm
- Former material ASV
Magnet
- Force factor (in series) Bl 13N/A
- Motor constant Bl/√RE 6.85N/√W
- Diameter 156mm
- Height 40mm
- Weight 2.835kg
Diaphragm
- Effective diameter 208mm
- Effective area SD 339cm²
- Moving mass MMS 130g
- Moving mass (without air load) MMD 125g
- Material Paper
Suspensions
- Stiffness KMS 5.18N/mm
- Compliance CMS 193µm/N
- Equivalent volume to the compliance VAS 31.5L
- Mechanical resistance RMS 6.72N·s/m
- Surround material Rubber
- Spider material Polycotton
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 276mm
- Baffle cutout diameter 240mm
- Mounting depth 162mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Aluminium
