MUSWAY MWS844 Shallow Subwoofer

MUSWAY MWS844

2 x 4 Ω
8″ Shallow Subwoofer
fS40.7 Hz
SD214 cm²
QTS0.60
xmax10 mm
SPL1W82.4 dB
Bl/√RE6.11
Pmax500 W

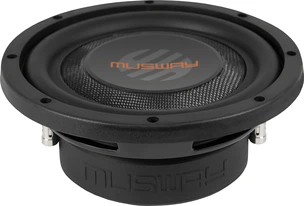

MUSWAY MWS822 Shallow Subwoofer

MUSWAY MWS822

2 x 2 Ω
8″ Shallow Subwoofer
fS39.7 Hz
SD214 cm²
QTS0.57
xmax10 mm
SPL1W82.8 dB
Bl/√RE6.11
Pmax500 W

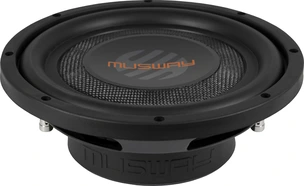

MUSWAY MWS1044 Shallow Subwoofer

MUSWAY MWS1044

2 x 4 Ω
10″ Shallow Subwoofer
fS33.1 Hz
SD346 cm²
QTS0.70
xmax10 mm
SPL1W83 dB
Bl/√RE5.89
Pmax600 W
MUSWAY MWS1022 Shallow Subwoofer

MUSWAY MWS1022

2 x 2 Ω
10″ Shallow Subwoofer
fS32.6 Hz
SD346 cm²
QTS0.75
xmax10 mm
SPL1W83.7 dB
Bl/√RE5.53
Pmax600 W

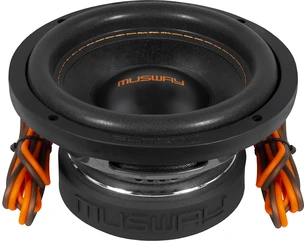

MUSWAY MW622 Subwoofer

MUSWAY MW622

2 x 2 Ω
6.5″ Subwoofer
fS51.3 Hz
SD144 cm²
QTS0.45
xmax3.5 mm
SPL1W85 dB
Bl/√RE4.55
Pmax300 W

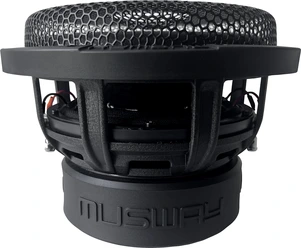

MUSWAY MG8 Subwoofer

MUSWAY MG8

2 x 2 Ω
8″ Subwoofer
fS46 Hz
SD207 cm²
QTS0.44
xmax13.5 mm
SPL1W84.8 dB
Bl/√RE6.69
Pmax600 W
MUSWAY MG12 Subwoofer

MUSWAY MG12

2 x 2 Ω
12″ Subwoofer
fS30 Hz
SD531 cm²
QTS0.40
xmax14 mm
SPL1W87.5 dB
Bl/√RE8.43
Pmax1400 W

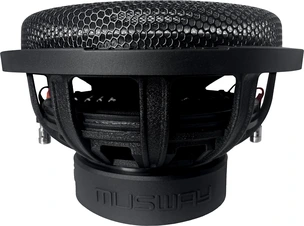

MUSWAY MG10 Subwoofer

MUSWAY MG10

2 x 2 Ω
10″ Subwoofer
fS32 Hz
SD339 cm²
QTS0.49
xmax14 mm
SPL1W84.5 dB
Bl/√RE6.85
Pmax1000 W
