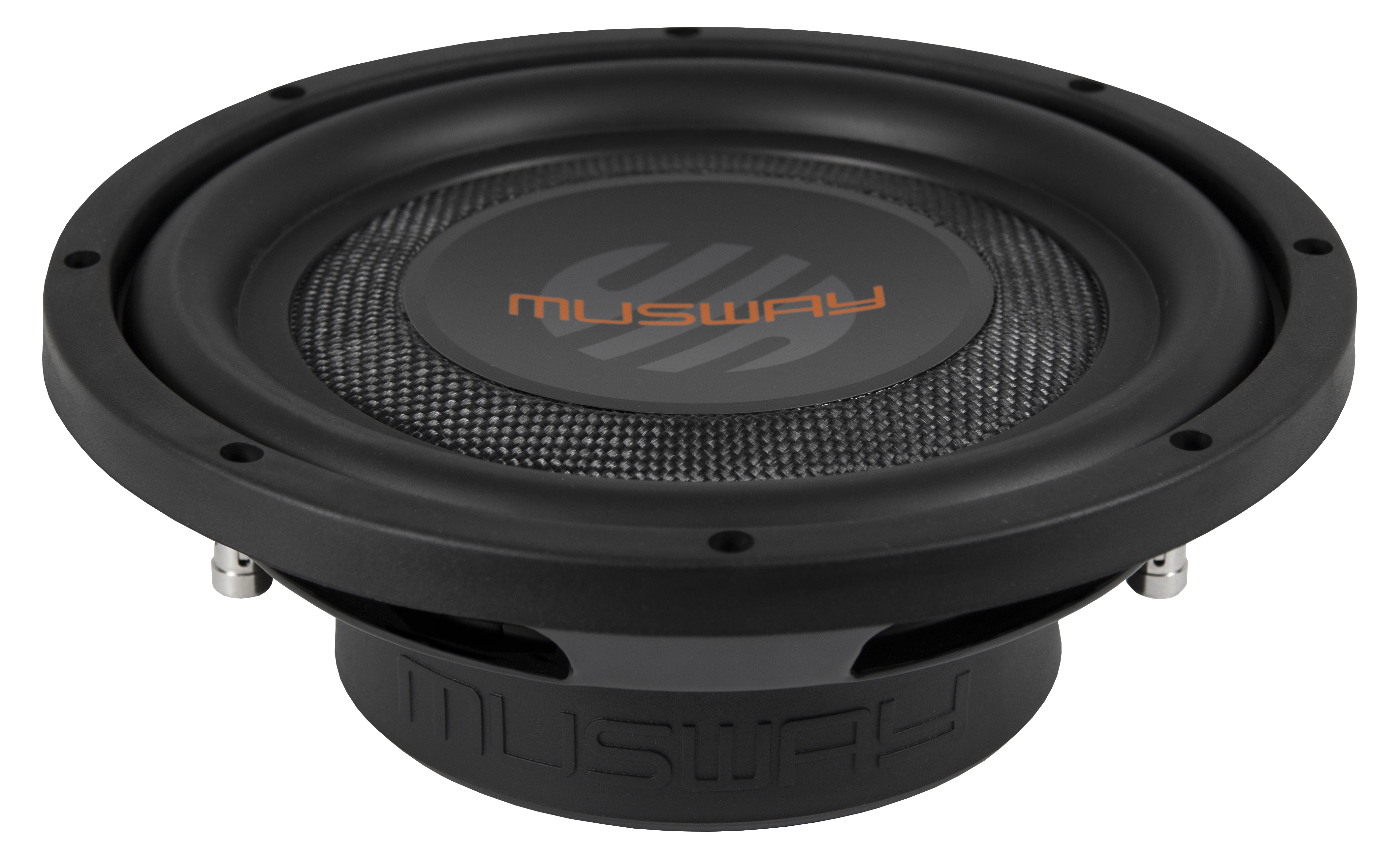

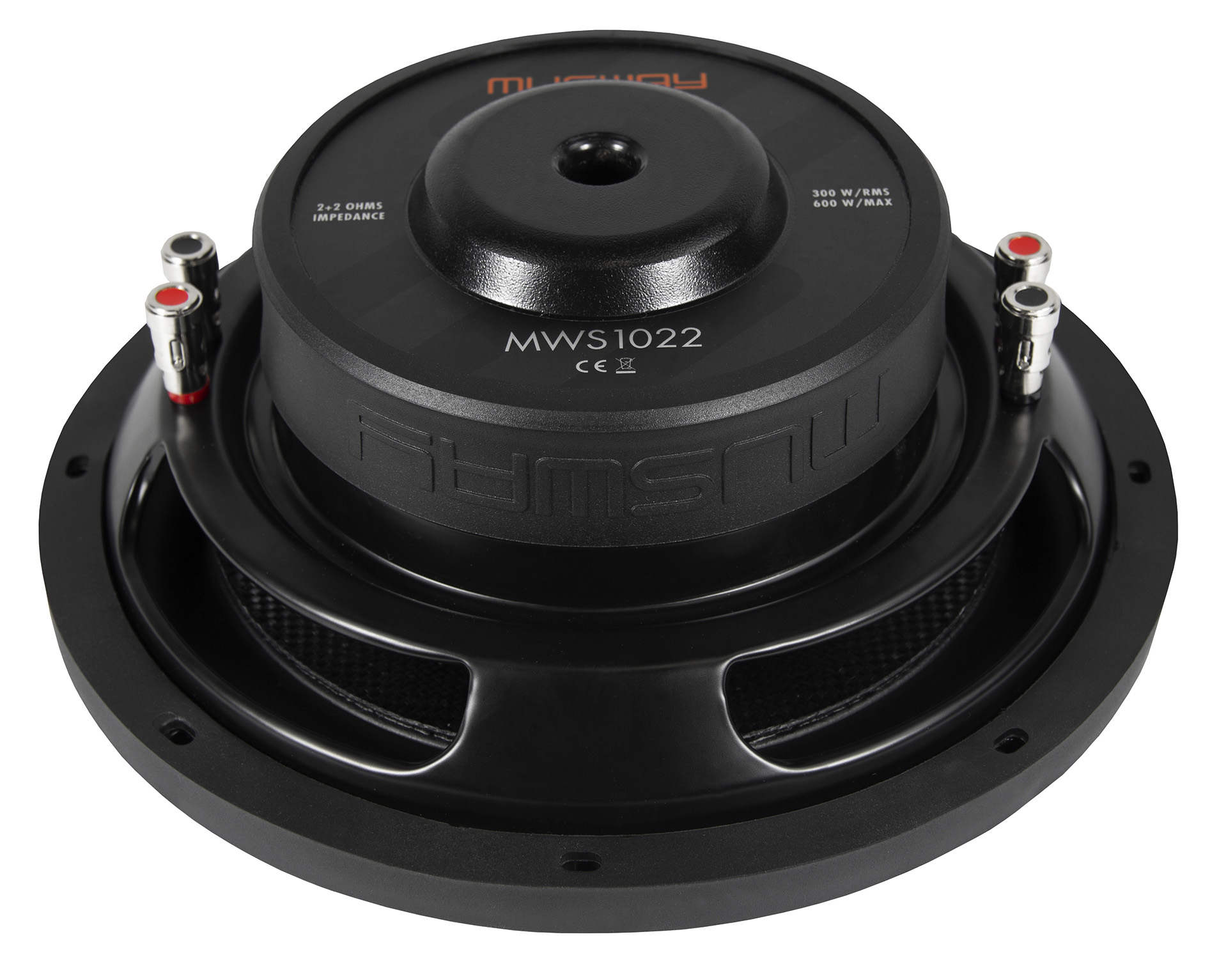

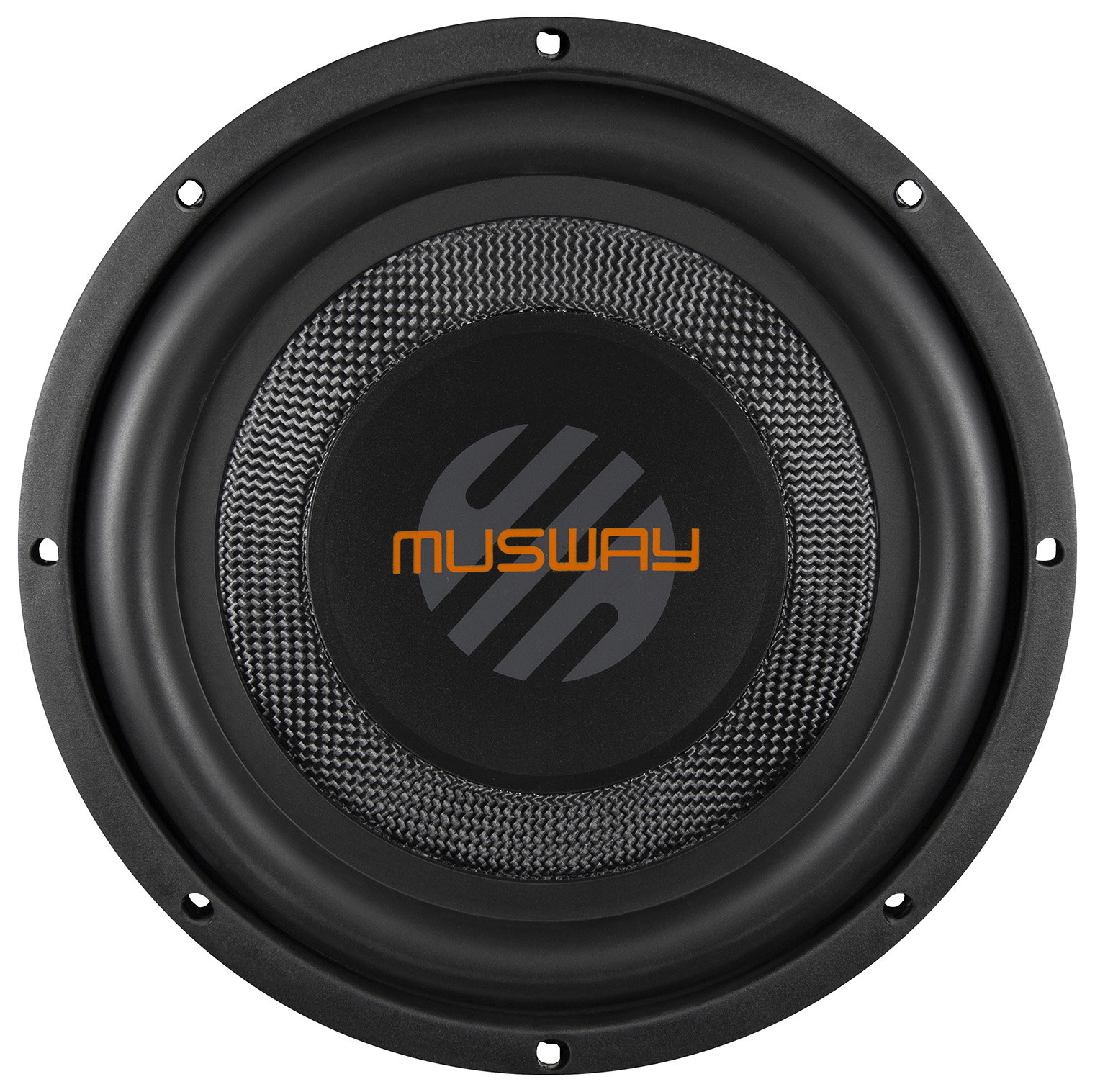

MUSWAY MWS1022
2x2Ω
2x4ΩShallow Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 32.6 Hz |
| Q factor | 0.75 |
| Sensitivity | 83.7 dB |
| Linear excursion | ± 10 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 32.6Hz
- Mechanical quality factor QMS 5.93
- Electrical quality factor QES 0.86
- Total quality factor QTS 0.75
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Maximum excursion before damage xlim 15mm
- Air volume displaced at xmax VD 346cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 2.3mH
- VC Diameter 50mm
- Winding height HVC 28mm
- Former material TIL (Glass-Fibre)
Magnet
- Force factor (in series) Bl 10.5N/A
- Motor constant Bl/√RE 5.53N/√W
- Diameter 145mm
- Height 20mm
- Weight 1.276kg
- Material Y30
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 128g
- Moving mass (without air load) MMD 123g
- Material Glass-Fibre Cone
Suspensions
- Stiffness KMS 5.44N/mm
- Compliance CMS 184µm/N
- Equivalent volume to the compliance VAS 31.2L
- Mechanical resistance RMS 4.42N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 259mm
- Baffle cutout diameter 232mm
- Mounting depth 92mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Steel
