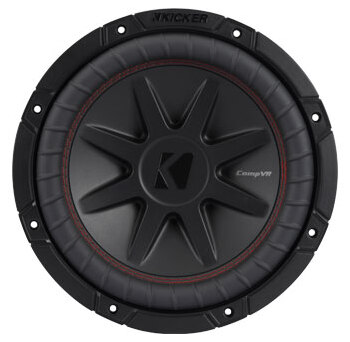

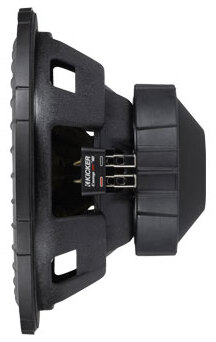

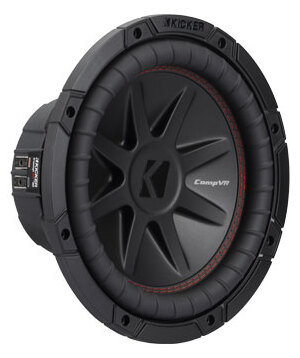

KICKER CompVR 52CVR104
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 32.7 Hz |
| Q factor | 0.69 |
| Sensitivity | 83.9 dB |
| Linear excursion | ± 16.5 mm |
| Program Power | 750 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 32.7Hz
- Mechanical quality factor QMS 8.33
- Electrical quality factor QES 0.75
- Total quality factor QTS 0.69
Large signal parameters
- Maximum linear excursion xmax 16.5mm
- Air volume displaced at xmax VD 588cm³
- Power handling P 375W
- Program power Pmax 750W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.9Ω
- Inductance (1kHz, in series) LE 5.48mH
Magnet
- Force factor (in series) Bl 16.9N/A
- Motor constant Bl/√RE 6.41N/√W
Diaphragm
- Effective diameter 213mm
- Effective area SD 356cm²
- Moving mass MMS 151g
- Moving mass (without air load) MMD 146g
Suspensions
- Stiffness KMS 6.33N/mm
- Compliance CMS 158µm/N
- Equivalent volume to the compliance VAS 28.4L
- Mechanical resistance RMS 3.71N·s/m

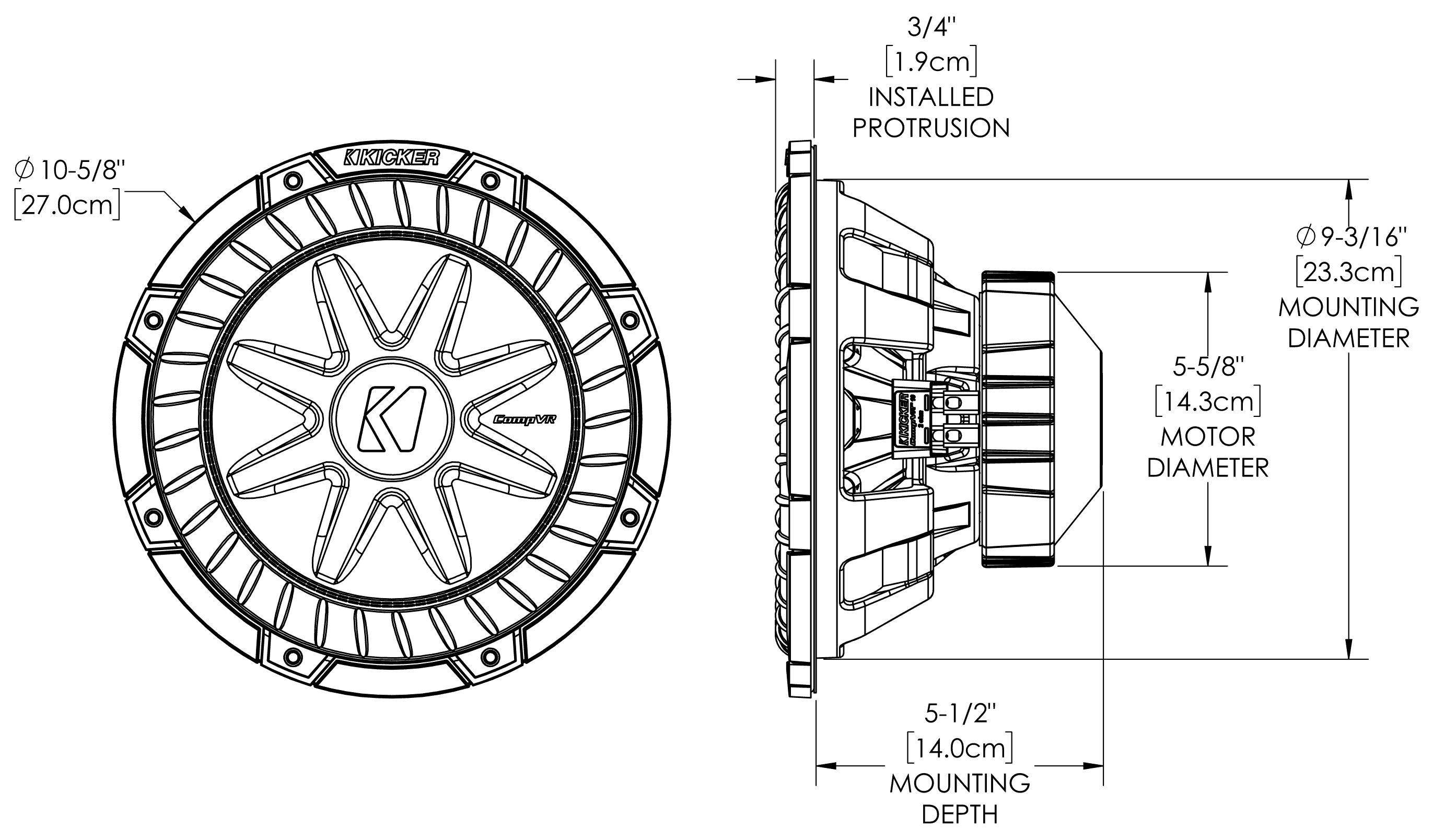

Dimensions
- Nominal diameter 10″
- 250mm
- Baffle cutout diameter 233mm
- Mounting depth 140mm
- Volume occupied by the driver (estimated) 1.5L
