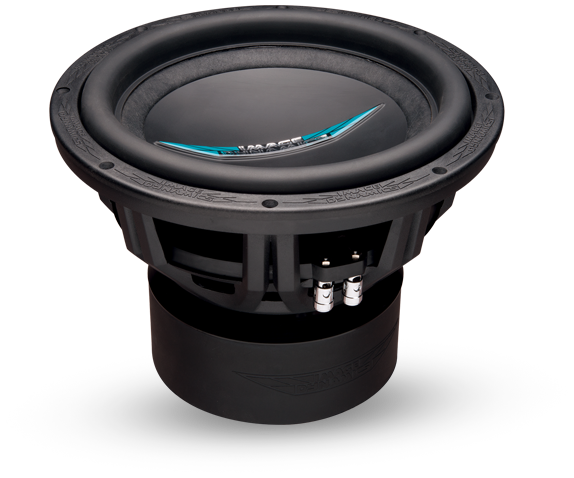

Image Dynamics IDMAX10D4 V4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 281 mm |
| Resonance | 27 Hz |
| Q factor | 0.66 |
| Sensitivity | 83.8 dB |
| Linear excursion | ± 19 mm |
| Program power | 1000 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.8dB
- Frequency response 30 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 27Hz
- Mechanical quality factor QMS 4.66
- Electrical quality factor QES 0.77
- Total quality factor QTS 0.66
Large signal parameters
- Maximum linear excursion (one way) xmax 19mm
- Air volume displaced at xmax VD 722cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.5Ω
- Inductance (1kHz, in series) LE 3.6mH
- VC Diameter 50.8mm
- Winding height HVC 55mm
- Winding material Aluminum
- Former material BASV
Magnet
- Force factor (in series) Bl 15.9N/A
- Motor constant Bl/√RE 6.25N/√W
- Diameter 170mm
- Height 97mm
- Weight 11.34kg
Diaphragm
- Effective diameter 220mm
- Effective area SD 380cm²
- Moving mass (including air load) MMS 152g
- Moving mass MMD 146g
- Material Glass Fiber / Pulp
Suspensions
- Stiffness KMS 6.17N/mm
- Compliance CMS 162µm/N
- Equivalent volume to the compliance VAS 32L
- Mechanical resistance RMS 5.52N·s/m
- Surround material Santoprene
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 281mm
- Overall diameter 281mm
- Baffle cutout diameter 245mm
- Overall depth 195mm
- Flange thickness 2mm
- Mounting depth 193mm
- Volume occupied by the driver 3.11L
- Net weight 12.61kg
