Image Dynamics ID10D2 V4 Subwoofer

Image Dynamics ID10D2 V4

2 x 2 Ω
10″ Subwoofer
fS32 Hz
SD363 cm²
30 - 500 Hz
QTS0.67
xmax14 mm
SPL1W86.3 dB
Bl/√RE6.11
Pmax500 W

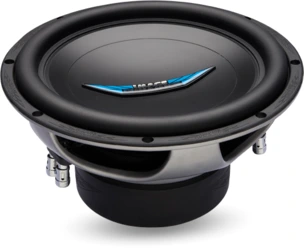

Image Dynamics ID10D4 V4 Subwoofer

Image Dynamics ID10D4 V4

2 x 4 Ω
10″ Subwoofer
fS32 Hz
SD363 cm²
30 - 500 Hz
QTS0.73
xmax14 mm
SPL1W86.2 dB
Bl/√RE5.54
Pmax500 W

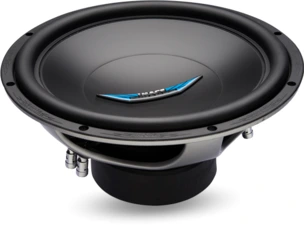

Image Dynamics ID12D2 V4 Subwoofer

Image Dynamics ID12D2 V4

2 x 2 Ω
12″ Subwoofer
fS45 Hz
SD498 cm²
45 - 500 Hz
QTS0.63
xmax14 mm
SPL1W89.2 dB
Bl/√RE9.18
Pmax500 W
Image Dynamics ID12D4 V4 Subwoofer

Image Dynamics ID12D4 V4

2 x 4 Ω
12″ Subwoofer
fS45 Hz
SD498 cm²
45 - 500 Hz
QTS0.79
xmax14 mm
SPL1W85.7 dB
Bl/√RE5.45
Pmax500 W
Image Dynamics ID8D2 V4 Subwoofer

Image Dynamics ID8D2 V4

2 x 2 Ω
8″ Subwoofer
fS31 Hz
SD241 cm²
30 - 500 Hz
QTS0.46
xmax12.5 mm
SPL1W86.7 dB
Bl/√RE5.41
Pmax300 W
Image Dynamics ID8D4 V4 Subwoofer

Image Dynamics ID8D4 V4

2 x 4 Ω
8″ Subwoofer
fS31 Hz
SD241 cm²
30 - 500 Hz
QTS0.67
xmax12.5 mm
SPL1W86.8 dB
Bl/√RE5.09
Pmax300 W
Image Dynamics IDQ10D2 V4 Subwoofer

Image Dynamics IDQ10D2 V4

2 x 2 Ω
10″ Subwoofer
fS42 Hz
SD380 cm²
40 - 500 Hz
QTS0.80
xmax14.5 mm
SPL1W85.6 dB
Bl/√RE5.48
Pmax500 W
Image Dynamics IDQ10D4 V4 Subwoofer

Image Dynamics IDQ10D4 V4

2 x 4 Ω
10″ Subwoofer
fS42 Hz
SD380 cm²
40 - 500 Hz
QTS0.87
xmax14.5 mm
SPL1W84.4 dB
Bl/√RE5.66
Pmax500 W

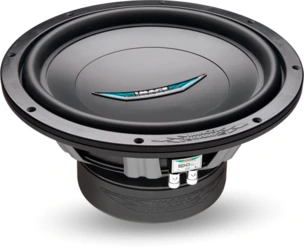

Image Dynamics IDQ12D2 V4 Subwoofer

Image Dynamics IDQ12D2 V4

2 x 2 Ω
12″ Subwoofer
fS34 Hz
SD511 cm²
35 - 500 Hz
QTS0.68
xmax14.5 mm
SPL1W86.4 dB
Bl/√RE6.75
Pmax750 W
Image Dynamics IDQ12D4 V4 Subwoofer

Image Dynamics IDQ12D4 V4

2 x 4 Ω
12″ Subwoofer
fS35 Hz
SD511 cm²
35 - 500 Hz
QTS0.74
xmax14.5 mm
SPL1W86 dB
Bl/√RE6.44
Pmax750 W
Image Dynamics IDQ8D2 V4 Subwoofer

Image Dynamics IDQ8D2 V4

2 x 2 Ω
8″ Subwoofer
fS51 Hz
SD214 cm²
50 - 500 Hz
QTS0.81
xmax14.5 mm
SPL1W83.4 dB
Bl/√RE5.7
Pmax250 W
Image Dynamics IDQ8D4 V4 Subwoofer

Image Dynamics IDQ8D4 V4

2 x 4 Ω
8″ Subwoofer
fS51 Hz
SD214 cm²
50 - 500 Hz
QTS0.84
xmax14.5 mm
SPL1W83.2 dB
Bl/√RE5.63
Pmax250 W

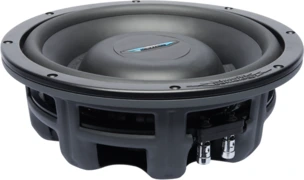

Image Dynamics IDQS10D2 Shallow Subwoofer

Image Dynamics IDQS10D2

2 x 2 Ω
10″ Shallow Subwoofer
fS50 Hz
SD391 cm²
50 - 500 Hz
QTS0.96
xmax7.5 mm
SPL1W85.2 dB
Bl/√RE6.43
Pmax350 W
Image Dynamics IDQS10D4 Shallow Subwoofer

Image Dynamics IDQS10D4

2 x 4 Ω
10″ Shallow Subwoofer
fS50 Hz
SD391 cm²
50 - 500 Hz
QTS1.02
xmax7.5 mm
SPL1W84.7 dB
Bl/√RE6.37
Pmax350 W
Image Dynamics IDQS12D2 Shallow Subwoofer

Image Dynamics IDQS12D2

2 x 2 Ω
12″ Shallow Subwoofer
fS45 Hz
SD523 cm²
45 - 500 Hz
QTS0.81
xmax7.5 mm
SPL1W86.8 dB
Bl/√RE7.69
Pmax450 W

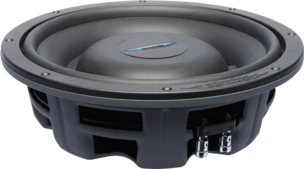

Image Dynamics IDQS12D4 Shallow Subwoofer

Image Dynamics IDQS12D4

2 x 4 Ω
12″ Shallow Subwoofer
fS45 Hz
SD523 cm²
45 - 500 Hz
QTS0.86
xmax7.5 mm
SPL1W86.4 dB
Bl/√RE7.59
Pmax450 W
Image Dynamics IDQS8D2 Shallow Subwoofer

Image Dynamics IDQS8D2

2 x 2 Ω
8″ Shallow Subwoofer
fS53 Hz
SD214 cm²
50 - 500 Hz
QTS0.98
xmax7 mm
SPL1W81.8 dB
Bl/√RE4.76
Pmax250 W
Image Dynamics IDQS8D4 Shallow Subwoofer

Image Dynamics IDQS8D4

2 x 4 Ω
8″ Shallow Subwoofer
fS53 Hz
SD214 cm²
50 - 500 Hz
QTS1.22
xmax7 mm
SPL1W82.4 dB
Bl/√RE4.56
Pmax250 W
