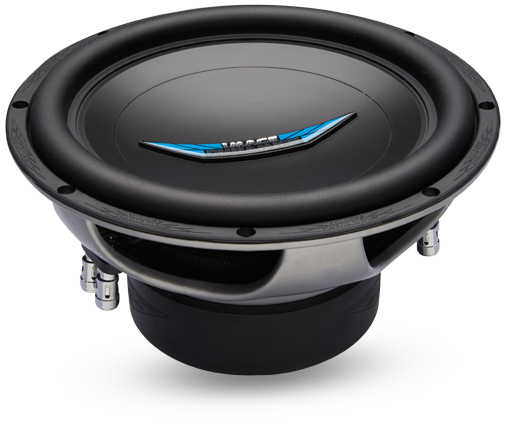

Image Dynamics ID10D4 V4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 257 mm |
| Resonance | 32 Hz |
| Q factor | 0.73 |
| Sensitivity | 86.2 dB |
| Linear excursion | ± 14 mm |
| Program power | 500 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.2dB
- Frequency response 30 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32Hz
- Mechanical quality factor QMS 5.59
- Electrical quality factor QES 0.84
- Total quality factor QTS 0.73
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Air volume displaced at xmax VD 506cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.6Ω
- Inductance (1kHz, in series) LE 0.8mH
- VC Diameter 50.8mm
- Winding height HVC 35.9mm
- Winding material Copper
- Former material BASV
Magnet
- Force factor (in series) Bl 21.6N/A
- Motor constant Bl/√RE 5.54N/√W
- Air gap height HAG 8mm
- Diameter 142mm
- Weight 3.6kg
Diaphragm
- Effective diameter 215mm
- Effective area SD 363cm²
- Moving mass (including air load) MMS 128g
- Moving mass MMD 123g
- Material Poly/Mica Cone
Suspensions
- Stiffness KMS 5.03N/mm
- Compliance CMS 199µm/N
- Equivalent volume to the compliance VAS 37.3L
- Mechanical resistance RMS 4.61N·s/m
- Surround material Parabolic Santoprene
- Spider material Hybrid Progressive Spiders
Dimensions
- Nominal diameter 10″
- 257mm
- Overall diameter 257mm
- Baffle cutout diameter 232mm
- Mounting depth 130mm
- Volume occupied by the driver 2.36L
- Net weight 4.4kg
