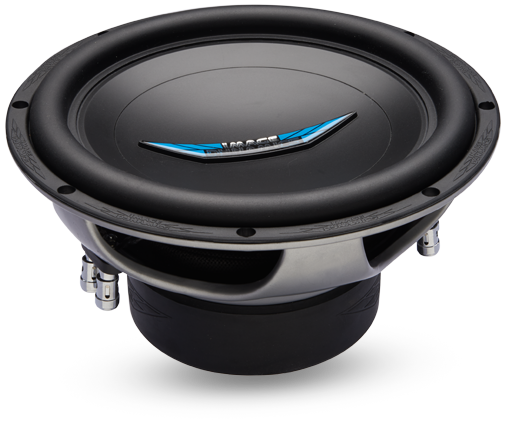

Image Dynamics ID10D2 V4
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 32 Hz |
| Q factor | 0.67 |
| Sensitivity | 86.3 dB |
| Linear excursion | ± 14 mm |
| Program power | 500 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.3dB
- Frequency response 30 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32Hz
- Mechanical quality factor QMS 5.74
- Electrical quality factor QES 0.76
- Total quality factor QTS 0.67
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Air volume displaced at xmax VD 506cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series) LE 1mH
- Winding height HVC 35.9mm
- Winding material Copper
- Former material BASV
Magnet
- Force factor (in series) Bl 16.8N/A
- Motor constant Bl/√RE 6.11N/√W
- Air gap height HAG 8mm
Diaphragm
- Effective diameter 215mm
- Effective area SD 363cm²
- Moving mass (including air load) MMS 141g
- Moving mass MMD 136g
- Material Poly/Mica
Suspensions
- Stiffness KMS 5.95N/mm
- Compliance CMS 168µm/N
- Equivalent volume to the compliance VAS 31.6L
- Mechanical resistance RMS 4.94N·s/m
- Surround material Santoprene
Dimensions
- Nominal diameter 10″
- 254mm
- Baffle cutout diameter 232mm
- Mounting depth 130mm
- Volume occupied by the driver (estimated) 1.5L
