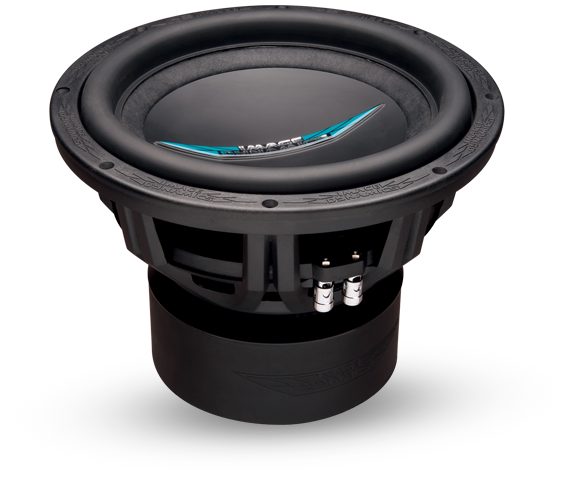

Image Dynamics IDMAX10D2 V4
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 281 mm |
| Resonance | 27 Hz |
| Q factor | 0.61 |
| Sensitivity | 82.8 dB |
| Linear excursion | ± 19 mm |
| Program power | 1000 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.8dB
- Frequency response 30 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 27Hz
- Mechanical quality factor QMS 4.55
- Electrical quality factor QES 1.35
- Total quality factor QTS 0.61
Large signal parameters
- Maximum linear excursion (one way) xmax 19mm
- Air volume displaced at xmax VD 722cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.4Ω
- Inductance (1kHz, in series) LE 3.6mH
- VC Diameter 50.8mm
- Winding height HVC 55mm
- Winding material Aluminum
- Former material BASV
Magnet
- Force factor (in series) Bl 12.8N/A
- Motor constant Bl/√RE 6.89N/√W
- Diameter 170mm
- Height 97mm
- Weight 11.34kg
- Material Y-35
Diaphragm
- Effective diameter 220mm
- Effective area SD 380cm²
- Moving mass (including air load) MMS 189g
- Moving mass MMD 183g
- Material Glass Fiber / Pulp
Suspensions
- Stiffness KMS 5.5N/mm
- Compliance CMS 182µm/N
- Equivalent volume to the compliance VAS 37.2L
- Mechanical resistance RMS 7.05N·s/m
- Surround material Santoprene
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 281mm
- Overall diameter 281mm
- Baffle cutout diameter 245mm
- Overall depth 195mm
- Flange thickness 2mm
- Mounting depth 193mm
- Volume occupied by the driver 3.11L
- Net weight 12.61kg
