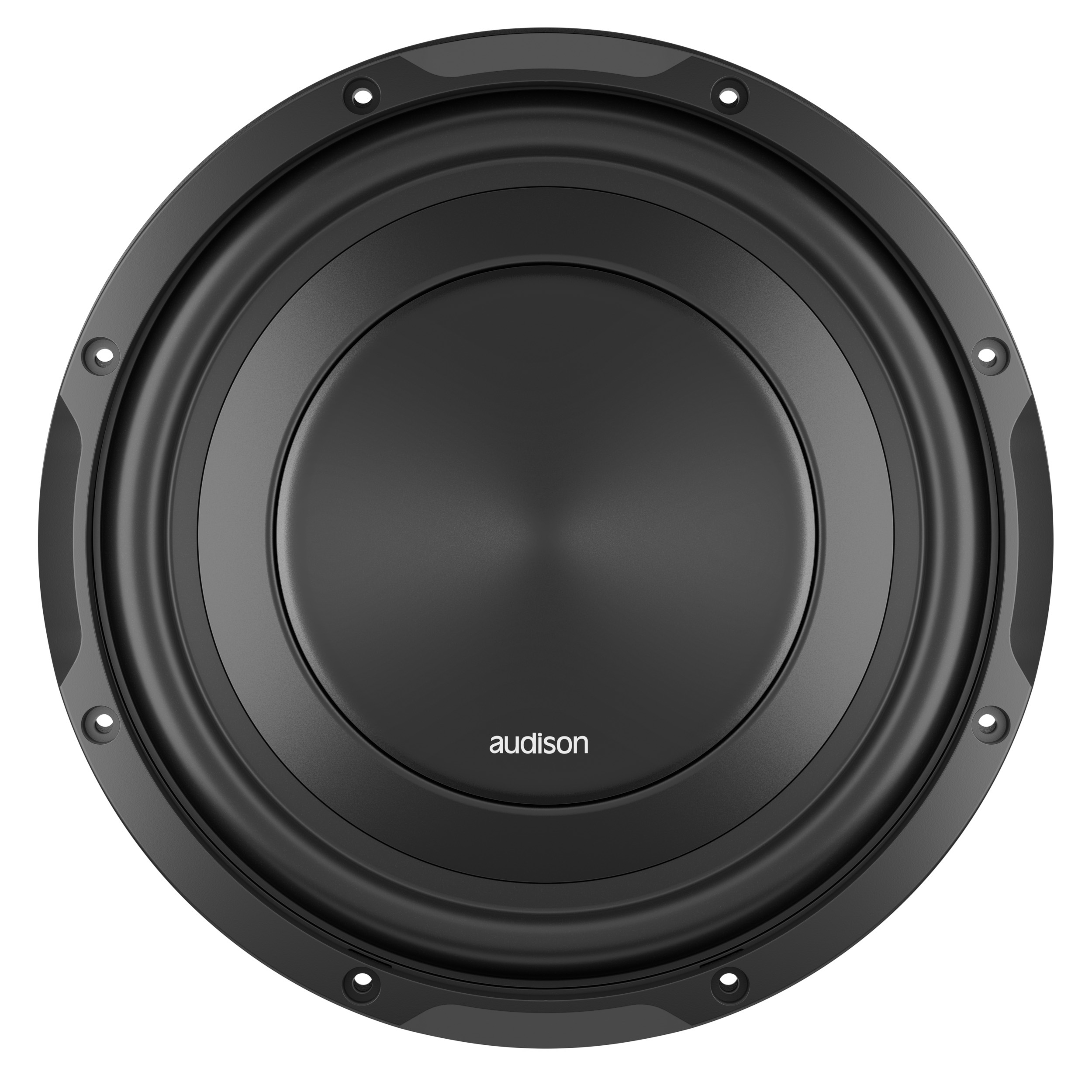

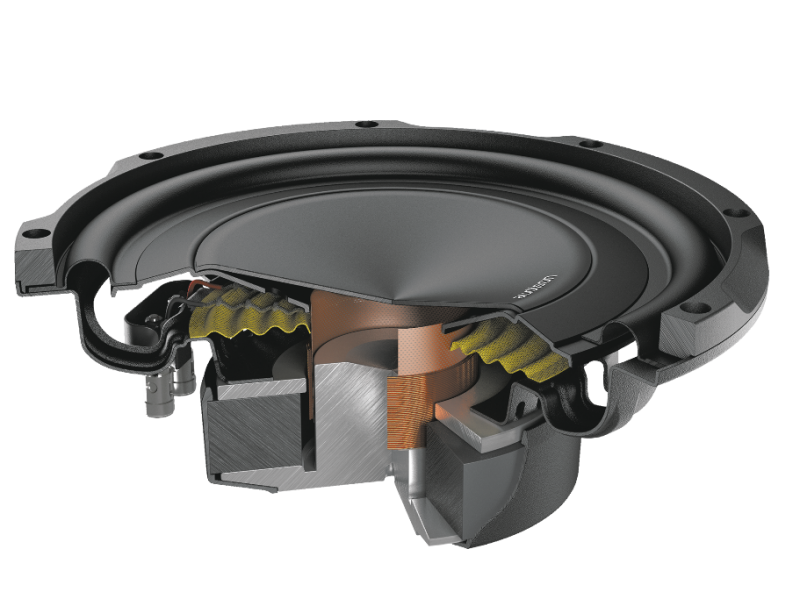

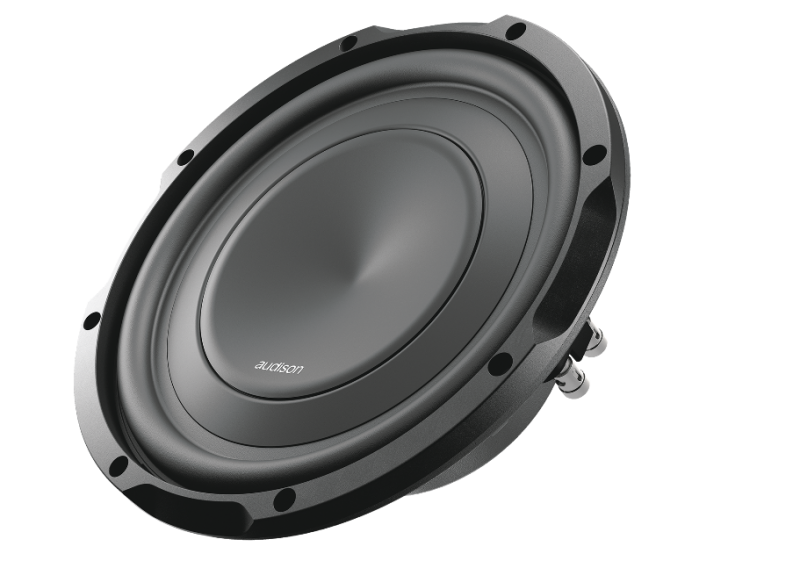

audison Prima APS 10 D
2x4Ω
4ΩSubwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 27 Hz |
| Q factor | 0.52 |
| Sensitivity | 83.6 dB |
| Linear excursion | ± 12.6 mm |
| Program Power | 800 W |
.png)
.jpg)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 27Hz
- Mechanical quality factor QMS 4.70
- Electrical quality factor QES 0.58
- Total quality factor QTS 0.52
Large signal parameters
- Maximum linear excursion (one way) xmax 12.6mm
- Maximum excursion before damage xlim 18mm
- Air volume displaced at xmax VD 479cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 8.8Ω
- Inductance (1kHz, in series) LE 6mH
- VC Diameter 60mm
Magnet
- Force factor (in series) Bl 20.8N/A
- Motor constant Bl/√RE 7.01N/√W
- Diameter 140mm
- Height 30mm
- Material Ferrite
Diaphragm
- Effective diameter 220mm
- Effective area SD 380cm²
- Moving mass MMS 170g
- Moving mass (without air load) MMD 165g
- Material Water repellent pressed paper
Suspensions
- Stiffness KMS 5N/mm
- Compliance CMS 200µm/N
- Equivalent volume to the compliance VAS 41L
- Mechanical resistance RMS 6.14N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 270mm
- Baffle cutout diameter 233mm
- Overall depth 105mm
- Flange thickness 17mm
- Mounting depth 88mm
- Volume occupied by the driver 1.12L
- Net weight 5.24kg
