KICKER CompVR 52CVR102

2x2Ω
2x4Ω

Subwoofer

Nominal diameter10″ / 250 mm
Resonance31.1 Hz
Q factor0.60
Sensitivity83.9 dB
Program Power750 W

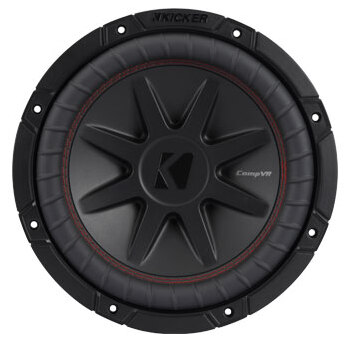

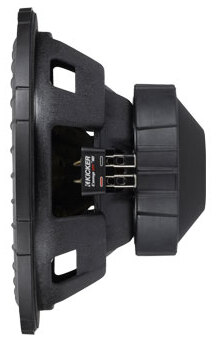

KICKER 52CVR102 SubwooferKICKER 52CVR102 SubwooferKICKER 52CVR102 Subwoofer
Excursion
Velocity
SPL
Phase
Group delay
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 83.9dB

Thiele & Small parameters

  • Resonance frequency (free air) fS 31.1Hz
  • Mechanical quality factor QMS 8.37
  • Electrical quality factor QES 0.64
  • Total quality factor QTS 0.60

Large signal parameters

  • Power handling P 375W
  • Program power Pmax 750W

Voice Coil

  • Nominal impedance Z 2 x 2Ω
  • DC resistance (in series) RE 3.7Ω
  • Inductance (1kHz, in series) LE 3.65mH

Magnet

  • Force factor (in series) Bl 13.5N/A
  • Motor constant Bl/√RE 7.07N/√W

Diaphragm

  • Effective diameter 213mm
  • Effective area SD 356cm²
  • Moving mass MMS 164g
  • Moving mass (without air load) MMD 159g

Suspensions

  • Stiffness KMS 6.25N/mm
  • Compliance CMS 161µm/N
  • Equivalent volume to the compliance VAS 28.8L
  • Mechanical resistance RMS 3.83N·s/m

Dimensions

  • Nominal diameter 10″
  • 250mm
  • Baffle cutout diameter 233mm
  • Mounting depth 140mm
  • Volume occupied by the driver (estimated) 1.5L
Impedance
Step response
Tone Burst

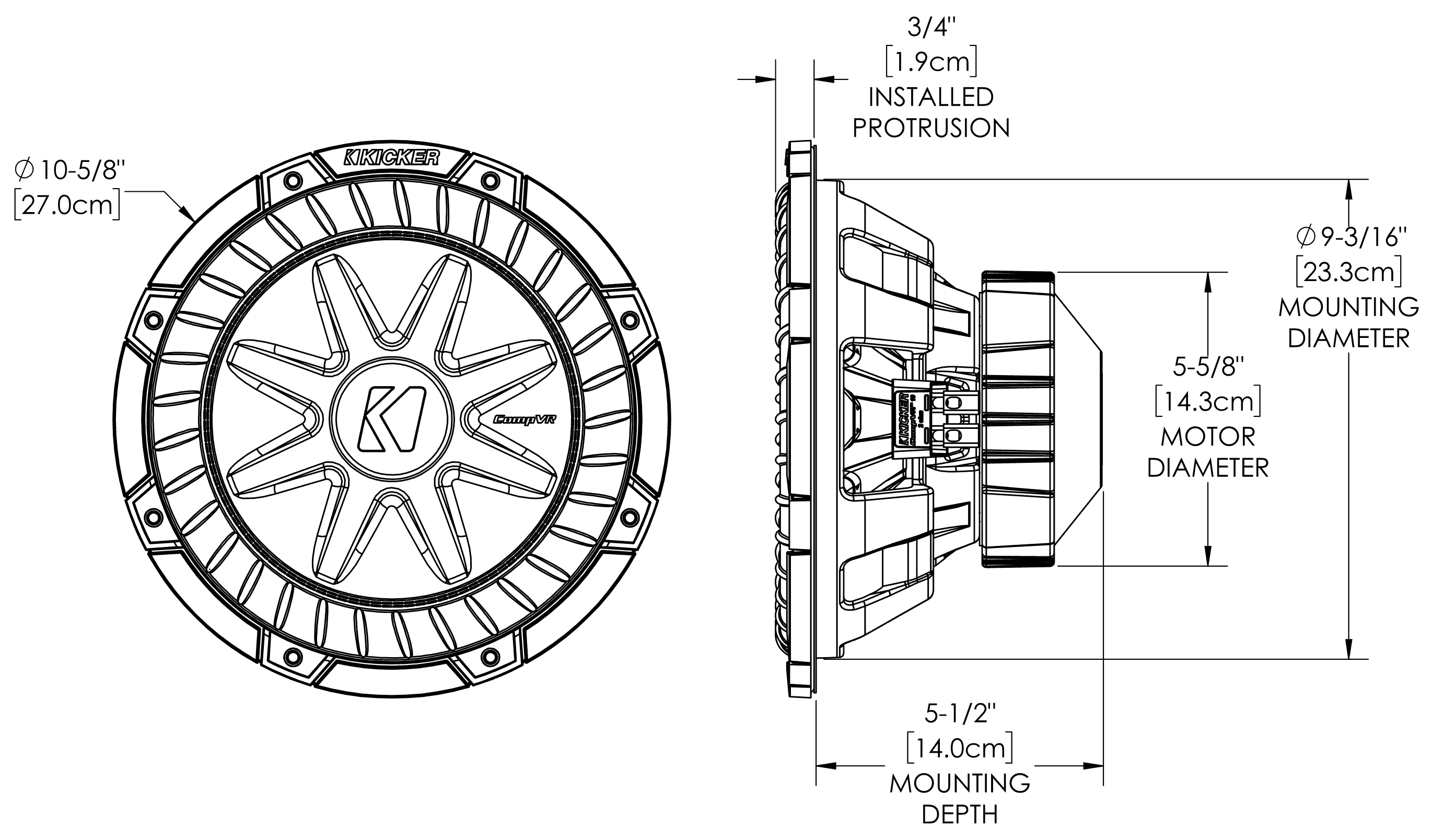

KICKER 52CVR102 Dimensions
PDF fileDatasheet

Export this driver to a simulation software:

Closed Box Simulator·Speakerbench logoSpeakerbenchWinISD logoWinISDBasta! logoBasta!Hornresp logoHornrespQSpeakers logoQSpeakersSpeakerSim logoSpeakerSim
