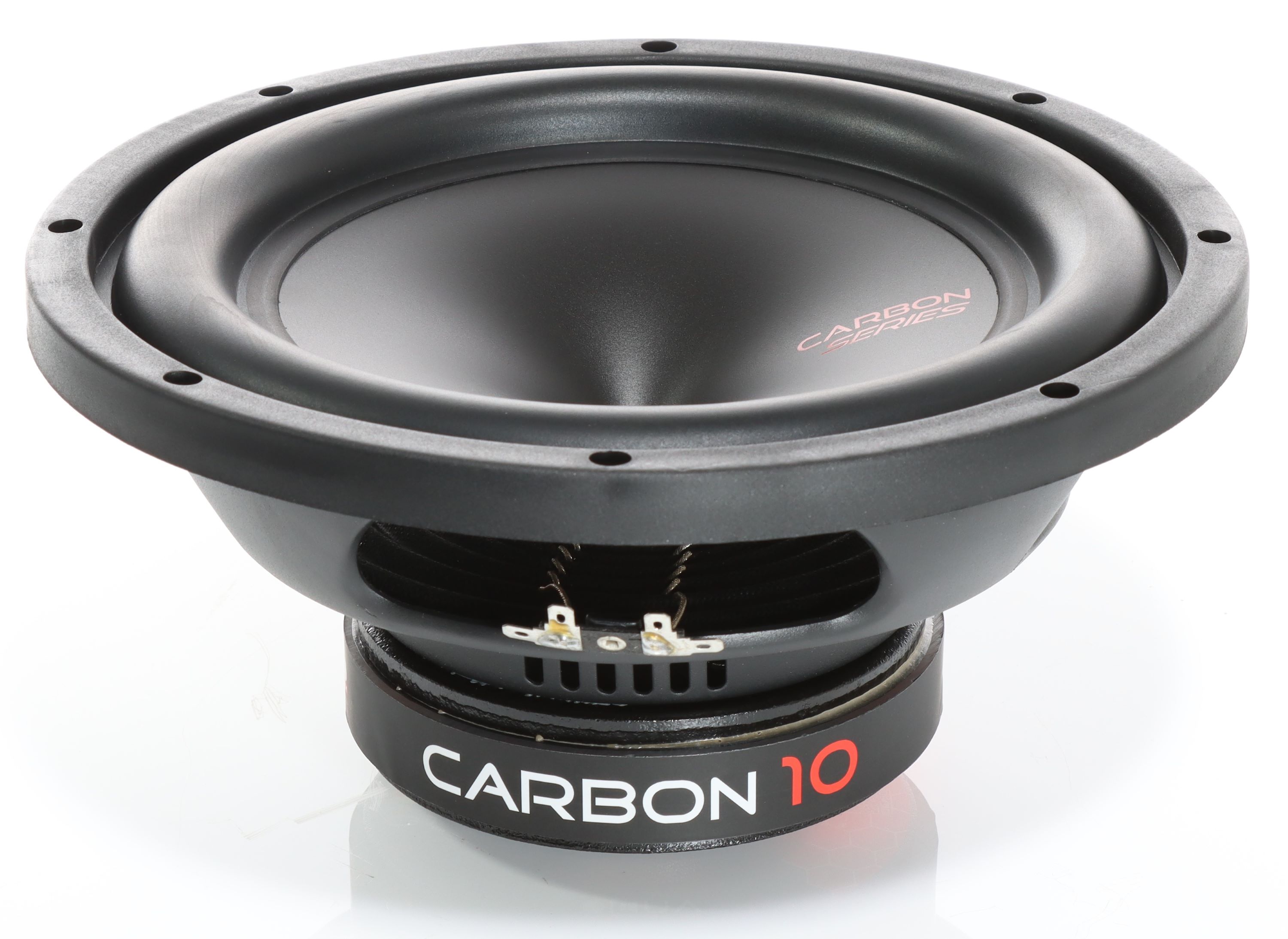

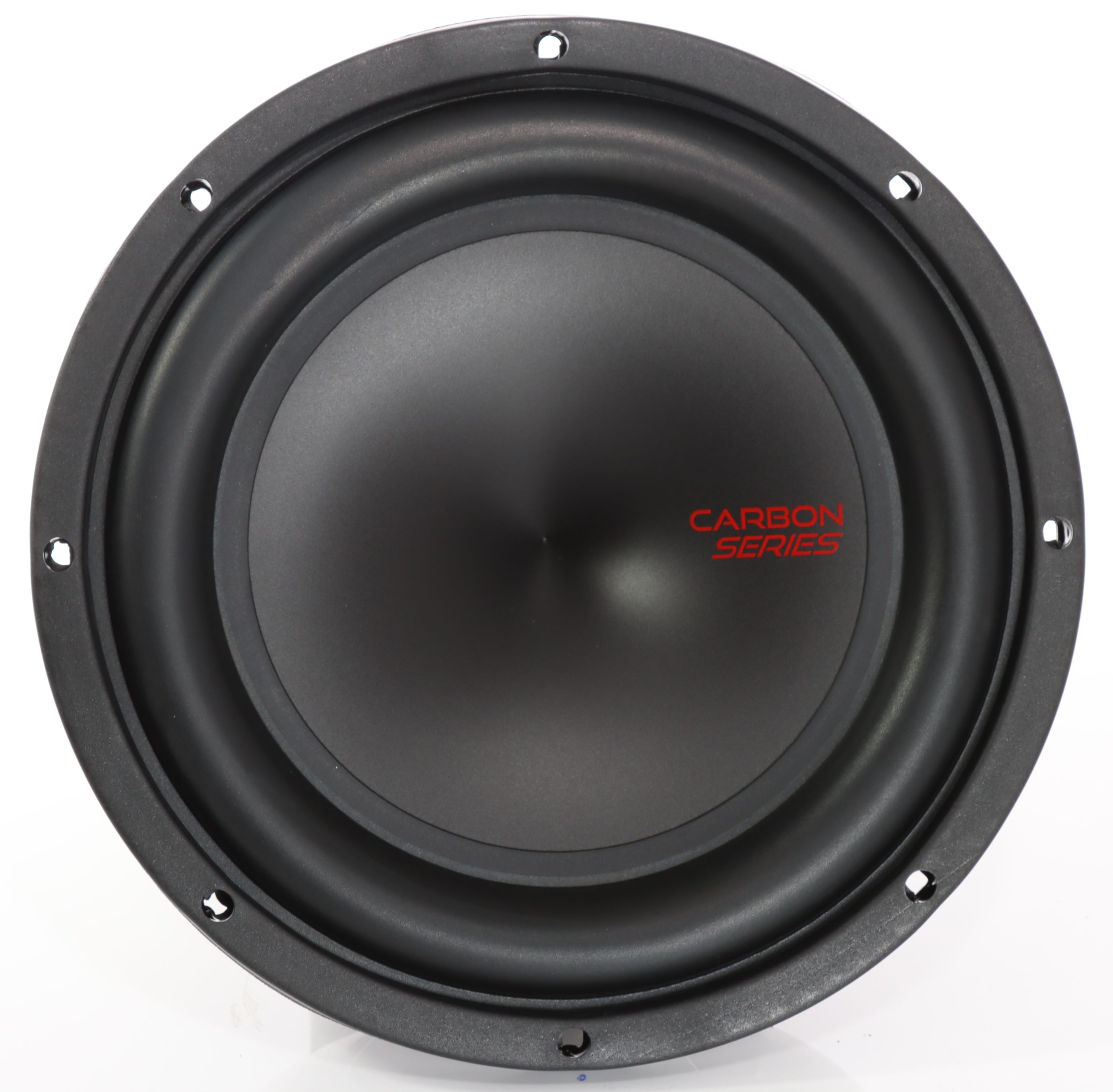

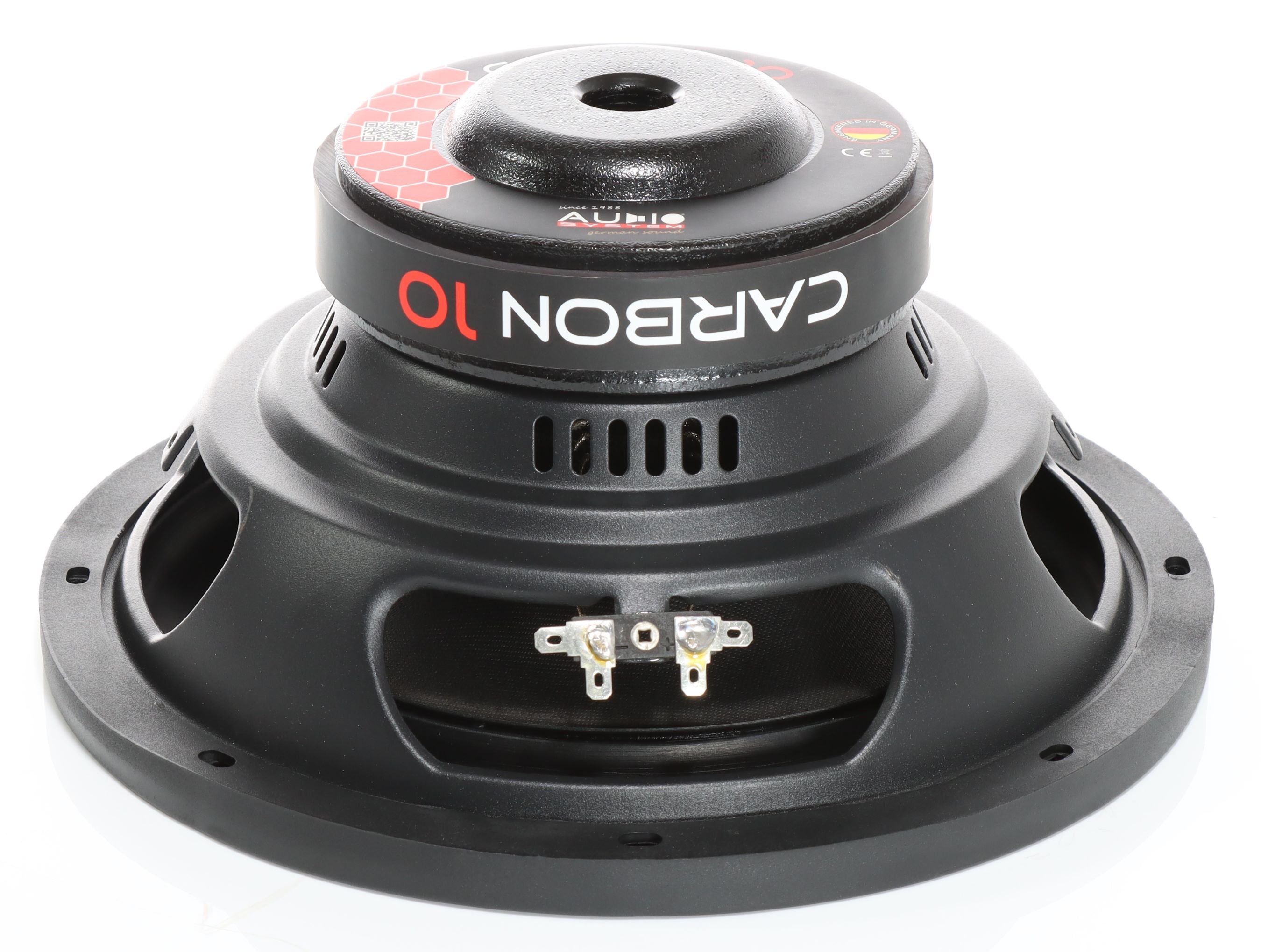

Audio System CARBON10
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 33.8 Hz |
| Q factor | 0.68 |
| Sensitivity | 84.1 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 350 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.1dB
- Frequency response 32 - 1500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 33.8Hz
- Mechanical quality factor QMS 5.60
- Electrical quality factor QES 0.77
- Total quality factor QTS 0.68
Large signal parameters
- Maximum linear excursion (one way) xmax 5.5mm
- Air volume displaced at xmax VD 173cm³
- Power handling P 250W
- Program power Pmax 350W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz, estimated) LE 1.54mH
- VC Diameter 51mm
- Former material Aluminium
Magnet
- Force factor Bl 9.5N/A
- Motor constant Bl/√RE 5.31N/√W
- Diameter 134mm
Diaphragm
- Effective diameter 200mm
- Effective area SD 314cm²
- Moving mass MMS 102g
- Moving mass (without air load) MMD 97.8g
- Material PP
Suspensions
- Stiffness KMS 4.61N/mm
- Compliance CMS 217µm/N
- Equivalent volume to the compliance VAS 30.3L
- Mechanical resistance RMS 3.87N·s/m
- Surround material Elastomer
- Spider material Polyester Cotton
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 261mm
- Baffle cutout diameter 227mm
- Overall depth 131mm
- Flange thickness 17mm
- Mounting depth 114mm
- Volume occupied by the driver (estimated) 1.7L
- Net weight 4.0kg
- Frame material Sheet Metal
