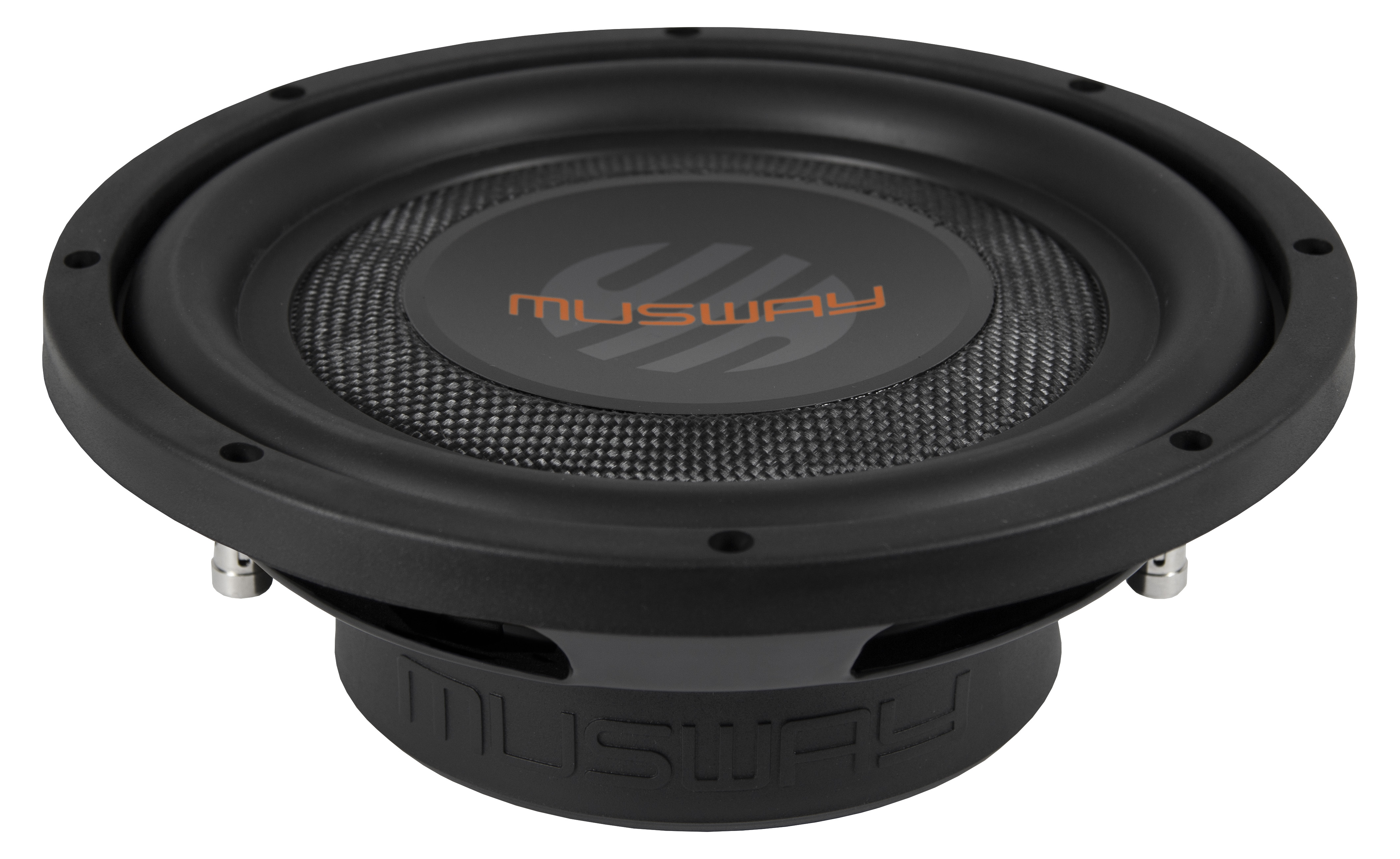

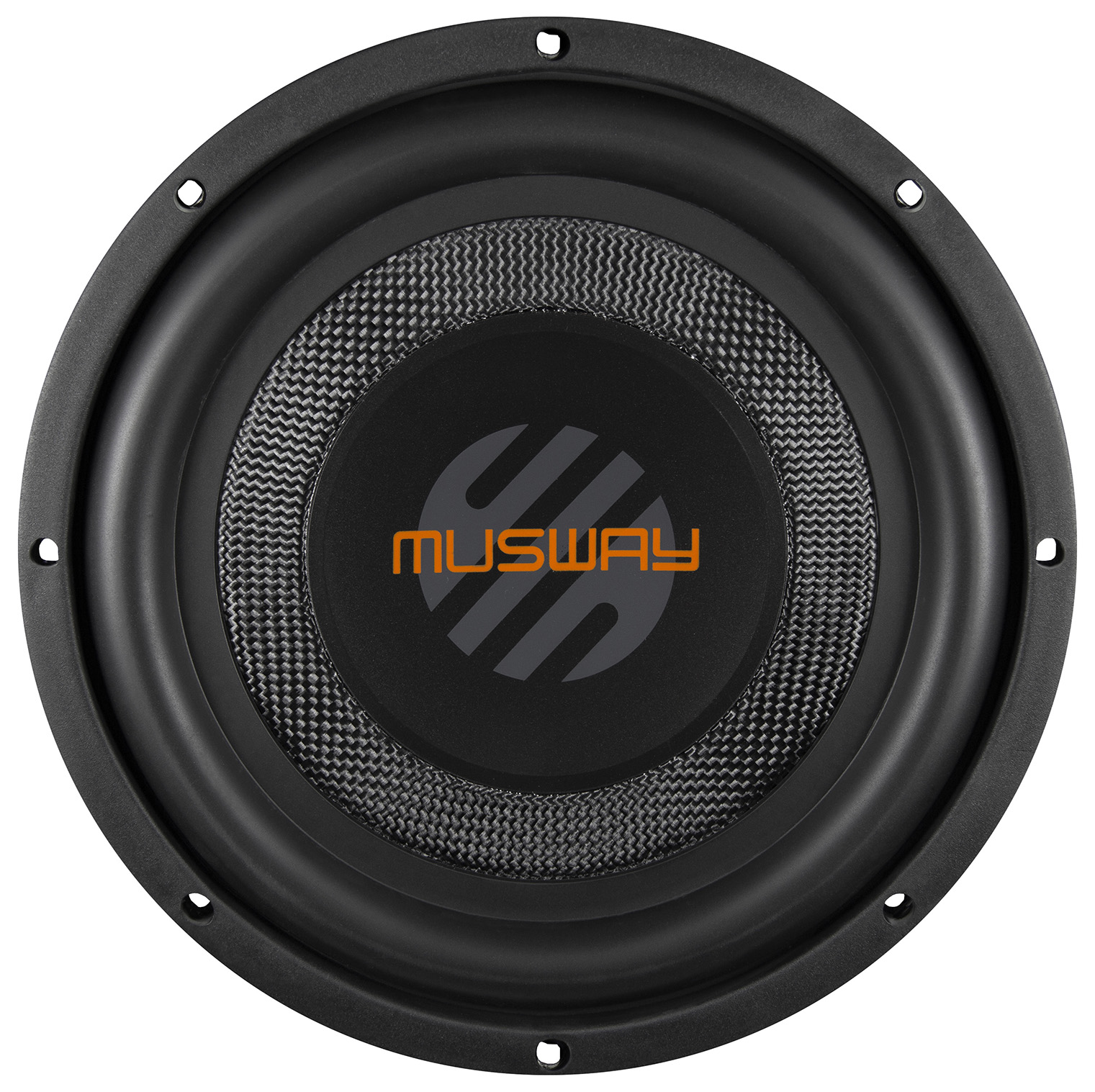

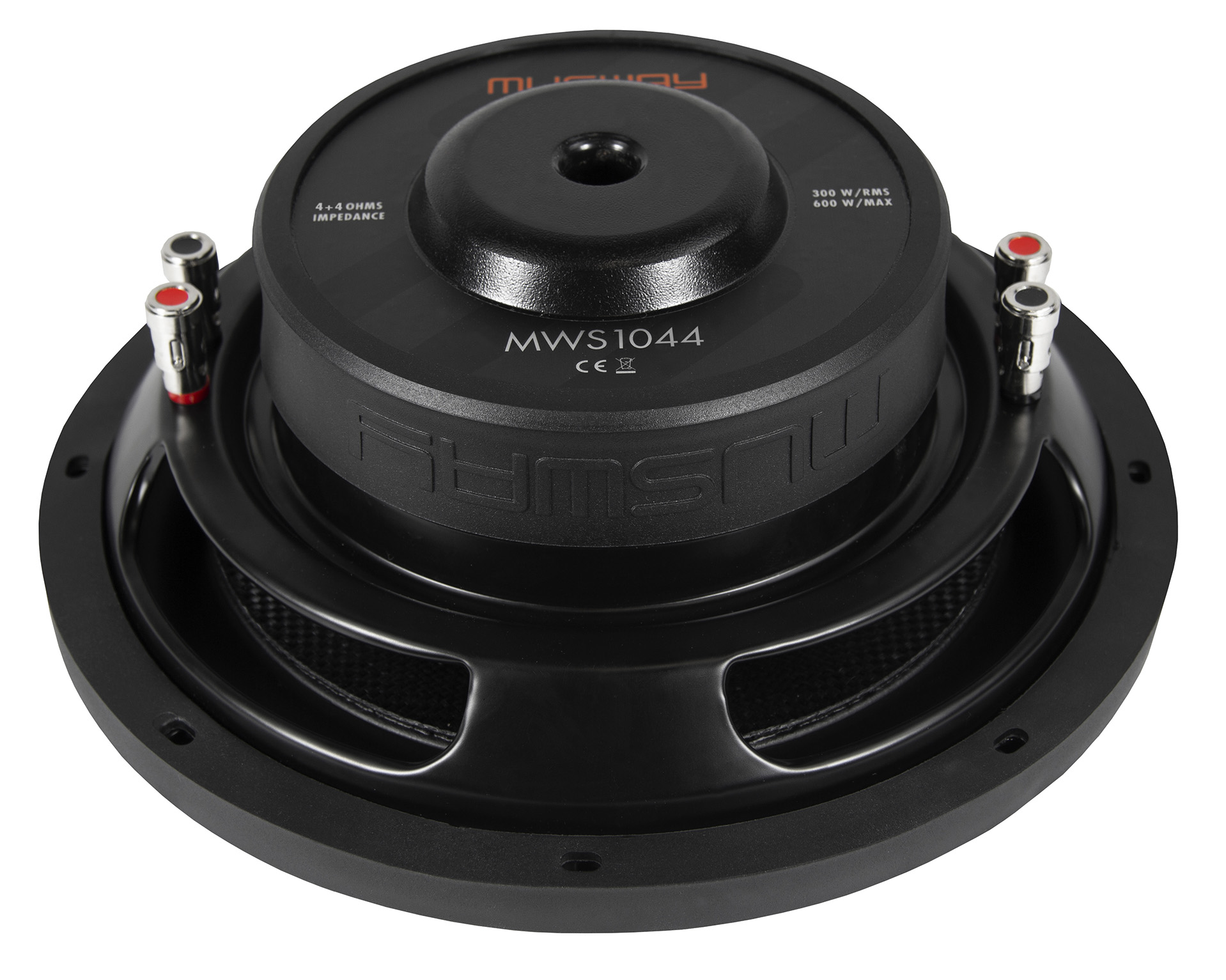

MUSWAY MWS1044
2x2Ω
2x4Ω
Shallow Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 33.1 Hz |
| Q factor | 0.70 |
| Sensitivity | 83 dB |
| Linear excursion | ± 10 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83dB
Thiele & Small parameters
- Resonance frequency (free air) fS 33.1Hz
- Mechanical quality factor QMS 4.08
- Electrical quality factor QES 0.85
- Total quality factor QTS 0.70
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Maximum excursion before damage xlim 15mm
- Air volume displaced at xmax VD 346cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series) LE 3.44mH
- VC Diameter 50mm
- Winding height HVC 28mm
- Former material TIL (Glass-Fibre)
Magnet
- Force factor (in series) Bl 15.8N/A
- Motor constant Bl/√RE 5.89N/√W
- Diameter 145mm
- Height 20mm
- Weight 1.276kg
- Material Y30
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 143g
- Moving mass (without air load) MMD 138g
- Material Glass-Fibre
Suspensions
- Stiffness KMS 6.17N/mm
- Compliance CMS 162µm/N
- Equivalent volume to the compliance VAS 27.5L
- Mechanical resistance RMS 7.27N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 260mm
- Baffle cutout diameter 232mm
- Mounting depth 87mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Steel
