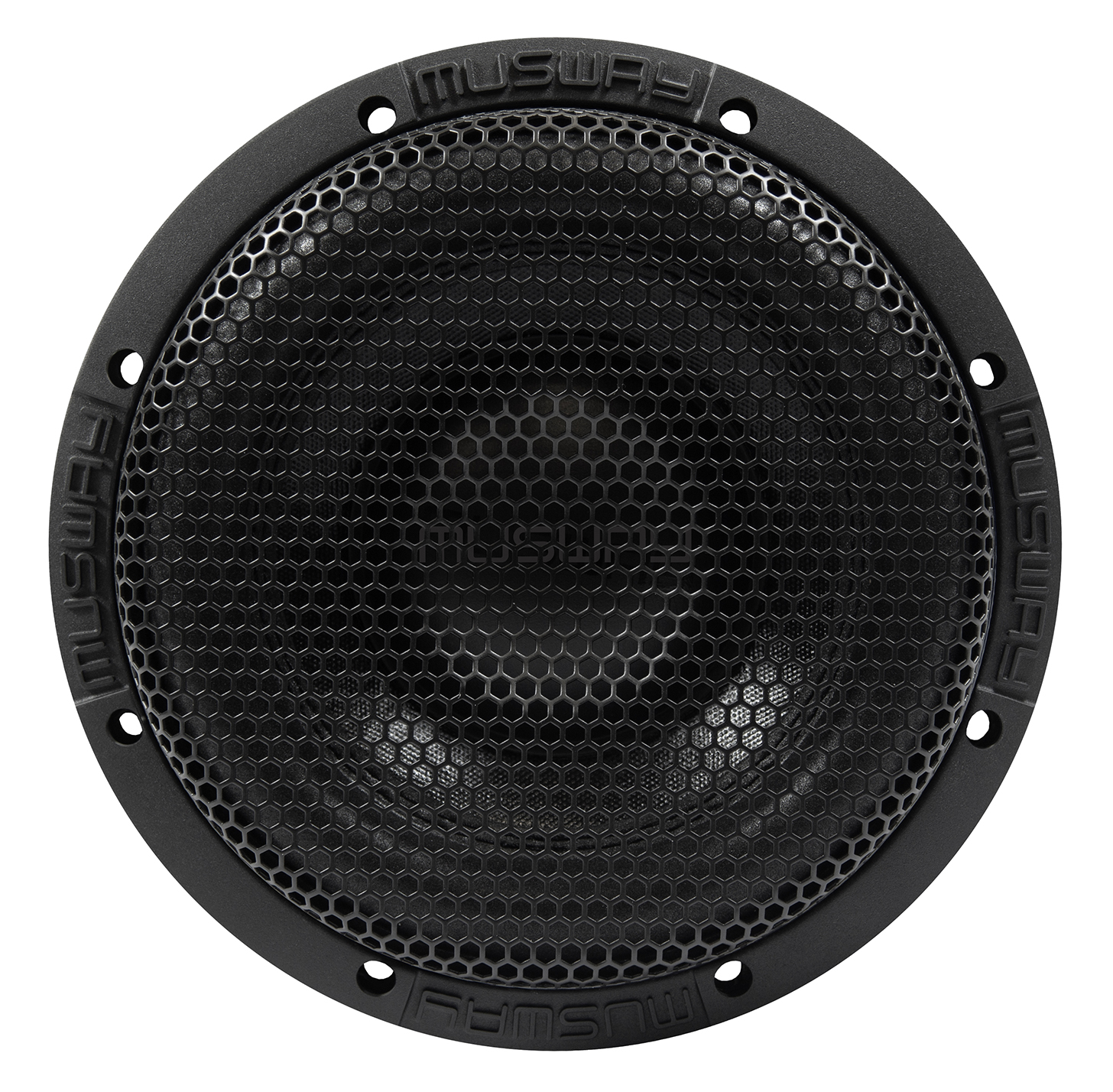

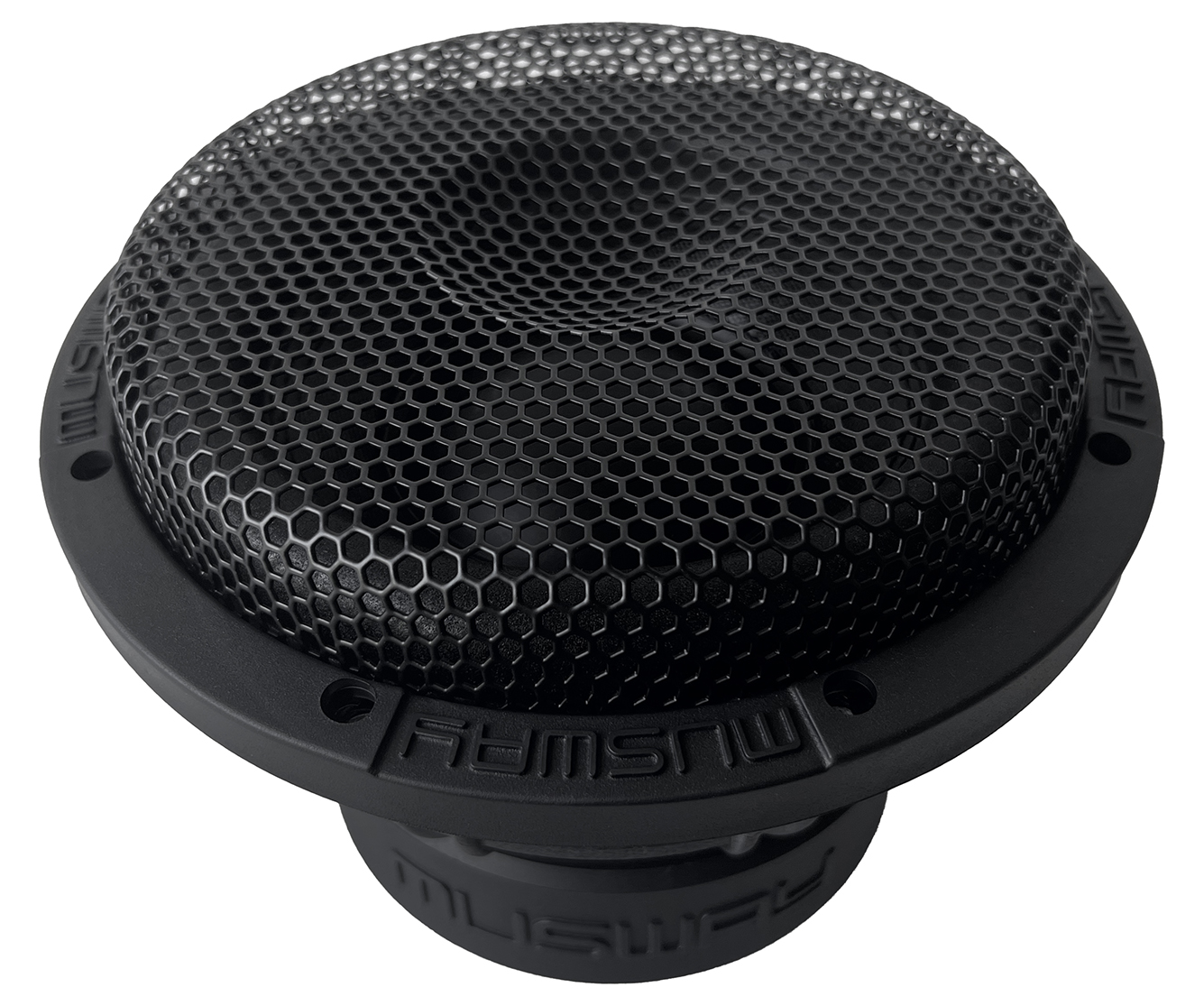

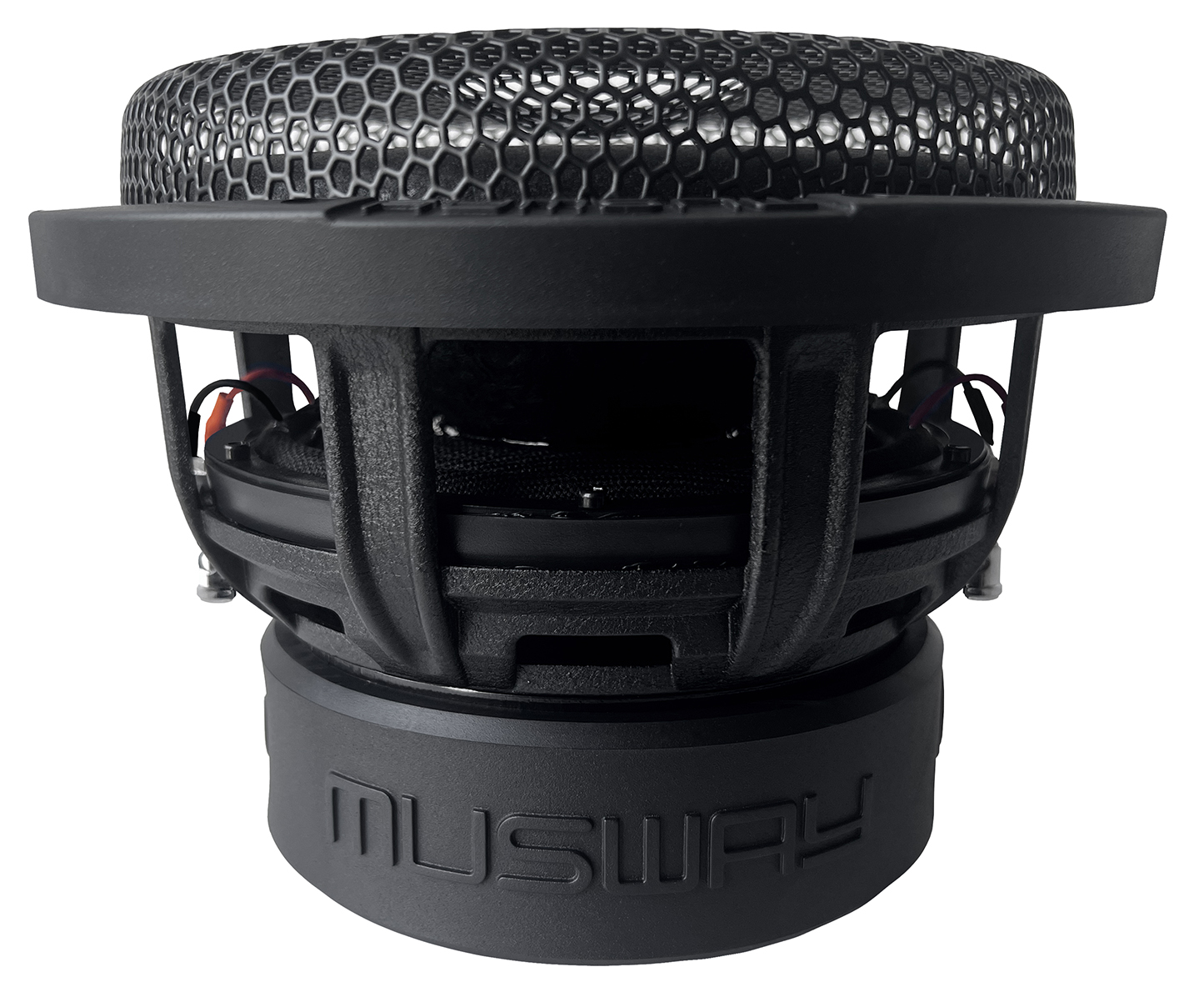

MUSWAY MG8
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 46 Hz |
| Q factor | 0.44 |
| Sensitivity | 84.8 dB |
| Linear excursion | ± 13.5 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 46Hz
- Mechanical quality factor QMS 3.89
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion (one way) xmax 13.5mm
- Maximum excursion before damage xlim 19mm
- Air volume displaced at xmax VD 280cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 1.51mH
- VC Diameter 50.8mm
- Winding height HVC 35mm
- Former material ASV
Magnet
- Force factor (in series) Bl 12.7N/A
- Motor constant Bl/√RE 6.69N/√W
- Diameter 145mm
- Height 40mm
- Weight 2.835kg
Diaphragm
- Effective diameter 162mm
- Effective area SD 207cm²
- Moving mass MMS 75.6g
- Moving mass (without air load) MMD 73.3g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 6.41N/mm
- Compliance CMS 156µm/N
- Equivalent volume to the compliance VAS 9.5L
- Mechanical resistance RMS 5.62N·s/m
- Surround material Rubber
- Spider material Polycotton
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 221mm
- Baffle cutout diameter 185mm
- Mounting depth 138mm
- Volume occupied by the driver (estimated) 1.1L
- Frame material Aluminium
