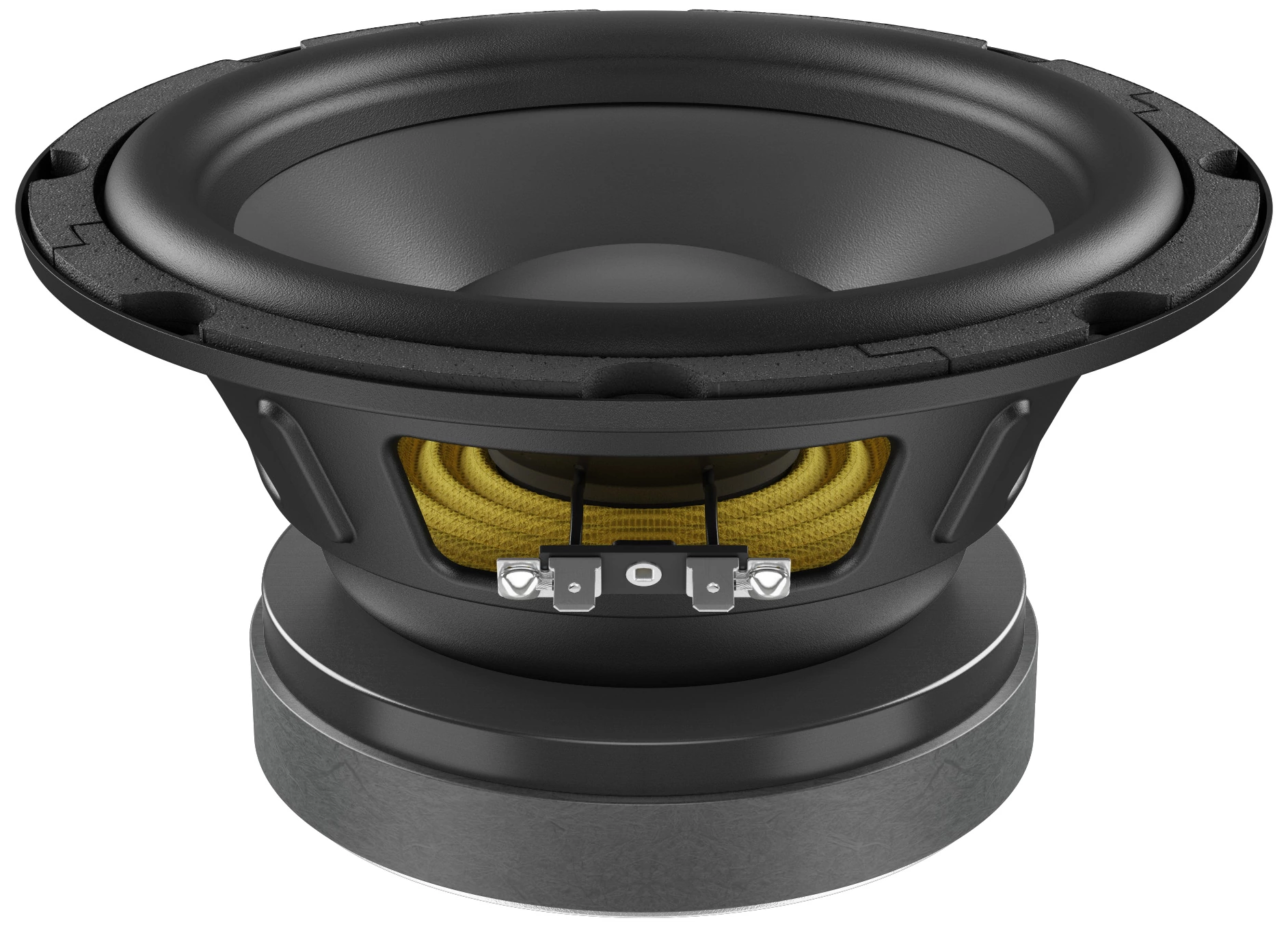

LaVoce SSF082.00L-4
4Ω
8ΩSubwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 49 Hz |
| Q factor | 0.41 |
| Sensitivity | 86.4 dB |
| Linear excursion | ± 10.3 mm |
| Program Power | 700 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.4dB

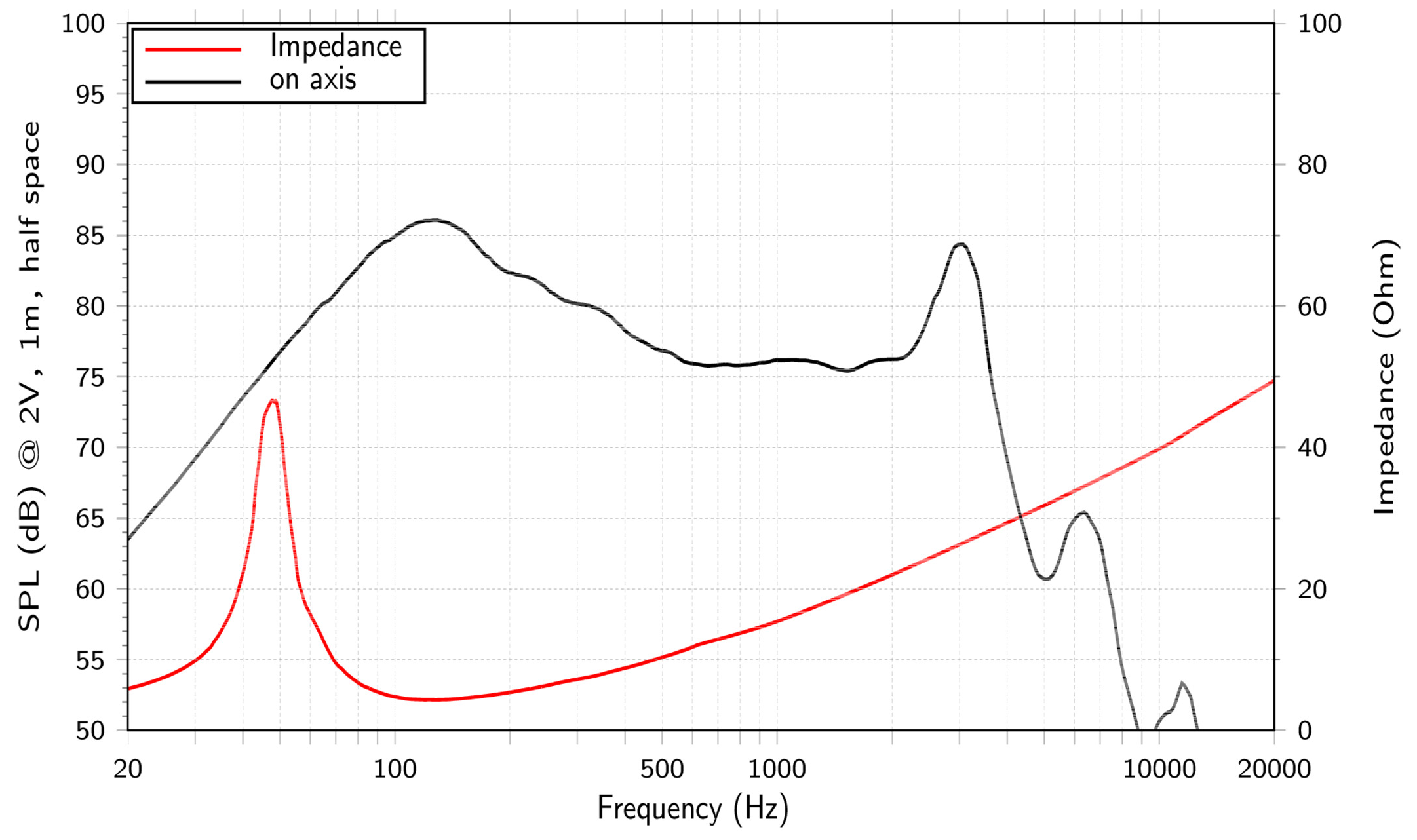

- Frequency response 50 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 49Hz
- Mechanical quality factor QMS 7.54
- Electrical quality factor QES 0.44
- Total quality factor QTS 0.41
Large signal parameters
- Maximum linear excursion (one way) xmax 10.3mm
- Maximum excursion before damage xlim 15.8mm
- Air volume displaced at xmax VD 227cm³
- Power handling P 350W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz) LE 1.85mH
- VC Diameter 51mm
- Winding height HVC 25.5mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 12.8N/A
- Motor constant Bl/√RE 7.15N/√W
- Air gap height HAG 10mm
- Diameter 140mm
- Height 20mm
- Material Ferrite
Diaphragm
- Effective diameter 167mm
- Effective area SD 220cm²
- Moving mass MMS 72.5g
- Moving mass (without air load) MMD 70.2g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 6.9N/mm
- Compliance CMS 145µm/N
- Equivalent volume to the compliance VAS 9.93L
- Mechanical resistance RMS 2.96N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 8″
- 200mm
- Volume occupied by the driver 1L
- Net weight 4.1kg
- Frame material Steel
.webp)
.webp)
