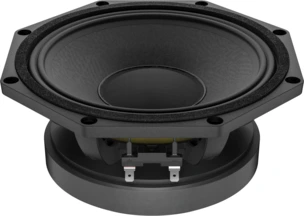

LaVoce CAF082.00K Coaxial

LaVoce CAF082.00K

8 Ω
8″ Coaxial
fS72 Hz
SD220 cm²
70 - 20000 Hz
QTS0.34
xmax6.7 mm
SPL1W93.1 dB
Bl/√RE5.16
Pmax500 W

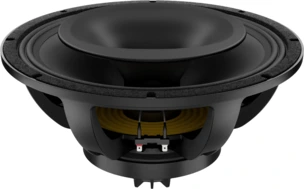

LaVoce CAF153.00TH Coaxial

LaVoce CAF153.00TH

8 Ω
15″ Coaxial
fS46 Hz
SD855 cm²
45 - 18000 Hz
QTS0.51
xmax6 mm
SPL1W95.1 dB
Bl/√RE6.67
Pmax800 W

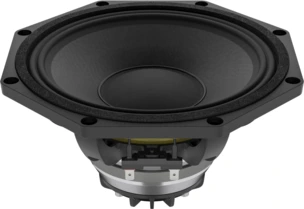

LaVoce CAN082.00K Coaxial

LaVoce CAN082.00K

8 Ω
8″ Coaxial
fS72 Hz
SD220 cm²
70 - 20000 Hz
QTS0.27
xmax6.7 mm
SPL1W94.1 dB
Bl/√RE5.82
Pmax500 W

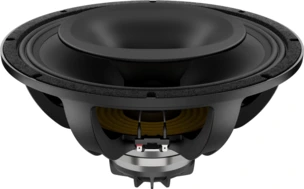

LaVoce CAN153.00TH Coaxial

LaVoce CAN153.00TH

8 Ω
15″ Coaxial
fS46 Hz
SD855 cm²
45 - 18000 Hz
QTS0.39
xmax6 mm
SPL1W97.2 dB
Bl/√RE7.81
Pmax800 W
LaVoce FSF030.70-16 Full-range

LaVoce FSF030.70-16

16 Ω
3″ Full-range
fS127 Hz
SD33 cm²
120 - 21000 Hz
QTS0.99
xmax2.1 mm
SPL1W85.6 dB
Bl/√RE1.23
Pmax60 W
LaVoce FSF030.70-4 Full-range

LaVoce FSF030.70-4

4 Ω
3″ Full-range
fS128 Hz
SD33 cm²
120 - 21000 Hz
QTS0.78
xmax1.9 mm
SPL1W86.1 dB
Bl/√RE1.36
Pmax60 W

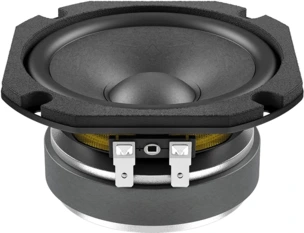

LaVoce FSF041.00-16 Full-range

LaVoce FSF041.00-16

16 Ω
4″ Full-range
fS132 Hz
SD56 cm²
110 - 18000 Hz
QTS1.01
xmax2.2 mm
SPL1W87.4 dB
Bl/√RE1.7
Pmax80 W

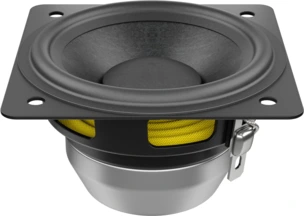

LaVoce FSN020.72-4 Full-range

LaVoce FSN020.72-4

4 Ω
2″ Full-range
fS200 Hz
SD18 cm²
200 - 20000 Hz
QTS0.78
xmax2.3 mm
SPL1W84.4 dB
Bl/√RE1.32
Pmax30 W

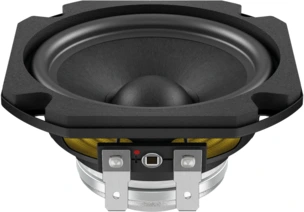

LaVoce FSN030.71-4 Full-range

LaVoce FSN030.71-4

4 Ω
3″ Full-range
fS134 Hz
SD33 cm²
120 - 21000 Hz
QTS0.73
xmax1.9 mm
SPL1W86.1 dB
Bl/√RE1.64
Pmax60 W

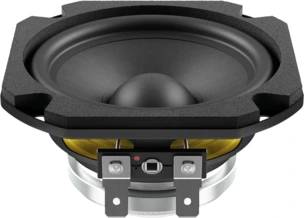

LaVoce FSN030.72-16 Full-range

LaVoce FSN030.72-16

16 Ω
3″ Full-range
fS131 Hz
SD33 cm²
120 - 20000 Hz
QTS0.45
xmax2.2 mm
SPL1W88.7 dB
Bl/√RE1.9
Pmax60 W

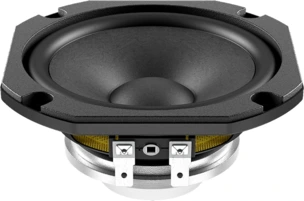

LaVoce FSN041.00-16 Full-range

LaVoce FSN041.00-16

16 Ω
4″ Full-range
fS111 Hz
SD56 cm²
110 - 18000 Hz
QTS0.40
xmax2.6 mm
SPL1W90.6 dB
Bl/√RE2.59
Pmax80 W

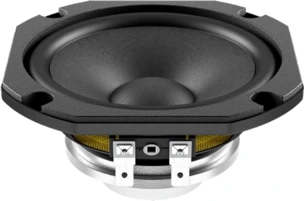

LaVoce FSN041.00-4 Full-range

LaVoce FSN041.00-4

4 Ω
4″ Full-range
fS112 Hz
SD56 cm²
110 - 18000 Hz
QTS0.34
xmax2.2 mm
SPL1W90.9 dB
Bl/√RE3.03
Pmax80 W

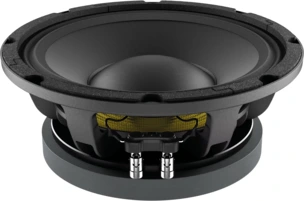

LaVoce MAF103.00-16 Mid-range

LaVoce MAF103.00-16

16 Ω
10″ Mid-range
fS90 Hz
SD350 cm²
70 - 4000 Hz
QTS0.32
xmax2.4 mm
SPL1W96.4 dB
Bl/√RE8.25
Pmax700 W

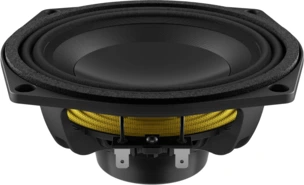

LaVoce MAN062.00-16 Mid-range

LaVoce MAN062.00-16

16 Ω
6.5″ Mid-range
fS103 Hz
SD132 cm²
100 - 4000 Hz
QTS0.34
xmax3.9 mm
SPL1W92.2 dB
Bl/√RE5.16
Pmax500 W

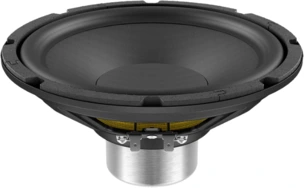

LaVoce NBASS08-20-2 Woofer

LaVoce NBASS08-20-2

2 Ω
8″ Woofer
fS50 Hz
SD235 cm²
55 - 4000 Hz
QTS0.41
xmax6.7 mm
SPL1W88.9 dB
Bl/√RE5.74
Pmax400 W

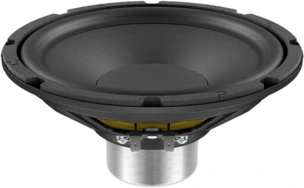

LaVoce NBASS08-20-32 Woofer

LaVoce NBASS08-20-32

32 Ω
8″ Woofer
fS57 Hz
SD235 cm²
55 - 4000 Hz
QTS0.67
xmax6.4 mm
SPL1W89.7 dB
Bl/√RE3.79
Pmax400 W
LaVoce NBASS10-20-16 Woofer

LaVoce NBASS10-20-16

16 Ω
10″ Woofer
fS53 Hz
SD353 cm²
50 - 3000 Hz
QTS0.54
xmax6.3 mm
SPL1W91.8 dB
Bl/√RE4.63
Pmax300 W
LaVoce NBASS10-20-32 Bass Guitar Speaker

LaVoce NBASS10-20-32

32 Ω
10″ Bass Guitar Speaker
fS57 Hz
SD353 cm²
50 - 3000 Hz
QTS0.61
xmax6.4 mm
SPL1W92.5 dB
Bl/√RE4.02
Pmax300 W

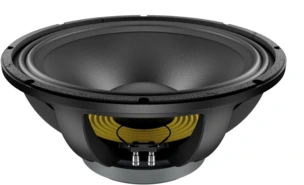

LaVoce SAF184.01-4 Subwoofer

LaVoce SAF184.01-4

4 Ω
18″ Subwoofer
fS35 Hz
SD1150 cm²
30 - 1400 Hz
QTS0.29
xmax6.6 mm
SPL1W95.4 dB
Bl/√RE11.6
Pmax1400 W

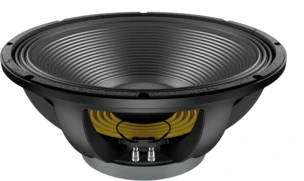

LaVoce SAF184.02-4 Subwoofer

LaVoce SAF184.02-4

4 Ω
18″ Subwoofer
fS38 Hz
SD1220 cm²
40 - 1000 Hz
QTS0.46
xmax8 mm
SPL1W93.5 dB
Bl/√RE11.3
Pmax2400 W

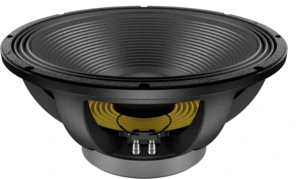

LaVoce SAF184.03-4 Subwoofer

LaVoce SAF184.03-4

4 Ω
18″ Subwoofer
fS38 Hz
SD1220 cm²
30 - 1000 Hz
QTS0.39
xmax12.1 mm
SPL1W93.9 dB
Bl/√RE12.7
Pmax3000 W

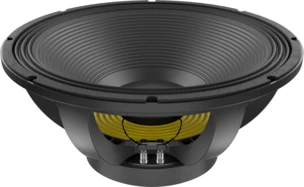

LaVoce SAF184.06 Subwoofer

LaVoce SAF184.06

8 Ω
18″ Subwoofer
fS34 Hz
SD1220 cm²
30 - 1000 Hz
QTS0.31
xmax9 mm
SPL1W95.2 dB
Bl/√RE12
Pmax2000 W

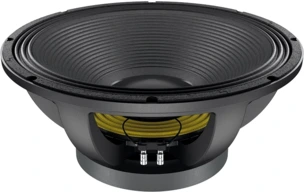

LaVoce SAF184.50-4 Subwoofer

LaVoce SAF184.50-4

4 Ω
18″ Subwoofer
fS36 Hz
SD1220 cm²
30 - 1000 Hz
QTS0.36
xmax12.5 mm
SPL1W93.4 dB
Bl/√RE13.5
Pmax3600 W

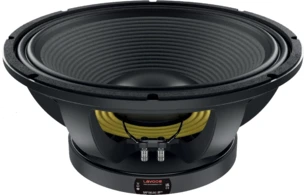

LaVoce SAF185.00 Subwoofer

LaVoce SAF185.00

8 Ω
18″ Subwoofer
fS34 Hz
SD1220 cm²
30 - 1000 Hz
QTS0.23
xmax11.6 mm
SPL1W95.6 dB
Bl/√RE15.7
Pmax3200 W

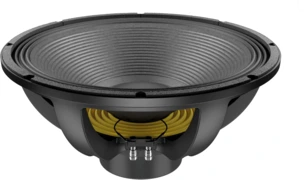

LaVoce SAN184.02-4 Subwoofer

LaVoce SAN184.02-4

4 Ω
18″ Subwoofer
fS38 Hz
SD1220 cm²
40 - 1000 Hz
QTS0.46
xmax8.8 mm
SPL1W93.3 dB
Bl/√RE11.4
Pmax2400 W
LaVoce SAN184.50-4 Subwoofer

LaVoce SAN184.50-4

4 Ω
18″ Subwoofer
fS35 Hz
SD1220 cm²
30 - 1000 Hz
QTS0.23
xmax15.1 mm
SPL1W94.7 dB
Bl/√RE18.1
Pmax3400 W

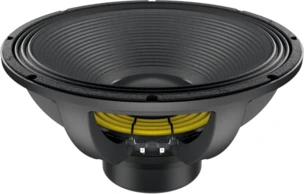

LaVoce SAN184.50iP-1 Subwoofer

LaVoce SAN184.50iP-1

1 Ω
18″ Subwoofer
fS34 Hz
SD1220 cm²
30 - 1000 Hz
QTS0.17
xmax24.2 mm
SPL1W96 dB
Bl/√RE20.6
Pmax3400 W

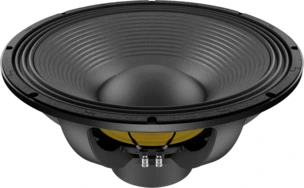

LaVoce SAN214.50-4 Subwoofer

LaVoce SAN214.50-4

4 Ω
21″ Subwoofer
fS32 Hz
SD1690 cm²
30 - 1000 Hz
QTS0.27
xmax15.4 mm
SPL1W95.4 dB
Bl/√RE17.4
Pmax3400 W

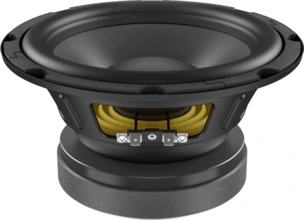

LaVoce SSF082.00L-4 Subwoofer

LaVoce SSF082.00L-4

4 Ω
8″ Subwoofer
fS49 Hz
SD220 cm²
50 - 500 Hz
QTS0.41
xmax10.3 mm
SPL1W86.4 dB
Bl/√RE7.15
Pmax700 W

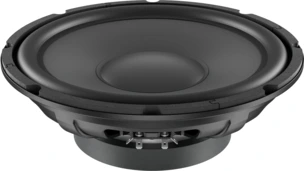

LaVoce SSF102.40-4 Subwoofer

LaVoce SSF102.40-4

4 Ω
10″ Subwoofer
fS41 Hz
SD350 cm²
40 - 500 Hz
QTS0.51
xmax8.3 mm
SPL1W87.6 dB
Bl/√RE5.99
Pmax500 W
LaVoce SSF153.00-4 Subwoofer

LaVoce SSF153.00-4

4 Ω
15″ Subwoofer
fS42 Hz
SD855 cm²
45 - 2000 Hz
QTS0.33
xmax7 mm
SPL1W95.5 dB
Bl/√RE9.04
Pmax800 W
LaVoce WAF061.80-16 Woofer

LaVoce WAF061.80-16

16 Ω
6.5″ Woofer
fS66 Hz
SD132 cm²
65 - 5000 Hz
QTS0.55
xmax4.8 mm
SPL1W87 dB
Bl/√RE3.78
Pmax300 W

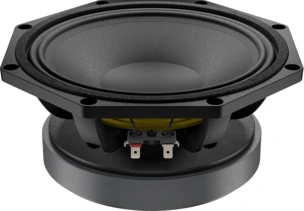

LaVoce WAF082.01 Woofer

LaVoce WAF082.01

8 Ω
8″ Woofer
fS76 Hz
SD220 cm²
70 - 5000 Hz
QTS0.21
xmax5.8 mm
SPL1W95.5 dB
Bl/√RE7.95
Pmax500 W

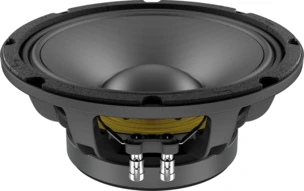

LaVoce WAF102.50A-16 Woofer

LaVoce WAF102.50A-16

16 Ω
10″ Woofer
fS74 Hz
SD350 cm²
70 - 4000 Hz
QTS0.40
xmax5.5 mm
SPL1W95 dB
Bl/√RE5.96
Pmax500 W

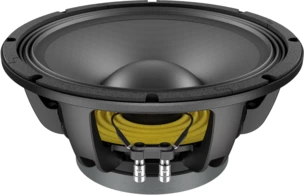

LaVoce WAF122.50-4 Woofer

LaVoce WAF122.50-4

4 Ω
12″ Woofer
fS57 Hz
SD531 cm²
60 - 3000 Hz
QTS0.29
xmax5.9 mm
SPL1W95.6 dB
Bl/√RE8.46
Pmax700 W

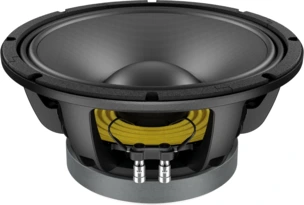

LaVoce WAF123.00-4 Woofer

LaVoce WAF123.00-4

4 Ω
12″ Woofer
fS50 Hz
SD531 cm²
50 - 3000 Hz
QTS0.24
xmax7 mm
SPL1W96 dB
Bl/√RE8.74
Pmax1000 W

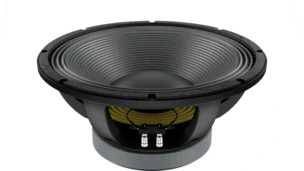

LaVoce WAF154.00-4 Woofer

LaVoce WAF154.00-4

4 Ω
15″ Woofer
fS38 Hz
SD855 cm²
40 - 1000 Hz
QTS0.27
xmax12.7 mm
SPL1W94.3 dB
Bl/√RE12.3
Pmax3000 W

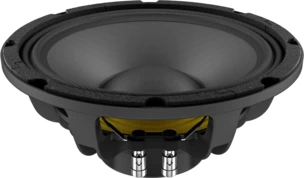

LaVoce WAN102.50-16 Woofer

LaVoce WAN102.50-16

16 Ω
10″ Woofer
fS76 Hz
SD350 cm²
80 - 4000 Hz
QTS0.43
xmax5.5 mm
SPL1W95.4 dB
Bl/√RE5.65
Pmax600 W

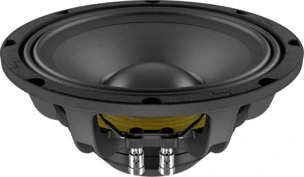

LaVoce WAN103.01-16 Woofer

LaVoce WAN103.01-16

16 Ω
10″ Woofer
fS70 Hz
SD350 cm²
70 - 3500 Hz
QTS0.28
xmax5 mm
SPL1W95.8 dB
Bl/√RE7.84
Pmax900 W

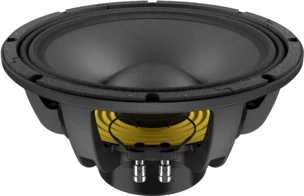

LaVoce WAN123.00-16 Woofer

LaVoce WAN123.00-16

16 Ω
12″ Woofer
fS49 Hz
SD531 cm²
50 - 3000 Hz
QTS0.32
xmax6.9 mm
SPL1W95 dB
Bl/√RE7.31
Pmax1000 W
