LaVoce MAN062.00-16
8Ω
16Ω
Mid-range
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 103 Hz |
| Q factor | 0.34 |
| Sensitivity | 92.2 dB |
| Linear excursion | ± 3.9 mm |
| Program Power | 500 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.2dB

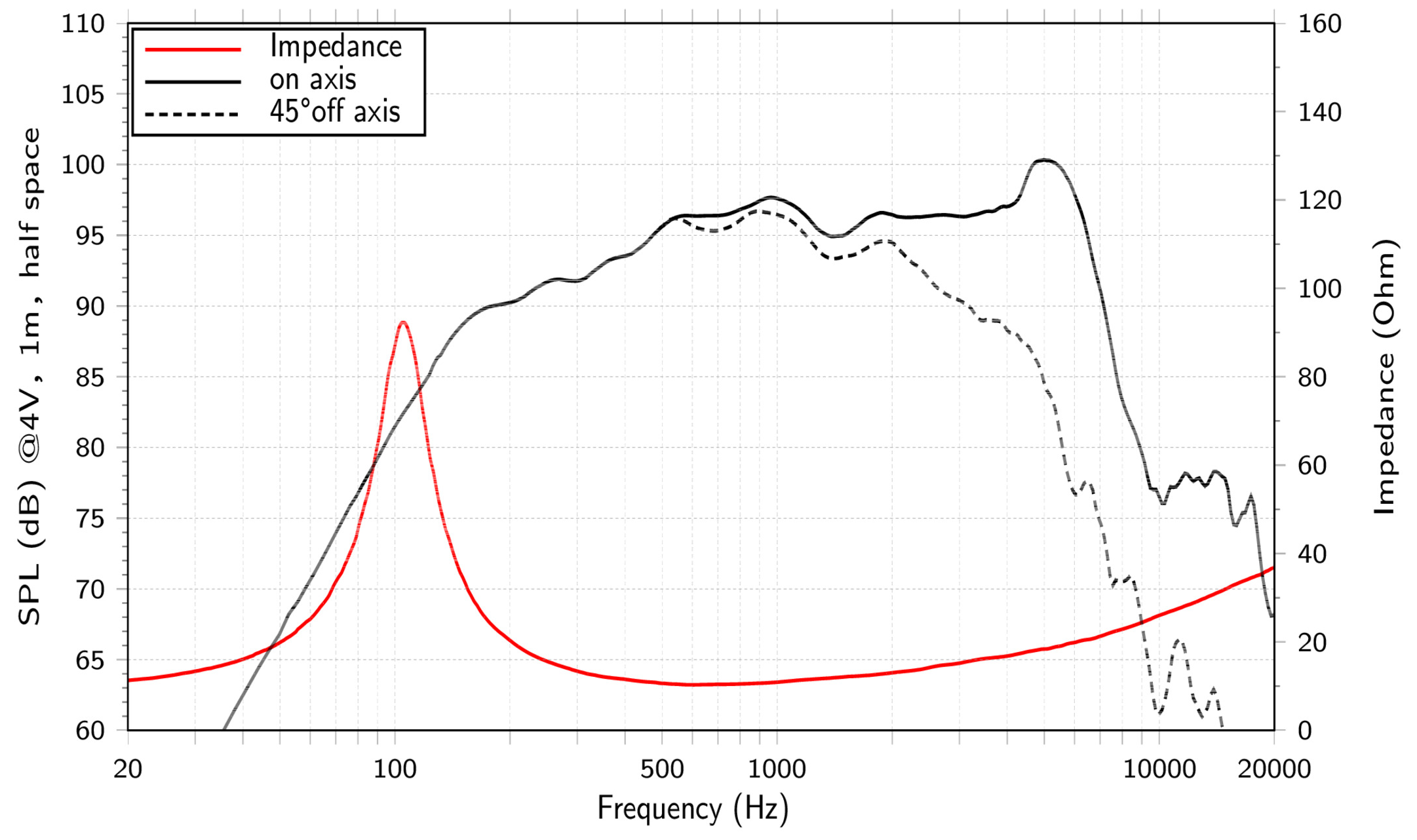

- Frequency response 100 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 103Hz
- Mechanical quality factor QMS 3.28
- Electrical quality factor QES 0.38
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 3.9mm
- Maximum excursion before damage xlim 6.4mm
- Air volume displaced at xmax VD 52cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 9.5Ω
- Inductance (1kHz) LE 0.39mH
- VC Diameter 51mm
- Winding height HVC 10.8mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 15.9N/A
- Motor constant Bl/√RE 5.16N/√W
- Air gap height HAG 6mm
- Diameter 50mm
- Height 9mm
- Material Neodymium
Diaphragm
- Effective diameter 130mm
- Effective area SD 132cm²
- Moving mass MMS 15.6g
- Moving mass (without air load) MMD 14.5g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 6.54N/mm
- Compliance CMS 153µm/N
- Equivalent volume to the compliance VAS 3.77L
- Mechanical resistance RMS 3.08N·s/m
- Surround material Polycotton

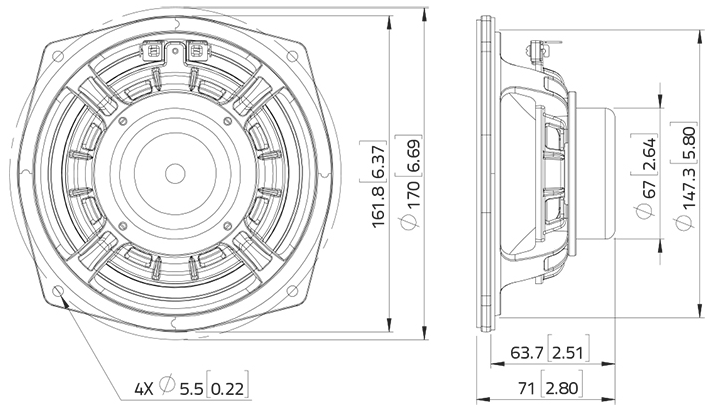

Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver 0.42L
- Net weight 0.9kg
- Frame material Aluminium
.webp)
.webp)
