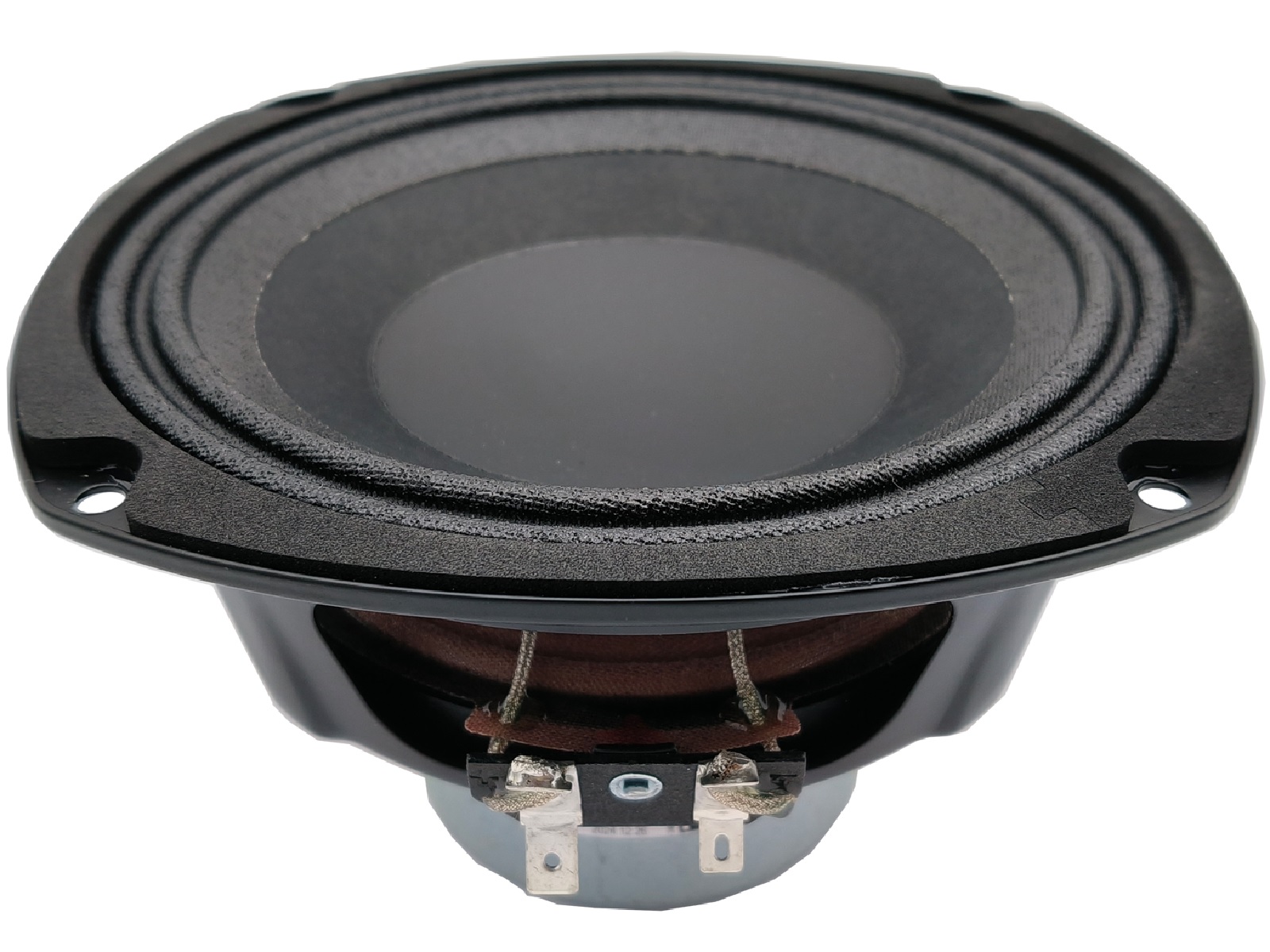

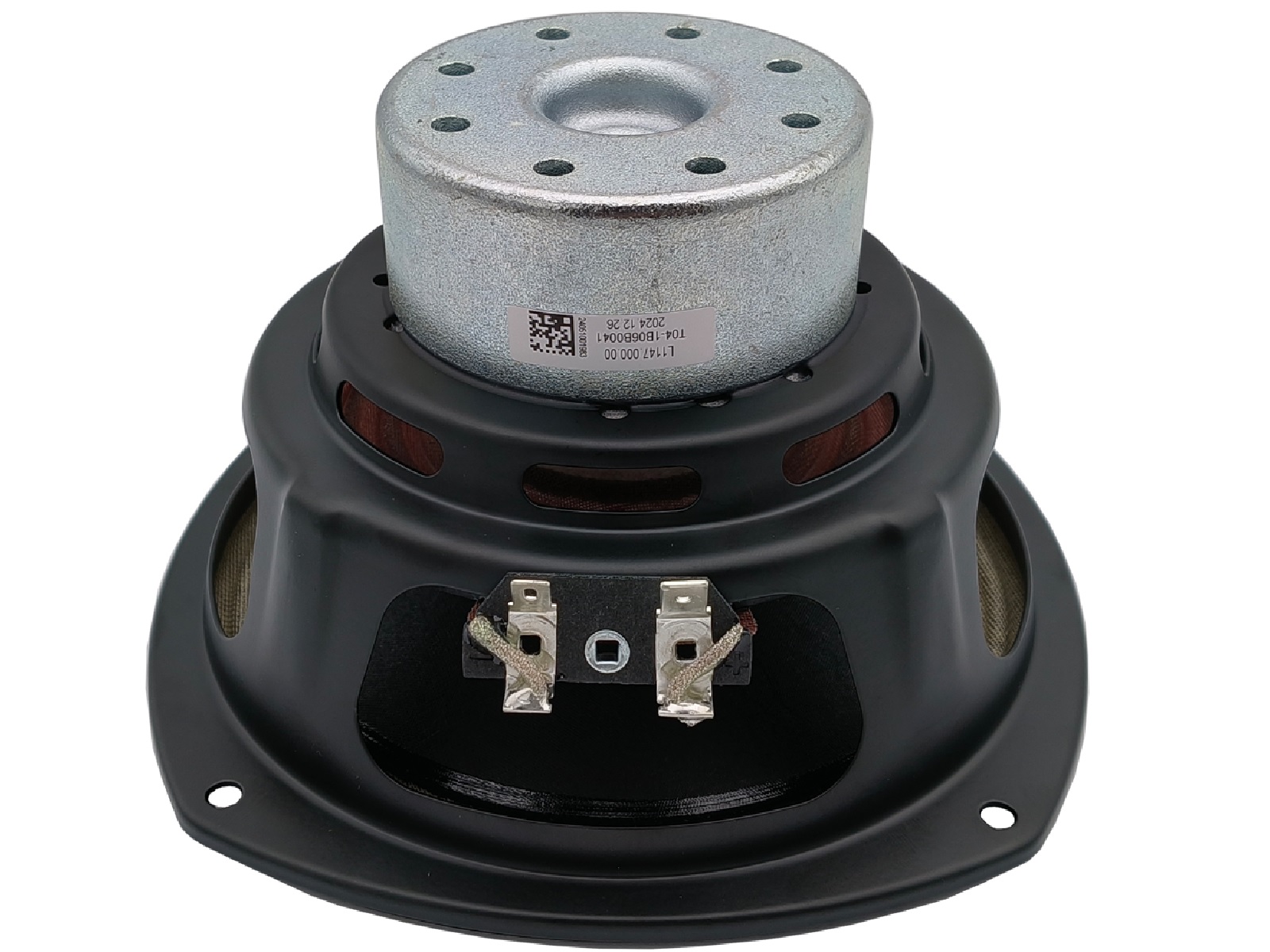

Peerless NSM-0620R00-16
4Ω
16Ω
Woofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 97 Hz |
| Q factor | 0.32 |
| Sensitivity | 91.2 dB |
| Linear excursion | ± 6.6 mm |
| Program Power | 450 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91.2dB

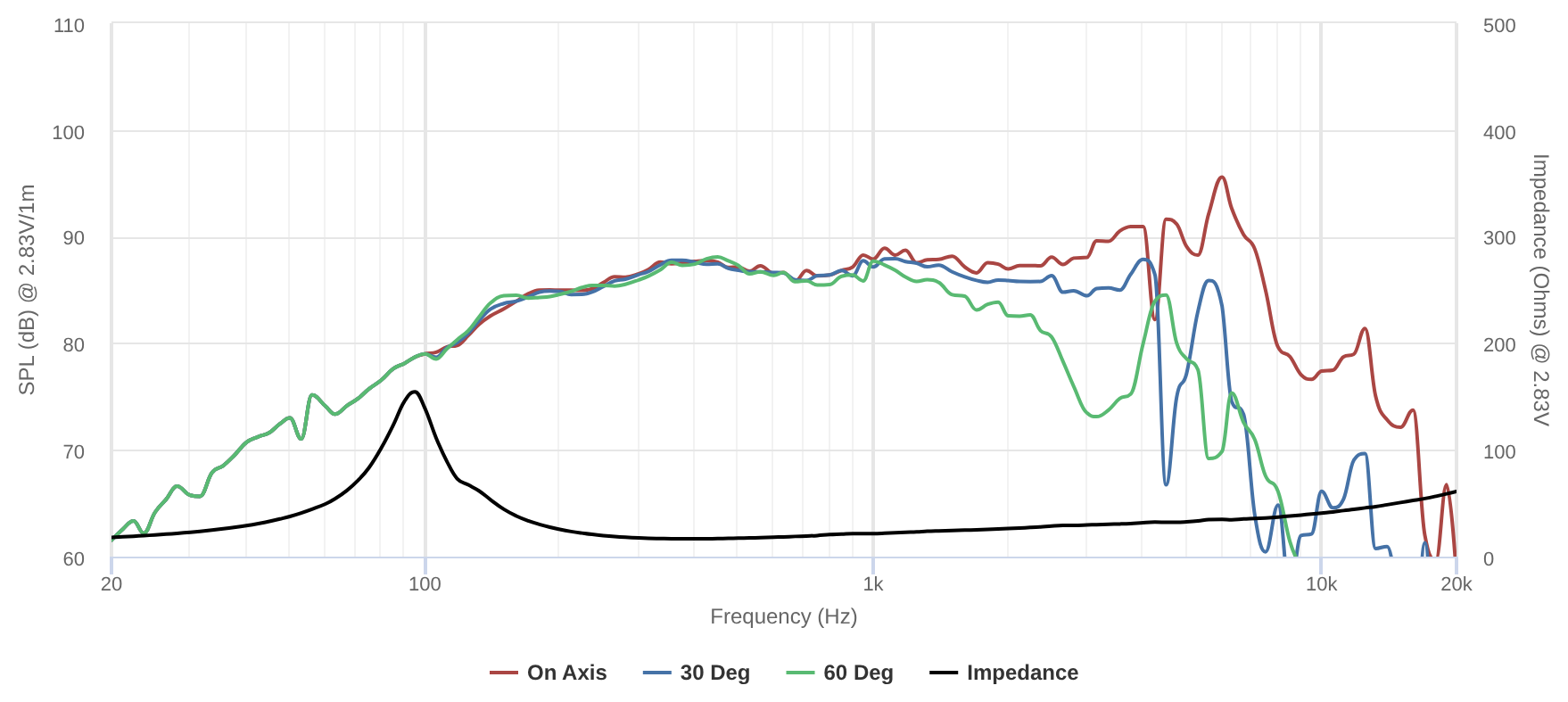

- Frequency response 95 - 8000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 97Hz
- Mechanical quality factor QMS 4.50
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion (one way) xmax 6.6mm
- Air volume displaced at xmax VD 90cm³
- Power handling P 225W
- Program power Pmax 450W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 13.0Ω
- Inductance (1kHz) LE 0.485mH
- VC Diameter 50.5mm
Magnet
- Force factor Bl 21.9N/A
- Motor constant Bl/√RE 6.07N/√W
- Air gap height HAG 9mm
- Material Neodymium
Diaphragm
- Effective diameter 132mm
- Effective area SD 137cm²
- Moving mass MMS 21.4g
- Moving mass (without air load) MMD 20.2g
- Material Paper
Suspensions
- Stiffness KMS 7.69N/mm
- Compliance CMS 130µm/N
- Equivalent volume to the compliance VAS 3.31L
- Mechanical resistance RMS 2.9N·s/m
- Surround material Fabric

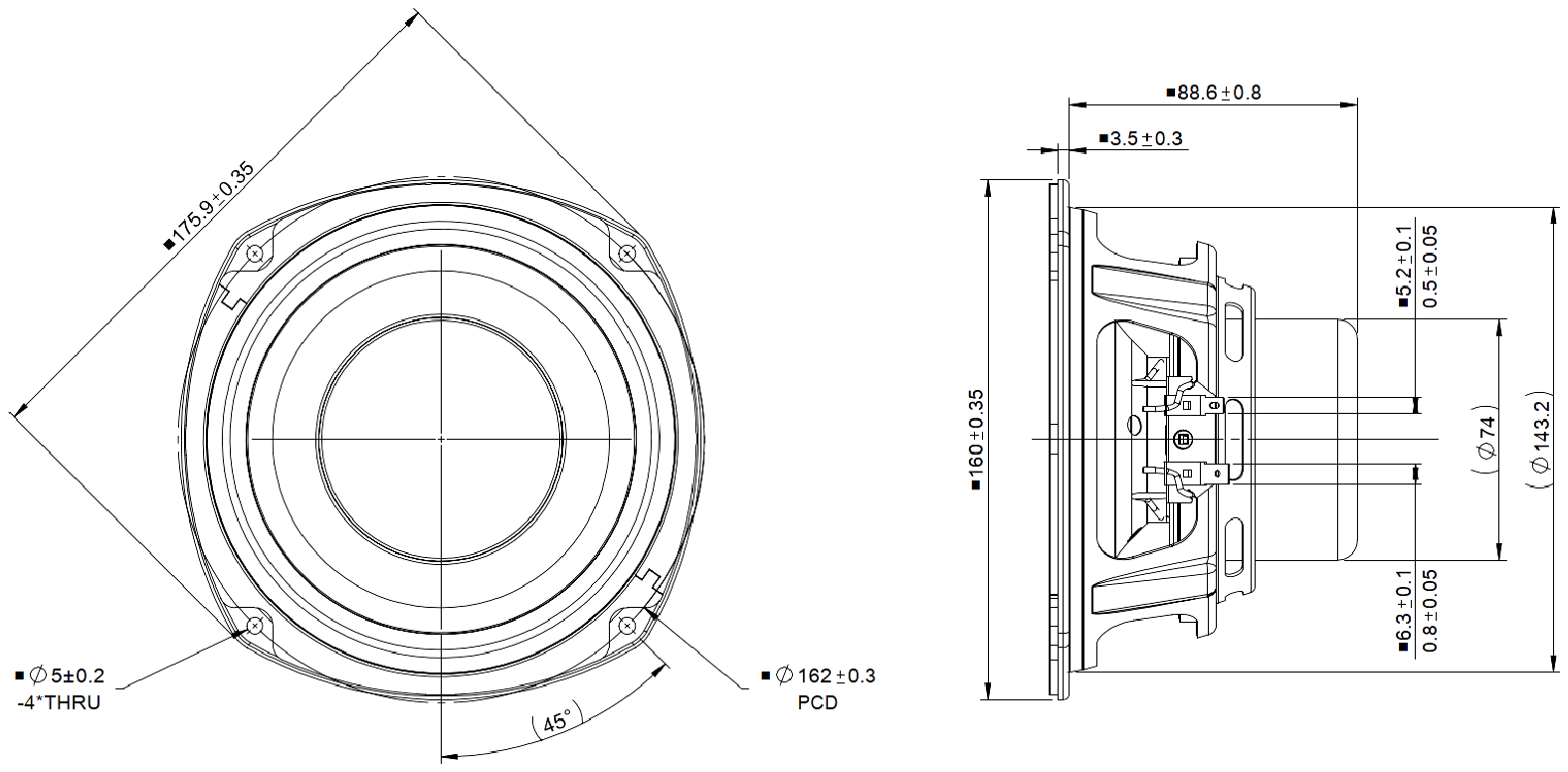

Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver (estimated) 0.52L
- Net weight 1.3kg
- Frame material Pressed Steel
.png)
.png)
