Peerless NSM-0412R00-08 Woofer

Peerless NSM-0412R00-08

8 Ω
4.5″ Woofer
fS110 Hz
SD65 cm²
100 - 5000 Hz
QTS0.27
xmax5.6 mm
SPL1W90.1 dB
Bl/√RE3.65
Pmax220 W
Peerless HVS-40N15PG01-04 Full-range

Peerless HVS-40N15PG01-04

4 Ω
1.5″ Full-range
fS220 Hz
SD8.6 cm²
200 - 40000 Hz
QTS1.00
xmax1.6 mm
SPL1W81.5 dB
Bl/√RE0.93
Pmax8 W
Discontinued
Peerless TPY02F04O0091 Full-range

Peerless TPY02F04O0091

4 Ω
2″ Full-range
fS160 Hz
SD15.2 cm²
100 - 15000 Hz
QTS0.68
xmax1.9 mm
SPL1W82.5 dB
Bl/√RE1.44
Pmax50 W
Peerless SLS-85S25CP05-08 Coaxial

Peerless SLS-85S25CP05-08

8 Ω
3.5″ Coaxial
fS79 Hz
SD31.2 cm²
70 - 20000 Hz
QTS0.46
xmax6.5 mm
SPL1W82.3 dB
Bl/√RE2.24
Pmax50 W
Peerless FSL-1020R03-08 Woofer

Peerless FSL-1020R03-08

8 Ω
10″ Woofer
fS49 Hz
SD373 cm²
45 - 3000 Hz
QTS0.38
xmax5 mm
SPL1W95.4 dB
Bl/√RE4.77
Pmax400 W
Peerless XXLS-P835037 Subwoofer

Peerless XXLS-P835037

4 Ω
10″ Subwoofer
fS30 Hz
SD346 cm²
40 - 500 Hz
QTS0.43
xmax15 mm
SPL1W86.4 dB
Bl/√RE6.26
Pmax240 W
Discontinued

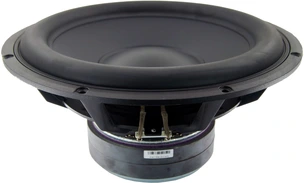

Peerless XXLS-P835017 Subwoofer

Peerless XXLS-P835017

4 Ω
12″ Subwoofer
fS21.6 Hz
SD483 cm²
20 - 4000 Hz
QTS0.39
xmax12.3 mm
SPL1W87 dB
Bl/√RE6.68
Pmax240 W
Peerless XXLS-P835016 Subwoofer

Peerless XXLS-P835016

4 Ω
10″ Subwoofer
fS24 Hz
SD346 cm²
20 - 1000 Hz
QTS0.33
xmax15 mm
SPL1W86.7 dB
Bl/√RE6.2
Pmax200 W
Peerless XXLS-P830845 Subwoofer

Peerless XXLS-P830845

8 Ω
12″ Subwoofer
fS29 Hz
SD491 cm²
20 - 1000 Hz
QTS0.65
xmax15.2 mm
SPL1W86.6 dB
Bl/√RE5.48
Pmax350 W
Discontinued
Peerless XXLS-300F50AL01-04 Subwoofer

Peerless XXLS-300F50AL01-04

4 Ω
12″ Subwoofer
fS22.4 Hz
SD468 cm²
20 - 4000 Hz
QTS0.41
xmax12.3 mm
SPL1W86.5 dB
Bl/√RE6.79
Pmax240 W
Discontinued

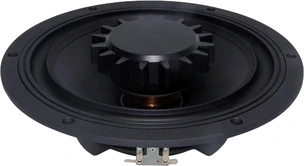

Peerless XLS-P835028 Subwoofer

Peerless XLS-P835028

4 Ω
10″ Subwoofer
fS34.1 Hz
SD314 cm²
20 - 500 Hz
QTS0.51
xmax9 mm
SPL1W85 dB
Bl/√RE6.42
Pmax320 W
Discontinued

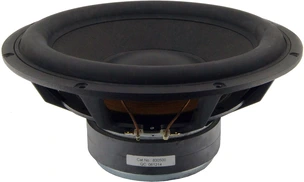

Peerless XLS-P830500 Subwoofer

Peerless XLS-P830500

4 Ω
12″ Subwoofer
fS20.3 Hz
SD483 cm²
20 - 1000 Hz
QTS0.24
xmax12.5 mm
SPL1W87 dB
Bl/√RE9.81
Pmax600 W
Discontinued
Peerless XLS-P830452 Subwoofer

Peerless XLS-P830452

4 Ω
10″ Subwoofer
fS22.6 Hz
SD350 cm²
20 - 2000 Hz
QTS0.22
xmax12.5 mm
SPL1W86.3 dB
Bl/√RE9.27
Pmax300 W
Peerless TPY05W08O0088 Woofer

Peerless TPY05W08O0088

8 Ω
5″ Woofer
fS89 Hz
SD89.9 cm²
80 - 3500 Hz
QTS0.59
xmax5.5 mm
SPL1W87.7 dB
Bl/√RE2.59
Pmax60 W
Peerless TPY05W04O0089 Woofer

Peerless TPY05W04O0089

4 Ω
5″ Woofer
fS90 Hz
SD89.9 cm²
80 - 3500 Hz
QTS0.61
xmax4.5 mm
SPL1W87.6 dB
Bl/√RE2.59
Pmax50 W
Discontinued

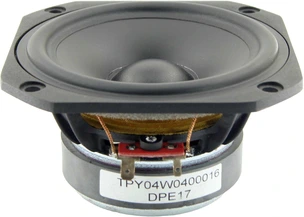

Peerless TPY04W04O0016ES Woofer

Peerless TPY04W04O0016ES

4 Ω
4″ Woofer
fS65 Hz
SD60.8 cm²
60 - 4000 Hz
QTS0.38
xmax4.6 mm
SPL1W86.1 dB
Bl/√RE2.52
Pmax70 W
Peerless TG9FD10-08 Full-range

Peerless TG9FD10-08

8 Ω
3.5″ Full-range
fS130 Hz
SD36.3 cm²
100 - 20000 Hz
QTS1.10
xmax3.9 mm
SPL1W85 dB
Bl/√RE1.23
Pmax40 W
Peerless TG9FD10-04 Full-range

Peerless TG9FD10-04

4 Ω
3.5″ Full-range
fS130 Hz
SD36.3 cm²
100 - 10000 Hz
QTS0.87
xmax3.9 mm
SPL1W85 dB
Bl/√RE1.44
Pmax20 W
Peerless TC9FD18-08 Full-range

Peerless TC9FD18-08

8 Ω
3.5″ Full-range
fS130 Hz
SD36.3 cm²
70 - 20000 Hz
QTS0.97
xmax3.9 mm
SPL1W85.1 dB
Bl/√RE1.26
Pmax60 W
Discontinued
Peerless TC9FD15-16 Full-range

Peerless TC9FD15-16

16 Ω
3.5″ Full-range
fS130 Hz
SD36.3 cm²
100 - 20000 Hz
QTS1.30
xmax3.7 mm
SPL1W85.4 dB
Bl/√RE1.01
Pmax40 W
Peerless TC9FD00-04 Full-range

Peerless TC9FD00-04

4 Ω
3.5″ Full-range
fS170 Hz
SD36.3 cm²
250 - 10000 Hz
QTS1.00
xmax2.9 mm
SPL1W87.7 dB
Bl/√RE1.32
Pmax50 W
Peerless TC8FD05-04 Full-range

Peerless TC8FD05-04

4 Ω
3″ Full-range
fS170 Hz
SD33.2 cm²
100 - 20000 Hz
QTS0.95
xmax2.7 mm
SPL1W86.5 dB
Bl/√RE1.46
Pmax50 W
Discontinued

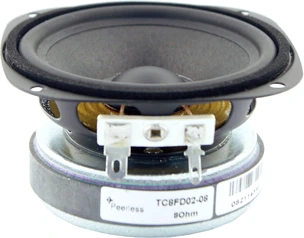

Peerless TC8FD02-08 Full-range

Peerless TC8FD02-08

8 Ω
3″ Full-range
fS97.8 Hz
SD33.2 cm²
130 - 20000 Hz
QTS0.44
xmax2 mm
SPL1W85.7 dB
Bl/√RE1.98
Pmax50 W
Discontinued

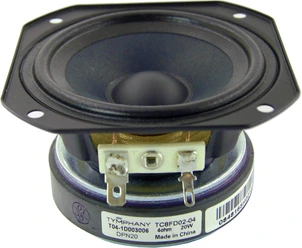

Peerless TC8FD02-04 Full-range

Peerless TC8FD02-04

4 Ω
3″ Full-range
fS170 Hz
SD33.2 cm²
120 - 20000 Hz
QTS0.89
xmax1.6 mm
SPL1W86.4 dB
Bl/√RE1.43
Pmax50 W
Peerless TC8FD00-08 Full-range

Peerless TC8FD00-08

8 Ω
3″ Full-range
fS130 Hz
SD33.2 cm²
80 - 20000 Hz
QTS0.96
xmax3.4 mm
SPL1W85 dB
Bl/√RE1.21
Pmax50 W
Peerless TC8FD00-04 Full-range

Peerless TC8FD00-04

4 Ω
3″ Full-range
fS140 Hz
SD33.2 cm²
100 - 15000 Hz
QTS0.94
xmax3.7 mm
SPL1W84.1 dB
Bl/√RE1.34
Pmax50 W
Peerless TC7FD04-04 Full-range

Peerless TC7FD04-04

4 Ω
2.5″ Full-range
fS210 Hz
SD20.4 cm²
100 - 20000 Hz
QTS0.77
xmax2 mm
SPL1W85.4 dB
Bl/√RE1.39
Pmax40 W
Peerless TC7FD00-04 Full-range

Peerless TC7FD00-04

4 Ω
2.5″ Full-range
fS160 Hz
SD22.1 cm²
100 - 20000 Hz
QTS1.10
xmax2 mm
SPL1W83.7 dB
Bl/√RE1.1
Pmax40 W
Peerless TC6FD02-04 Full-range

Peerless TC6FD02-04

4 Ω
2″ Full-range
fS180 Hz
SD15.2 cm²
100 - 20000 Hz
QTS0.81
xmax1.6 mm
SPL1W82.6 dB
Bl/√RE1.14
Pmax30 W
Peerless TC6FD00-04 Full-range

Peerless TC6FD00-04

4 Ω
2″ Full-range
fS180 Hz
SD15.2 cm²
150 - 20000 Hz
QTS1.00
xmax2 mm
SPL1W82.3 dB
Bl/√RE1.04
Pmax30 W
Peerless TC6FC02-04 Full-range

Peerless TC6FC02-04

4 Ω
2″ Full-range
fS180 Hz
SD15.2 cm²
150 - 20000 Hz
QTS0.65
xmax1.6 mm
SPL1W83.9 dB
Bl/√RE1.17
Pmax30 W
Peerless TC6FC00-04 Full-range

Peerless TC6FC00-04

4 Ω
2″ Full-range
fS190 Hz
SD15.2 cm²
100 - 20000 Hz
QTS0.85
xmax2 mm
SPL1W82.9 dB
Bl/√RE1.17
Pmax30 W
Discontinued
Peerless TC6BD10-16 Full-range

Peerless TC6BD10-16

16 Ω
2″ Full-range
fS155 Hz
SD15.2 cm²
150 - 20000 Hz
QTS0.69
xmax1.1 mm
SPL1W81.9 dB
Bl/√RE1.26
Pmax20 W
Peerless TC5FC07-04 Full-range

Peerless TC5FC07-04

4 Ω
1.5″ Full-range
fS170 Hz
SD7.8 cm²
100 - 20000 Hz
QTS0.45
xmax2.7 mm
SPL1W82.8 dB
Bl/√RE1.18
Pmax10 W
Peerless TC5FC02-04 Full-range

Peerless TC5FC02-04

4 Ω
1.5″ Full-range
fS210 Hz
SD7.8 cm²
150 - 20000 Hz
QTS0.47
xmax1.3 mm
SPL1W84.1 dB
Bl/√RE1.14
Pmax10 W
Peerless TC5FC00-04 Full-range

Peerless TC5FC00-04

4 Ω
1.5″ Full-range
fS230 Hz
SD7.8 cm²
200 - 20000 Hz
QTS1.00
xmax1.2 mm
SPL1W81.8 dB
Bl/√RE0.71
Pmax10 W
Peerless TC5FB00-08 Full-range

Peerless TC5FB00-08

8 Ω
1.5″ Full-range
fS250 Hz
SD7.8 cm²
180 - 20000 Hz
QTS1.90
xmax1.3 mm
SPL1W83 dB
Bl/√RE0.48
Pmax10 W
