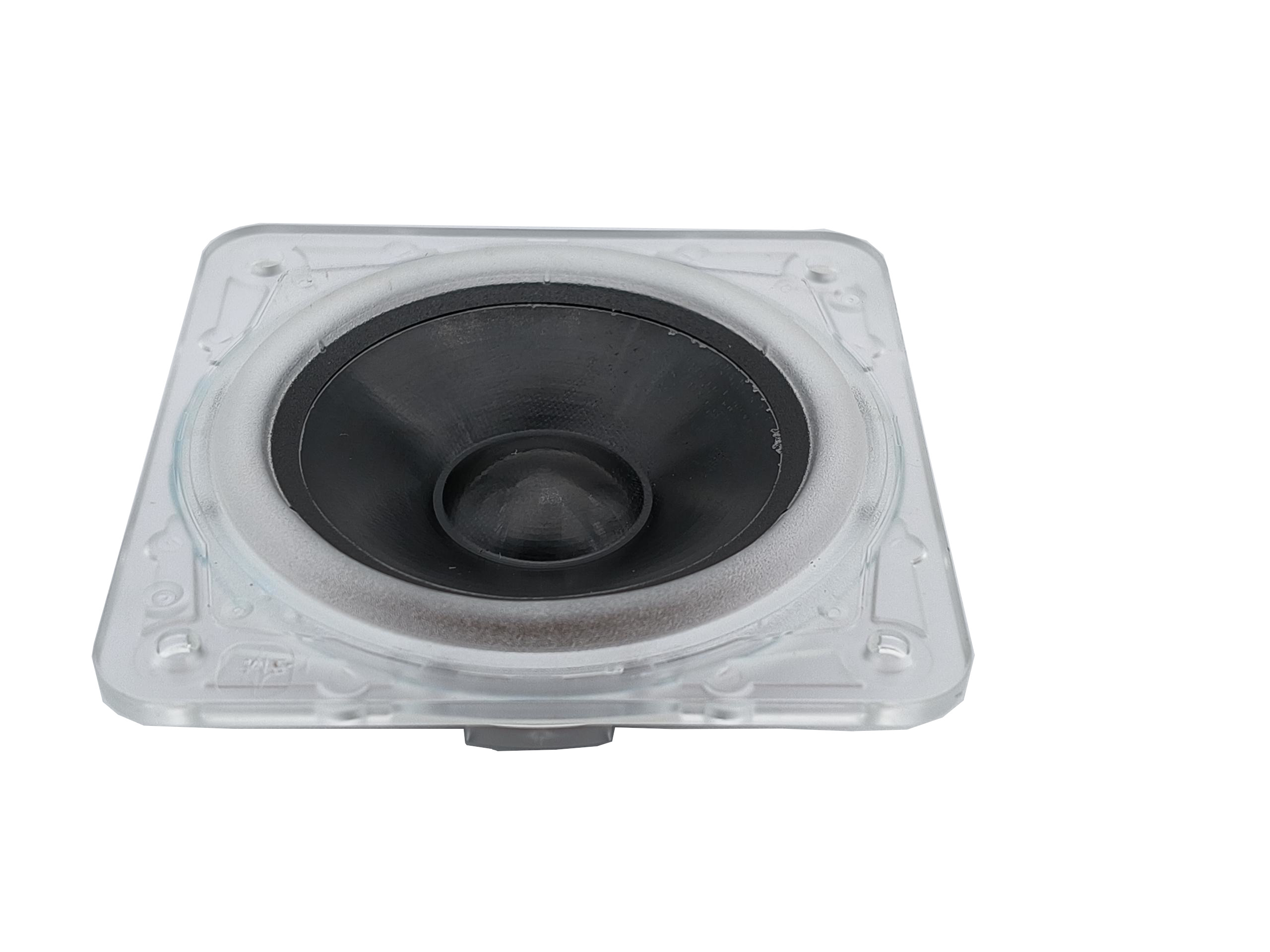

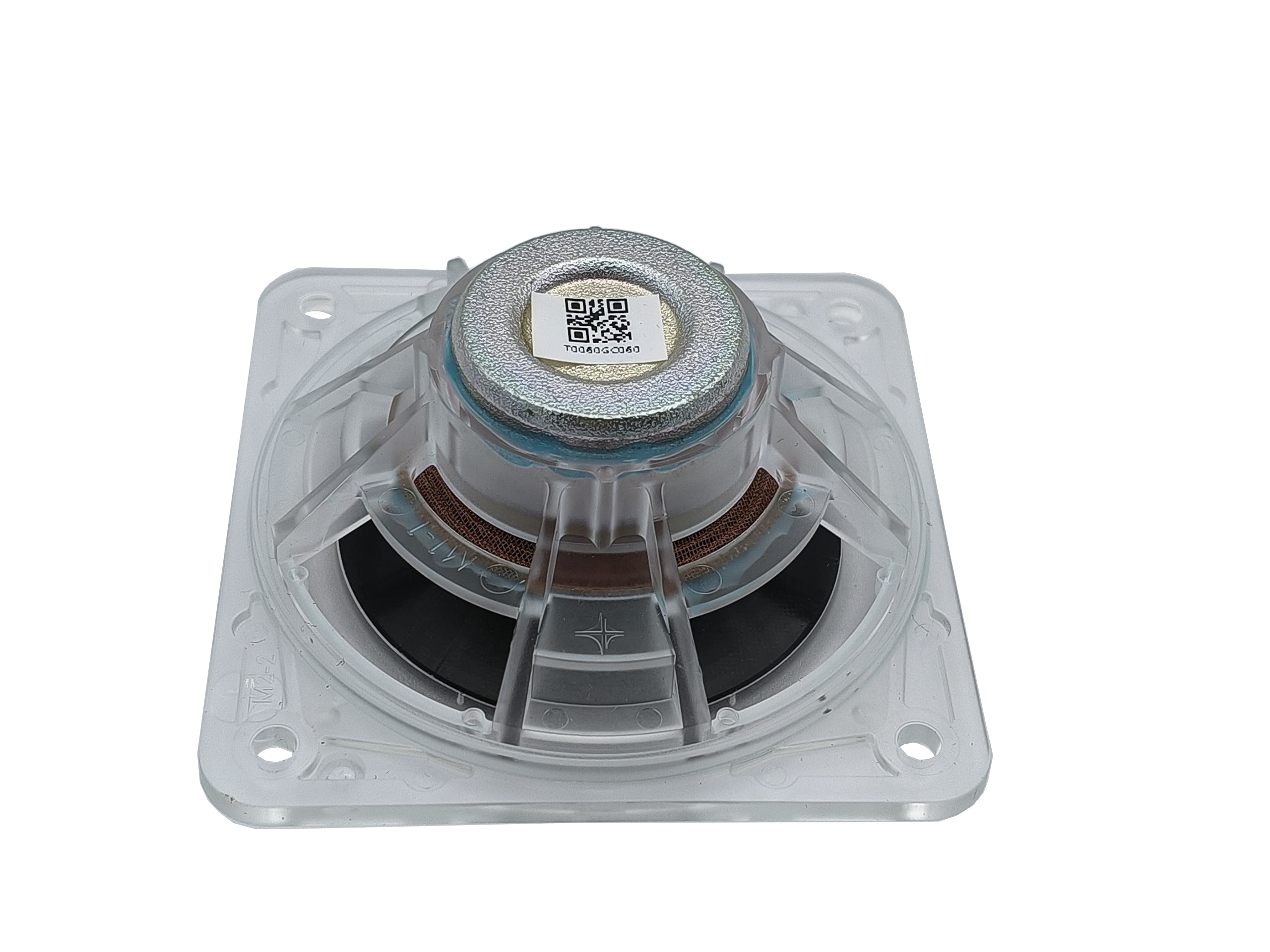

Peerless HVS-60N18GG01-04
4Ω
Full-range
| Nominal diameter | 2.5″ / 64 mm |
| Resonance | 190 Hz |
| Q factor | 1.30 |
| Sensitivity | 84.5 dB |
| Linear excursion | ± 2.2 mm |
| Program Power | 10 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.5dB

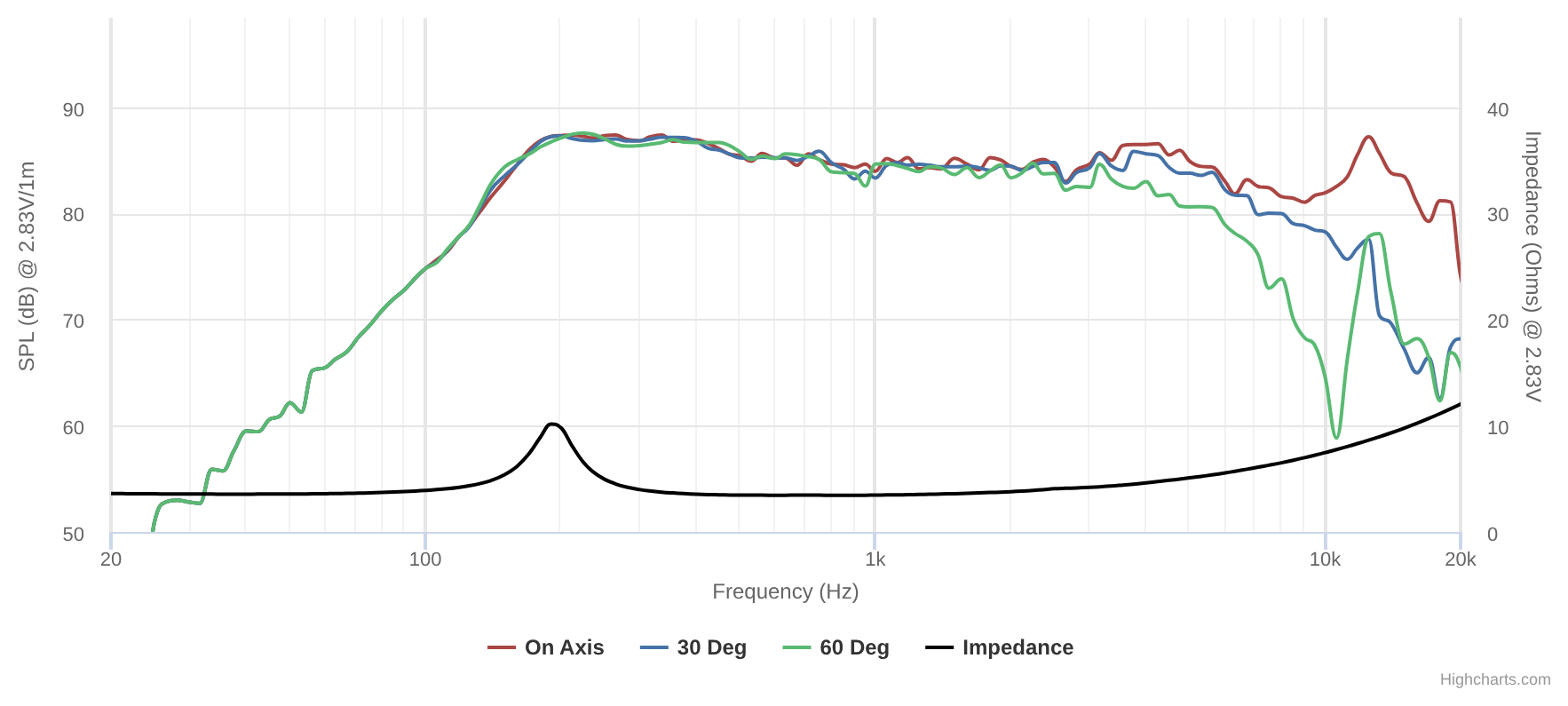

- Frequency response 200 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 190Hz
- Mechanical quality factor QMS 4.26
- Electrical quality factor QES 1.84
- Total quality factor QTS 1.30
Large signal parameters
- Maximum linear excursion (one way) xmax 2.2mm
- Air volume displaced at xmax VD 4.2cm³
- Power handling P 5W
- Program power Pmax 10W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 0.09mH
- VC Diameter 18mm
Magnet
- Force factor Bl 1.79N/A
- Motor constant Bl/√RE 0.97N/√W
- Air gap height HAG 2.5mm
- Material Neodymium
Diaphragm
- Effective diameter 50mm
- Effective area SD 19.4cm²
- Moving mass MMS 1.47g
- Moving mass (without air load) MMD 1.4g
- Material Glass Fibre
Suspensions
- Stiffness KMS 2.08N/mm
- Compliance CMS 480µm/N
- Equivalent volume to the compliance VAS 0.256L
- Mechanical resistance RMS 0.41N·s/m

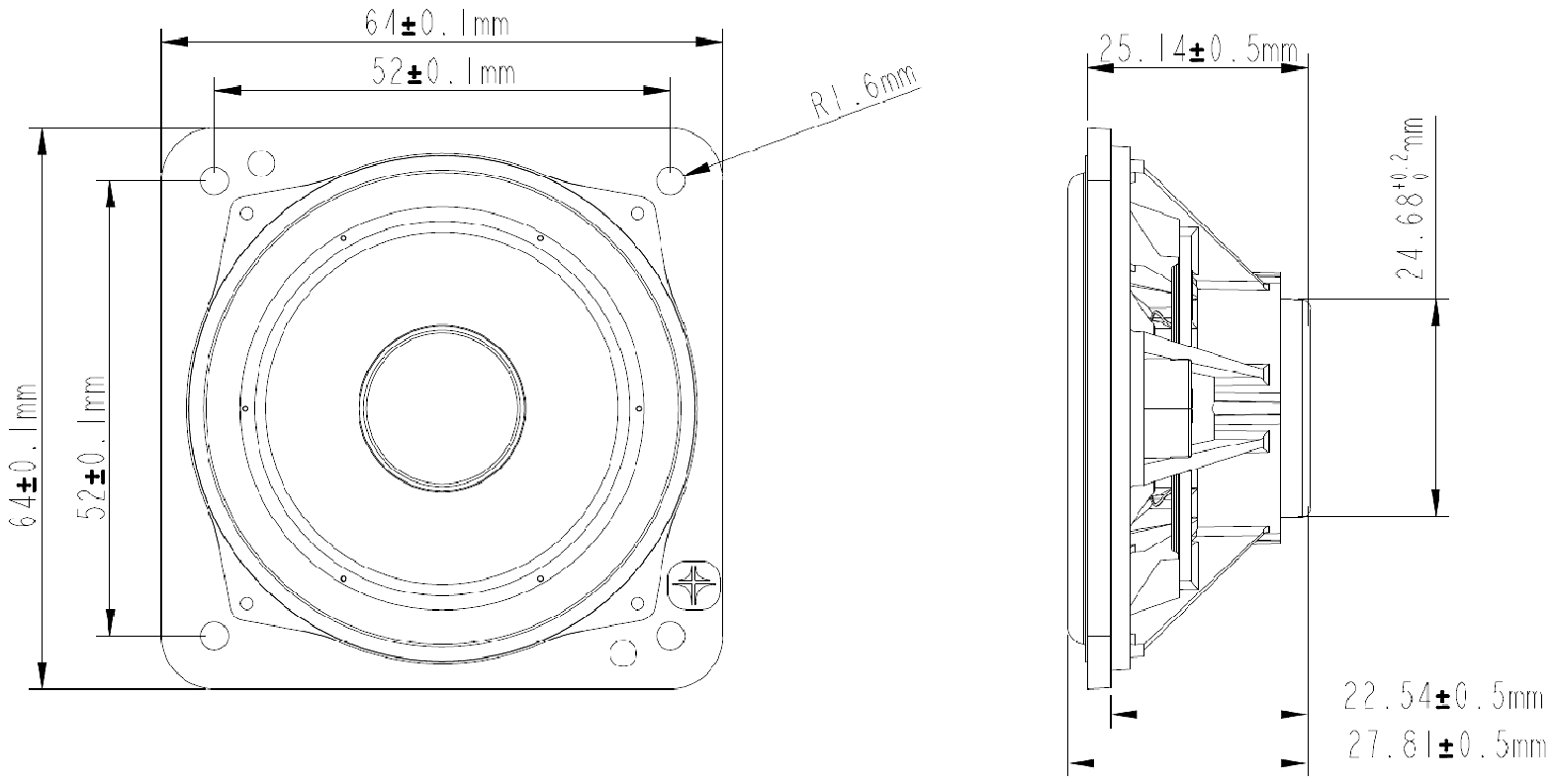

Dimensions
- Nominal diameter 2.5″
- 64mm
- Net weight 0.045kg
