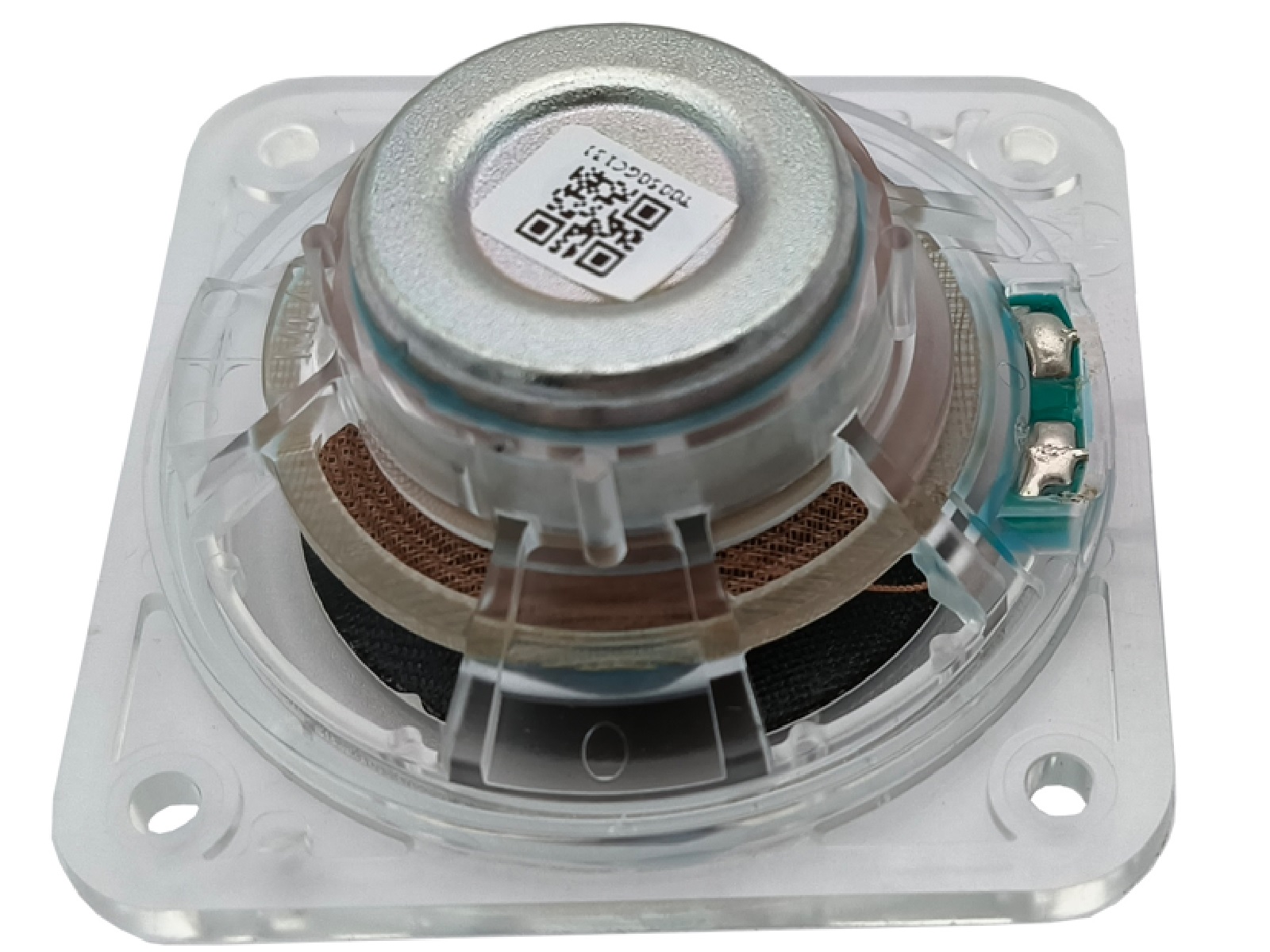

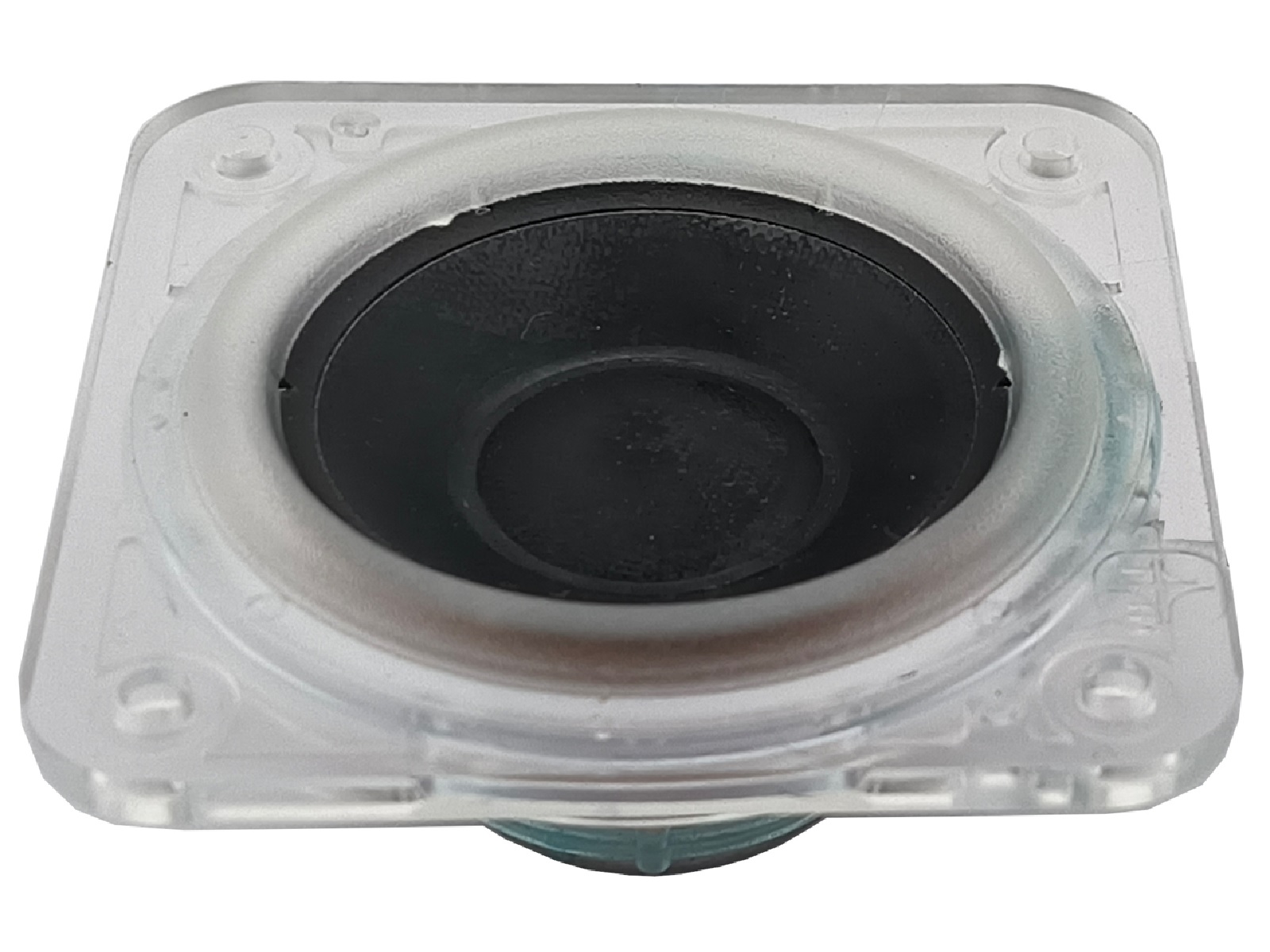

Peerless HVS-50N18GG01-04
4Ω
Full-range
| Nominal diameter | 2″ / 54 mm |
| Resonance | 200 Hz |
| Q factor | 1.40 |
| Sensitivity | 82.1 dB |
| Linear excursion | ± 2.2 mm |
| Program Power | 10 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.1dB
- Frequency response 190 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 200Hz
- Mechanical quality factor QMS 5.28
- Electrical quality factor QES 1.89
- Total quality factor QTS 1.40
Large signal parameters
- Maximum linear excursion (one way) xmax 2.2mm
- Air volume displaced at xmax VD 2.8cm³
- Power handling P 5W
- Program power Pmax 10W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.5Ω
- Inductance (1kHz) LE 0.088mH
- VC Diameter 18mm
Magnet
- Force factor Bl 1.77N/A
- Motor constant Bl/√RE 0.95N/√W
- Air gap height HAG 2.5mm
- Material Neodymium
Diaphragm
- Effective diameter 41mm
- Effective area SD 12.9cm²
- Moving mass MMS 1.33g
- Moving mass (without air load) MMD 1.3g
- Material Glass Fibre
Suspensions
- Stiffness KMS 2.17N/mm
- Compliance CMS 460µm/N
- Equivalent volume to the compliance VAS 0.108L
- Mechanical resistance RMS 0.32N·s/m

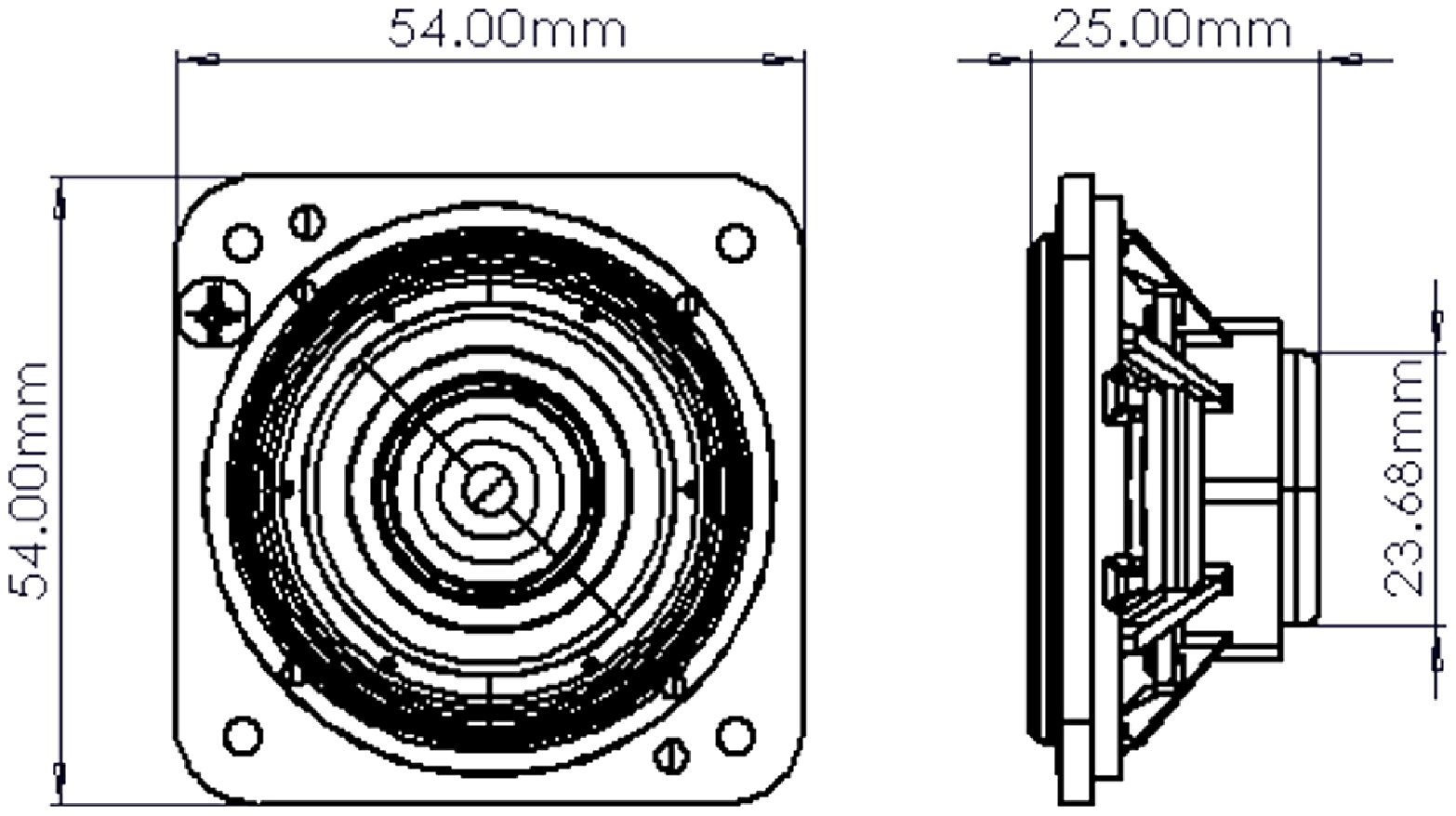

Dimensions
- Nominal diameter 2″
- 54mm
- Net weight 0.04kg
