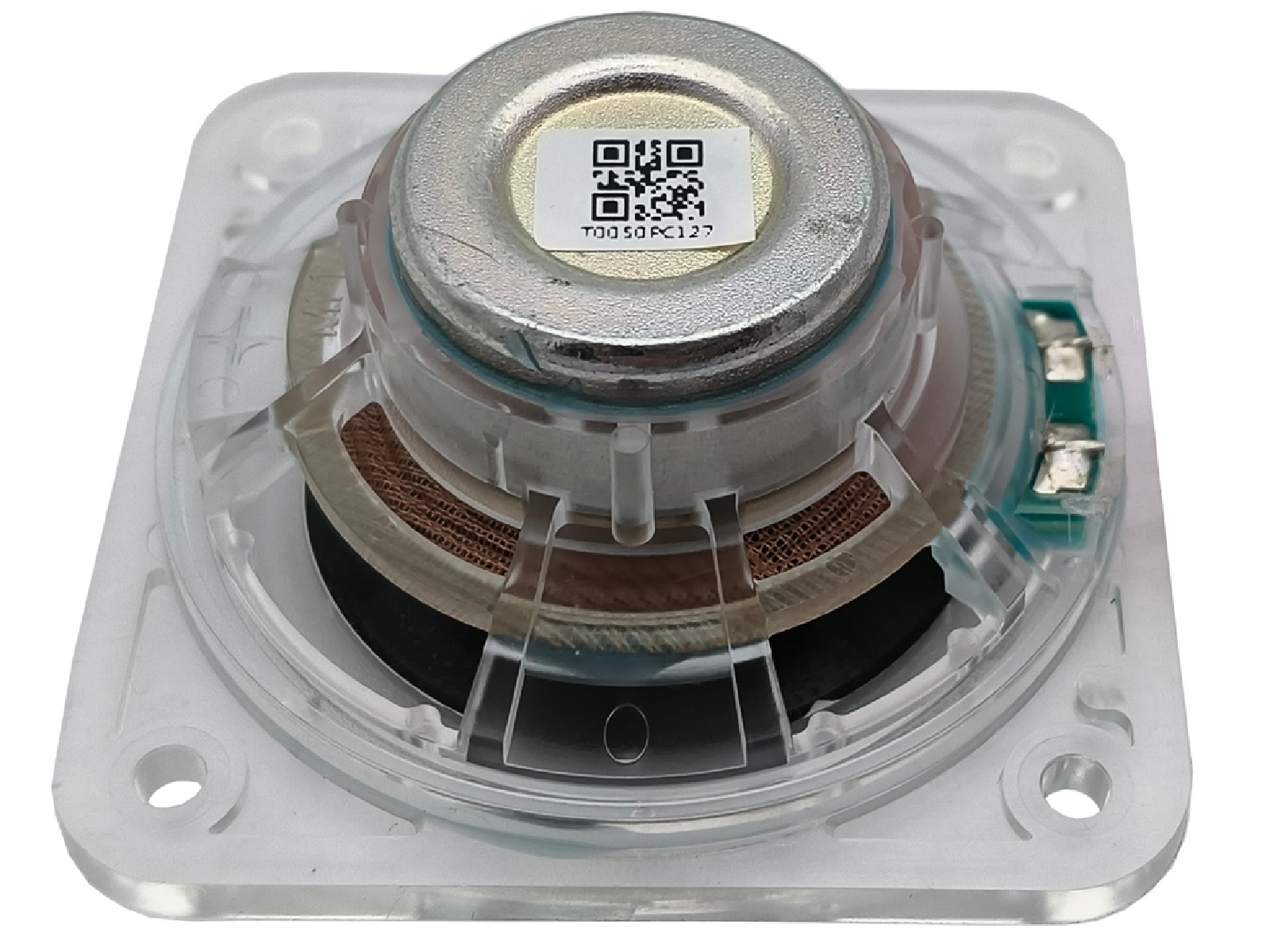

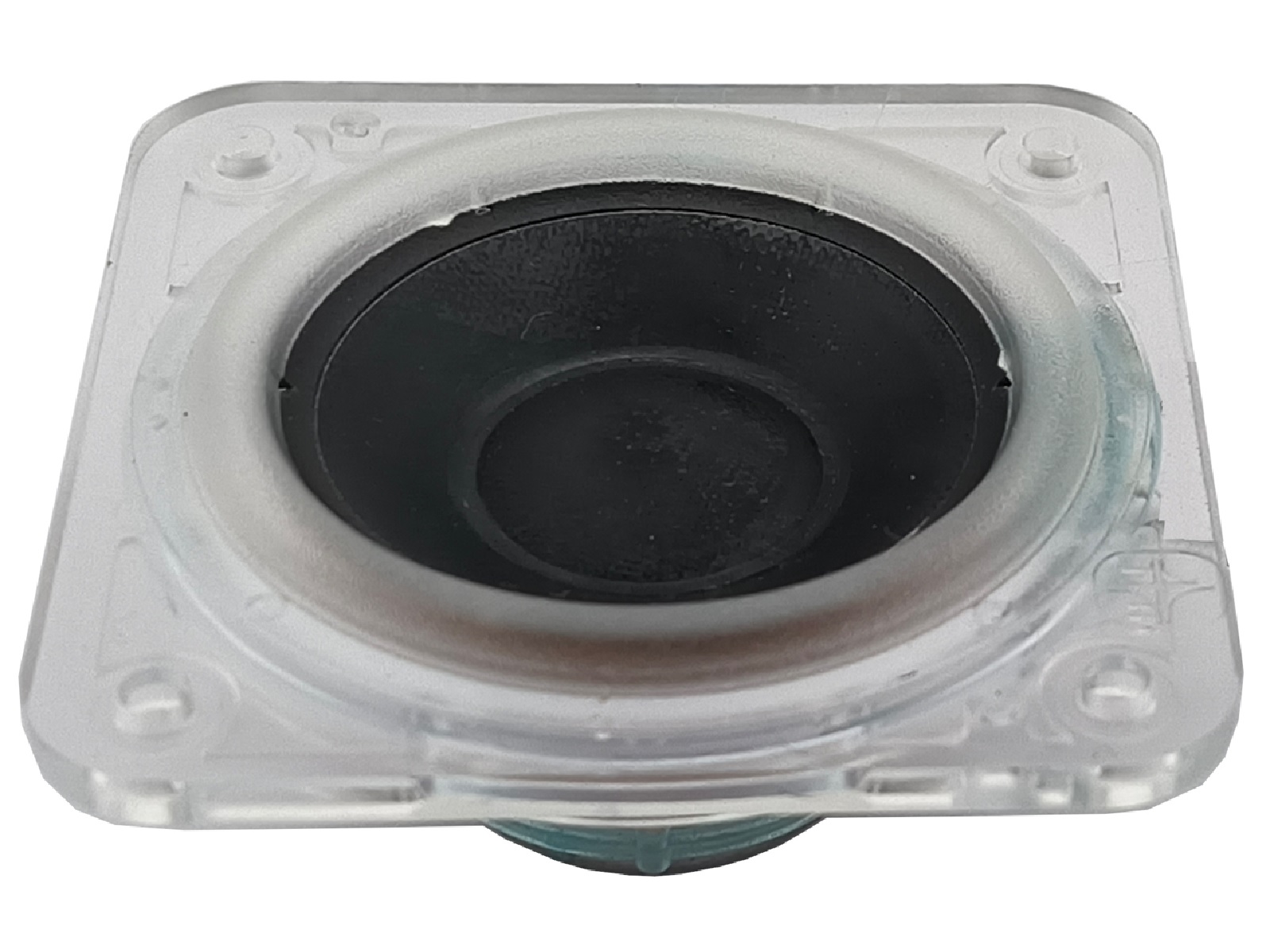

Peerless HVS-50N18PG01-04
4Ω
Full-range
| Nominal diameter | 2″ / 54 mm |
| Resonance | 210 Hz |
| Q factor | 0.97 |
| Sensitivity | 81.6 dB |
| Linear excursion | ± 2.2 mm |
| Program Power | 12 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.6dB

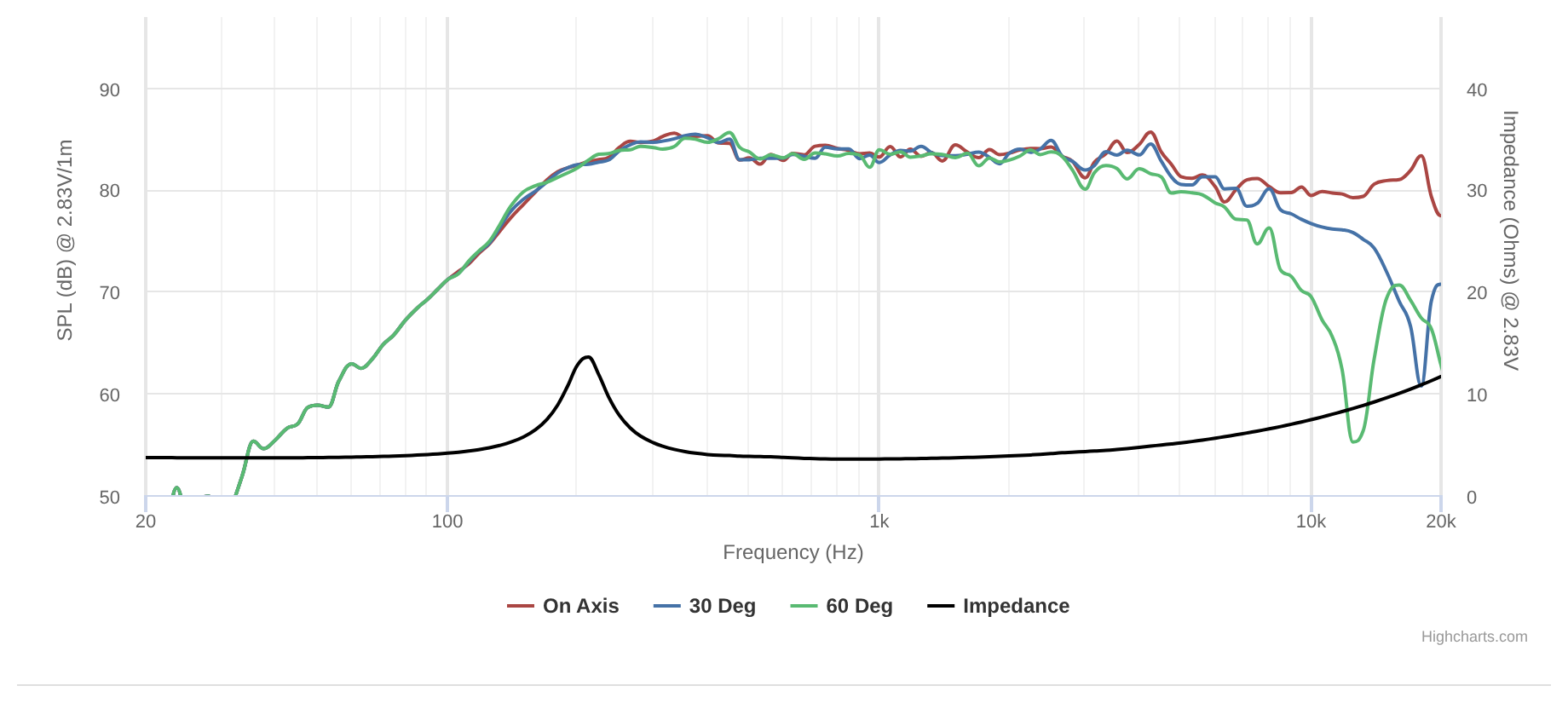

- Frequency response 190 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 210Hz
- Mechanical quality factor QMS 4.29
- Electrical quality factor QES 1.25
- Total quality factor QTS 0.97
Large signal parameters
- Maximum linear excursion (one way) xmax 2.2mm
- Air volume displaced at xmax VD 2.8cm³
- Power handling P 6W
- Program power Pmax 12W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.5Ω
- Inductance (1kHz) LE 0.085mH
- VC Diameter 18mm
Magnet
- Force factor Bl 2.18N/A
- Motor constant Bl/√RE 1.17N/√W
- Air gap height HAG 2.5mm
- Material Neodymium
Diaphragm
- Effective diameter 41mm
- Effective area SD 12.9cm²
- Moving mass MMS 1.32g
- Moving mass (without air load) MMD 1.3g
- Material Glass Fibre
Suspensions
- Stiffness KMS 2.22N/mm
- Compliance CMS 450µm/N
- Equivalent volume to the compliance VAS 0.107L
- Mechanical resistance RMS 0.41N·s/m

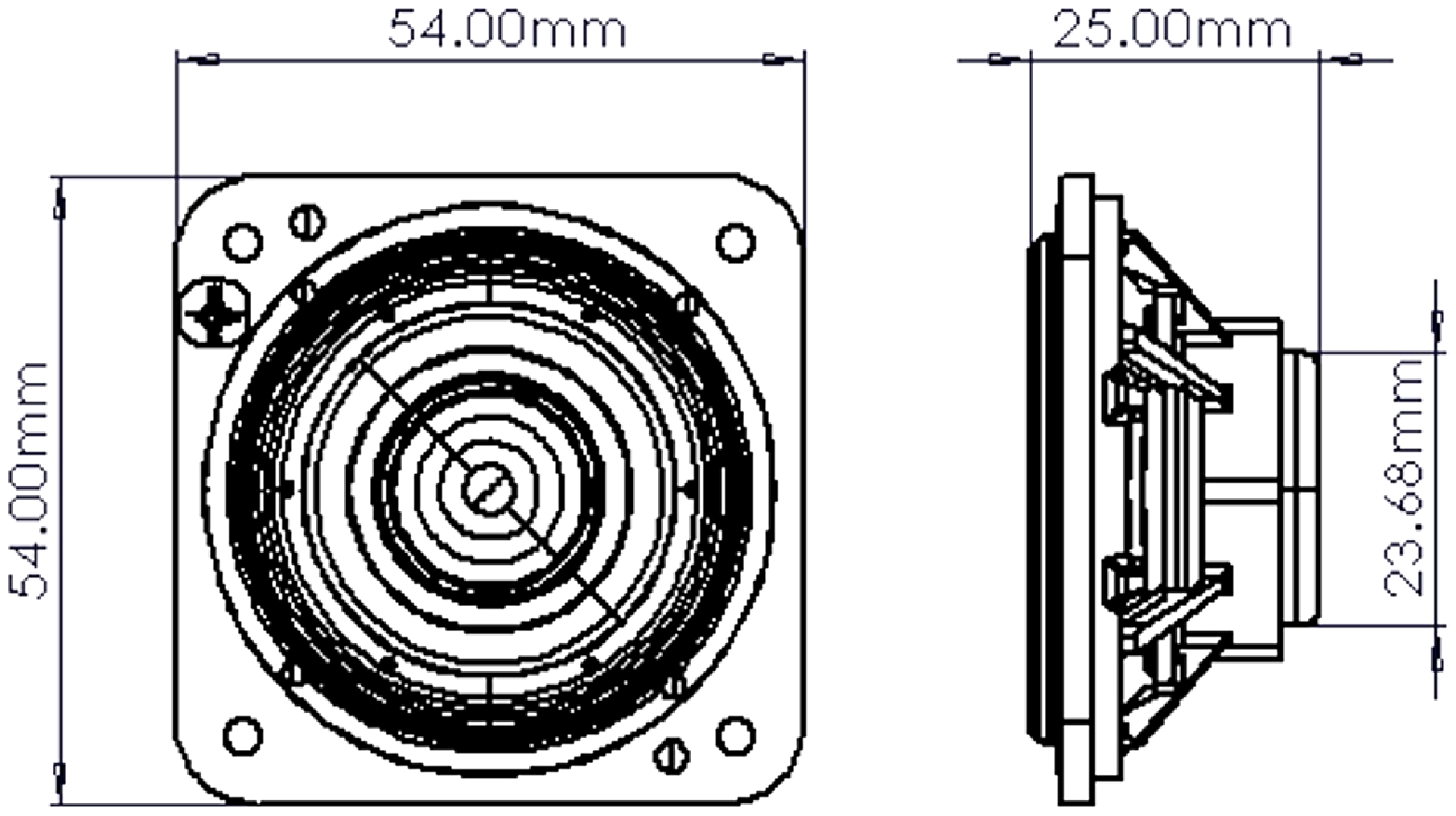

Dimensions
- Nominal diameter 2″
- 54mm
- Net weight 0.044kg
