Peerless HVS-40N15PG01-04
4Ω
Full-range
| Nominal diameter | 1.5″ / 40 mm |
| Resonance | 220 Hz |
| Q factor | 1.00 |
| Sensitivity | 81.5 dB |
| Linear excursion | ± 1.6 mm |
| Program Power | 8 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.5dB

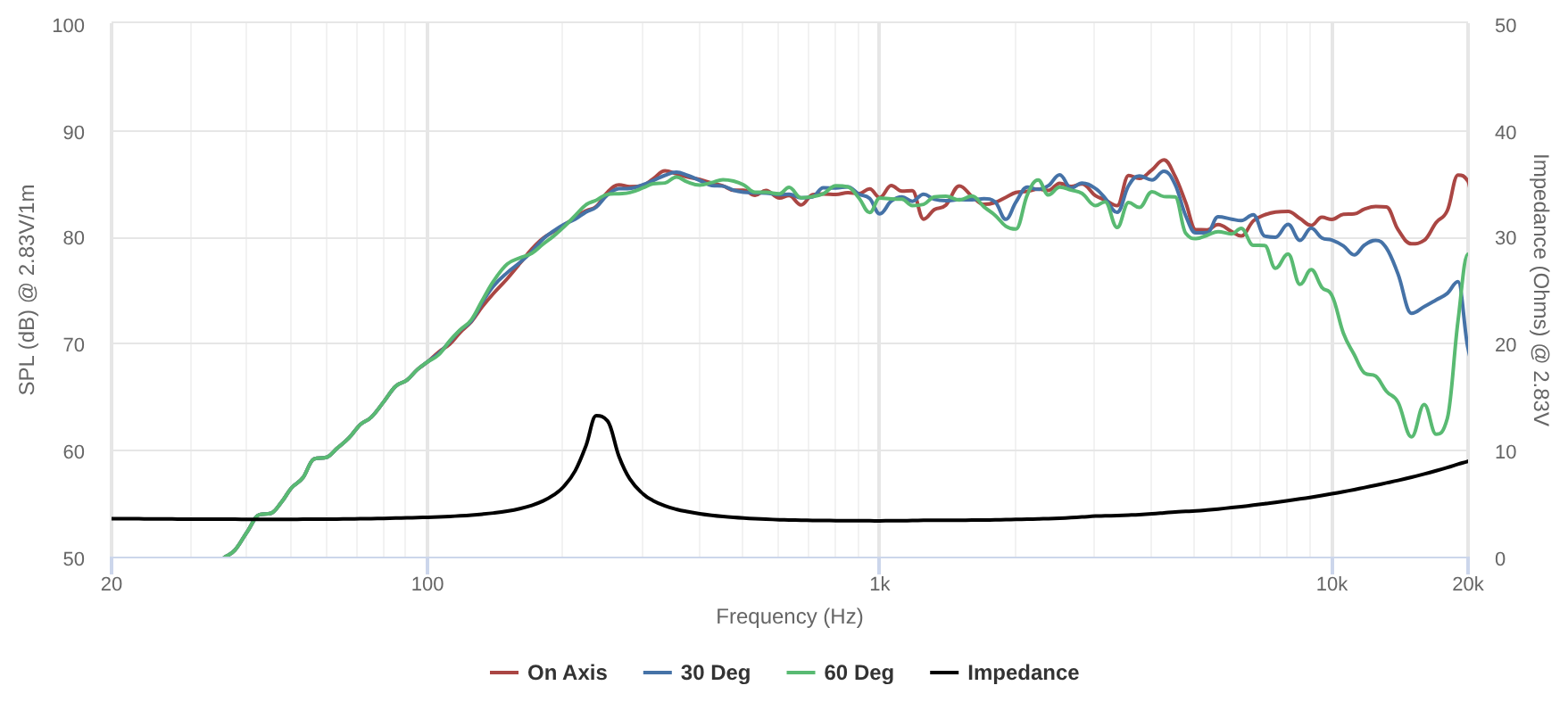

- Frequency response 200 - 40000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 220Hz
- Mechanical quality factor QMS 5.32
- Electrical quality factor QES 1.24
- Total quality factor QTS 1.00
Large signal parameters
- Maximum linear excursion xmax 1.6mm
- Air volume displaced at xmax VD 1.4cm³
- Power handling P 4W
- Program power Pmax 8W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz) LE 0.06mH
- VC Diameter 15mm
Magnet
- Force factor Bl 1.67N/A
- Motor constant Bl/√RE 0.93N/√W
- Air gap height HAG 2.5mm
- Material Neodymium
Diaphragm
- Effective diameter 33mm
- Effective area SD 8.6cm²
- Moving mass MMS 0.759g
- Moving mass (without air load) MMD 0.7g
- Material Proprietary polymer composite
Suspensions
- Stiffness KMS 1.52N/mm
- Compliance CMS 660µm/N
- Equivalent volume to the compliance VAS 0.068L
- Mechanical resistance RMS 0.2N·s/m
- Surround material Low loss precision injected

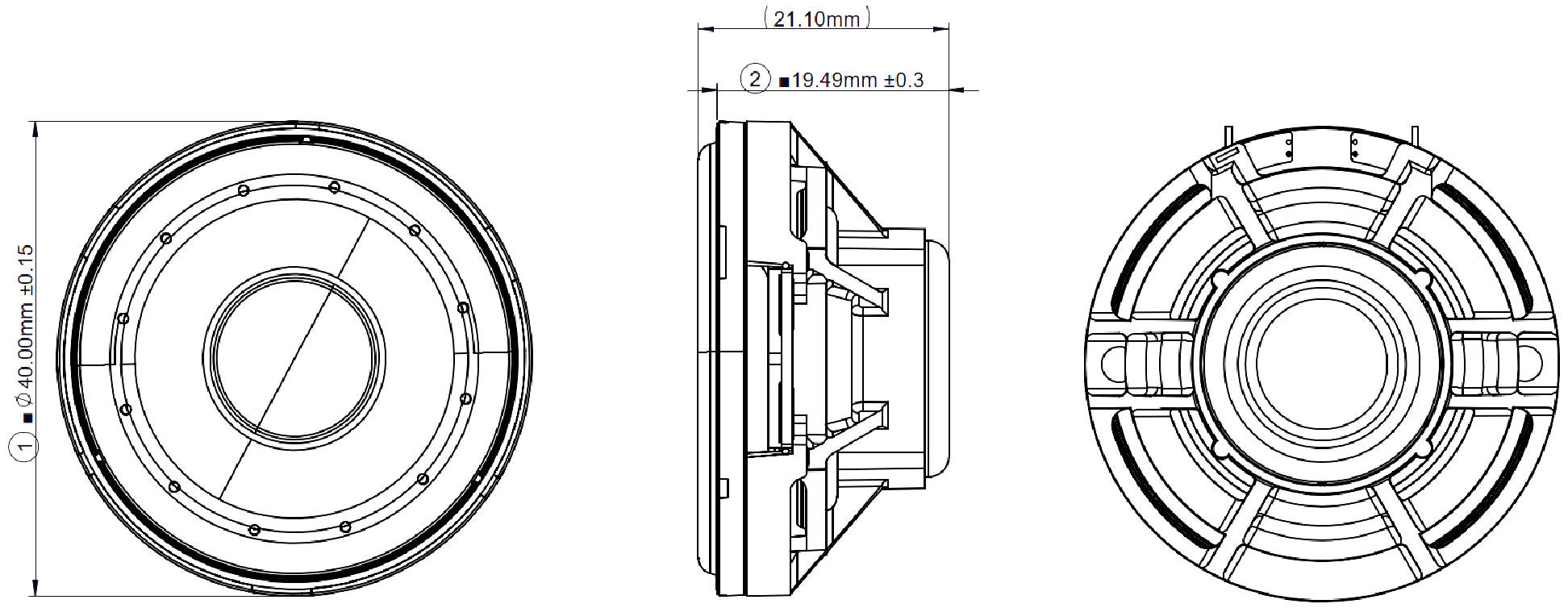

Dimensions
- Nominal diameter 1.5″
- 40mm
- Volume occupied by the driver (estimated) 11L
- Net weight 23.0kg
