PUNKTKILDE AUGWL1073-JN01

8Ω

Full-range

Nominal diameter0.8″ / 20 mm
Resonance230 Hz
Q factor0.92
Sensitivity80.4 dB
Linear excursion± 1.1 mm
Program Power10 W
PUNKTKILDE AUGWL1073-JN01 Full-rangePUNKTKILDE AUGWL1073-JN01 Full-rangePUNKTKILDE AUGWL1073-JN01 Full-range
Impedance
Excursion
Velocity
SPL
Phase
Group delay
Step response
Tone Burst
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 80.4dB

Thiele & Small parameters

  • Resonance frequency (free air) fS 230Hz
  • Mechanical quality factor QMS 5.85
  • Electrical quality factor QES 1.09
  • Total quality factor QTS 0.92

Large signal parameters

  • Maximum linear excursion (one way) xmax 1.1mm
  • Air volume displaced at xmax VD 0.9cm³
  • Power handling P 5W
  • Program power Pmax 10W

Voice Coil

  • Nominal impedance Z 8Ω
  • DC resistance RE 7.2Ω
  • Inductance (1kHz) LE 0.083mH
  • VC Diameter 16.3mm
  • Winding height HVC 4.6mm
  • Winding material PESVW
  • Former material Plastic

Magnet

  • Force factor Bl 3.23N/A
  • Motor constant Bl/√RE 1.2N/√W
  • Air gap height HAG 2.5mm
  • Material Neodymium

Diaphragm

  • Effective diameter 33mm
  • Effective area SD 8.6cm²
  • Moving mass MMS 0.99g
  • Moving mass (without air load) MMD 1g
  • Material Paper

Suspensions

  • Stiffness KMS 2.5N/mm
  • Compliance CMS 400µm/N
  • Equivalent volume to the compliance VAS 0.042L
  • Mechanical resistance RMS 0.268N·s/m
  • Surround material Rubber

Dimensions

  • Nominal diameter 0.8″
  • 20mm
  • Net weight 0.042kg
  • Frame material Plastic
SPL & Impedance
PUNKTKILDE AUGWL1073-JN01 SPL & Impedance
PUNKTKILDE AUGWL1073-JN01 Dimensions
PDF fileDatasheet

Export this driver to a simulation software:

Closed Box Simulator·Speakerbench logoSpeakerbenchWinISD logoWinISDBasta! logoBasta!Hornresp logoHornrespQSpeakers logoQSpeakersSpeakerSim logoSpeakerSimMfbLabs logoMfbLabsAmplion logoAmplion

Similar speaker drivers to PUNKTKILDE AUGWL1073-JN01

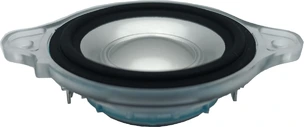

Peerless HVS-40N15PG01-04 Full-range
