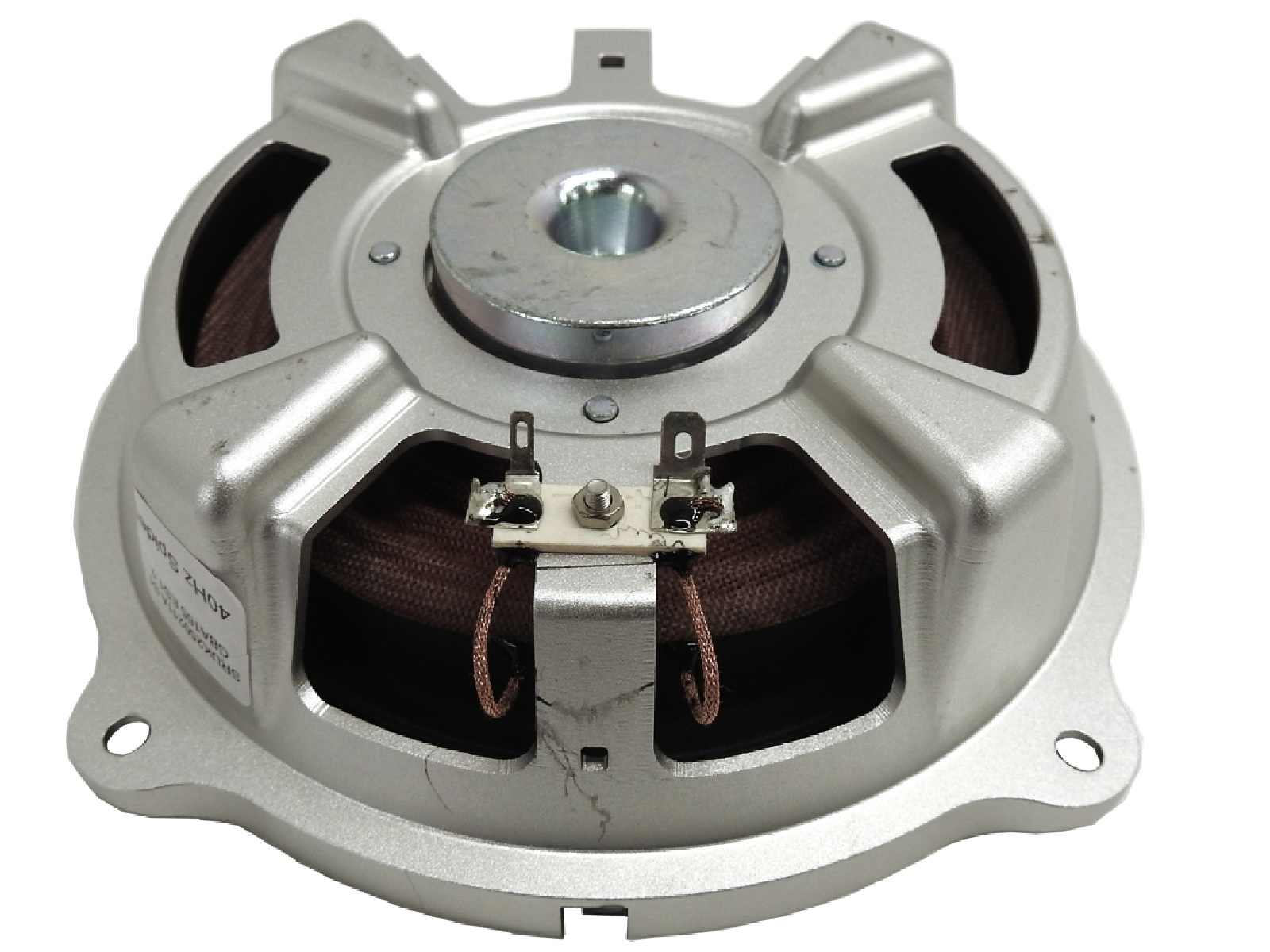

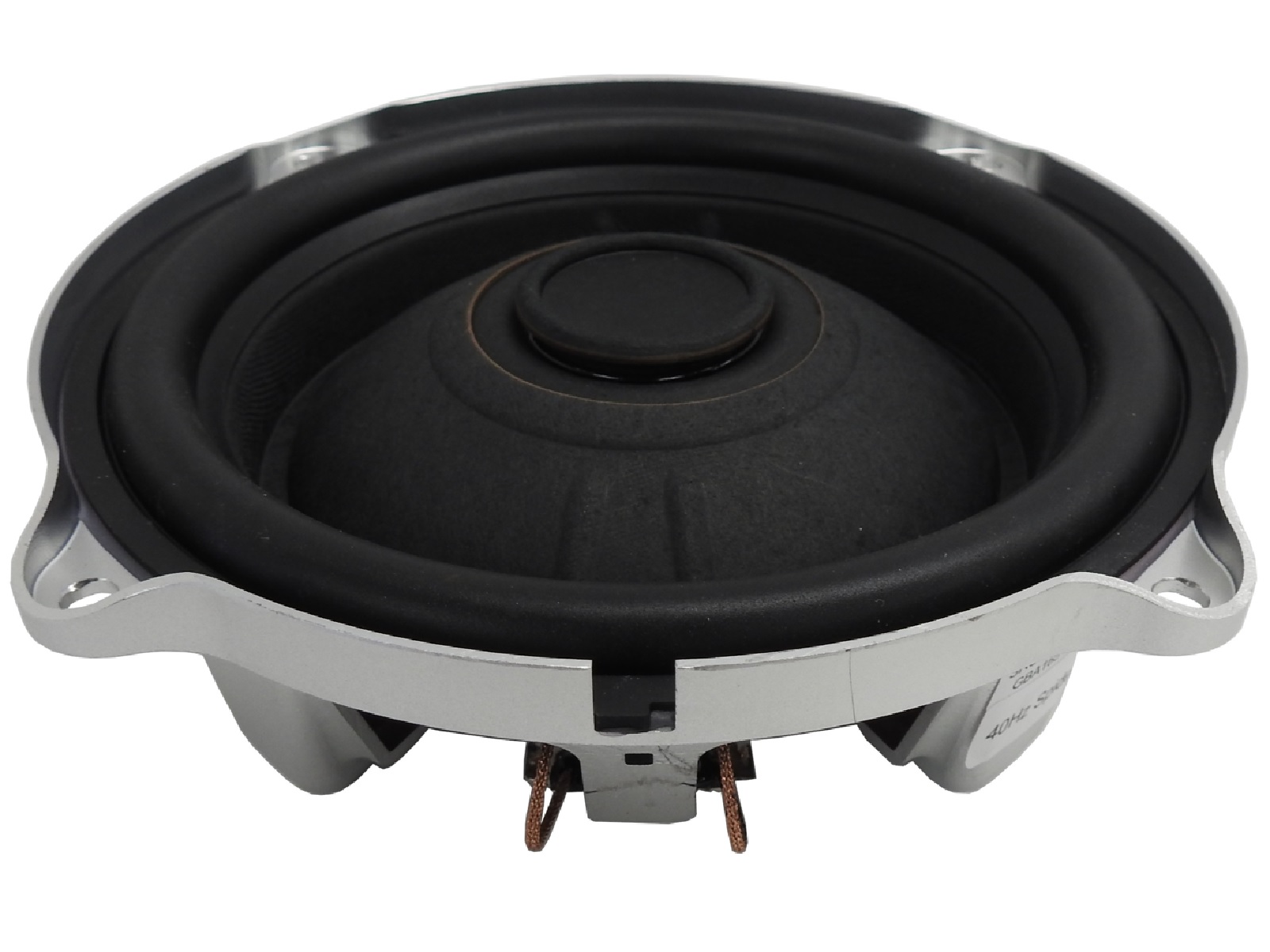

Peerless A-GBA-165N32CP01-02
2Ω
Shallow Woofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 39 Hz |
| Q factor | 0.62 |
| Sensitivity | 82.5 dB |
| Linear excursion | ± 7.5 mm |
| Program Power | 140 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.5dB
- Frequency response 20 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 6.83
- Electrical quality factor QES 0.68
- Total quality factor QTS 0.62
Large signal parameters
- Maximum linear excursion (one way) xmax 7.5mm
- Air volume displaced at xmax VD 113cm³
- Power handling P 70W
- Program power Pmax 140W
Voice Coil
- Nominal impedance Z 2Ω
- DC resistance RE 1.8Ω
- Inductance (1kHz) LE 0.692mH
- VC Diameter 31.4mm
Magnet
- Force factor Bl 5.19N/A
- Motor constant Bl/√RE 3.87N/√W
- Air gap height HAG 6mm
- Material Neodymium
Diaphragm
- Effective diameter 138mm
- Effective area SD 150cm²
- Moving mass MMS 42.3g
- Moving mass (without air load) MMD 41g
Suspensions
- Stiffness KMS 2.56N/mm
- Compliance CMS 390µm/N
- Equivalent volume to the compliance VAS 12.3L
- Mechanical resistance RMS 1.52N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver (estimated) 0.27L
- Net weight 0.7kg

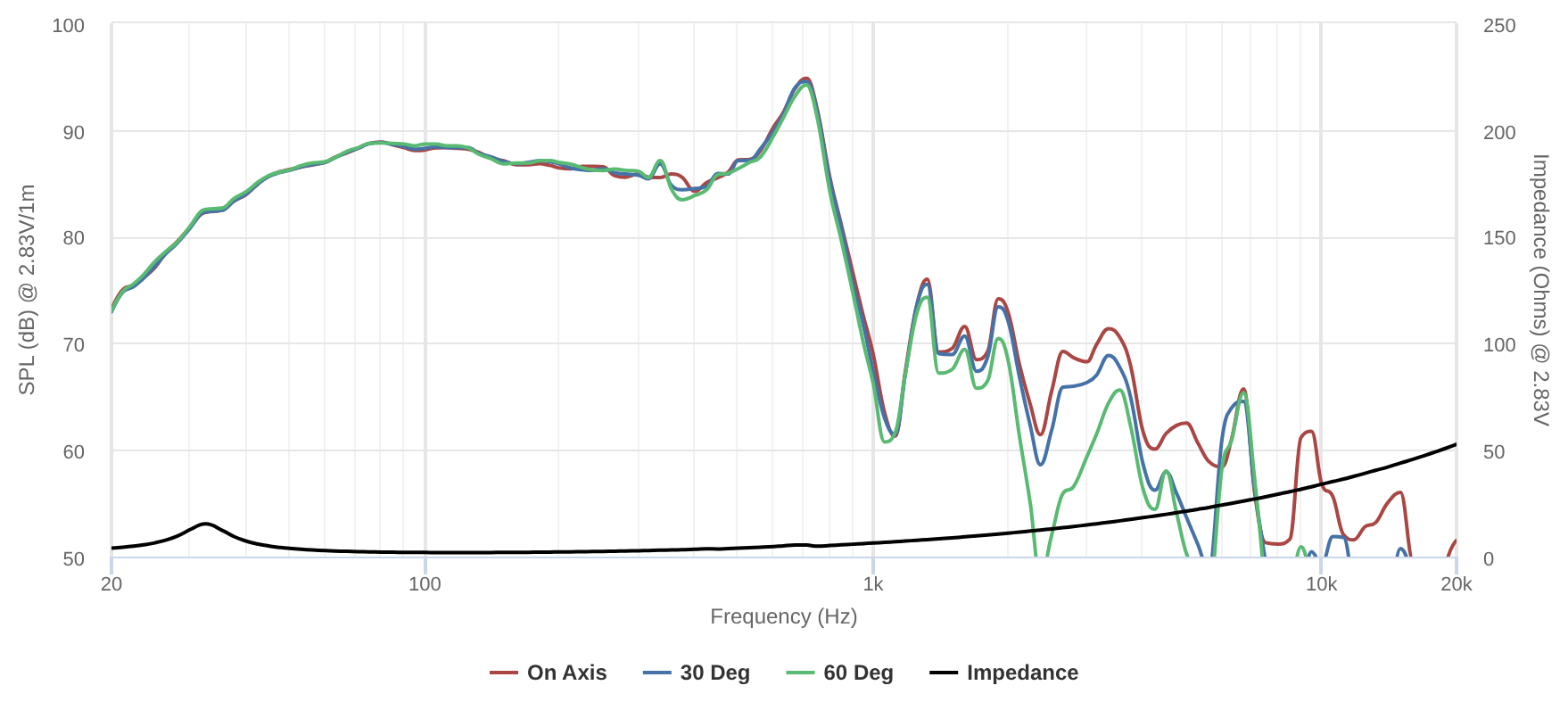

.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
