Peerless GBS-85N25PR07-04 Shallow Woofer

Peerless GBS-85N25PR07-04

4 Ω
3.5″ Shallow Woofer
fS130 Hz
SD35.3 cm²
100 - 1000 Hz
QTS0.70
xmax3 mm
SPL1W83.2 dB
Bl/√RE2.39
Pmax24 W
Peerless GBS-85N25PR03-04 Shallow Woofer

Peerless GBS-85N25PR03-04

4 Ω
3.5″ Shallow Woofer
fS120 Hz
SD35.3 cm²
100 - 8000 Hz
QTS0.91
xmax3.1 mm
SPL1W83.8 dB
Bl/√RE1.62
Pmax30 W
Discontinued

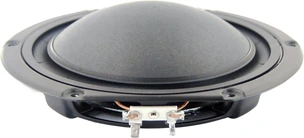

Peerless GBS-165F32CP00-02 Shallow Woofer

Peerless GBS-165F32CP00-02

2 Ω
6.5″ Shallow Woofer
fS63.2 Hz
SD142 cm²
QTS0.59
xmax4.8 mm
SPL1W85.6 dB
Bl/√RE4.02
Pmax120 W
Peerless GBS-135F25AL02-04 Shallow Woofer

Peerless GBS-135F25AL02-04

4 Ω
5″ Shallow Woofer
fS64 Hz
SD86.6 cm²
100 - 3000 Hz
QTS0.59
xmax5.4 mm
SPL1W85.1 dB
Bl/√RE2.71
Pmax70 W
Peerless GBS-115N25AL01-04 Shallow Woofer

Peerless GBS-115N25AL01-04

4 Ω
4.5″ Shallow Woofer
fS90 Hz
SD58.1 cm²
90 - 4000 Hz
QTS0.63
xmax4.9 mm
SPL1W84.2 dB
Bl/√RE2.49
Pmax40 W
Discontinued

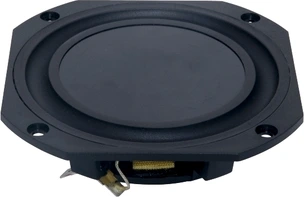

Peerless FLT-100N38AR02-08 Shallow Woofer

Peerless FLT-100N38AR02-08

8 Ω
4″ Shallow Woofer
fS113 Hz
SD63.6 cm²
QTS0.81
xmax2.5 mm
SPL1W82.3 dB
Bl/√RE3.29
Pmax50 W
Discontinued
Peerless FLT-100N38AR01-04 Shallow Woofer

Peerless FLT-100N38AR01-04

4 Ω
4″ Shallow Woofer
fS109 Hz
SD63.6 cm²
QTS0.73
xmax2.5 mm
SPL1W82.5 dB
Bl/√RE3.43
Pmax50 W
