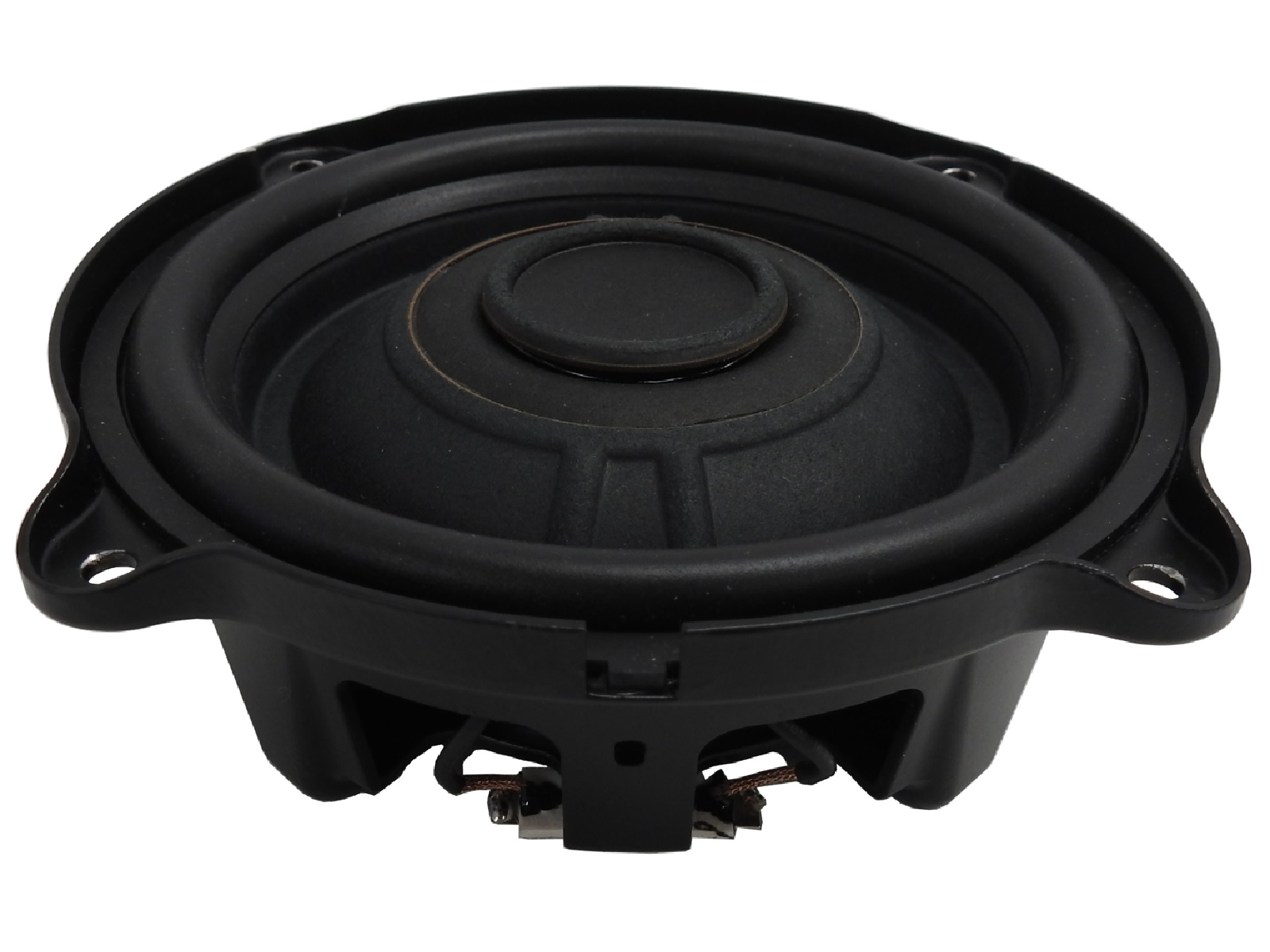

Peerless A-GBA-135N32CP01-02
2Ω
Shallow Woofer
| Nominal diameter | 5.5″ / 135 mm |
| Resonance | 53 Hz |
| Q factor | 0.65 |
| Sensitivity | 80.9 dB |
| Linear excursion | ± 7.5 mm |
| Program Power | 140 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.9dB

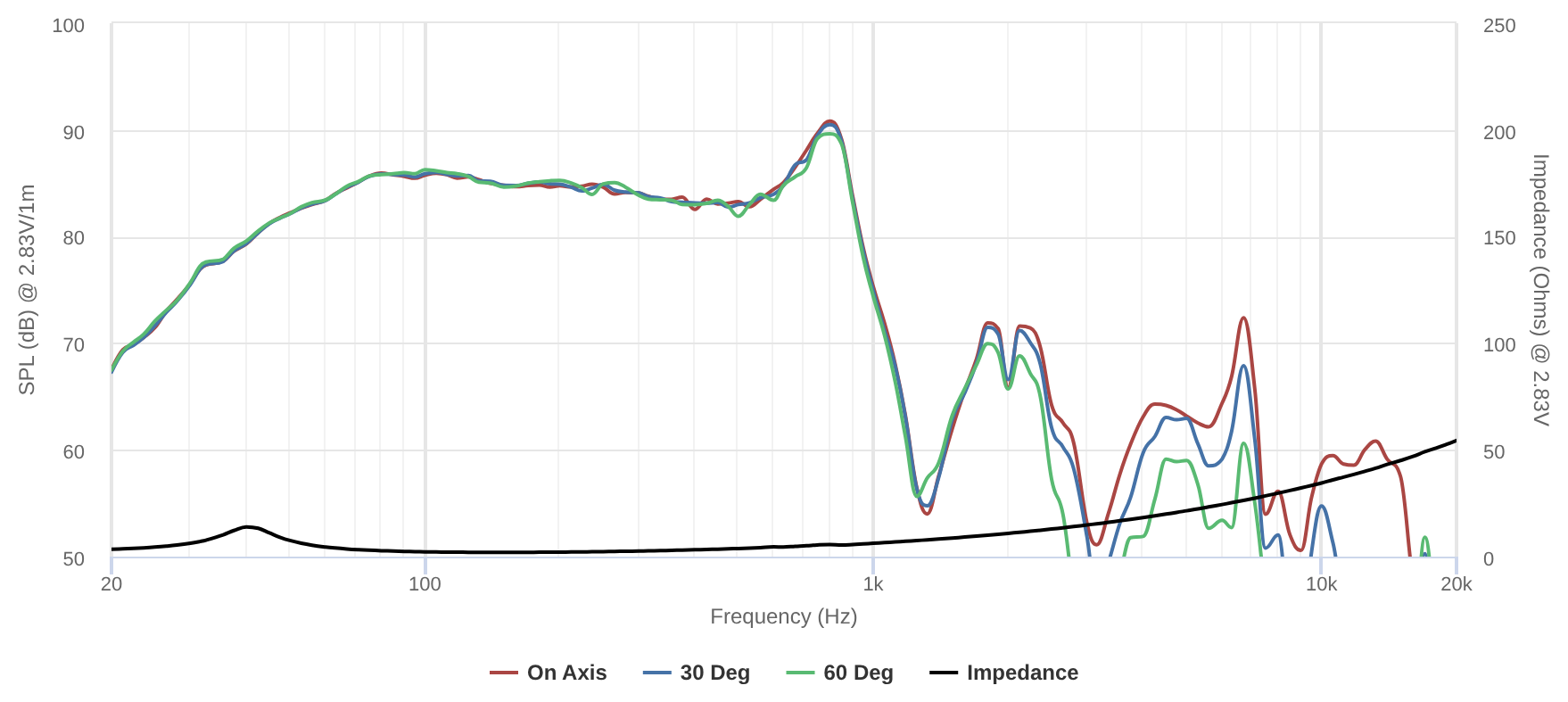

- Frequency response 20 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 53Hz
- Mechanical quality factor QMS 5.68
- Electrical quality factor QES 0.74
- Total quality factor QTS 0.65
Large signal parameters
- Maximum linear excursion (one way) xmax 7.5mm
- Air volume displaced at xmax VD 74cm³
- Power handling P 70W
- Program power Pmax 140W
Voice Coil
- Nominal impedance Z 2Ω
- DC resistance RE 1.8Ω
- Inductance (1kHz) LE 0.711mH
- VC Diameter 31.4mm
Magnet
- Force factor Bl 5.24N/A
- Motor constant Bl/√RE 3.91N/√W
- Air gap height HAG 6mm
- Material Neodymium
Diaphragm
- Effective diameter 112mm
- Effective area SD 98cm²
- Moving mass MMS 34.5g
- Moving mass (without air load) MMD 33.8g
Suspensions
- Stiffness KMS 3.7N/mm
- Compliance CMS 270µm/N
- Equivalent volume to the compliance VAS 3.61L
- Mechanical resistance RMS 2.02N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 5.5″
- 135mm
- Volume occupied by the driver (estimated) 0.25L
- Net weight 0.66kg
.png)
.png)
