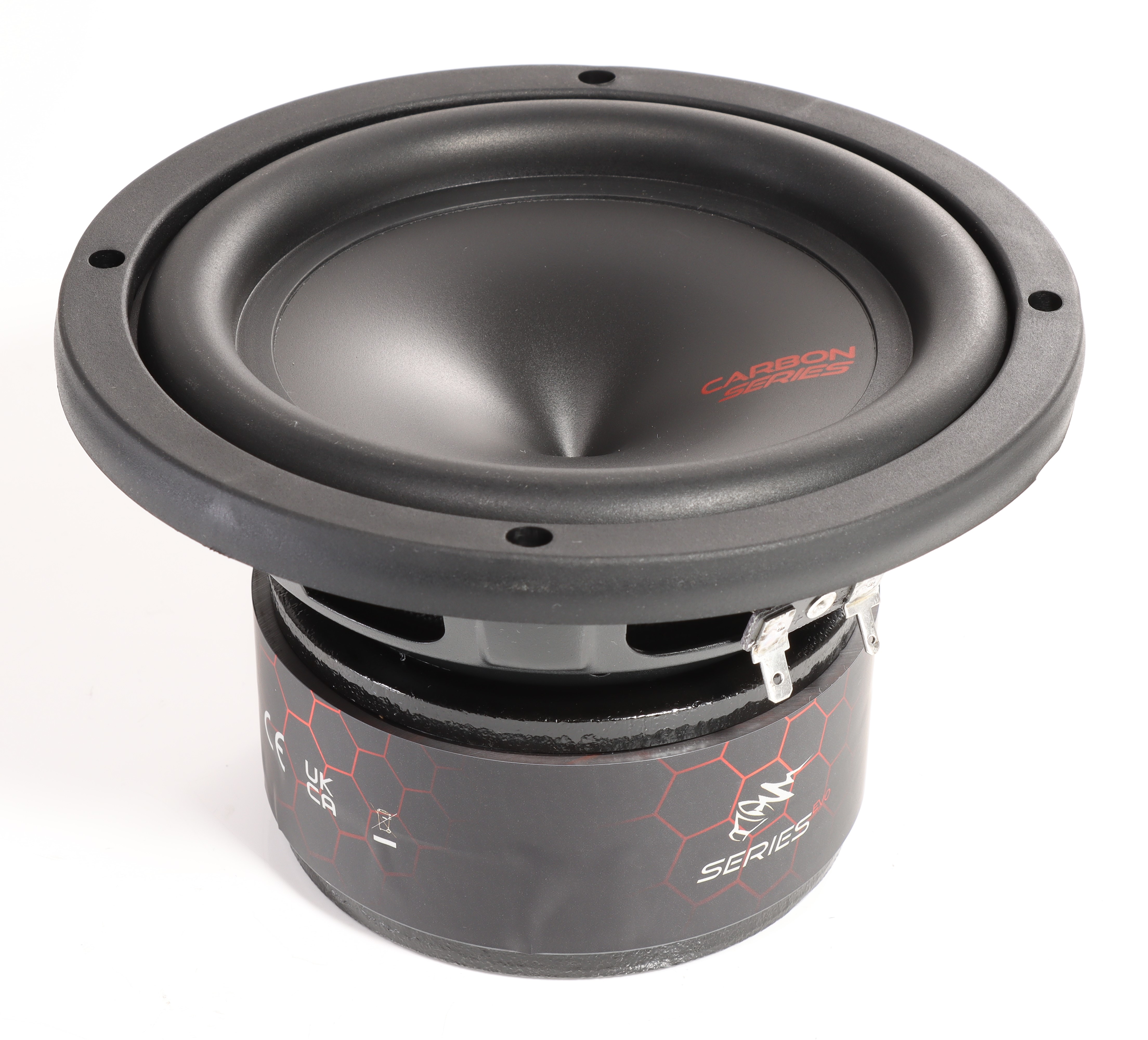

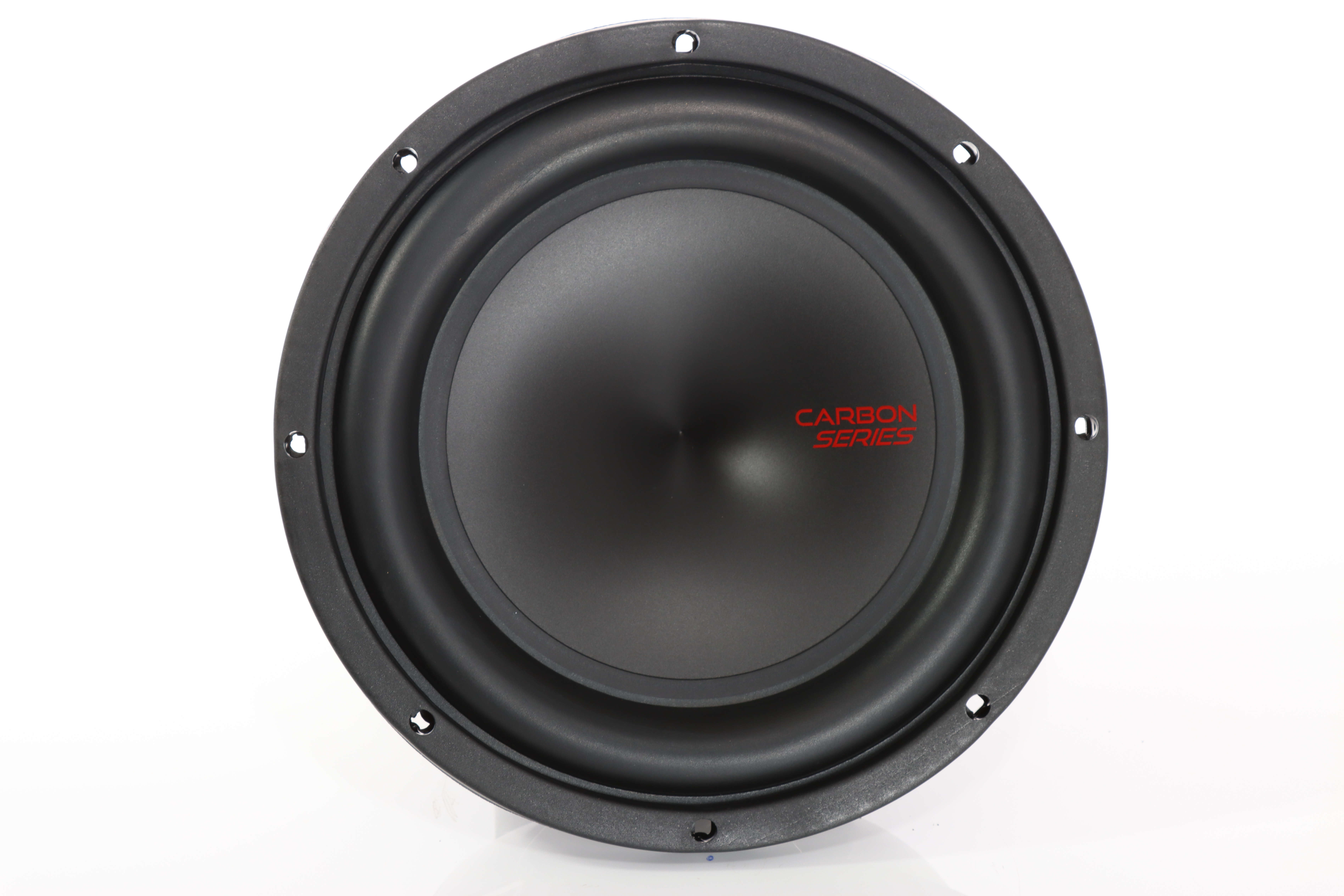

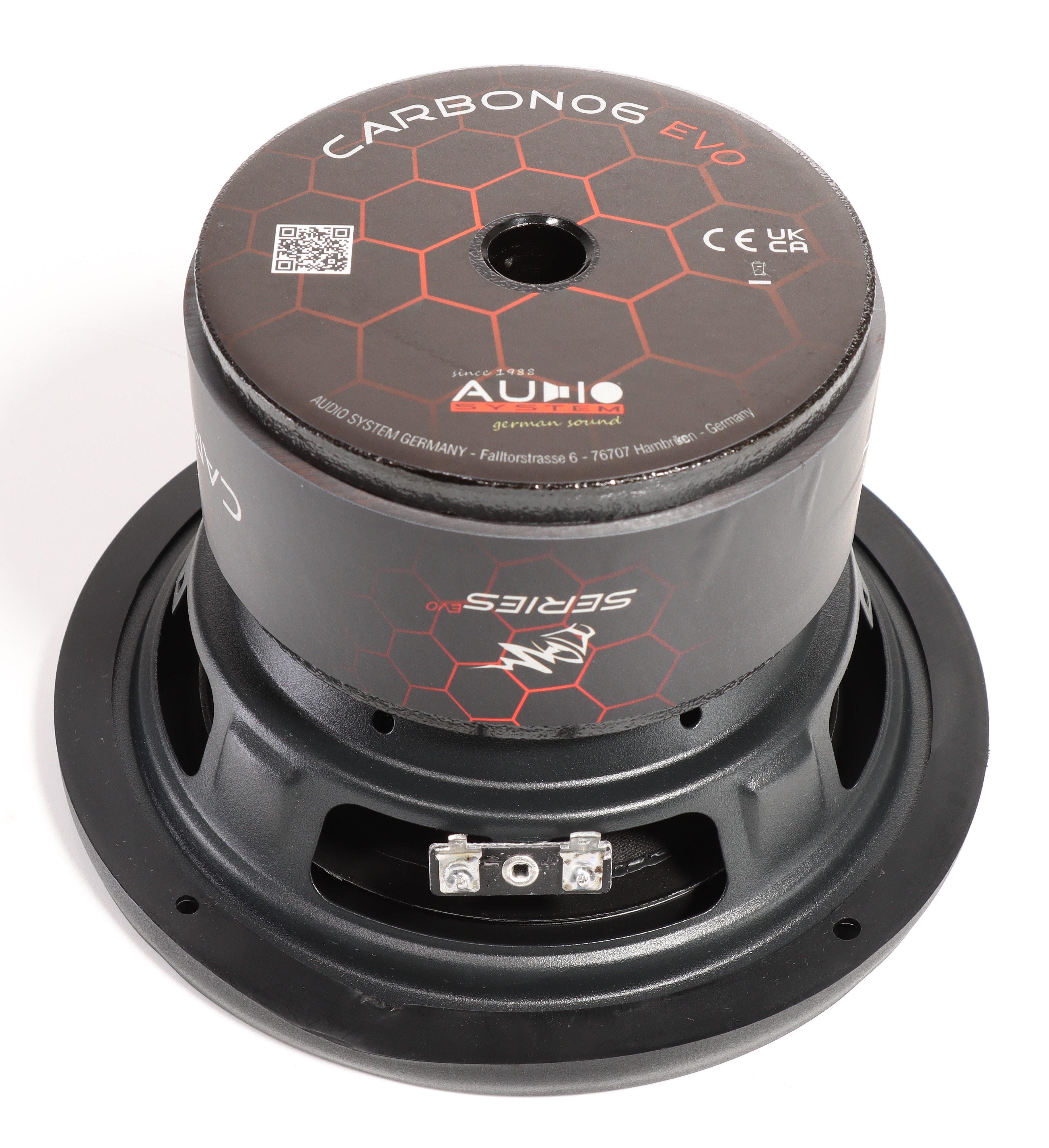

Audio System CARBON06
2x2Ω
Subwoofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 55.5 Hz |
| Q factor | 0.39 |
| Sensitivity | 83.1 dB |
| Linear excursion | ± 4.5 mm |
| Program power | 240 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.1dB
- Frequency response 35 - 800Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 55.5Hz
- Mechanical quality factor QMS 2.42
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 4.5mm
- Air volume displaced at xmax VD 58cm³
- Power handling P 160W
- Program power Pmax 240W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.2Ω
- Inductance (1kHz, in series, estimated) LE 1.1mH
- VC Diameter 38.6mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 9.98N/A
- Motor constant Bl/√RE 4.87N/√W
Diaphragm
- Effective diameter 128mm
- Effective area SD 129cm²
- Moving mass (including air load) MMS 40.7g
- Moving mass MMD 39.5g
- Material Paper
Suspensions
- Stiffness KMS 3.89N/mm
- Compliance CMS 257µm/N
- Equivalent volume to the compliance VAS 4.17L
- Mechanical resistance RMS 5.86N·s/m
- Surround material NBR (Rubber)
- Spider material PPTA Connex
Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 171mm
- Baffle cutout diameter 144mm
- Overall depth 90mm
- Flange thickness 10mm
- Mounting depth 80mm
- Volume occupied by the driver (estimated) 0.89L
- Net weight 3.2kg
- Frame material Steel
