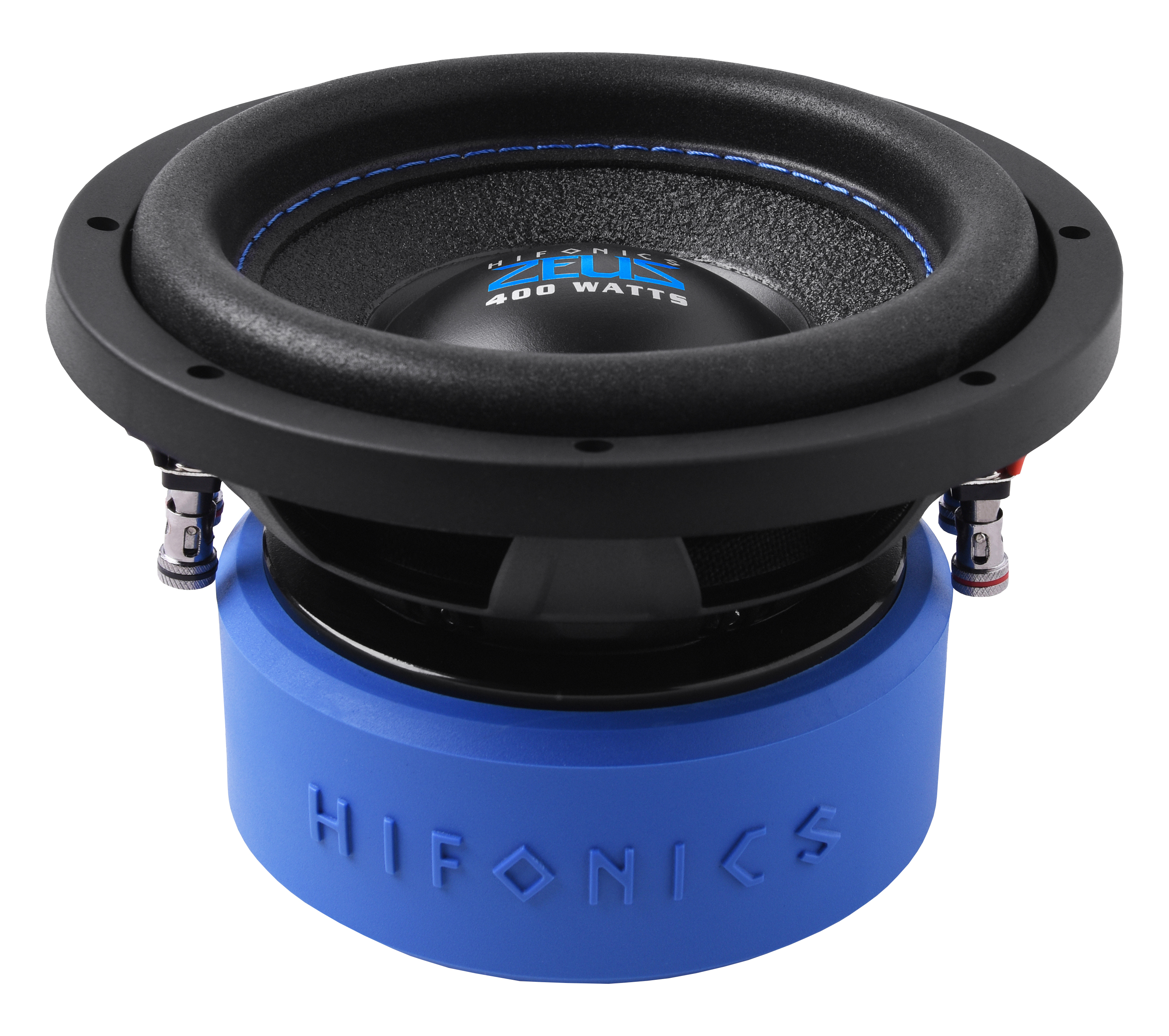

HiFonics ZEUS STREET ZXS6D2
2x2Ω
Subwoofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 50 Hz |
| Q factor | 0.43 |
| Sensitivity | 84.4 dB |
| Linear excursion | ± 11.5 mm |
| Program Power | 400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 50Hz
- Mechanical quality factor QMS 4.00
- Electrical quality factor QES 0.48
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion (one way) xmax 11.5mm
- Maximum excursion before damage xlim 14mm
- Air volume displaced at xmax VD 165cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.1Ω
- Inductance (1kHz, in series, estimated) LE 1.1mH
- VC Diameter 38mm
- Winding height HVC 31mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 10.6N/A
- Motor constant Bl/√RE 5.23N/√W
- Diameter 120mm
- Height 40mm
- Weight 1.701kg
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass MMS 42.2g
- Moving mass (without air load) MMD 40.9g
- Material Paper
Suspensions
- Stiffness KMS 4.27N/mm
- Compliance CMS 234µm/N
- Equivalent volume to the compliance VAS 6.8L
- Mechanical resistance RMS 3.31N·s/m
- Surround material Foam
- Spider material Polycot
Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 175mm
- Baffle cutout diameter 150mm
- Mounting depth 113mm
- Volume occupied by the driver (estimated) 1.7L
- Net weight 4.0kg
- Frame material Steel
