HiFonics ELITE HEW6D4

2x4Ω

Subwoofer

Nominal diameter	6″ / 182 mm
Resonance	50 Hz
Q factor	0.37
Sensitivity	83 dB
Linear excursion	± 18 mm
Program Power	600 W

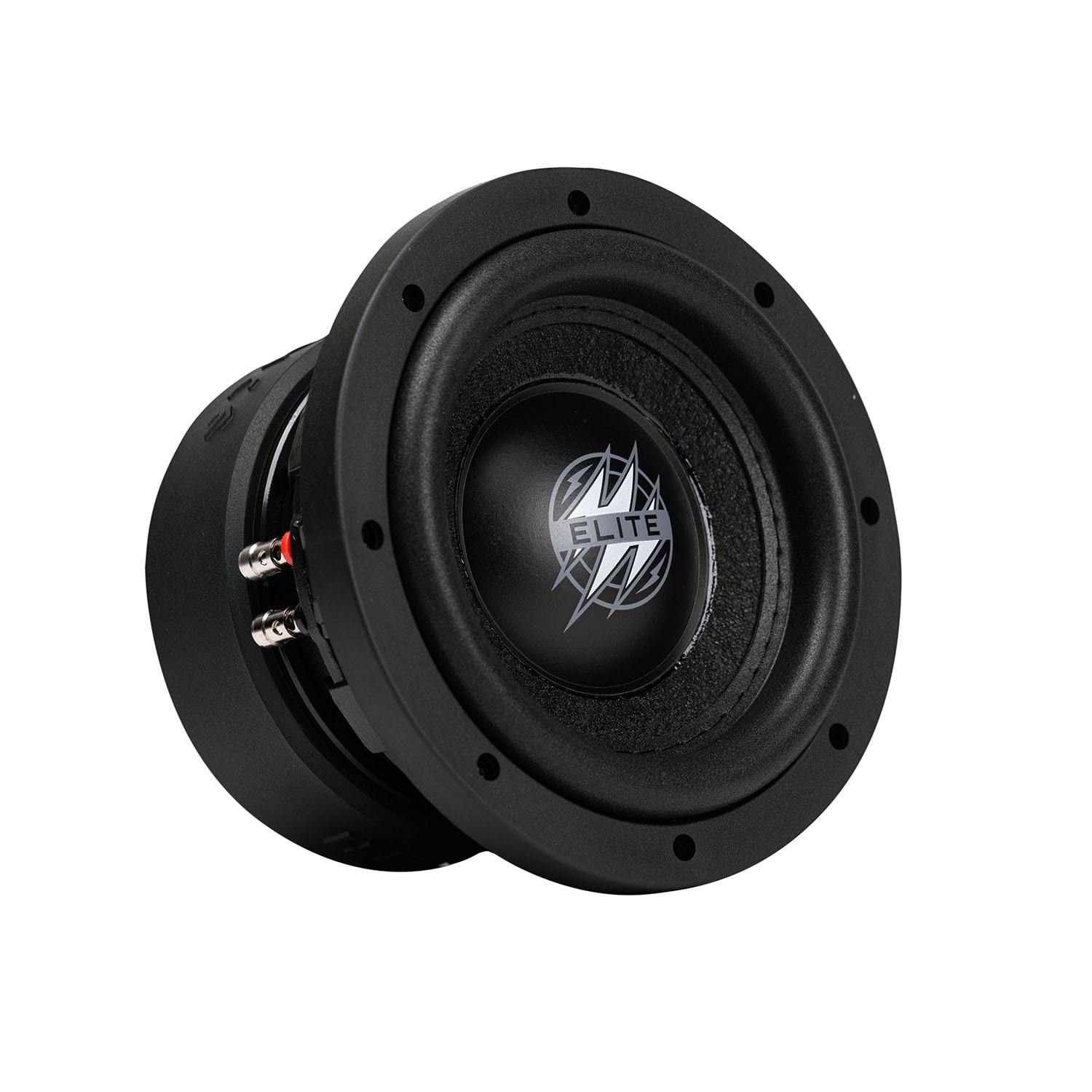

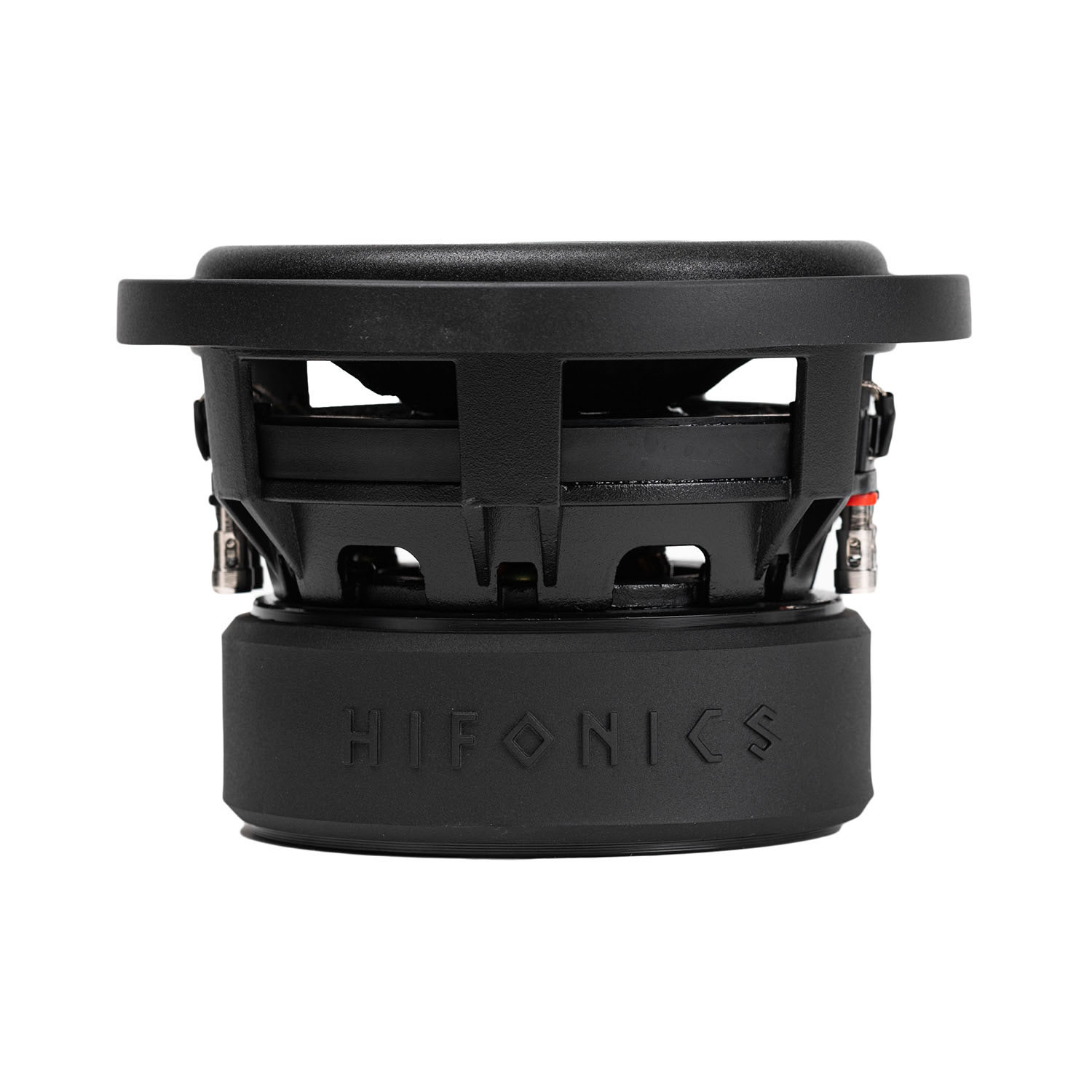

HiFonics HEW6D4 Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 83dB

Thiele & Small parameters

Resonance frequency (free air) fS 50Hz
Mechanical quality factor QMS 2.55
Electrical quality factor QES 0.44
Total quality factor QTS 0.37

Large signal parameters

Maximum linear excursion (one way) xmax 18mm
Air volume displaced at xmax VD 257cm³
Power handling P 300W
Program power Pmax 600W

Voice Coil

Nominal impedance Z 2 x 4Ω
DC resistance (in series) RE 8.0Ω
Inductance (1kHz, in series) LE 1.7mH
VC Diameter 38.8mm

Magnet

Force factor (in series) Bl 19N/A
Motor constant Bl/√RE 6.72N/√W

Diaphragm

Effective diameter 135mm
Effective area SD 143cm²
Moving mass MMS 63.5g
Moving mass (without air load) MMD 62.2g

Suspensions

Stiffness KMS 6.58N/mm
Compliance CMS 152µm/N
Equivalent volume to the compliance VAS 4.4L
Mechanical resistance RMS 7.82N·s/m

Dimensions

Nominal diameter 6″
182mm
Overall diameter 182mm
Baffle cutout diameter 151mm
Mounting depth 106mm
Volume occupied by the driver (estimated) 0.64L
