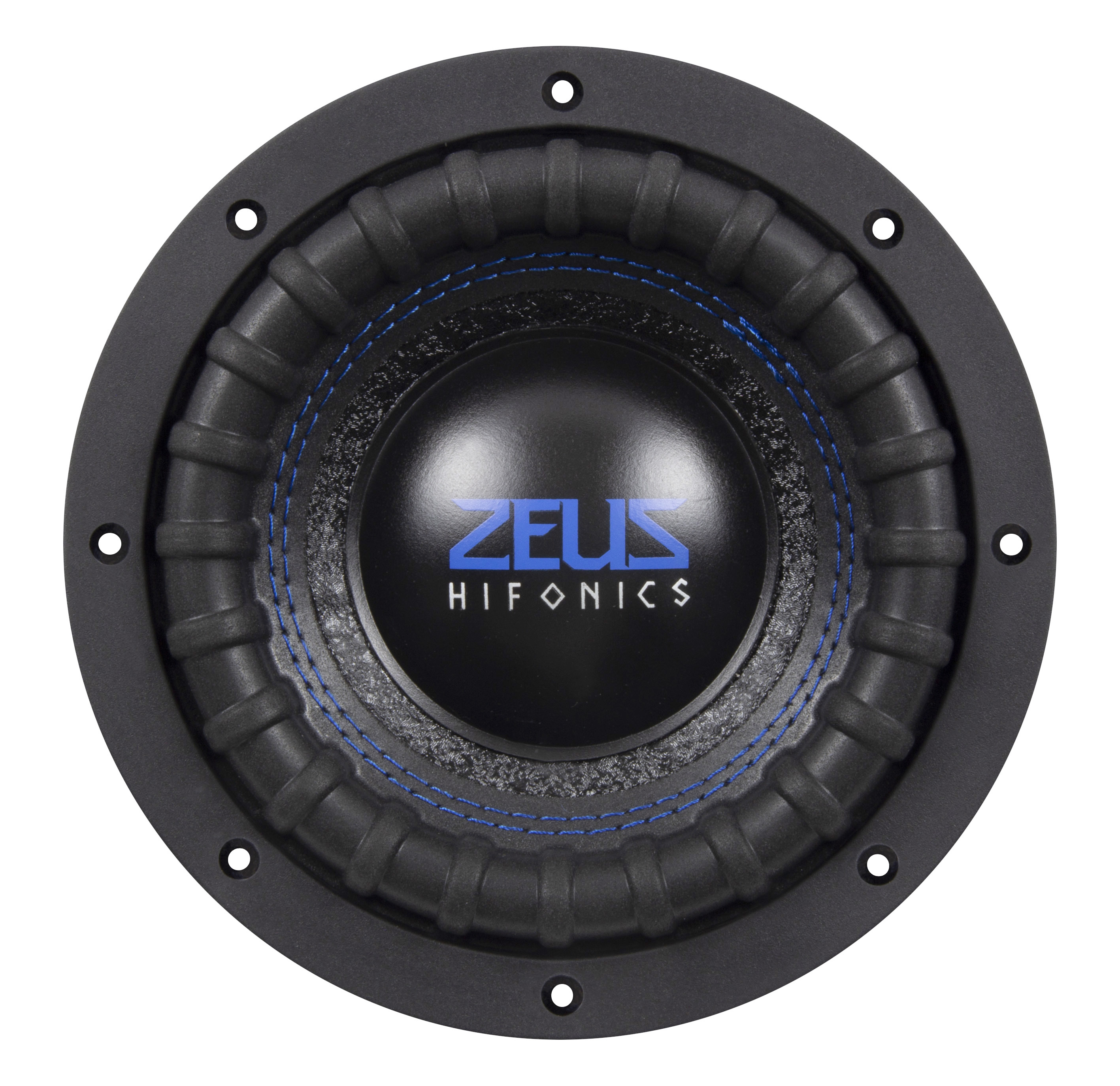

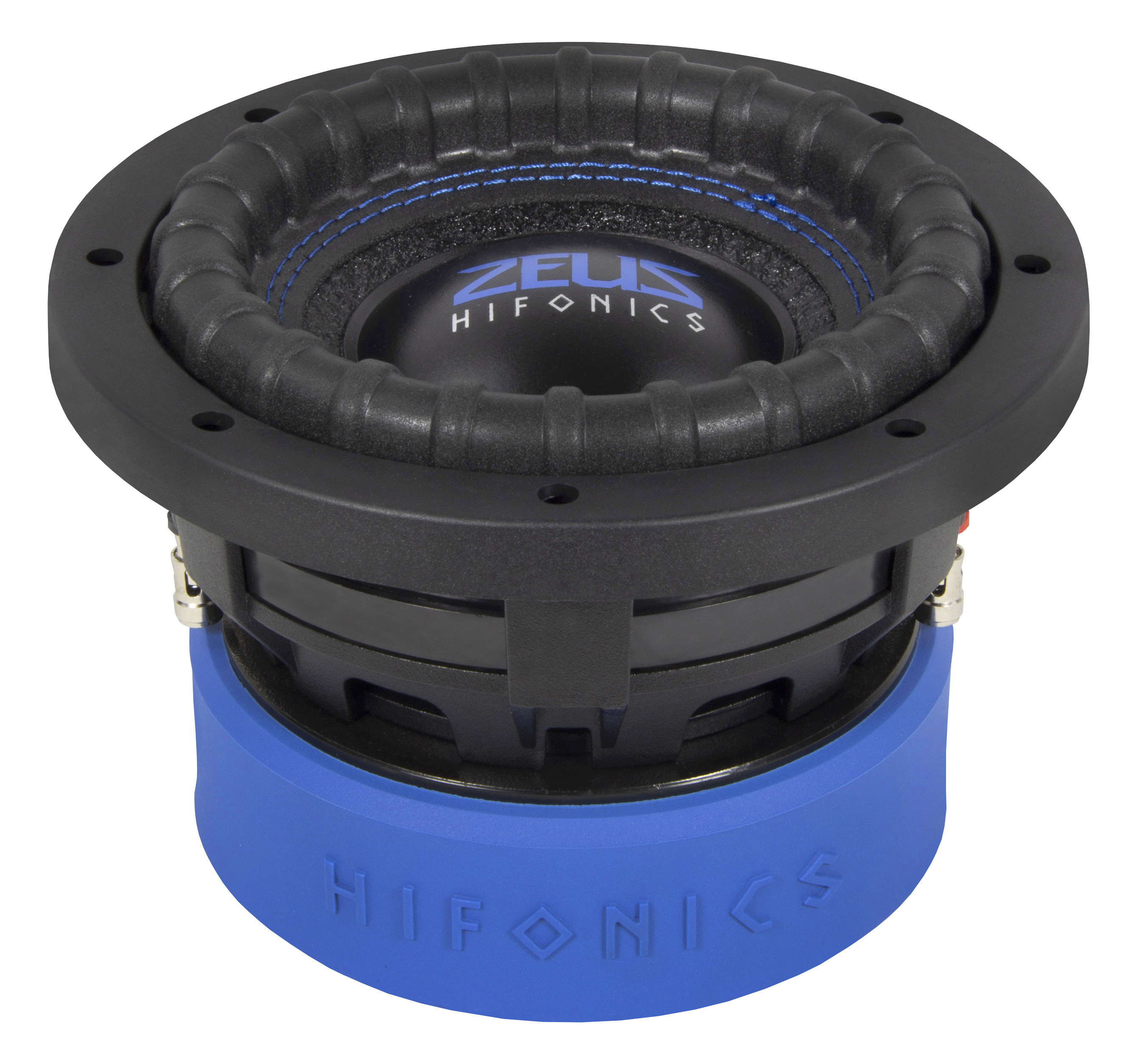

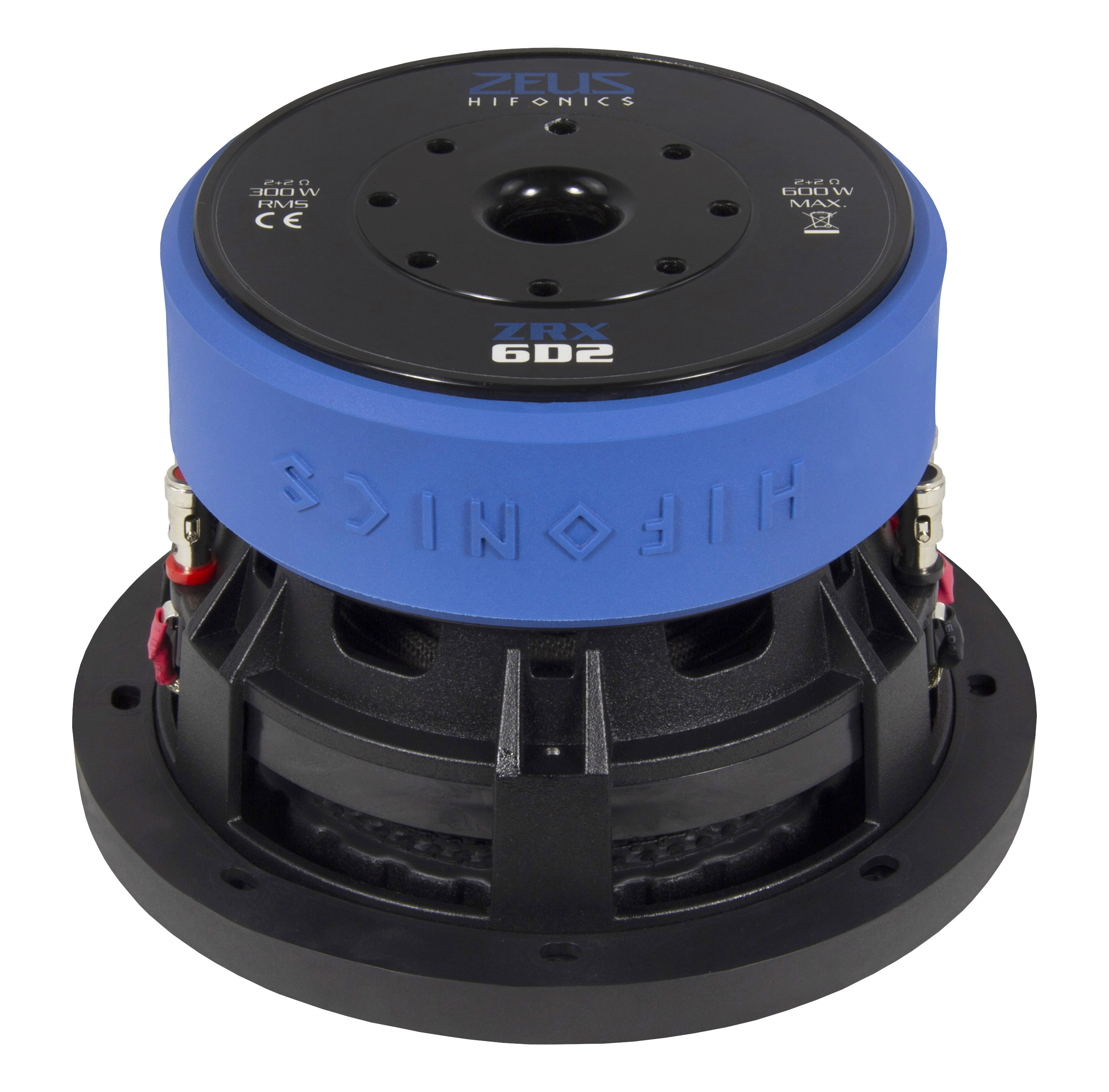

HiFonics ZEUS POWER ZRX6D2
2x2Ω
Subwoofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 53.9 Hz |
| Q factor | 0.46 |
| Sensitivity | 81.7 dB |
| Linear excursion | ± 8.5 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 53.9Hz
- Mechanical quality factor QMS 3.03
- Electrical quality factor QES 0.54
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion (one way) xmax 8.5mm
- Maximum excursion before damage xlim 15mm
- Air volume displaced at xmax VD 114cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 1.7mH
- VC Diameter 50mm
- Winding height HVC 25mm
Magnet
- Force factor (in series) Bl 13.1N/A
- Motor constant Bl/√RE 6.54N/√W
- Diameter 134mm
- Height 35mm
- Weight 1.985kg
Diaphragm
- Effective diameter 131mm
- Effective area SD 134cm²
- Moving mass MMS 68.2g
- Moving mass (without air load) MMD 67g
- Material Non-pressed Paper Cone
Suspensions
- Stiffness KMS 7.94N/mm
- Compliance CMS 126µm/N
- Equivalent volume to the compliance VAS 3.2L
- Mechanical resistance RMS 7.62N·s/m
- Surround material Foam Surround
- Spider material Dual Polycot Spider
Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 182mm
- Baffle cutout diameter 151mm
- Mounting depth 106mm
- Volume occupied by the driver (estimated) 0.64L
- Frame material Diecast Aluminium
