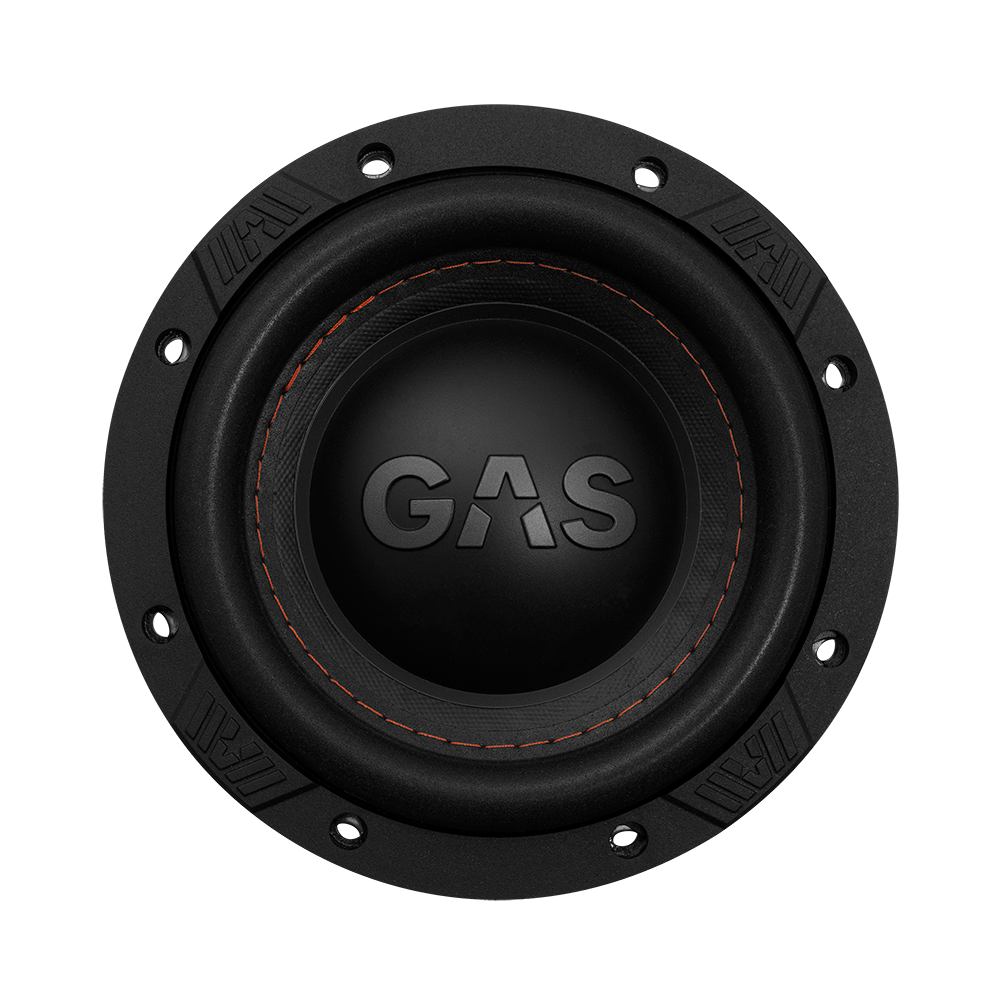

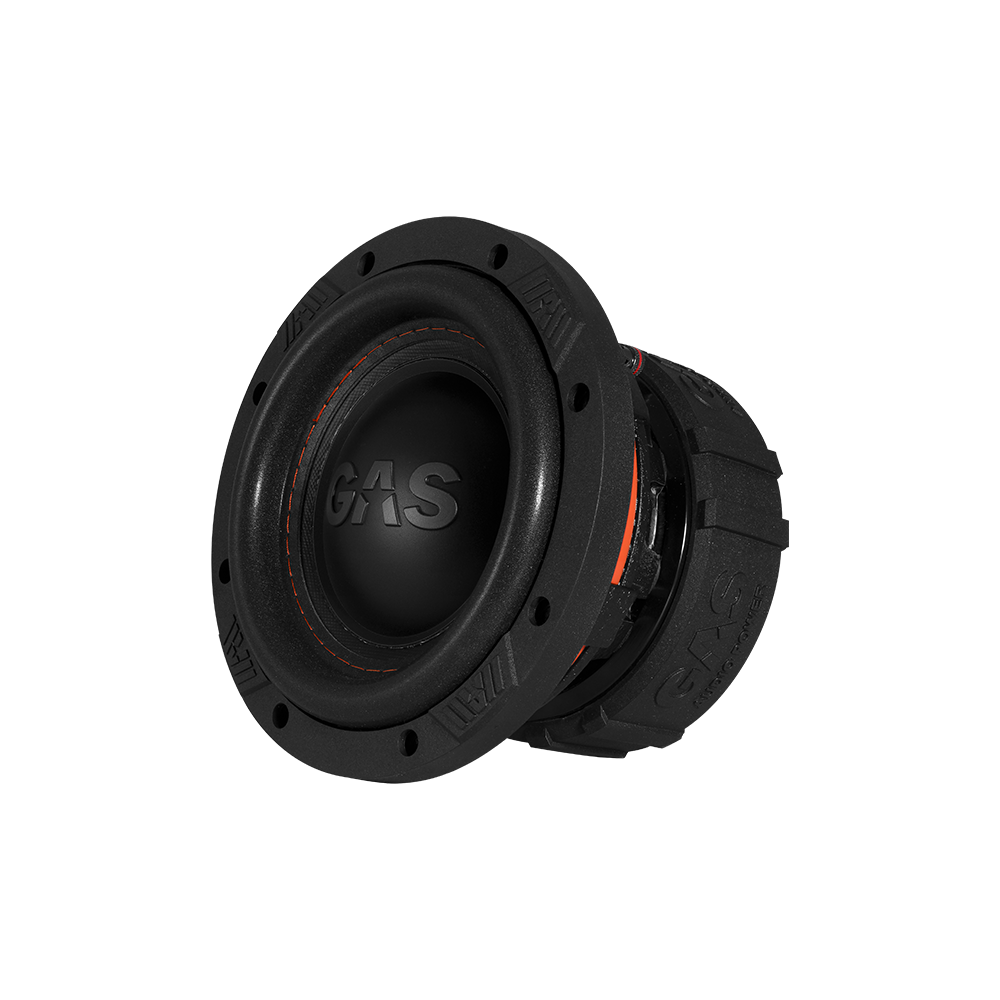

GAS Audio Power MAX S1-6D1
2x1Ω
Subwoofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 48.3 Hz |
| Q factor | 0.43 |
| Sensitivity | 82 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 800 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82dB
- Frequency response 30 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 48.3Hz
- Mechanical quality factor QMS 4.57
- Electrical quality factor QES 0.48
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion (one way) xmax 5.5mm
- Air volume displaced at xmax VD 79cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 0.79mH
- VC Diameter 50.8mm
- Winding material Copper
- Former material ALSV
Magnet
- Force factor (in series) Bl 9.8N/A
- Motor constant Bl/√RE 7.3N/√W
- Diameter 143mm
- Weight 1.7kg
- Material Ferrite
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass MMS 79.7g
- Moving mass (without air load) MMD 78.4g
- Material Paper
Suspensions
- Stiffness KMS 7.75N/mm
- Compliance CMS 129µm/N
- Equivalent volume to the compliance VAS 3.9L
- Mechanical resistance RMS 5.29N·s/m
- Surround material Foam
- Spider material Dual Nomex
Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 182mm
- Baffle cutout diameter 151mm
- Overall depth 122mm
- Flange thickness 13mm
- Mounting depth 109mm
- Volume occupied by the driver 1L
- Net weight 5.8kg
- Frame material HD Aluminium
