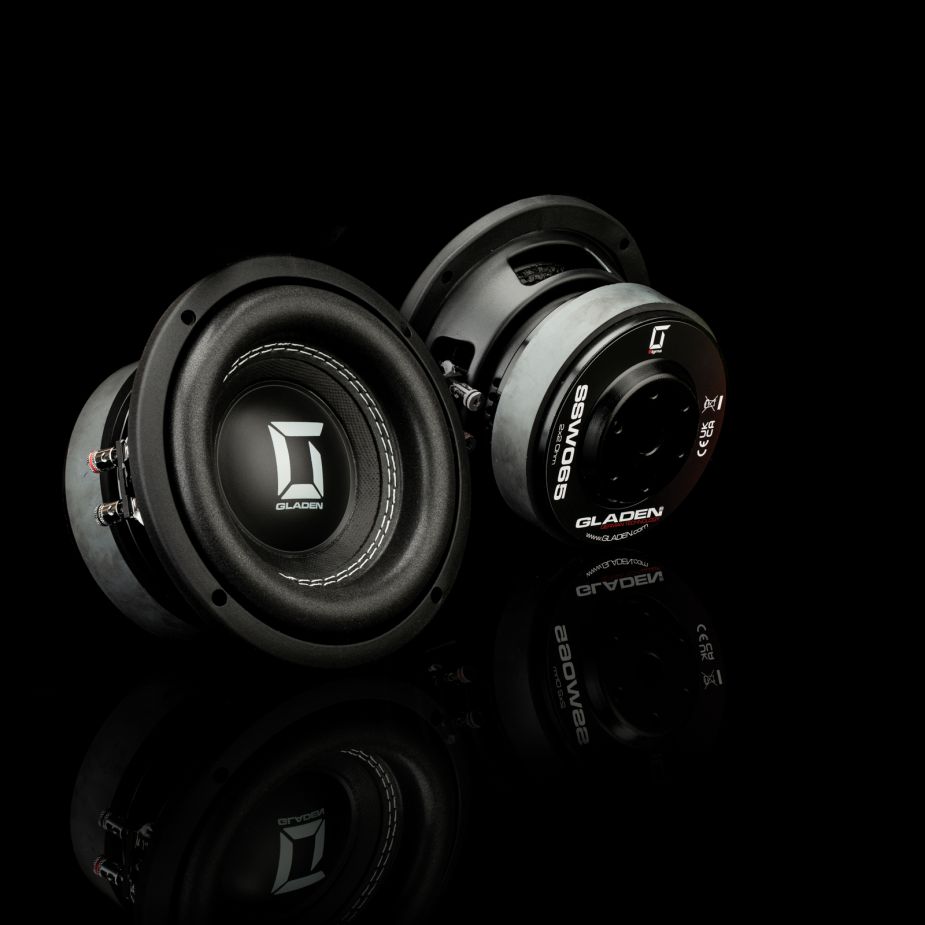

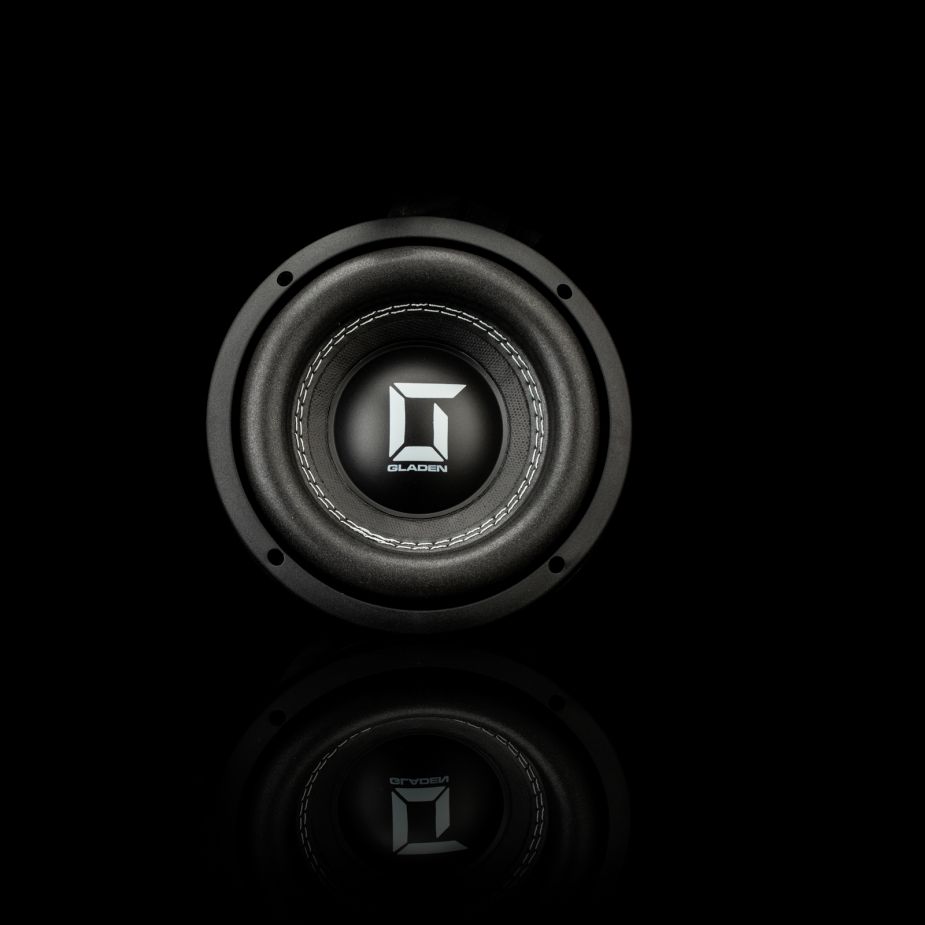

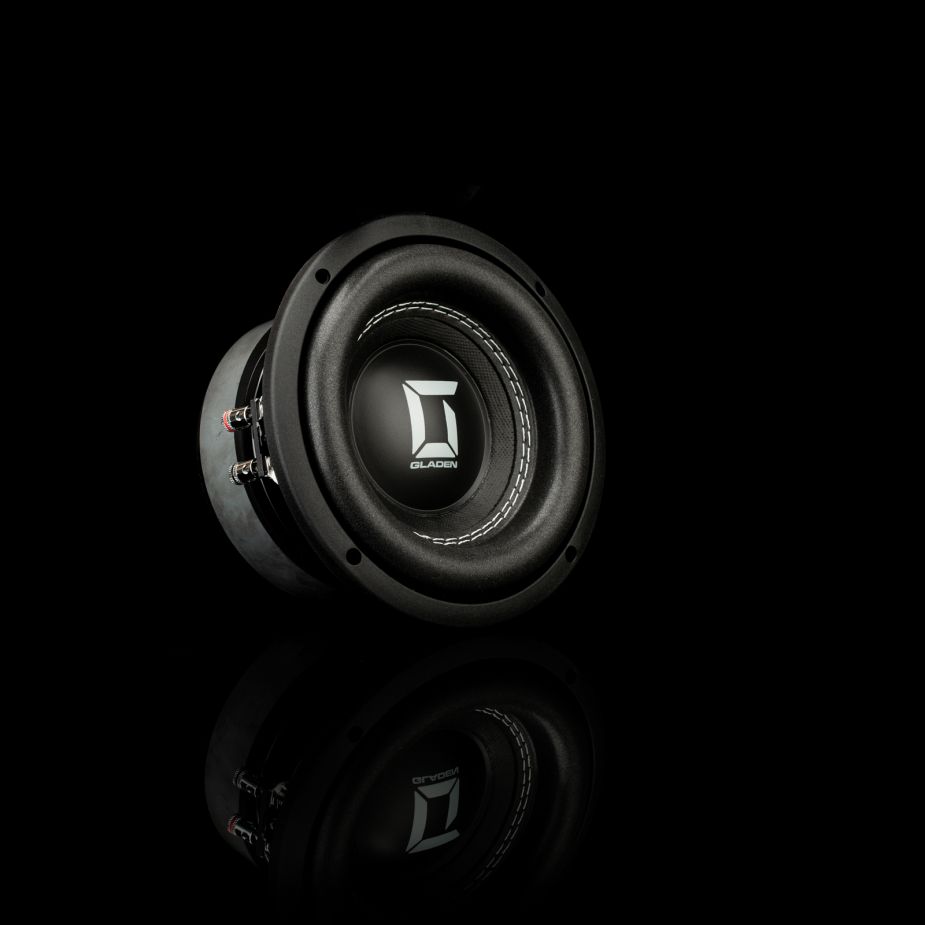

GLADEN SIGMA SSW065
2x2Ω
Subwoofer
| Nominal diameter | 6.5″ / 173 mm |
| Resonance | 56 Hz |
| Q factor | 0.53 |
| Sensitivity | 81.6 dB |
| Linear excursion | ± 8.5 mm |
| Program power | 400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 56Hz
- Mechanical quality factor QMS 7.27
- Electrical quality factor QES 0.57
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion (one way) xmax 8.5mm
- Air volume displaced at xmax VD 109cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 1.36mH
- VC Diameter 38.1mm
Magnet
- Force factor (in series) Bl 12.7N/A
- Motor constant Bl/√RE 6.69N/√W
- Diameter 126mm
Diaphragm
- Effective diameter 128mm
- Effective area SD 129cm²
- Moving mass (including air load) MMS 70.6g
- Moving mass MMD 69.5g
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 2.66L
- Mechanical resistance RMS 3.42N·s/m
Dimensions
- Nominal diameter 6.5″
- 173mm
- Overall diameter 173mm
- Baffle cutout diameter 144mm
- Mounting depth 93mm
- Volume occupied by the driver (estimated) 0.56L
