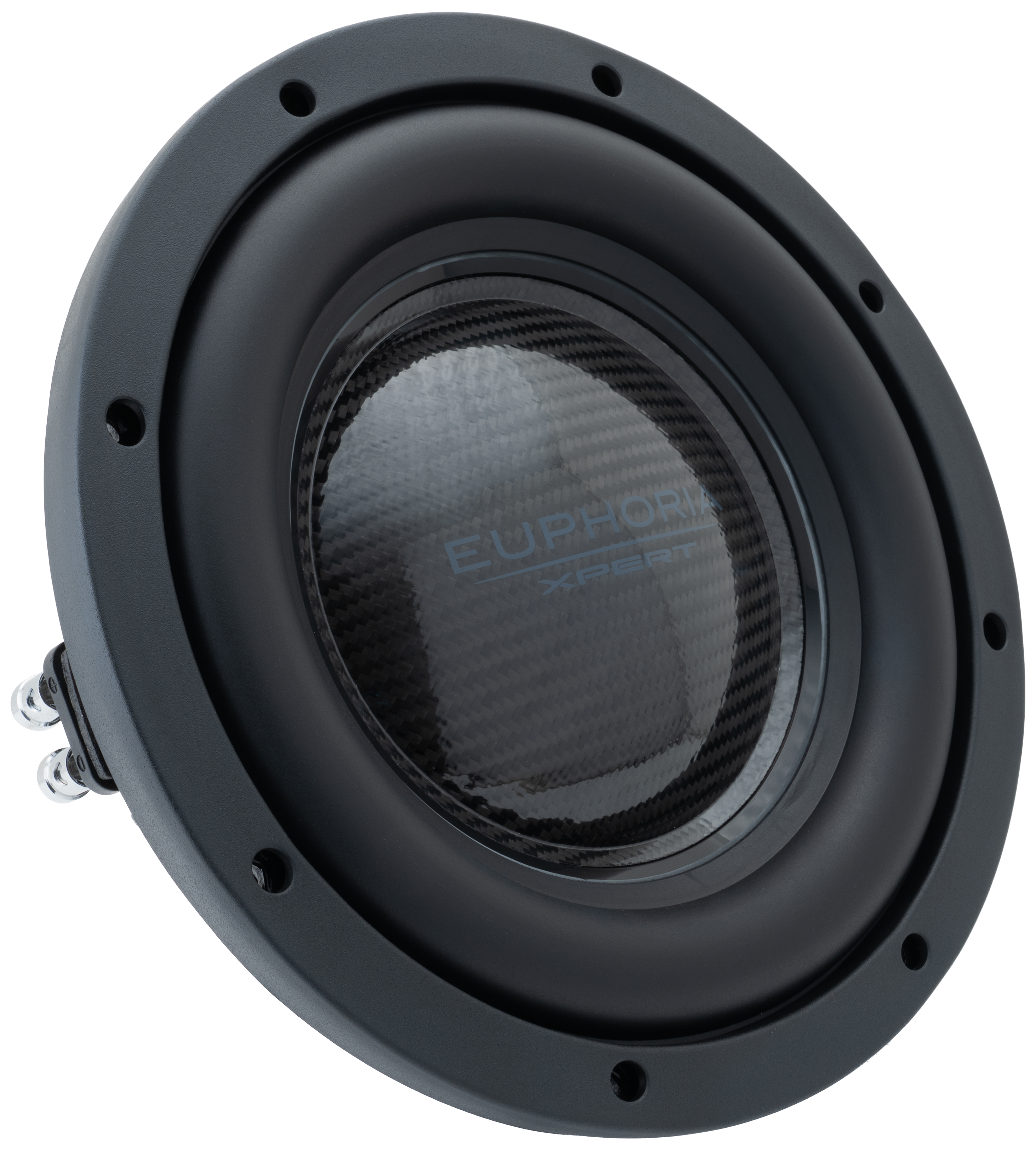

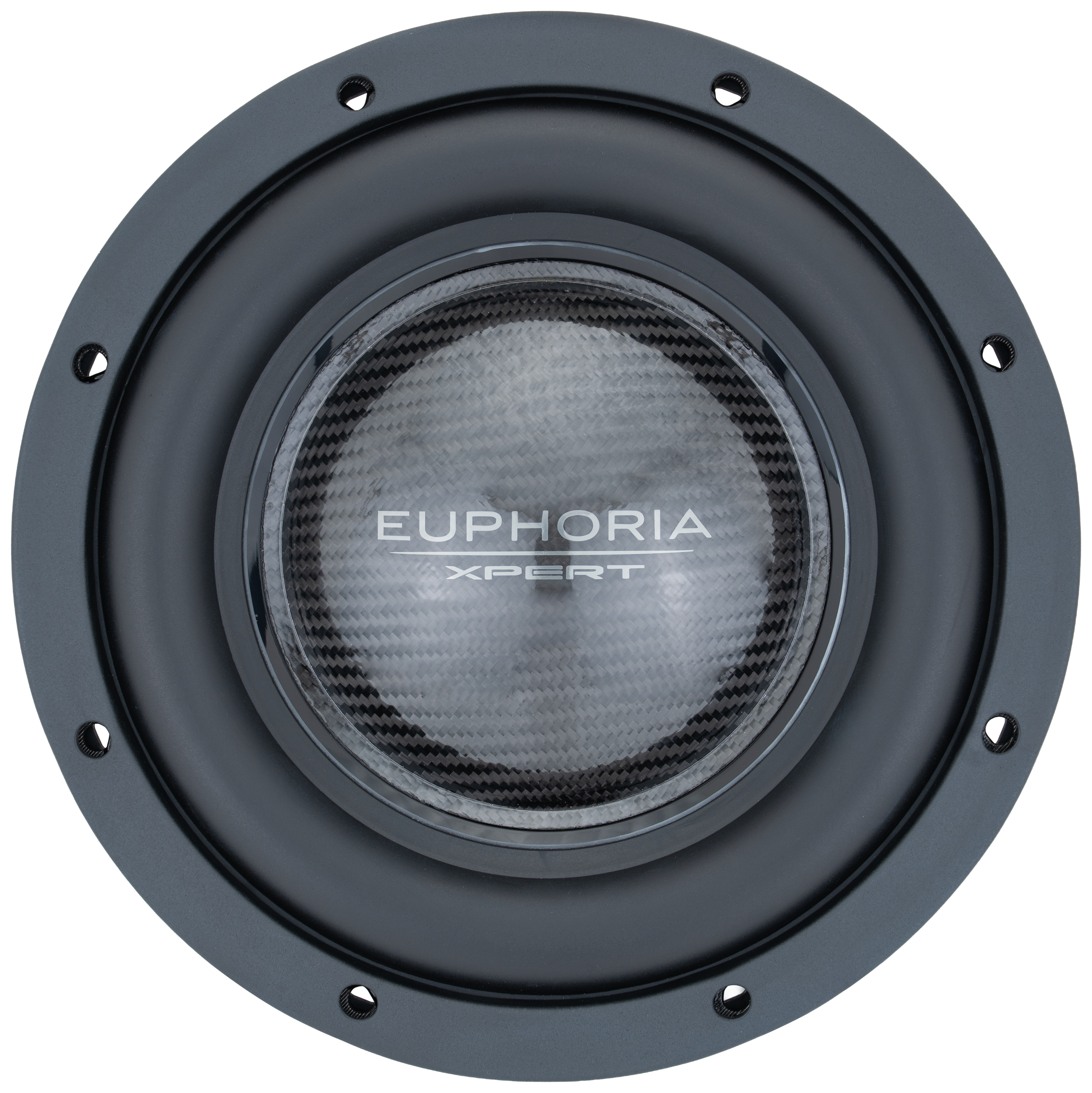

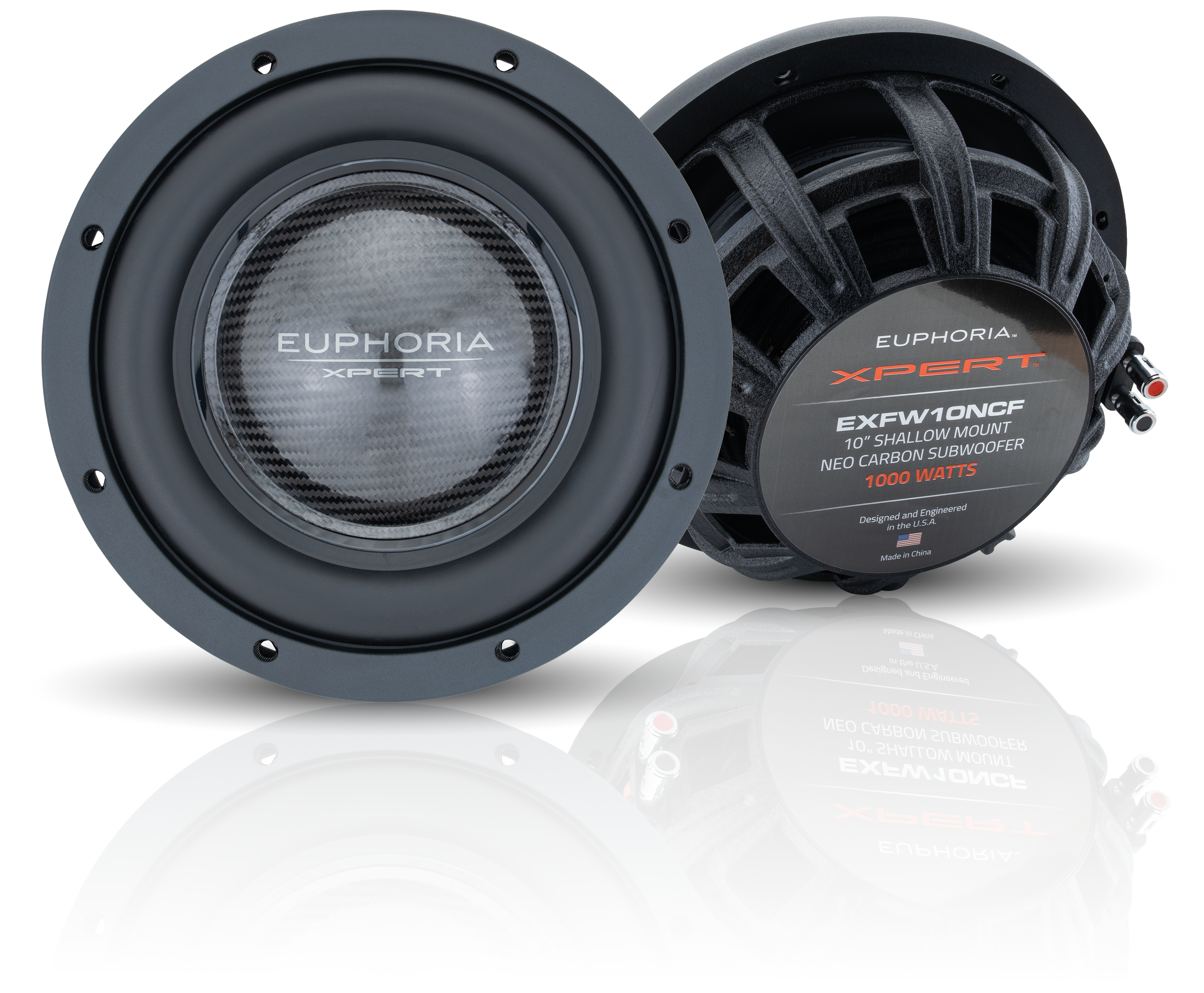

EUPHORIA XPERT EXFW10NCF
2x4Ω
Shallow Woofer
| Nominal diameter | 10″ / 275 mm |
| Resonance | 35.8 Hz |
| Q factor | 0.31 |
| Sensitivity | 83.7 dB |
| Linear excursion | ± 10 mm |
| Program Power | 1000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35.8Hz
- Mechanical quality factor QMS 2.17
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.31
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 330cm³
- Power handling P 400W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 6.01mH
- VC Diameter 63.5mm
Magnet
- Force factor (in series) Bl 32.3N/A
- Motor constant Bl/√RE 12N/√W
- Material Neodymium
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 233g
- Moving mass (without air load) MMD 228g
- Material Carbon Fiber
Suspensions
- Stiffness KMS 11.8N/mm
- Compliance CMS 84.7µm/N
- Equivalent volume to the compliance VAS 13.1L
- Mechanical resistance RMS 24.1N·s/m
- Surround material Rubber

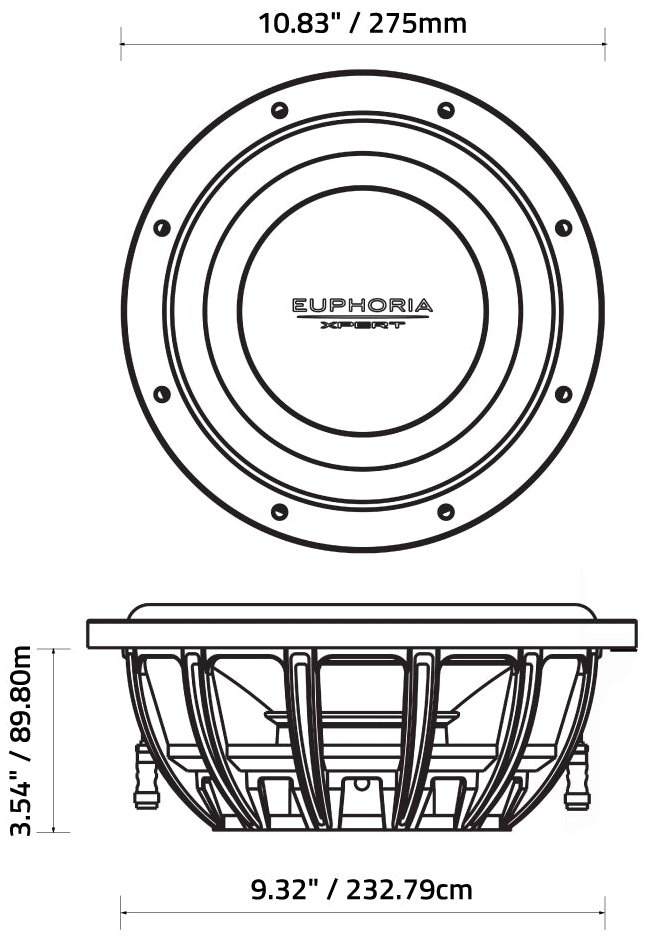

Dimensions
- Nominal diameter 10″
- 275mm
- Overall diameter 275mm
- Baffle cutout diameter 237mm
- Mounting depth 90mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Die-Cast Aluminium
.webp)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
MfbLabs
