EUPHORIA ERW10D4 Subwoofer

EUPHORIA ERW10D4

2 x 4 Ω
10″ Subwoofer
fS37.4 Hz
SD330 cm²
QTS0.56
SPL1W82.5 dB
Bl/√RE8.89
Pmax1500 W
EUPHORIA ERW12D4 Subwoofer

EUPHORIA ERW12D4

2 x 4 Ω
12″ Subwoofer
fS30.5 Hz
SD511 cm²
QTS0.57
SPL1W84.6 dB
Bl/√RE8.59
Pmax1500 W
EUPHORIA ERW8D4 Subwoofer

EUPHORIA ERW8D4

2 x 4 Ω
8″ Subwoofer
fS45.1 Hz
SD201 cm²
QTS0.53
SPL1W81.9 dB
Bl/√RE7.6
Pmax800 W
EUPHORIA ERFW10D4 Shallow Subwoofer

EUPHORIA ERFW10D4

2 x 4 Ω
10″ Shallow Subwoofer
fS32 Hz
SD330 cm²
QTS0.61
SPL1W81.6 dB
Bl/√RE7.59
Pmax1200 W
EUPHORIA ERFW12D4 Shallow Subwoofer

EUPHORIA ERFW12D4

2 x 4 Ω
12″ Shallow Subwoofer
fS28 Hz
SD511 cm²
QTS0.59
SPL1W84.1 dB
Bl/√RE8.07
Pmax1200 W
EUPHORIA ERFW8D4 Shallow Subwoofer

EUPHORIA ERFW8D4

2 x 4 Ω
8″ Shallow Subwoofer
fS47.1 Hz
SD201 cm²
QTS0.74
SPL1W81.8 dB
Bl/√RE5.78
Pmax700 W

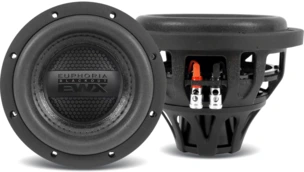

EUPHORIA EWX6NEO Subwoofer

EUPHORIA EWX6NEO

2 x 4 Ω
6.5″ Subwoofer
fS51 Hz
SD143 cm²
QTS0.61
SPL1W77.9 dB
Bl/√RE6.52
Pmax500 W

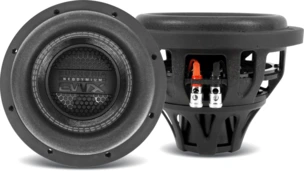

EUPHORIA EWX8NEO Subwoofer

EUPHORIA EWX8NEO

2 x 4 Ω
8″ Subwoofer
fS50.3 Hz
SD214 cm²
QTS0.56
SPL1W81.2 dB
Bl/√RE7.04
Pmax600 W

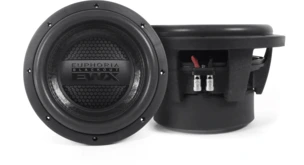

EUPHORIA EWXB10D2 Subwoofer

EUPHORIA EWXB10D2

2 x 2 Ω
10″ Subwoofer
fS39.5 Hz
SD531 cm²
QTS0.75
xmax17.8 mm
SPL1W86.2 dB
Bl/√RE7.83
Pmax2500 W
EUPHORIA EWXB10D4 Subwoofer

EUPHORIA EWXB10D4

2 x 4 Ω
10″ Subwoofer
fS39 Hz
SD531 cm²
QTS0.75
xmax17.8 mm
SPL1W84.8 dB
Bl/√RE8.8
Pmax2500 W

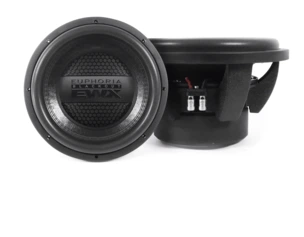

EUPHORIA EWXB12D2 Subwoofer

EUPHORIA EWXB12D2

2 x 2 Ω
12″ Subwoofer
fS37 Hz
SD531 cm²
QTS0.73
xmax17.8 mm
SPL1W85.2 dB
Bl/√RE8.97
Pmax2500 W
EUPHORIA EWXB12D4 Subwoofer

EUPHORIA EWXB12D4

2 x 4 Ω
12″ Subwoofer
fS41.4 Hz
SD374 cm²
QTS0.55
xmax16.8 mm
SPL1W83.5 dB
Bl/√RE9.94
Pmax2500 W

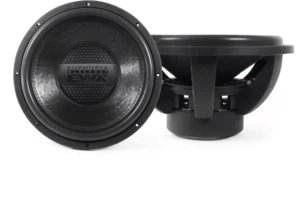

EUPHORIA EWXB15D2 Subwoofer

EUPHORIA EWXB15D2

2 x 2 Ω
15″ Subwoofer
fS31.8 Hz
SD835 cm²
QTS0.77
xmax17.8 mm
SPL1W87.5 dB
Bl/√RE8.65
Pmax2500 W
EUPHORIA EWXB15D4 Subwoofer

EUPHORIA EWXB15D4

2 x 4 Ω
15″ Subwoofer
fS35.8 Hz
SD835 cm²
QTS0.85
xmax17.8 mm
SPL1W86.8 dB
Bl/√RE9.32
Pmax2500 W
EUPHORIA EWXB8D2 Subwoofer

EUPHORIA EWXB8D2

2 x 2 Ω
8″ Subwoofer
fS49.6 Hz
SD214 cm²
QTS0.59
xmax16.8 mm
SPL1W82.7 dB
Bl/√RE7.79
Pmax1500 W

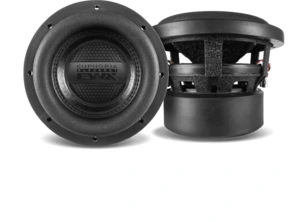

EUPHORIA EWXB8D4 Subwoofer

EUPHORIA EWXB8D4

2 x 4 Ω
8″ Subwoofer
fS48.6 Hz
SD214 cm²
QTS0.62
xmax16.8 mm
SPL1W82.5 dB
Bl/√RE7.08
Pmax1500 W

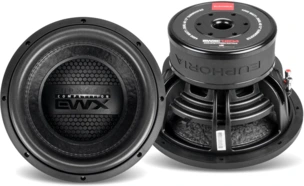

EUPHORIA EWXC12D4 Subwoofer

EUPHORIA EWXC12D4

2 x 4 Ω
12″ Subwoofer
fS34.6 Hz
SD523 cm²
QTS0.89
xmax20 mm
SPL1W83.5 dB
Bl/√RE7.93
Pmax4000 W
EUPHORIA EWXC15D4 Subwoofer

EUPHORIA EWXC15D4

2 x 4 Ω
15″ Subwoofer
fS34.8 Hz
SD830 cm²
QTS0.83
xmax23 mm
SPL1W87 dB
Bl/√RE8.84
Pmax4000 W

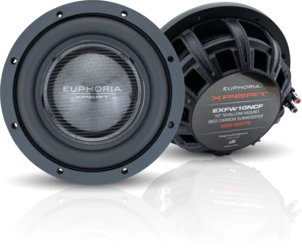

EUPHORIA EXFW10NCF Shallow Woofer

EUPHORIA EXFW10NCF

2 x 4 Ω
10″ Shallow Woofer
fS35.8 Hz
SD330 cm²
QTS0.31
xmax10 mm
SPL1W83.7 dB
Bl/√RE12
Pmax1000 W

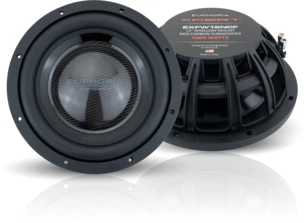

EUPHORIA EXFW12NCF Shallow Woofer

EUPHORIA EXFW12NCF

2 x 4 Ω
12″ Shallow Woofer
fS33.8 Hz
SD511 cm²
QTS0.34
xmax10 mm
SPL1W85.6 dB
Bl/√RE11.5
Pmax1200 W

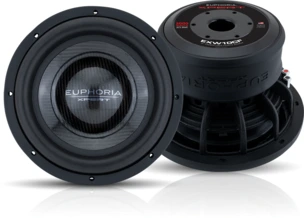

EUPHORIA EXW10CF Subwoofer

EUPHORIA EXW10CF

2 x 2 Ω
10″ Subwoofer
fS41.3 Hz
SD363 cm²
QTS0.43
xmax24 mm
SPL1W83 dB
Bl/√RE11.7
Pmax2000 W

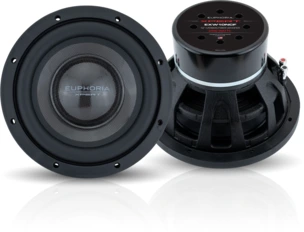

EUPHORIA EXW10NCF Woofer

EUPHORIA EXW10NCF

2 x 4 Ω
10″ Woofer
fS42.8 Hz
SD347 cm²
QTS0.42
xmax28 mm
SPL1W84.1 dB
Bl/√RE10.8
Pmax2500 W

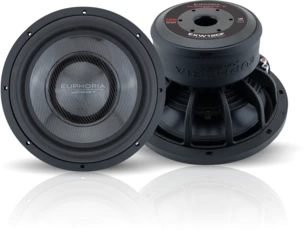

EUPHORIA EXW12CF Subwoofer

EUPHORIA EXW12CF

2 x 2 Ω
12″ Subwoofer
fS37.7 Hz
SD531 cm²
QTS0.46
xmax24 mm
SPL1W85 dB
Bl/√RE11.4
Pmax2500 W

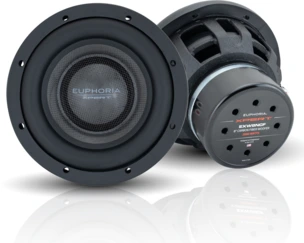

EUPHORIA EXW8NCF Subwoofer

EUPHORIA EXW8NCF

2 x 4 Ω
8″ Subwoofer
fS52 Hz
SD214 cm²
QTS0.52
xmax20 mm
SPL1W82.6 dB
Bl/√RE8.7
Pmax2000 W
