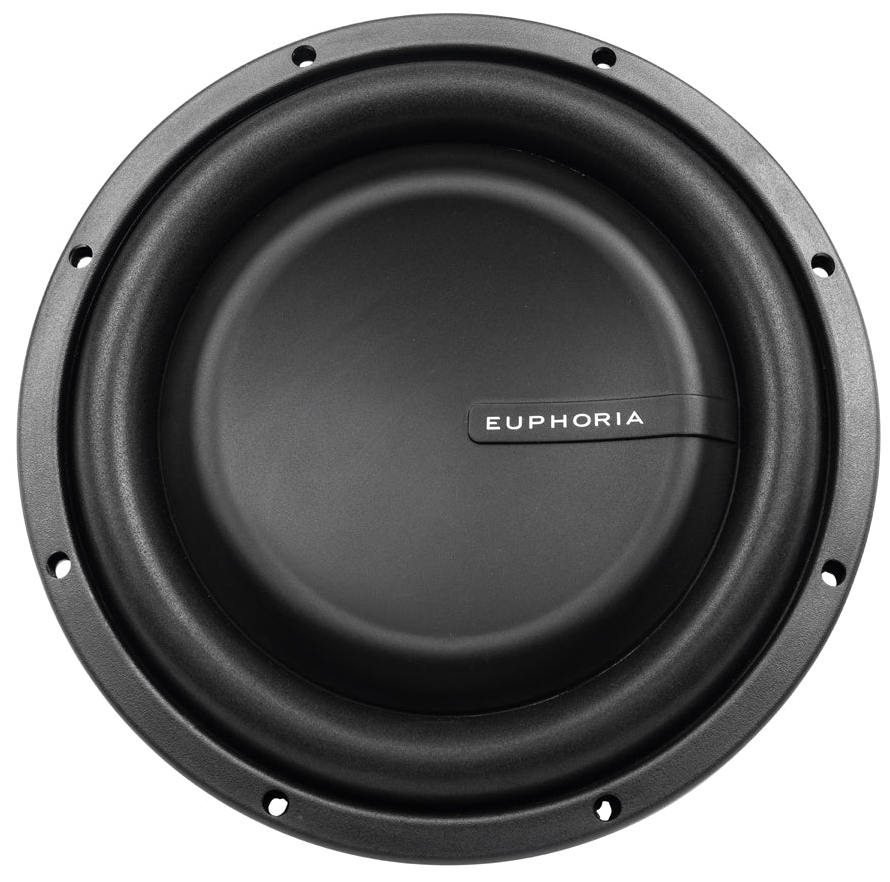

EUPHORIA ESW10D4
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 260 mm |
| Resonance | 33.2 Hz |
| Q factor | 0.57 |
| Sensitivity | 84.1 dB |
| Program Power | 1000 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 33.2Hz
- Mechanical quality factor QMS 5.26
- Electrical quality factor QES 0.64
- Total quality factor QTS 0.57
Large signal parameters
- Power handling P 500W
- Program power Pmax 1000W
- Peak power Ppeak 1000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.7Ω
- Inductance (1kHz, in series, estimated) LE 3.77mH
- Former material KSV
Magnet
- Force factor (in series) Bl 16.8N/A
- Motor constant Bl/√RE 6.53N/√W
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 130g
- Moving mass (without air load) MMD 126g
- Material Polypropylene
Suspensions
- Stiffness KMS 5.67N/mm
- Compliance CMS 176µm/N
- Equivalent volume to the compliance VAS 27.3L
- Mechanical resistance RMS 5.17N·s/m
- Surround material Foam
Dimensions
- Nominal diameter 10″
- 260mm
- Overall diameter 260mm
- Baffle cutout diameter 230mm
- Mounting depth 125mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Stamp-Cast basket
