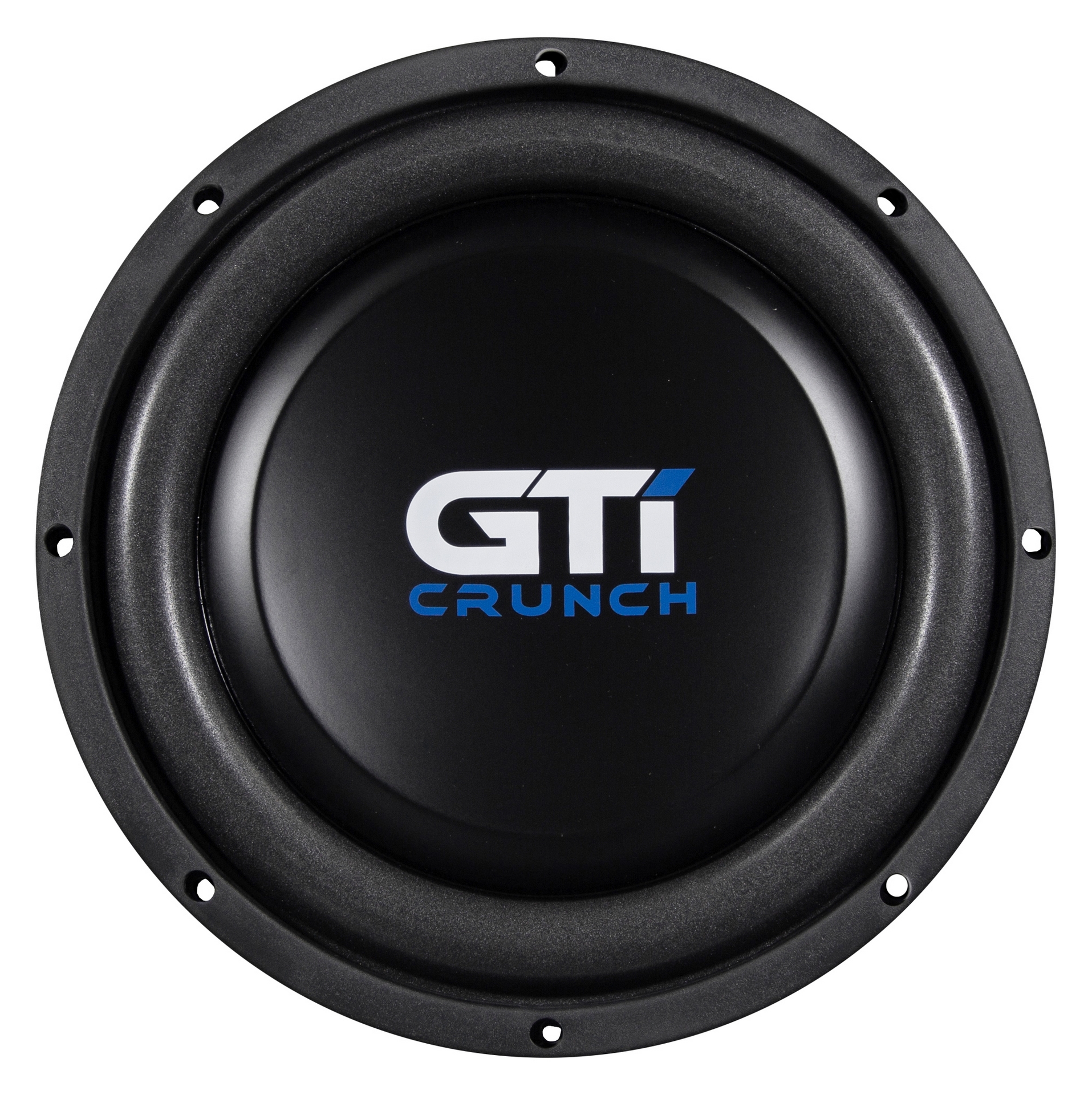

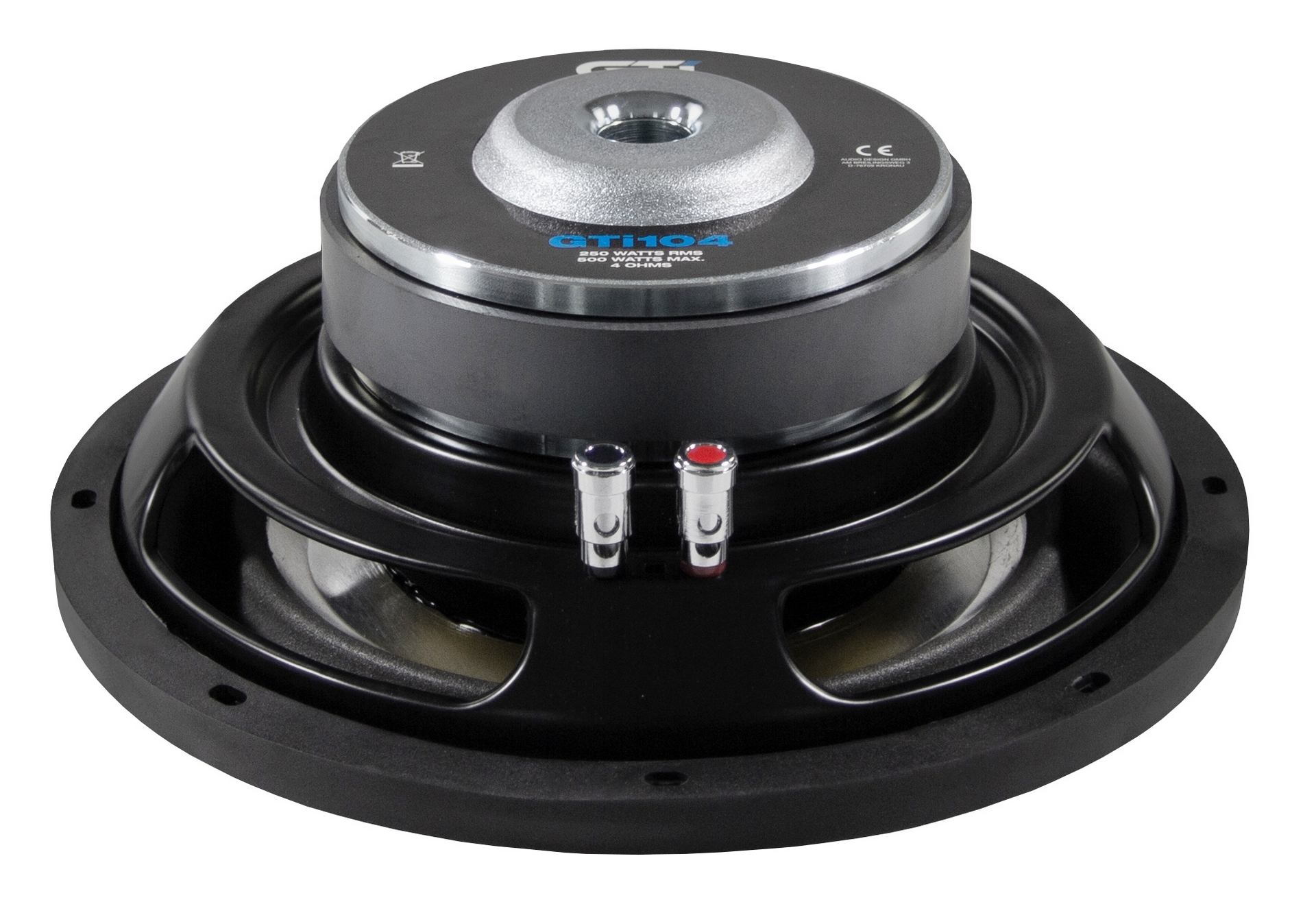

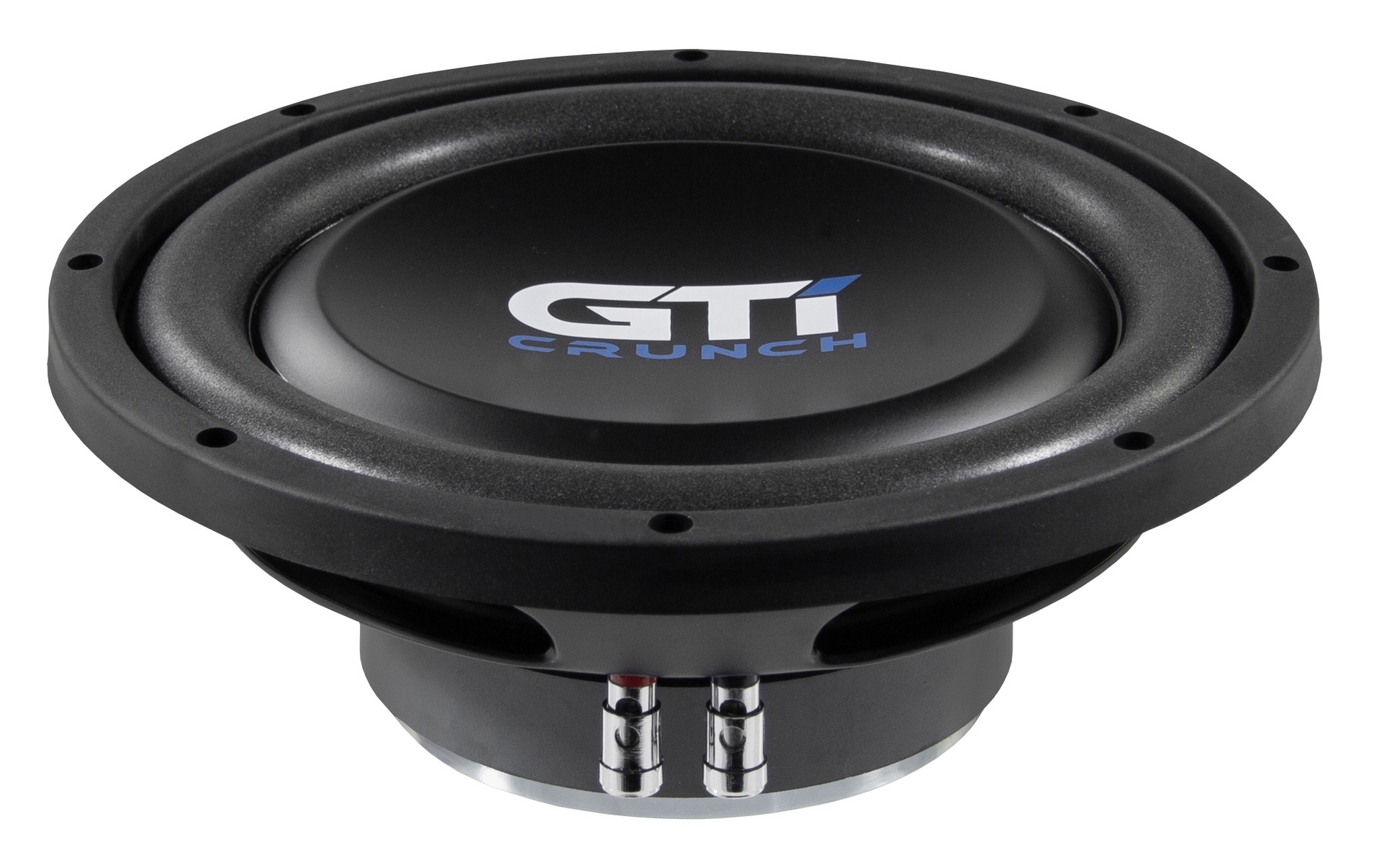

CRUNCH GTi104
4Ω
Shallow Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 35 Hz |
| Q factor | 0.59 |
| Sensitivity | 84.5 dB |
| Linear excursion | ± 18 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 8.22
- Electrical quality factor QES 0.64
- Total quality factor QTS 0.59
Large signal parameters
- Maximum linear excursion (one way) xmax 18mm
- Air volume displaced at xmax VD 635cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.8Ω
- Inductance (1kHz, estimated) LE 2.34mH
- VC Diameter 50mm
Magnet
- Force factor Bl 13.9N/A
- Motor constant Bl/√RE 7.13N/√W
Diaphragm
- Effective diameter 212mm
- Effective area SD 353cm²
- Moving mass MMS 148g
- Moving mass (without air load) MMD 143g
Suspensions
- Stiffness KMS 7.09N/mm
- Compliance CMS 141µm/N
- Equivalent volume to the compliance VAS 24.9L
- Mechanical resistance RMS 3.95N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 260mm
- Baffle cutout diameter 232mm
- Mounting depth 89mm
- Volume occupied by the driver (estimated) 1.6L
