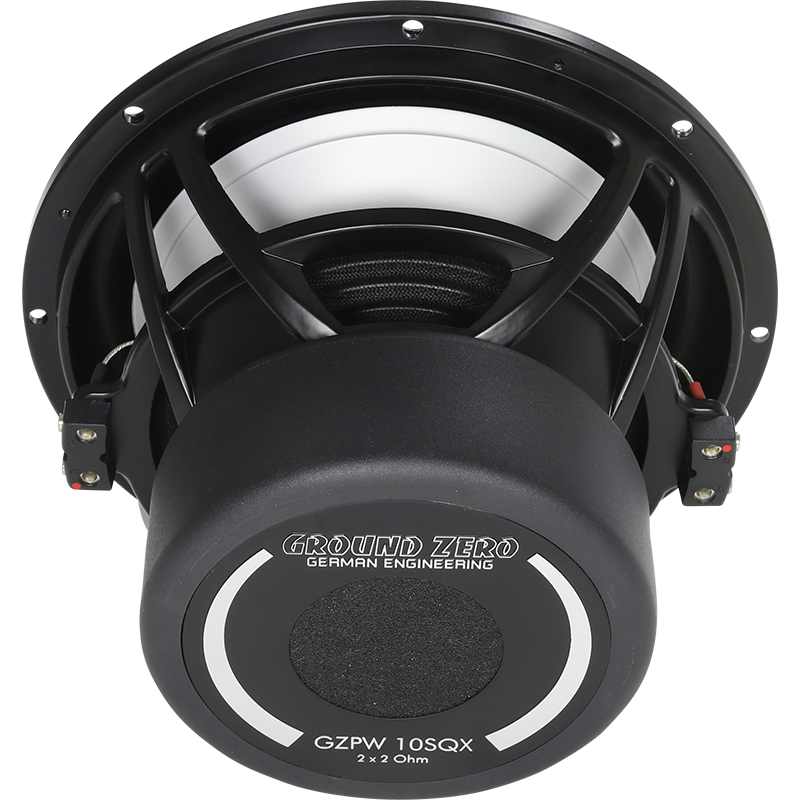

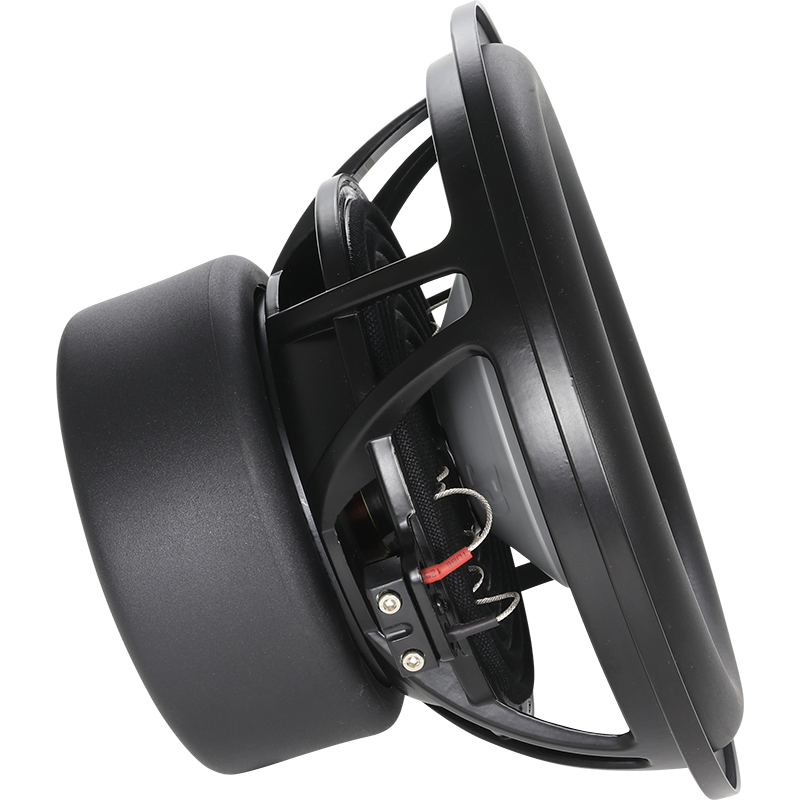

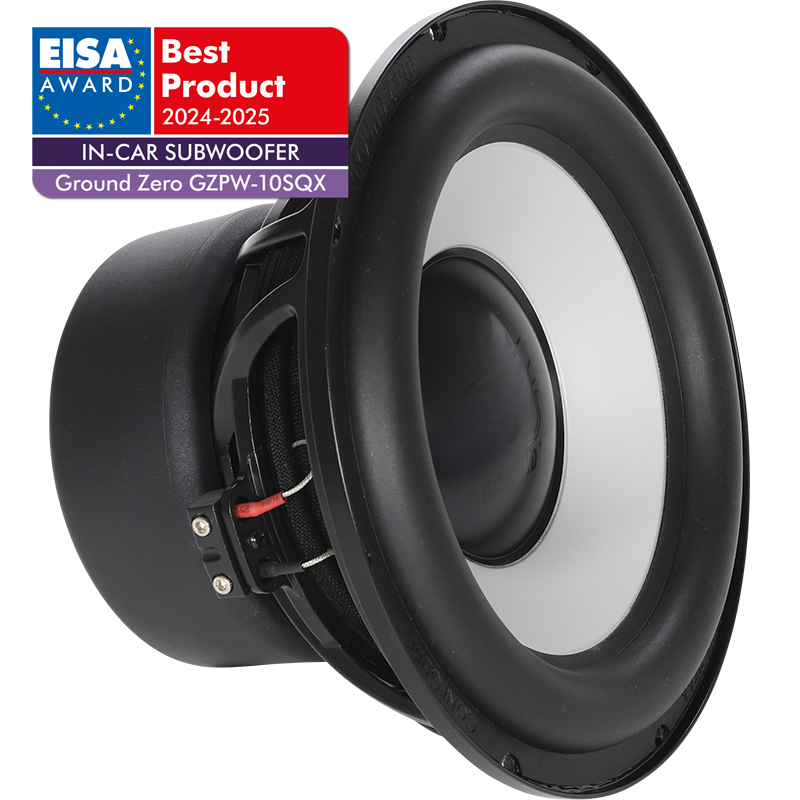

Ground Zero PLUTONIUM GZPW 10SQX
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 36 Hz |
| Q factor | 0.59 |
| Sensitivity | 84.2 dB |
| Linear excursion | ± 18 mm |
| Program Power | 800 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.2dB
- Frequency response 20 - 350Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36Hz
- Mechanical quality factor QMS 10.78
- Electrical quality factor QES 0.63
- Total quality factor QTS 0.59
Large signal parameters
- Maximum linear excursion (one way) xmax 18mm
- Air volume displaced at xmax VD 622cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.9Ω
- Inductance (1kHz, in series) LE 1.83mH
- VC Diameter 50mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 14.7N/A
- Motor constant Bl/√RE 7.44N/√W
- Diameter 155mm
- Material Ferrite
Diaphragm
- Effective diameter 210mm
- Effective area SD 345cm²
- Moving mass MMS 155g
- Moving mass (without air load) MMD 150g
- Material Aluminium
Suspensions
- Stiffness KMS 7.69N/mm
- Compliance CMS 130µm/N
- Equivalent volume to the compliance VAS 22L
- Mechanical resistance RMS 3.21N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 263mm
- Baffle cutout diameter 236mm
- Overall depth 162mm
- Flange thickness 14mm
- Mounting depth 148mm
- Volume occupied by the driver (estimated) 2.3L
- Frame material Cast Aluminium
