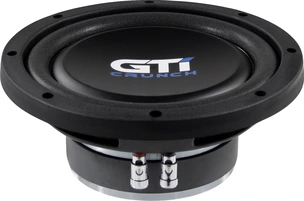

CRUNCH GTi84 Shallow Subwoofer

CRUNCH GTi84

4 Ω
8″ Shallow Subwoofer
fS42 Hz
SD214 cm²
QTS0.62
xmax15 mm
SPL1W83.2 dB
Bl/√RE5.75
Pmax400 W
CRUNCH GTi124 Shallow Subwoofer

CRUNCH GTi124

4 Ω
12″ Shallow Subwoofer
fS28 Hz
SD525 cm²
QTS0.68
xmax18 mm
SPL1W84.6 dB
Bl/√RE7.34
Pmax600 W

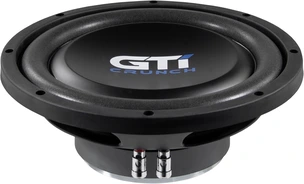

CRUNCH GTi104 Shallow Subwoofer

CRUNCH GTi104

4 Ω
10″ Shallow Subwoofer
fS35 Hz
SD353 cm²
QTS0.59
xmax18 mm
SPL1W84.5 dB
Bl/√RE7.13
Pmax500 W
