EUPHORIA EWX6NEO

2x4Ω

Subwoofer

Nominal diameter	6.5″ / 182 mm
Resonance	51 Hz
Q factor	0.61
Sensitivity	77.9 dB
Program Power	500 W

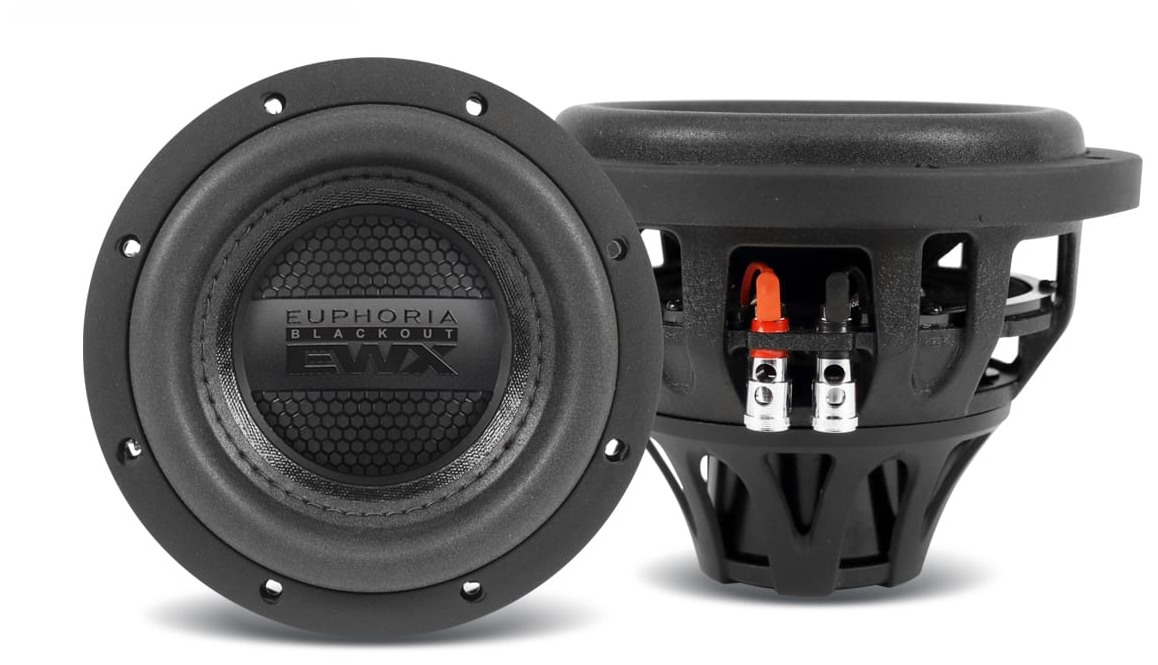

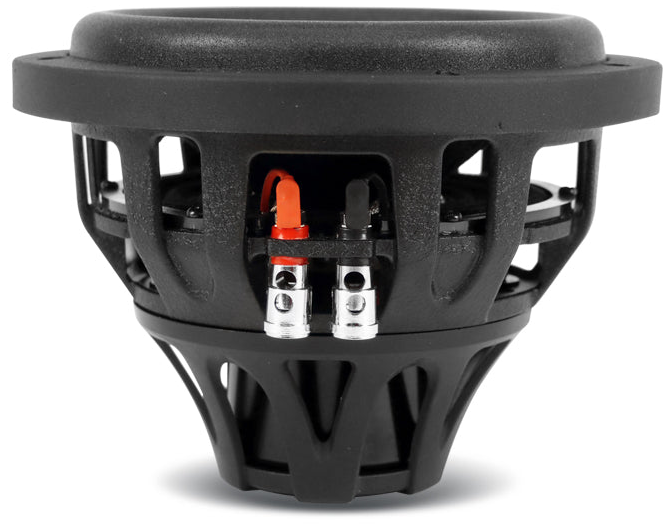

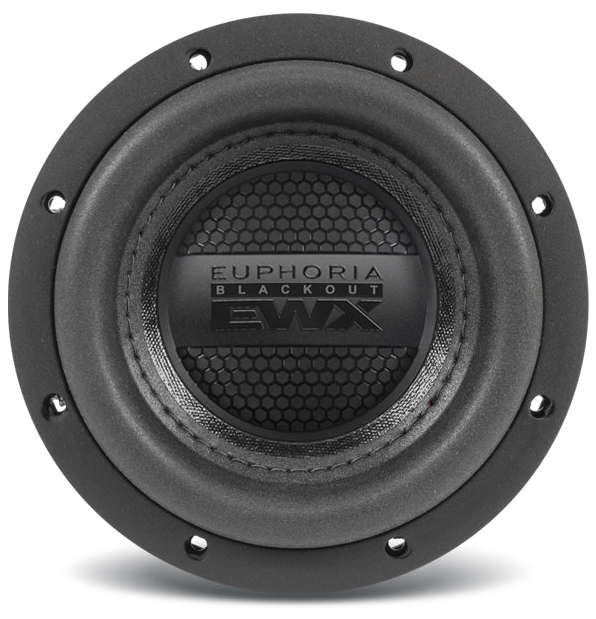

EUPHORIA EWX6NEO Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 77.9dB

Thiele & Small parameters

Resonance frequency (free air) fS 51Hz
Mechanical quality factor QMS 2.08
Electrical quality factor QES 0.86
Total quality factor QTS 0.61

Large signal parameters

Power handling P 250W
Program power Pmax 500W

Voice Coil

Nominal impedance Z 2 x 4Ω
DC resistance (in series) RE 6.4Ω
Inductance (1kHz, in series, estimated) LE 3.33mH
VC Diameter 38.1mm

Magnet

Force factor (in series) Bl 16.5N/A
Motor constant Bl/√RE 6.52N/√W
Material Neodymium

Diaphragm

Effective diameter 135mm
Effective area SD 143cm²
Moving mass MMS 115g
Moving mass (without air load) MMD 113g

Suspensions

Stiffness KMS 11.8N/mm
Compliance CMS 84.9µm/N
Equivalent volume to the compliance VAS 2.47L
Mechanical resistance RMS 17.7N·s/m

Dimensions

Nominal diameter 6.5″
182mm
Overall diameter 182mm
Baffle cutout diameter 151mm
Mounting depth 107mm
Volume occupied by the driver (estimated) 0.64L

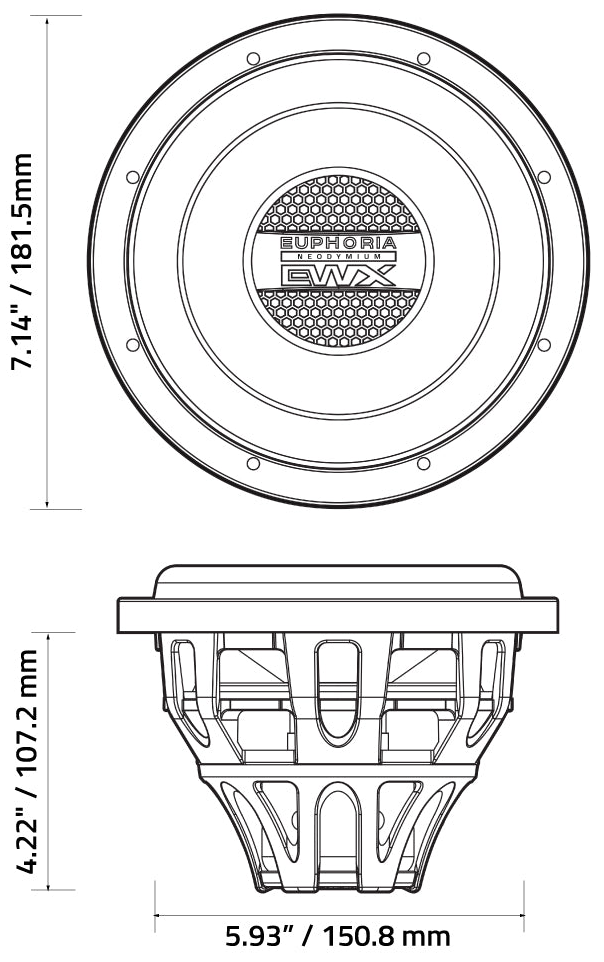

EUPHORIA EWX6NEO Dimensions
